◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#37946) — 47 parça

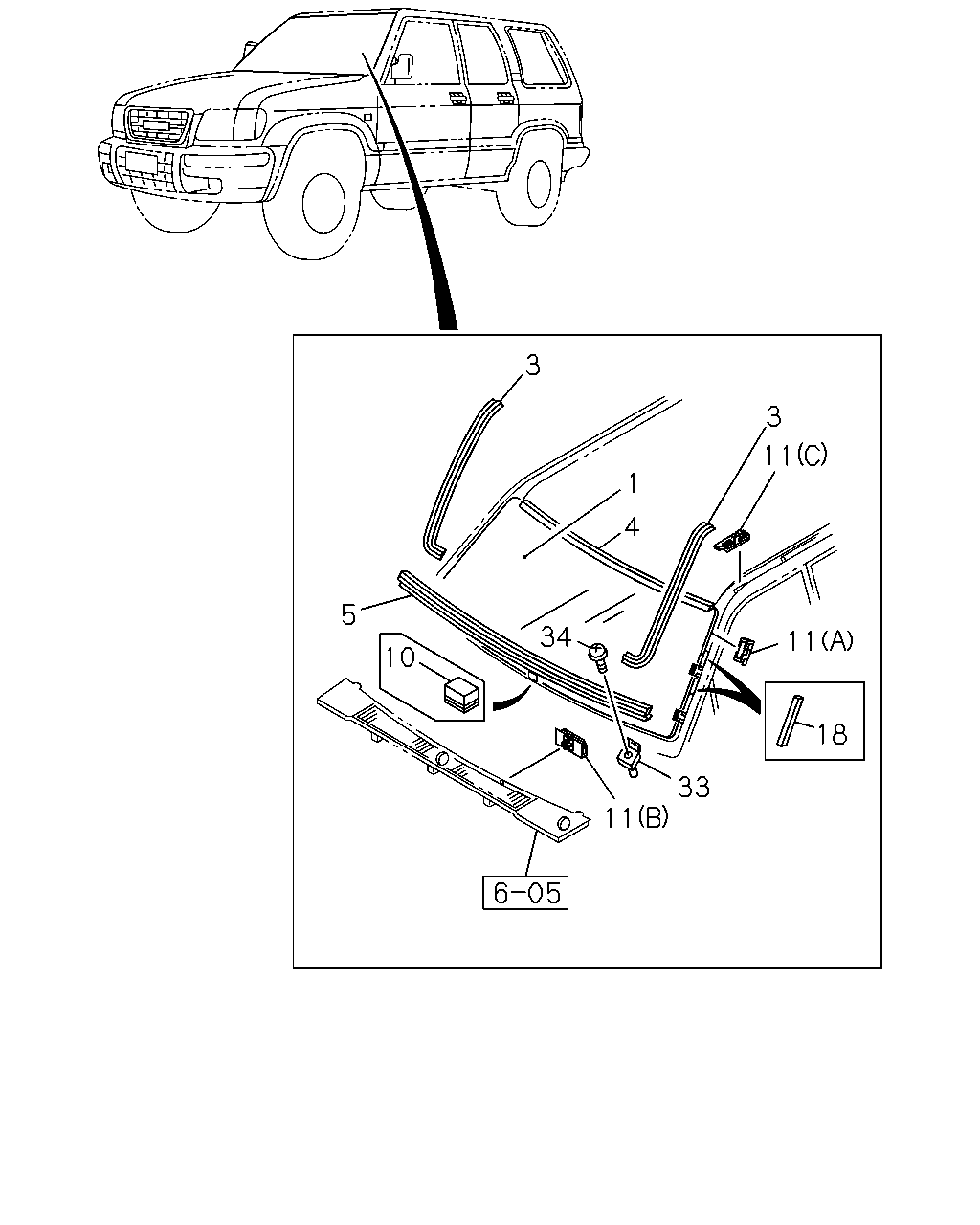

çizim 69457
3 3 11 1 4 5 34 11 10 18 33 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) 		8-97103-159-3 01 1 9712-9905 ● ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97103-159-3 01 1 9906-0007 ● ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97103-159-3 01 1 0008-0105 ● ●
1 16.005 GLASS; WINDSHIELD 8-97103-159-3 01 1 0008-0105 ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97103-159-3 01 1 0106-0211 ● ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) 		8-97103-159-3 01 1 0106-0211 ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97361-492-0 01 1 0212- ● ●
1 16.005 GLASS; WINDSHIELD
GLASS ALL BRONZE(X72) 		8-97361-492-0 01 1 0212- ●
1 16.005 GLASS; WINDSHIELD
GLASS LAMINATED TINTED(YM4) 		8-97121-768-2 01 1 9712-9905 ● ●
1 16.005 GLASS; WINDSHIELD
GLASS LAMINATED TINTED(YM4) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97121-768-2 01 1 9906-0105 ● ●
1 16.005 GLASS; WINDSHIELD
UV CUT GLASS(7UY) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97121-768-2 01 1 0106-0211 ● ●
1 16.005 GLASS; WINDSHIELD
UV CUT GLASS(7UY) 		8-97121-768-2 01 1 0106-0211 ●
1 16.005 GLASS; WINDSHIELD
UV CUT GLASS(7UY) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97361-495-0 01 1 0212- ● ●
1 16.005 GLASS; WINDSHIELD
UV CUT GLASS(7UY) 		8-97361-495-0 01 1 0212- ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(EU2) GLASS ALL BRONZE(X72) 		8-97219-130-1 01 1 9906- ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(EU2) GLASS LAMINATED TINTED(YM4) 		8-97121-769-2 01 1 9906-0105 ● ●
1 16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(EU2) UV CUT GLASS(7UY) 		8-97121-769-3 01 1 0106- ● ●
3 16.470 MOLDING; WINDSHIELD 8-97143-247-0 01 1 9712-9802 ● ●
3 16.470 MOLDING; WINDSHIELD 8-94358-797-6 01 1 9803-0007 ● ●
3 16.470 MOLDING; WINDSHIELD 8-94358-797-6 01 1 0008-0212 ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97360-912-0 01 1 0301- ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97143-246-0 01 1 9712-9802 ● ●
3 16.470 MOLDING; WINDSHIELD 8-94358-796-6 01 1 9803-0007 ● ●
3 16.470 MOLDING; WINDSHIELD 8-94358-796-6 01 1 0008-0212 ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97360-911-0 01 1 0301- ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-97147-200-0 01 1 9712-0007 ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-97147-200-0 01 1 0008-0212 ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-97360-910-0 01 1 0301- ● ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-97811-431-0 01 1 9712-0007 ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-97811-431-0 01 1 0008-0212 ● ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-97360-913-0 01 1 0301- ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 07 1 9712-0007 ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 07 1 0008- ● ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(A) 		8-97134-978-0 10 1 9712-0007 ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(A) 		8-97134-978-0 10 1 0008- ● ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(B) 		8-97803-159-5 04 1 9712-0007 ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(B) 		8-97803-159-5 04 1 0008- ● ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-738-3 01 1 9712-0007 ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-738-3 01 1 0008- ● ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-737-3 01 1 9712-0007 ● ●
11 16.041 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-737-3 01 1 0008- ● ● ●
18 16.041 SEAL; WINDSHIELD 8-97161-712-0 04 1 9712-0007 ● ●
18 16.041 SEAL; WINDSHIELD 8-97161-712-0 04 1 0008- ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR 8-97807-477-0 02 1 9712-0007 ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR 8-97807-477-0 02 1 0008- ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X16 		8-97805-189-0 02 1 9712-0007 ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X16 		8-97805-189-0 02 1 0008- ● ● ●
