◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#37945) — 99 parça

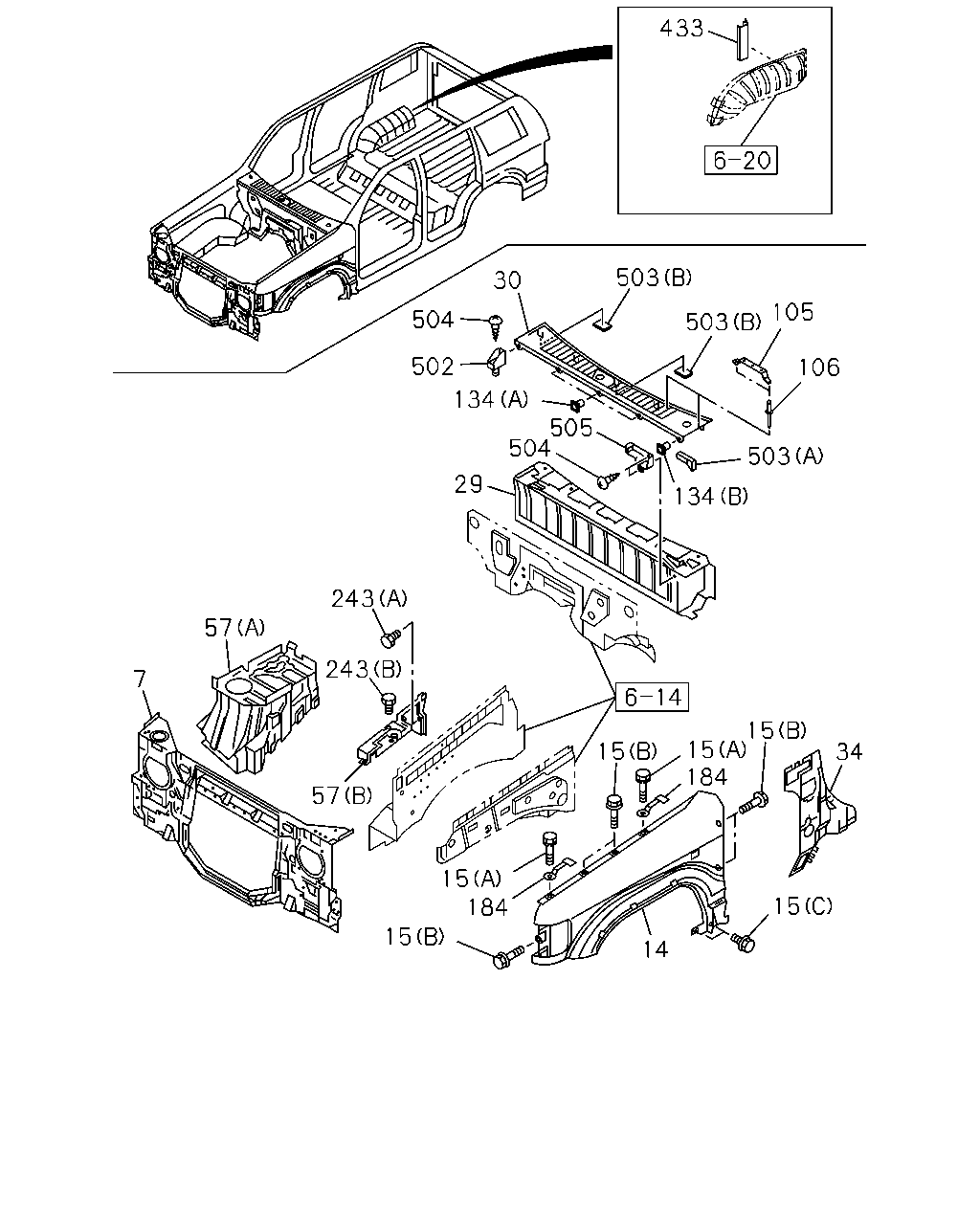

çizim 69005
433 503 30 105 504 503 502 106 134 505 504 503 29 134 243 57 243 7 15 15 184 15 34 57 15 184 15 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
7 01.271 PANEL; DEFLECTOR 8-97125-459-0 01 1 9712-0007 ● ●
7 01.271 PANEL; DEFLECTOR 8-97125-459-0 01 1 0008- ● ● ●
14 08.130 FENDER; FRT
EXC. EUROPE EQUIPMENT(EK4) 		8-97306-356-0 01 1 9712-0105 ●
14 08.130 FENDER; FRT
EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,OVER FENDER<6GH>,SIDE TURN SIGNAL LAMP<7XY> 		8-97306-356-0 01 1 0106- ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97184-450-0 01 1 9712-0005 ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97184-450-0 01 1 0006-0007 ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97184-450-0 01 1 0008-0011 ● ●
14 08.130 FENDER; FRT 8-97184-450-0 01 1 0008-0011 ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> EXC. OVER FENDER<6GH>,SIDE TURN SIGNAL LAMP<7XW> 		8-97184-450-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> EXC. OVER FENDER<6GH>,SIDE TURN SIGNAL LAMP<7XY> 		8-97184-450-0 01 1 0105- ● ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4) 		8-97175-071-0 01 1 9712-0005 ● ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97175-071-0 01 1 0006-0007 ● ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),ARGENTINA EQUIPMENT(7SZ) 		8-97175-071-0 01 1 0008-0011 ● ●
14 08.130 FENDER; FRT 8-97175-071-0 01 1 0008-0011 ●
14 08.130 FENDER; FRT
OVER FENDER<6GH> SIDE TURN SIGNAL LAMP<7XW> 		8-97175-071-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT 8-97175-071-0 01 1 0012-0104 ●
14 08.130 FENDER; FRT
OVER FENDER<6GH> SIDE TURN SIGNAL LAMP<7XY> 		8-97175-071-0 01 1 0105- ● ●
14 08.130 FENDER; FRT 8-97175-071-0 01 1 0105- ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4) 		8-97175-064-0 01 1 9712-0005 ● ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97175-064-0 01 1 0006-0007 ● ●
14 08.130 FENDER; FRT
EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),ARGENTINA EQUIPMENT(7SZ) 		8-97175-064-0 01 1 0008-0011 ● ●
14 08.130 FENDER; FRT 8-97175-064-0 01 1 0008-0011 ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> OVER FENDER<6GH> SIDE TURN SIGNAL LAMP<7XW> 		8-97175-064-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT 8-97175-064-0 01 1 0012-0104 ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> OVER FENDER<6GH> SIDE TURN SIGNAL LAMP<7XY> 		8-97175-064-0 01 1 0105- ● ●
14 08.130 FENDER; FRT 8-97175-064-0 01 1 0105- ●
14 08.130 FENDER; FRT
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97184-453-0 01 1 9712-0005 ● ●
14 08.130 FENDER; FRT
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97184-453-0 01 1 0006-0007 ● ●
14 08.130 FENDER; FRT
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97184-453-0 01 1 0008-0011 ● ●
14 08.130 FENDER; FRT 8-97184-453-0 01 1 0008-0011 ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<6GH>,SIDE TURN SIGNAL LAMP<7XW> 		8-97184-453-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<6GH>,SIDE TURN SIGNAL LAMP<7XY> 		8-97184-453-0 01 1 0105- ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> CHINA EQUIPMENT(YT2) 		8-97175-065-0 01 1 9712-9712 ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97175-065-0 01 1 9801-0005 ●
14 08.130 FENDER; FRT
NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2) ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 		8-97175-065-0 01 1 0006-0011 ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> SIDE TURN SIGNAL LAMP<7XW> EXC. OVER FENDER<6GH> 		8-97175-065-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT
ANTENNA MANUAL<U73>,ANTENNA POWER<U75> SIDE TURN SIGNAL LAMP<7XY> EXC. OVER FENDER<6GH> 		8-97175-065-0 01 1 0105- ● ●
14 08.130 FENDER; FRT
CHINA EQUIPMENT(YT2) 		8-97175-076-0 01 1 9712-9712 ●
14 08.130 FENDER; FRT
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97175-076-0 01 1 9801-0005 ●
14 08.130 FENDER; FRT
NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2) 		8-97175-076-0 01 1 0006-0011 ●
14 08.130 FENDER; FRT
SIDE TURN SIGNAL LAMP<7XW> EXC. OVER FENDER<6GH> 		8-97175-076-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT
SIDE TURN SIGNAL LAMP<7XY> EXC. OVER FENDER<6GH> 		8-97175-076-0 01 1 0105- ● ●
14 08.130 FENDER; FRT
CHINA EQUIPMENT(YT2) EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 		8-97175-062-0 01 1 9712-0011 ●
14 08.130 FENDER; FRT
SIDE TURN SIGNAL LAMP<7XW> EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,OVER FENDER<6GH> 		8-97175-062-0 01 1 0012-0104 ● ●
14 08.130 FENDER; FRT
SIDE TURN SIGNAL LAMP<7XY> EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,OVER FENDER<6GH> 		8-97175-062-0 01 1 0105- ● ●
15 08.143 BOLT; FENDER
00.738 (A) M6X16 FLANGE 		0-28080-616-0 04 1 9712-0007 ● ●
15 08.143 BOLT; FENDER
00.738 (A) M6X16 FLANGE 		0-28080-616-0 04 1 0008-0112 ● ● ●
15 08.143 BOLT; FENDER
00.738 (A) M6X16 FLANGE 		0-28080-616-0 02 1 0201- ● ● ●
15 08.143 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 12 1 9712-0007 ● ●
15 08.143 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 12 1 0008-0112 ● ● ●
15 08.143 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 14 1 0201- ● ● ●
15 08.143 BOLT; FENDER
16.545 (C) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9712-0007 ● ●
15 08.143 BOLT; FENDER
16.545 (C) M6X20 W/PL WASHER 		8-97808-622-0 04 1 0008- ● ● ●
29 16.125 COWL ASM
AIR BAG DRIVER<AJ3> 		8-97132-956-1 01 1 9712-0104 ● ●
29 16.125 COWL ASM
AIR BAG DRIVER<AJ3> 		8-97300-116-0 01 1 0105- ● ●
29 16.125 COWL ASM
EXC. AIR BAG DRIVER<AJ3> 		8-97132-955-1 01 1 9712-0007 ● ●
29 16.125 COWL ASM
EXC. AIR BAG DRIVER<AJ3> 		8-97132-955-1 01 1 0008-0104 ● ●
29 16.125 COWL ASM 8-97132-955-1 01 1 0008-0104 ●
29 16.125 COWL ASM
EXC. AIR BAG DRIVER<AJ3> 		8-97300-115-0 01 1 0105- ● ●
29 16.125 COWL ASM 8-97300-115-0 01 1 0105- ●
30 16.125 PANEL; COWL UPR 8-97177-031-1 01 1 9712-0007 ● ●
30 16.125 PANEL; COWL UPR 8-97177-031-1 01 1 0008- ● ● ●
34 16.570 PANEL; DASH SIDE 8-97093-865-3 01 1 9712-0007 ● ●
34 16.570 PANEL; DASH SIDE 8-97093-865-3 01 1 0008- ● ● ●
34 16.570 PANEL; DASH SIDE 8-97093-864-3 01 1 9712-0007 ● ●
34 16.570 PANEL; DASH SIDE 8-97093-864-3 01 1 0008- ● ● ●
57 02.333 TRAY; BATTERY
(A) 		8-97137-900-0 01 1 9712-0007 ● ●
57 02.333 TRAY; BATTERY
(A) 		8-97137-900-0 01 1 0008-0012 ● ● ●
57 02.333 TRAY; BATTERY
(A) 		8-97286-924-0 01 1 0101- ● ● ●
57 02.333 TRAY; BATTERY
FRIGID ZONE<YL3> (B) 		8-97168-613-0 01 1 9712-0007 ● ●
57 02.333 TRAY; BATTERY
FRIGID ZONE<YL3> (B) 		8-97168-613-0 01 1 0008- ● ● ●
105 08.228 BRACKET; VIN PLATE
SAUDI ARABIA EQUIPMENT(EU2) 12.804 		8-97103-393-2 01 1 9906- ● ●
106 08.808 RIVET; VIN PLATE BRKT
SAUDI ARABIA EQUIPMENT(EU2) 10.571 		8-94153-449-0 02 1 9906- ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
02.708 (B) 		8-97802-935-2 04 1 9712-0007 ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
02.708 (B) 		8-97802-935-2 04 1 0008- ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 03 1 9712-0007 ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 03 1 0008-0104 ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 04 1 0105- ● ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 04 1 9712-0007 ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 04 1 0008-0112 ● ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 02 1 0201- ● ● ●
243 02.334 BOLT; BATTERY TRAY
FRIGID ZONE<YL3> (A) M6X16 W/PL WASHER 		8-97803-781-0 04 1 9712-0007 ● ●
243 02.334 BOLT; BATTERY TRAY
FRIGID ZONE<YL3> (A) M6X16 W/PL WASHER 		8-97803-781-0 04 1 0008- ● ● ●
243 02.334 BOLT; BATTERY TRAY
FRIGID ZONE<YL3> (B) 		8-97803-782-0 03 1 9712-0007 ● ●
243 02.334 BOLT; BATTERY TRAY
FRIGID ZONE<YL3> (B) 		8-97803-782-0 03 1 0008- ● ● ●
433 08.153 BRACKET; FILLER NECK PROTECTOR 8-97810-390-0 01 1 9712-0007 ● ●
433 08.153 BRACKET; FILLER NECK PROTECTOR 8-97810-390-0 01 1 0008- ● ● ●
502 16.125 STOPPER; COWL 8-97801-409-5 05 1 9712-0007 ● ●
502 16.125 STOPPER; COWL 8-97801-409-5 05 1 0008- ● ● ●
503 16.125 RUBBER; SEAL,COWL
(A) 		8-97806-581-1 02 1 9712-0007 ● ●
503 16.125 RUBBER; SEAL,COWL
(A) 		8-97806-581-1 02 1 0008- ● ● ●
503 16.125 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9712-0007 ● ●
503 16.125 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 0008- ● ● ●
504 16.125 SCREW; COWL
08.133 M6X16 		8-97805-189-0 12 1 9712-0007 ● ●
504 16.125 SCREW; COWL
08.133 M6X16 		8-97805-189-0 12 1 0008- ● ● ●
505 16.125 BRACKET; COWL COVER 8-97806-835-1 01 1 9712-0007 ● ●
505 16.125 BRACKET; COWL COVER 8-97806-835-1 01 1 0008- ● ● ●
505 16.125 BRACKET; COWL COVER 8-97806-834-1 01 1 9712-0007 ● ●
505 16.125 BRACKET; COWL COVER 8-97806-834-1 01 1 0008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
