Sayfa 3-20 - Isuzu EPC

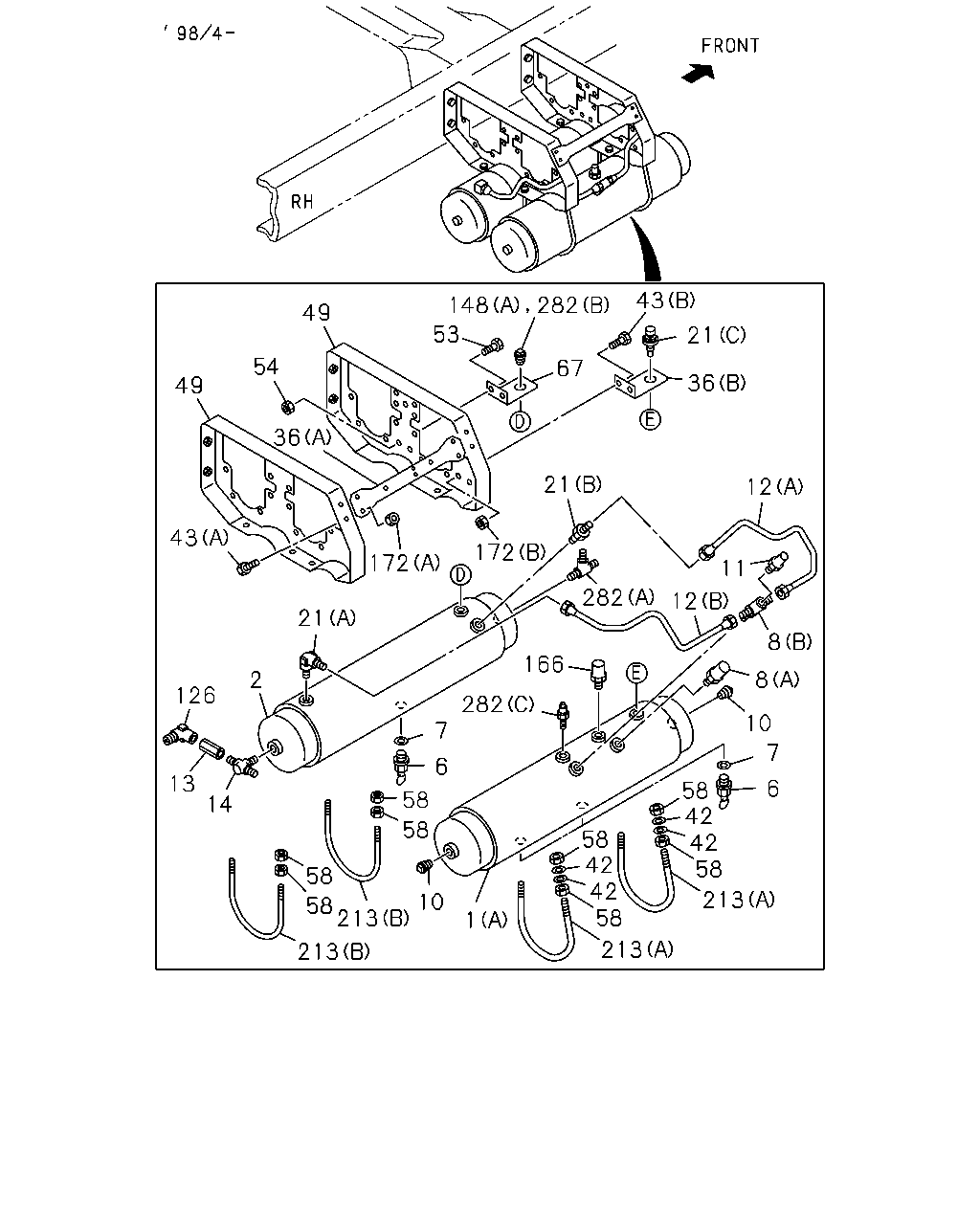

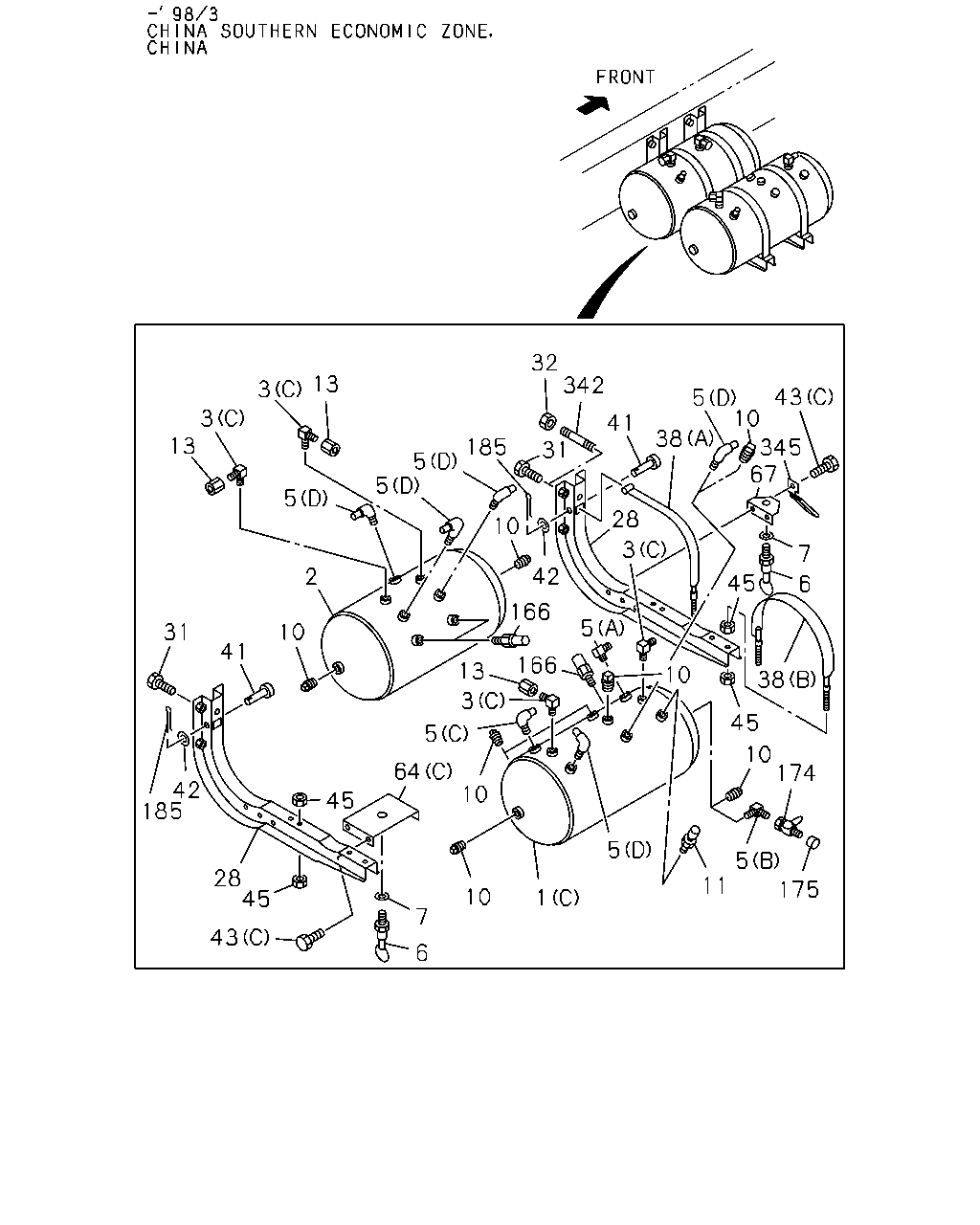

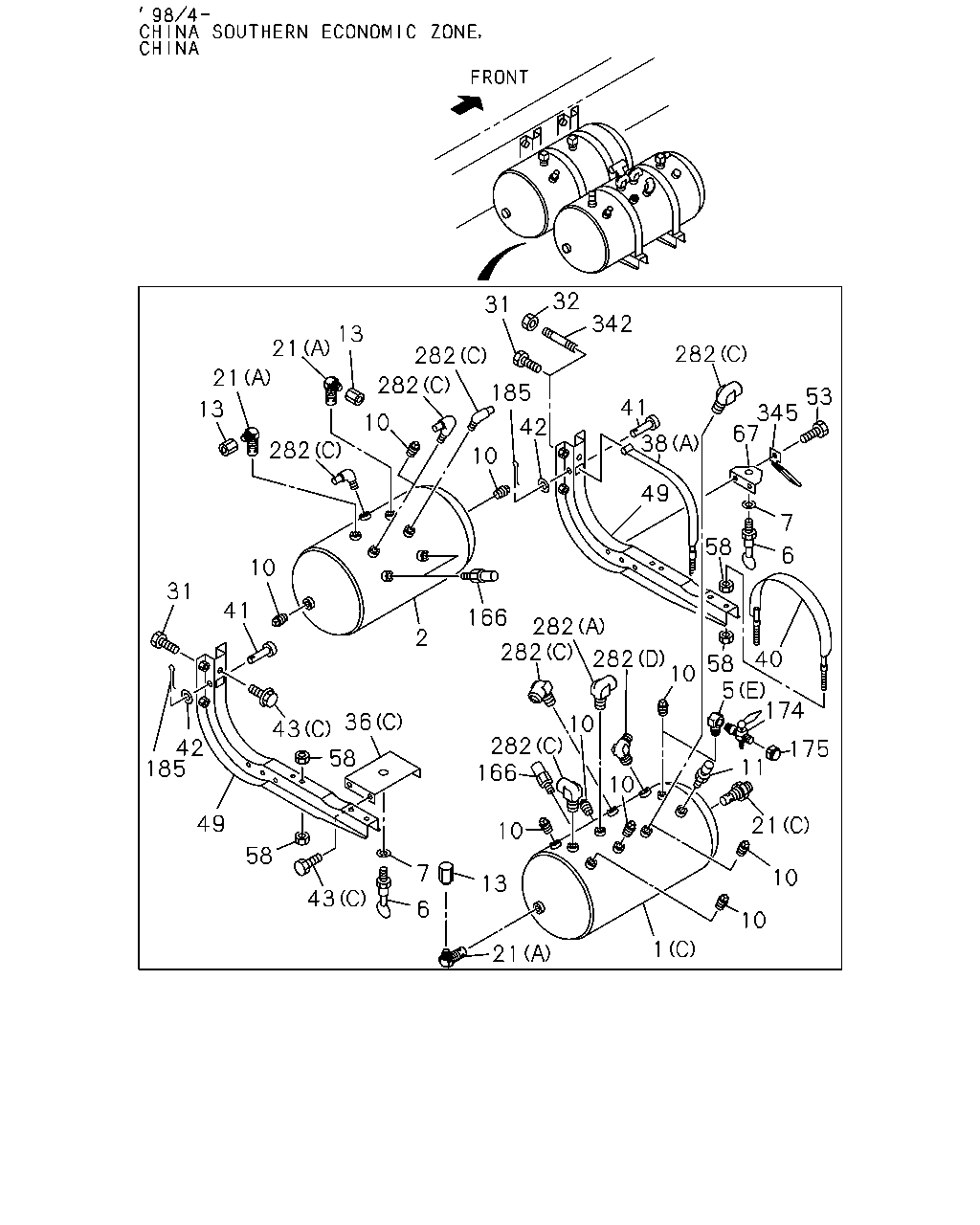

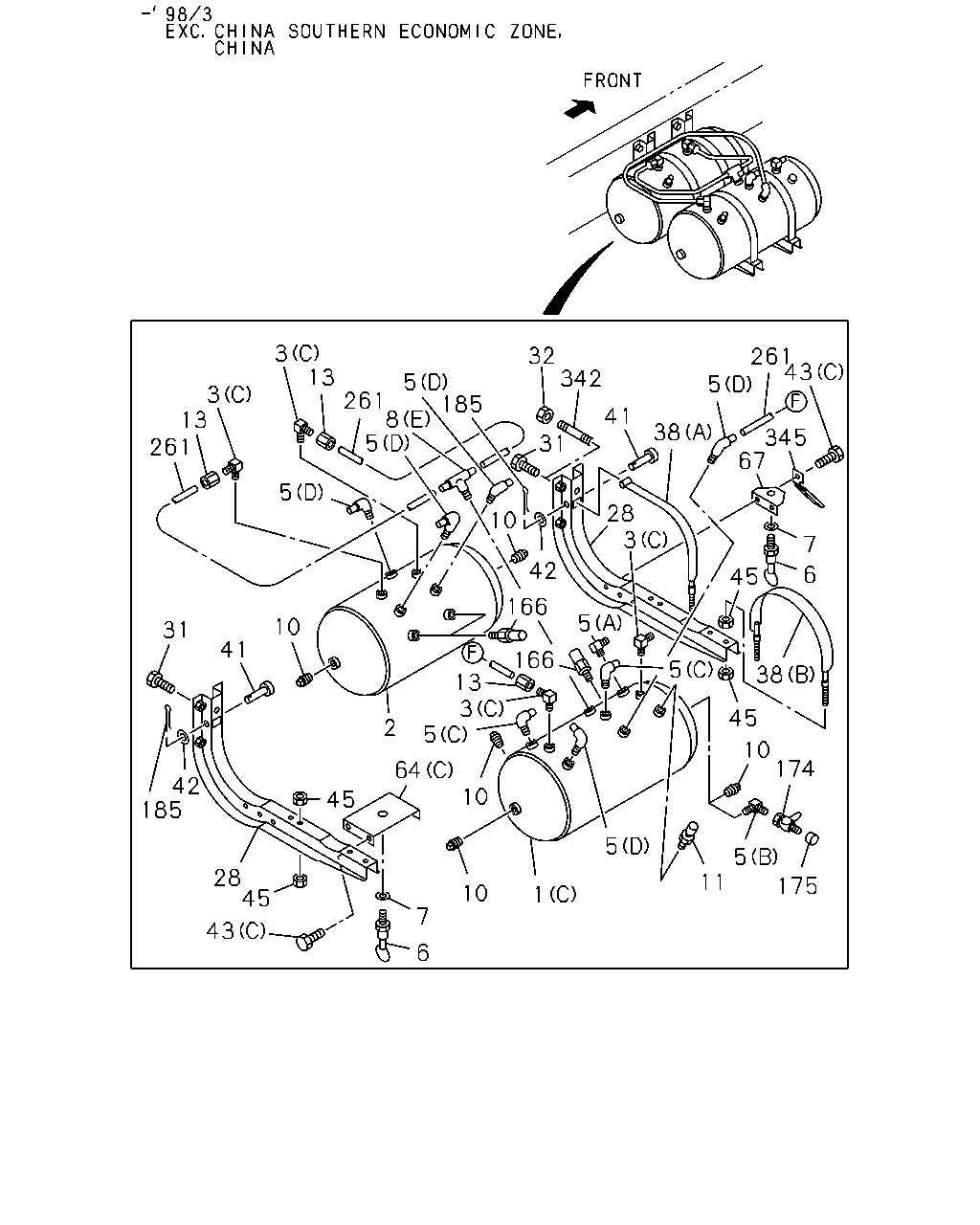

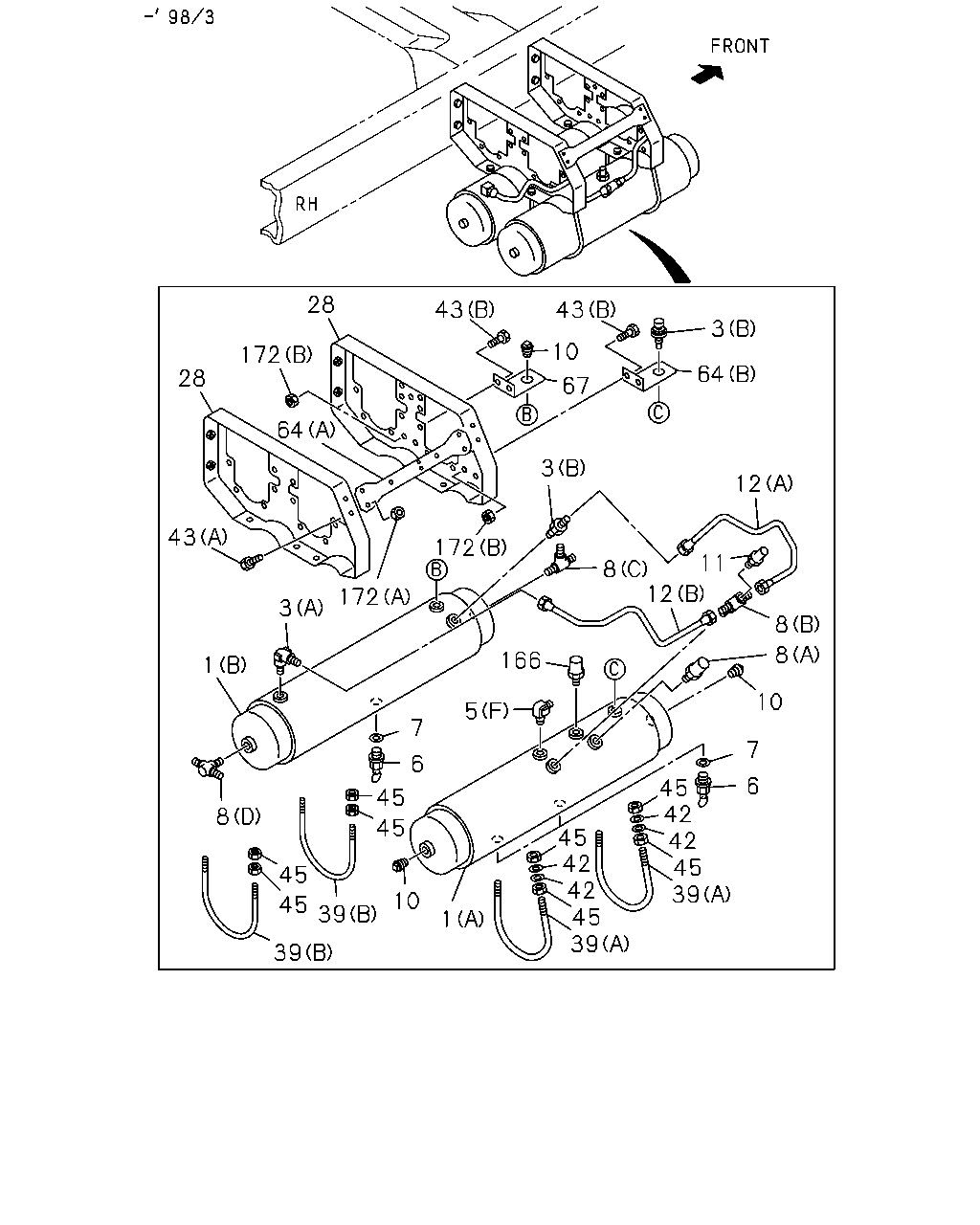

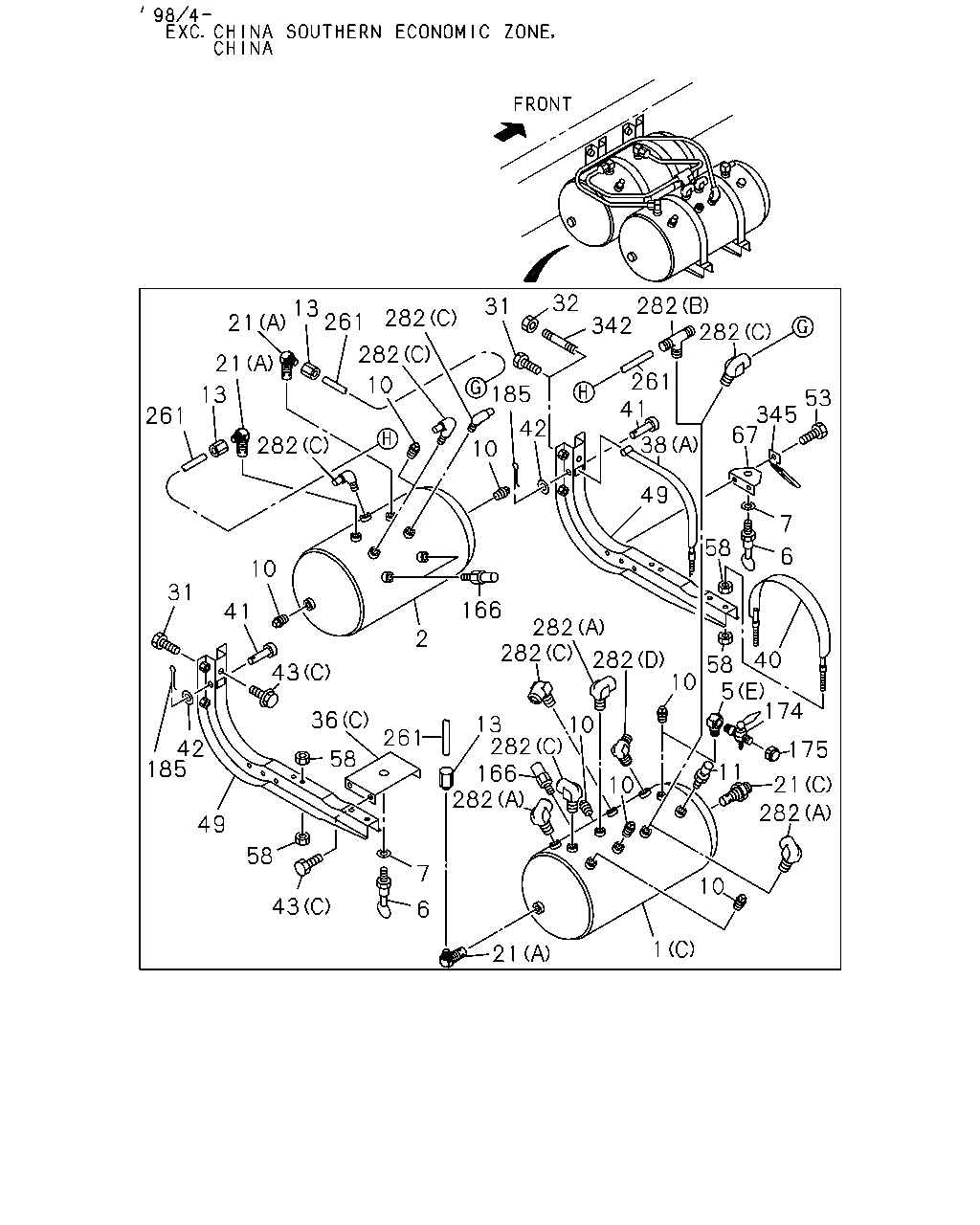

3-20 — AIR TANK (#3794) — 972 parça

32 282 342 282 31 13 261 282 21 282 21 261 41 10 185 13 53 345 67 261 42 282 38 10 49 7 58 6 10 31 166 41 282 282 2 282 10 40 58 5 174 43 36 13 10 282 166 282 261 42 185 175 58 11 21 282 10 49 58 7 10 43 6 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-181-1	01	1	9601-0004	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-272-0	01	1	9804-0004		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9804-0004	●	●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9804-0004		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-0607	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0608-	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 FLANGE	0-28651-240-0	07	1	0608-		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-9806	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9804-9806		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9807-0004	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9807-0004		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0603-0607	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0608-	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12 FLANGE	0-91280-112-0	01	1	0608-		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9804-0004	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9804-0004	●	●
36	STAY; MAIN TANK (C)	1-48317-607-0	01	1	0005-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9804-0004		●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9804-0004		●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9601-0004	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9601-9803	●	●
40	BAND ASM; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-109-2	02	1	9804-0004	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0005-	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9601-0004	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
49	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9804-0004	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0005-	●	●
49	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-6	02	1	9804-0004		●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9804-0004	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0512	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9804-0004		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9601-0004	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0004	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●
261	TUBE; NYLON EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212		●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-	●
261	TUBE; NYLON EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9804-0004	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004		●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-9806	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9804-9806		●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9807-0004	●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9807-0004		●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0604	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-0607	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0608-	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 L=64	0-43211-240-0	01	1	0608-		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9607-0004	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●

3 13 261 8 5 2 342 261 43 5 5 185 3 13 261 41 38 345 67 31 5 28 3 10 7 42 6 45 166 5 10 31 41 166 5 38 13 3 5 45 2 10 174 64 42 185 10 45 5 5 28 45 11 175 10 1 7 43 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-181-1	01	1	9601-0004	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-272-0	01	1	9804-0004		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4 ELBOW	1-48410-134-3	04	1	9601-9803	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48410-133-2	01	1	9601-9606		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-9803		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	02	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-283-1	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09656-699-0	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-702-0	01	1	9601-9803		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09656-703-0	01	1	9601-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9804-0004		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-4	02	1	9601-9803	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-5	02	1	9601-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-0607	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0608-	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 FLANGE	0-28651-240-0	07	1	0608-		●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9601-0004	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9601-9803	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9601-0004	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9601-9803	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9601-9803	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9601-9803		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9601-0004	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0004	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●
261	TUBE; NYLON EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212		●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-	●
261	TUBE; NYLON EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-		●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-9806	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9804-9806		●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9807-0004	●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9807-0004		●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0604	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-0607	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0608-	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 L=64	0-43211-240-0	01	1	0608-		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9607-0004	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●

28 43 43 3 10 172 64 28 67 64 3 12 43 172 11 8 12 172 3 8 8 166 1 10 5 7 7 6 6 45 42 42 45 39 45 8 45 45 42 42 45 39 45 10 45 39 1 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4 ELBOW	1-48410-134-3	04	1	9601-9803	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48410-133-2	01	1	9601-9606		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-9803		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	02	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-283-1	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09656-699-0	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-702-0	01	1	9601-9803		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09656-703-0	01	1	9601-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-011-0	01	1	9601-0004		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-012-0	01	1	9601-0004		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-4	02	1	9601-9803	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-5	02	1	9601-9803		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9601-9803		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9601-9803		●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9601-9803	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9601-9803	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9601-9803		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8	9-09110-408-0	04	1	9601-9702		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	04	1	9703-9803		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10	9-09110-510-0	04	1	9601-9702		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10 FLANGE	0-91150-210-0	04	1	9703-0004		●

111 111 111 95 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	VALVE; DOUBLE CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-050-0	01	1	9601-9902	●	●
95	VALVE; DOUBLE CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-531-0	01	1	9903-0004	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-1	01	1	0005-	●	●
111	CONNECTOR; CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	9601-9803	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0004	●
111	CONNECTOR; CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0004		●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-	●	●
111	CONNECTOR; CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9803	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004	●
111	CONNECTOR; CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004		●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-	●	●
121	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
121	BOLT; DOUBLE CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X14 FLANGE	0-28080-814-0	02	1	9601-9803	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9804-0512	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0601-0607	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0608-0711	●	●
121	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X20 FLANGE	0-28050-820-0	02	1	0712-	●	●

32 342 13 3 43 5 10 3 13 41 38 185 345 67 31 5 5 5 28 10 3 7 42 2 45 6 166 5 31 10 41 166 13 10 38 3 45 5 10 174 64 42 185 10 45 5 5 28 45 11 175 10 1 7 43 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-181-1	01	1	9601-0004	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-272-0	01	1	9804-0004		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4 ELBOW	1-48410-134-3	04	1	9601-9803	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48410-133-2	01	1	9601-9606		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-9803		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	02	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9804-0004		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-4	02	1	9601-9803	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-5	02	1	9601-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-0607	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0608-	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 FLANGE	0-28651-240-0	07	1	0608-		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-9806	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9804-9806		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9807-0004	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9807-0004		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0603-0607	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0608-	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12 FLANGE	0-91280-112-0	01	1	0608-		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9804-0004	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9601-0004	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9601-9803	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9601-0004	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9601-9803	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9601-9803	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9601-9803		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9601-9803		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9601-0004	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-9806	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9804-9806		●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9807-0004	●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9807-0004		●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0604	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-0607	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0608-	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 L=64	0-43211-240-0	01	1	0608-		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9607-0004	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●

32 31 342 13 21 282 282 21 282 185 53 345 67 10 41 13 42 38 282 10 49 7 58 6 10 31 41 166 282 282 2 282 10 40 58 5 174 36 10 282 166 43 42 185 175 11 58 10 49 21 10 58 7 10 13 43 6 10 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-181-1	01	1	9601-0004	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-272-0	01	1	9804-0004		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-9803		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9804-0004	●	●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9804-0004		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-9705		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9706-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9804-9806		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	07	1	9807-0004		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-0607	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0608-	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 FLANGE	0-28651-240-0	07	1	0608-		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-9806	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9804-9806		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9807-0004	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	01	1	9807-0004		●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0603-0607	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0608-	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12 FLANGE	0-91280-112-0	01	1	0608-		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9804-0004	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9804-0004	●	●
36	STAY; MAIN TANK (C)	1-48317-607-0	01	1	0005-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9804-0004		●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9804-0004		●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9601-0004	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9601-9803	●	●
40	BAND ASM; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-109-2	02	1	9804-0004	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0005-	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9601-0004	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
49	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9804-0004	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0005-	●	●
49	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-6	02	1	9804-0004		●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9804-0004	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0512	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9804-0004		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9601-0004	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9804-0004	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004		●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-9806	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9804-9806		●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9807-0004	●
342	STUD 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	01	1	9807-0004		●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0604	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-0607	●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0608-	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12X40 L=64	0-43211-240-0	01	1	0608-		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9607-0004	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●

43 148 49 53 21 54 67 36 49 36 21 12 43 172 172 11 282 12 21 8 166 2 8 126 282 10 7 7 6 13 6 58 42 42 58 58 14 58 58 42 42 58 58 213 10 58 213 1 213 213 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9804-0004	●	●
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	0005-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48330-598-0	01	1	9601-9803		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-513-0	01	1	9804-0004		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-272-0	01	1	9601-9803		●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-181-1	01	1	9601-0004	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-272-0	01	1	9804-0004		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	9601-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9601-0004		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	9607-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9609-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-283-1	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09656-699-0	01	1	9601-0004		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-702-0	01	1	9601-9803		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09656-703-0	01	1	9601-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	9804-0004		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	05	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9601-9609	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	02	1	9601-9609		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PT1/4	9-99204-513-0	02	1	9610-9803		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/4	9-09204-526-0	01	1	9804-0004	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8	9-09204-517-0	02	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	04	1	9601-9803		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	9804-0004	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	9804-0004		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	06	1	0005-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	9804-0004		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	07	1	9804-0004		●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	08	1	0005-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9804-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-011-0	01	1	9601-0004		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-012-0	01	1	9601-0004		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9804-0004		●
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-702-0	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT3/4	1-48410-136-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9804-0004	●	●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●	●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9804-0004		●
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9804-0004		●
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	9804-0004	●	●
36	STAY; MAIN TANK (C)	1-48317-607-0	01	1	0005-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9804-0004		●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9804-0004		●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9601-0004	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9601-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9803		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X20 FLANGE	0-28081-020-0	04	1	9601-9702		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0004		●
49	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9804-0004	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0005-	●	●
49	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-6	02	1	9804-0004		●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004		●
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9804-0004	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0512	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9804-0004		●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9601-0004	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9601-0004		●
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9804-0004		●
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT1/2 FLARE	9-09231-815-1	02	1	9804-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9601-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9601-0004		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8	9-09110-408-0	04	1	9601-9702		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	04	1	9703-9803		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10	9-09110-510-0	04	1	9601-9702		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10 FLANGE	0-91150-210-0	04	1	9703-0004		●
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9804-0004		●
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9804-0004	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●	●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9807-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-9806	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9807-0004		●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-	●
282	UNION; 2 WAY EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●
282	UNION; 2 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9601-9704	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9601-9704		●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9705-0004	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0004		●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9601-9704	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9601-9704		●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0004	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0004		●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-0110	●	●
244	PIPE; VINYL,EXH L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0111-	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	9601-0004	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9601-0004		●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0005-	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9601-0004	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9601-0004		●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0005-	●	●
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9601-0004		●

237 238 145 138 150 239 125 240 140 145 145 86 152 139 149 125 151 151 153 145 148 81 138 178 82 177 37 83 141 79 83 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9601-9601	●
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=203	1-53318-217-0	02	1	9601-9803	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-347-0	02	1	9804-0004	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	04	1	9601-9606	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9607-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-607-0	01	1	9601-9803	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-670-1	01	1	9804-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-608-0	01	1	9601-9803	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-671-2	01	1	9804-0004	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	04	1	9601-9606	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	9607-0004	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	10	1	9601-9606	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	10	1	9607-0004	●
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9601-0004	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9601-0004	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9601-0004	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	9601-0004	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	02	1	9601-9606	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9607-0004	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9601-0004	●
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9804-0004	●
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT1/2 FLARE	9-09231-815-1	02	1	9804-0004	●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=23 OD=27 L=40	1-09337-015-0	01	1	9601-0004	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	5-09707-031-1	01	1	9601-0004	●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	9601-0004	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9601-0004	●
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9601-0004	●
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=21	8-94242-034-0	01	1	9908-0004	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-019-2	01	1	9601-0004	●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9601-0004	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9601-0004	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9601-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
