Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#37933) — 213 parça

14 65 17 18 62 17 65 60 76 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	07.389 NUT; S/ABS,UPR EXC. EUROPE EQUIPMENT(EK4)	8-97120-140-0	02	1	9712-9902	●
14	07.389 NUT; S/ABS,UPR EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97120-140-0	02	1	9712-9902		●
14	07.389 NUT; S/ABS,UPR EUROPE EQUIPMENT(EK4) M10	8-94317-772-0	02	1	9712-9902	●	●
14	07.389 NUT; S/ABS,UPR SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4) M10	8-94317-772-0	02	1	9712-9902		●
14	07.389 NUT; S/ABS,UPR 04.785 M10 FLANGE	0-91150-110-0	02	1	9903-0007	●	●
14	07.389 NUT; S/ABS,UPR 04.785 M10 FLANGE	0-91150-110-0	02	1	0008-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-138-0	04	1	9712-0005	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97120-138-0	04	1	9712-0005		●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-138-0	04	1	0006-0007	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-138-0	04	1	0006-0007		●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-138-0	04	1	0008-0206	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-138-0	04	1	0008-0206		●
17	07.388 BUSHING; RUBBER,S/ABS	8-97120-138-0	04	1	0008-0206			●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-138-0	04	1	0207-	●
17	07.388 BUSHING; RUBBER,S/ABS CHINA EQUIPMENT(YT2) EXC. SUSPENSION RIDE & HANDLING<FE2>, WIDE TREAD SUSPENSION<7FC>	8-97120-138-0	04	1	0207-		●
17	07.388 BUSHING; RUBBER,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ)	8-97120-138-0	04	1	0207-		●
17	07.388 BUSHING; RUBBER,S/ABS	8-97120-138-0	04	1	0207-			●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4)	8-97036-284-0	04	1	9712-0005	●	●
17	07.388 BUSHING; RUBBER,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4)	8-97036-284-0	04	1	9712-0005		●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4)	8-97036-284-0	04	1	0006-0111	●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97036-284-0	04	1	0006-0111		●
17	07.388 BUSHING; RUBBER,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97036-284-0	04	1	0006-0111		●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4) TOKICO	9-51631-603-0	04	1	0112-0206	●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	9-51631-603-0	04	1	0112-0206		●
17	07.388 BUSHING; RUBBER,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	9-51631-603-0	04	1	0112-0206		●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4) TOKICO	9-51631-603-0	04	1	0207-	●
17	07.388 BUSHING; RUBBER,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) TOKICO	9-51631-603-0	04	1	0207-		●
17	07.388 BUSHING; RUBBER,S/ABS SUSPENSION RIDE & HANDLING<FE2> CHINA EQUIPMENT(YT2) EXC. WIDE TREAD SUSPENSION<7FC> TOKICO	9-51631-603-0	04	1	0207-		●
17	07.388 BUSHING; RUBBER,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	9-51631-603-0	04	1	0207-		●
17	07.388 BUSHING; RUBBER,S/ABS CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC> TOKICO	9-51631-603-0	04	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-137-0	02	1	9712-0005	●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97120-137-0	02	1	9712-0005		●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-137-0	02	1	0006-0007	●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-137-0	02	1	0006-0007		●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-137-0	02	1	0008-0206	●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-137-0	02	1	0008-0206		●
18	07.347 WASHER; CENTERING,S/ABS	8-97120-137-0	02	1	0008-0206			●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-137-0	02	1	0207-	●
18	07.347 WASHER; CENTERING,S/ABS CHINA EQUIPMENT(YT2) EXC. SUSPENSION RIDE & HANDLING<FE2>, WIDE TREAD SUSPENSION<7FC>	8-97120-137-0	02	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ)	8-97120-137-0	02	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS	8-97120-137-0	02	1	0207-			●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4)	8-97036-285-0	02	1	9712-0005	●	●
18	07.347 WASHER; CENTERING,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4)	8-97036-285-0	02	1	9712-0005		●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4)	8-97036-285-0	02	1	0006-0111	●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97036-285-0	02	1	0006-0111		●
18	07.347 WASHER; CENTERING,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97036-285-0	02	1	0006-0111		●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4) TOKICO	8-94412-791-0	02	1	0112-0206	●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	8-94412-791-0	02	1	0112-0206		●
18	07.347 WASHER; CENTERING,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	8-94412-791-0	02	1	0112-0206		●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4) TOKICO	8-94412-791-0	02	1	0207-	●
18	07.347 WASHER; CENTERING,S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) TOKICO	8-94412-791-0	02	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS SUSPENSION RIDE & HANDLING<FE2> CHINA EQUIPMENT(YT2) EXC. WIDE TREAD SUSPENSION<7FC> TOKICO	8-94412-791-0	02	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TOKICO	8-94412-791-0	02	1	0207-		●
18	07.347 WASHER; CENTERING,S/ABS CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC> TOKICO	8-94412-791-0	02	1	0207-		●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	9712-0007	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	0008-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4)	8-97120-036-1	02	1	9712-0005	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97120-036-1	02	1	9712-0005		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4)	8-97120-036-1	02	1	0006-0007	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-036-1	02	1	0006-0007		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4)	8-97120-036-1	02	1	0008-0206	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-036-1	02	1	0008-0206		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97120-036-1	02	1	0008-0206			●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4)	8-97120-036-1	02	1	0207-	●
62	07.345 ABSORBER ASM; SHOCK,FRT CHINA EQUIPMENT(YT2) EXC. SUSPENSION RIDE & HANDLING<FE2>, WIDE TREAD SUSPENSION<7FC>	8-97120-036-1	02	1	0207-		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ)	8-97120-036-1	02	1	0207-		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97120-036-1	02	1	0207-			●
62	07.345 ABSORBER ASM; SHOCK,FRT EUROPE EQUIPMENT(EK4)	8-97113-500-2	02	1	9712-0005	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EUROPE EQUIPMENT(EK4)	8-97113-500-3	02	1	0006-0206	●
62	07.345 ABSORBER ASM; SHOCK,FRT EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97113-500-3	02	1	0006-0206		●
62	07.345 ABSORBER ASM; SHOCK,FRT EUROPE EQUIPMENT(EK4)	8-97113-500-3	02	1	0207-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97113-500-3	02	1	0207-		●
62	07.345 ABSORBER ASM; SHOCK,FRT CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC>	8-97113-500-3	02	1	0207-		●
62	07.345 ABSORBER ASM; SHOCK,FRT SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4)	8-97039-319-3	02	1	9712-0005		●
62	07.345 ABSORBER ASM; SHOCK,FRT SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97039-319-4	02	1	0006-0206		●
62	07.345 ABSORBER ASM; SHOCK,FRT SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97039-319-4	02	1	0207-		●
62	07.345 ABSORBER ASM; SHOCK,FRT SUSPENSION RIDE & HANDLING<FE2> CHINA EQUIPMENT(YT2) EXC. WIDE TREAD SUSPENSION<7FC>	8-97039-319-4	02	1	0207-		●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-136-0	04	1	9712-0005	●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97120-136-0	04	1	9712-0005		●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-136-0	04	1	0006-0007	●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-136-0	04	1	0006-0007		●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-136-0	04	1	0008-0206	●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,ARGENTINA EQUIPMENT(7SZ)	8-97120-136-0	04	1	0008-0206		●
65	07.347 WASHER; S/ABS	8-97120-136-0	04	1	0008-0206			●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4)	8-97120-136-0	04	1	0207-	●
65	07.347 WASHER; S/ABS CHINA EQUIPMENT(YT2) EXC. SUSPENSION RIDE & HANDLING<FE2>, WIDE TREAD SUSPENSION<7FC>	8-97120-136-0	04	1	0207-		●
65	07.347 WASHER; S/ABS EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ)	8-97120-136-0	04	1	0207-		●
65	07.347 WASHER; S/ABS	8-97120-136-0	04	1	0207-			●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4) ID=10.8	8-97036-286-0	04	1	9712-0005	●	●
65	07.347 WASHER; S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4) ID=10.8	8-97036-286-0	04	1	9712-0005		●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4) ID=10.8	8-97036-286-0	04	1	0006-0111	●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ID=10.8	8-97036-286-0	04	1	0006-0111		●
65	07.347 WASHER; S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ID=10.8	8-97036-286-0	04	1	0006-0111		●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4) OD=40	9-51631-614-0	04	1	0112-0206	●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) OD=40	9-51631-614-0	04	1	0112-0206		●
65	07.347 WASHER; S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) OD=40	9-51631-614-0	04	1	0112-0206		●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4) OD=40	9-51631-614-0	04	1	0207-	●
65	07.347 WASHER; S/ABS SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) OD=40	9-51631-614-0	04	1	0207-		●
65	07.347 WASHER; S/ABS SUSPENSION RIDE & HANDLING<FE2> CHINA EQUIPMENT(YT2) EXC. WIDE TREAD SUSPENSION<7FC> OD=40	9-51631-614-0	04	1	0207-		●
65	07.347 WASHER; S/ABS EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) OD=40	9-51631-614-0	04	1	0207-		●
65	07.347 WASHER; S/ABS CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC> OD=40	9-51631-614-0	04	1	0207-		●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	9712-0007	●	●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	0008-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	9712-0007	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	0008-	●	●	●

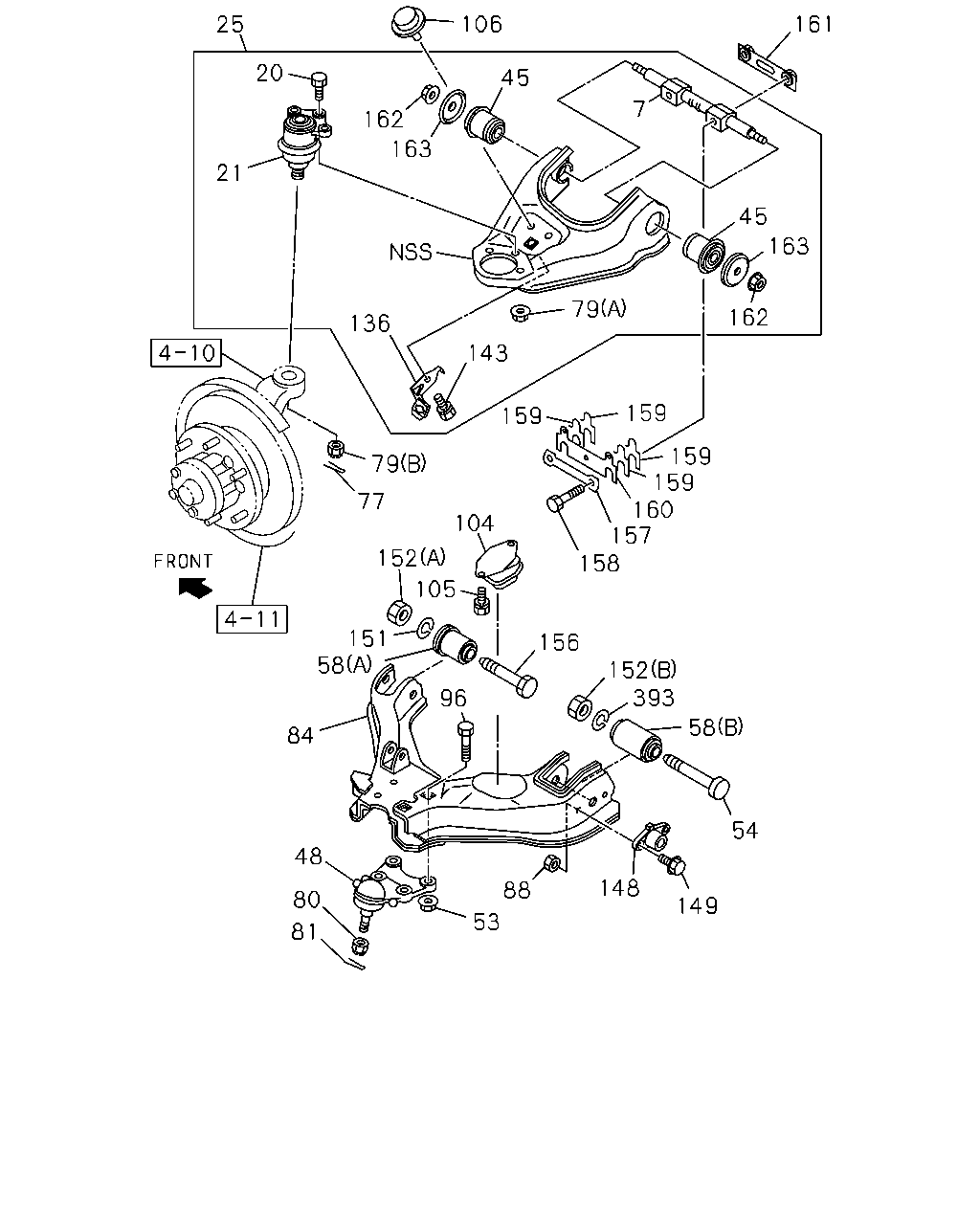

25 106 161 20 45 7 162 163 21 45 163 79 162 136 143 159 159 159 159 160 157 158 79 77 104 152 105 151 58 156 152 393 96 58 84 54 48 148 88 80 149 53 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	06.174 PIN; FULCRUM,UPR LINK	8-94381-234-3	02	1	9712-0007	●	●
7	06.174 PIN; FULCRUM,UPR LINK	8-94381-234-3	02	1	0008-	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK 16.674 M10X30	8-97010-129-0	06	1	9712-0007	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK 16.674 M10X30	8-97010-129-0	06	1	0008-	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94374-424-0	02	1	9712-0007	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94374-424-0	02	1	0008-	●	●	●
25	06.168 ARM; UPR CONT WIDE TREAD SUSPENSION<7FC>	8-97104-175-1	01	1	9712-0007	●	●
25	06.168 ARM; UPR CONT WIDE TREAD SUSPENSION<7FC>	8-97104-175-1	01	1	0008-	●	●
25	06.168 ARM; UPR CONT	8-97104-175-1	01	1	0008-			●
25	06.168 ARM; UPR CONT WIDE TREAD SUSPENSION<7FC>	8-97104-174-1	01	1	9712-0007	●	●
25	06.168 ARM; UPR CONT WIDE TREAD SUSPENSION<7FC>	8-97104-174-1	01	1	0008-	●	●
25	06.168 ARM; UPR CONT	8-97104-174-1	01	1	0008-			●
25	06.168 ARM; UPR CONT EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-419-5	01	1	9712-	●	●
25	06.168 ARM; UPR CONT EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-418-5	01	1	9712-	●	●
45	06.164 BUSHING; UPR LINK,FRT WIDE TREAD SUSPENSION<7FC>	8-97104-178-0	04	1	9712-0007	●	●
45	06.164 BUSHING; UPR LINK,FRT WIDE TREAD SUSPENSION<7FC>	8-97104-178-0	04	1	0008-	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97104-178-0	04	1	0008-			●
45	06.164 BUSHING; UPR LINK,FRT EXC. WIDE TREAD SUSPENSION<7FC>	8-94408-840-3	04	1	9712-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM WIDE TREAD SUSPENSION<7FC>	8-97103-437-0	02	1	9712-0007	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM WIDE TREAD SUSPENSION<7FC>	8-97103-437-0	02	1	0008-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97103-437-0	02	1	0008-			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. WIDE TREAD SUSPENSION<7FC>	8-94459-465-2	02	1	9712-	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9712-0007	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	0008-	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK M18X127	8-97032-986-0	02	1	9712-0007	●	●
54	06.174 PIN; FULCRUM,LWR LINK M18X127	8-97032-986-0	02	1	0008-	●	●	●
58	06.170 BUSHING; LWR LINK (A)	8-97018-165-0	02	1	9712-0007	●	●
58	06.170 BUSHING; LWR LINK (A)	8-97018-165-0	02	1	0008-	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9712-0007	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	0008-	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	9712-0007	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	0008-0204	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 06.865 OD=2.8 L=25	9-08113-025-0	02	1	0205-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	9712-0007	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	0008-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.039 (A) M10 FLANGE	8-94383-595-0	06	1	9712-0007	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.039 (A) M10 FLANGE	8-94383-595-0	06	1	0008-	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9712-0007	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	0008-	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9712-0007	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0008-	●	●	●
84	06.168 ARM; LWR CONT CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC>	8-97304-742-1	01	1	0207-		●
84	06.168 ARM; LWR CONT CHINA EQUIPMENT(YT2) WIDE TREAD SUSPENSION<7FC>	8-97304-743-1	01	1	0207-		●
84	06.168 ARM; LWR CONT	8-94374-429-1	01	1	9712-0007	●	●
84	06.168 ARM; LWR CONT	8-94374-429-1	01	1	0008-0105	●	●	●
84	06.168 ARM; LWR CONT	8-94374-429-1	01	1	0106-0206	●	●	●
84	06.168 ARM; LWR CONT	8-94374-429-1	01	1	0207-	●		●
84	06.168 ARM; LWR CONT EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-429-1	01	1	0207-		●
84	06.168 ARM; LWR CONT WIDE TREAD SUSPENSION<7FC> EXC. CHINA EQUIPMENT(YT2)	8-94374-429-1	01	1	0207-		●
84	06.168 ARM; LWR CONT	8-94374-428-1	01	1	9712-0007	●	●
84	06.168 ARM; LWR CONT	8-94374-428-1	01	1	0008-0105	●	●	●
84	06.168 ARM; LWR CONT	8-94374-428-1	01	1	0106-0206	●	●	●
84	06.168 ARM; LWR CONT	8-94374-428-1	01	1	0207-	●		●
84	06.168 ARM; LWR CONT EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-428-1	01	1	0207-		●
84	06.168 ARM; LWR CONT WIDE TREAD SUSPENSION<7FC> EXC. CHINA EQUIPMENT(YT2)	8-94374-428-1	01	1	0207-		●
88	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	04	1	9712-0007	●	●
88	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	04	1	0008-	●	●	●
96	06.174 BOLT; LWR LINK 00.002 M12X50	9-92061-250-0	08	1	9712-0007	●	●
96	06.174 BOLT; LWR LINK 00.002 M12X50	9-92061-250-0	08	1	0008-	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94374-431-0	01	1	9712-0007	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94374-431-0	01	1	0008-	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94374-430-0	01	1	9712-0007	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94374-430-0	01	1	0008-	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-0007	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	0008-	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94374-432-0	02	1	9712-0007	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94374-432-0	02	1	0008-	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94387-605-1	01	1	9712-0007	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94387-605-1	01	1	0008-	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94387-604-1	01	1	9712-0007	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94387-604-1	01	1	0008-	●	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9712-0007	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0008-	●	●	●
148	06.170 ARM; LWR LINK	8-97018-220-0	02	1	9712-0007	●	●
148	06.170 ARM; LWR LINK	8-97018-220-0	02	1	0008-	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM M12X37 FLANGE	8-94382-104-1	04	1	9712-0007	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM M12X37 FLANGE	8-94382-104-2	04	1	0008-	●	●	●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 05.002 ID=16.2	9-09150-616-0	02	1	9712-0007	●	●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 05.002 ID=16.2	9-09150-616-0	02	1	0008-	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9712-0007	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	0008-	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9712-0007	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	0008-	●	●	●
156	06.172 PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-0	02	1	9712-0007	●	●
156	06.172 PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-1	02	1	0008-	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94382-920-1	02	1	9712-0007	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94382-920-1	02	1	0008-	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	9712-0007	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	0008-	●	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=0.40	8-94227-053-1	AR	1	9712-0007	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=0.40	8-94227-053-1	AR	1	0008-	●	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=1.60	8-94227-054-2	AR	1	9712-0007	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=1.60	8-94227-054-2	AR	1	0008-	●	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=3.20	8-94241-885-3	AR	1	9712-0007	●	●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=3.20	8-94241-885-3	AR	1	0008-	●	●	●
160	06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO T=3.20	8-94381-376-1	AR	1	9712-0007	●	●
160	06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO T=3.20	8-94381-376-1	AR	1	0008-	●	●	●
160	06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO T=1.60	8-94381-377-1	AR	1	9712-0007	●	●
160	06.164 SHIM; CAMBER ANGLE,FRT SUSPENSIO T=1.60	8-94381-377-1	AR	1	0008-	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME	8-94381-235-0	02	1	9712-0007	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME	8-94381-235-0	02	1	0008-0210	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME	8-97327-725-0	02	1	0211-	●	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.417 M14 FLANGE	8-94137-483-0	04	1	9712-0007	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.417 M14 FLANGE	8-94137-483-0	04	1	0008-	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9712-0007	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	0008-	●	●	●
393	07.347 WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	9712-0007	●	●
393	07.347 WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	0008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
