◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#3793) — 49 parça
çizim 6694
97 218 46 45 46 324 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9601-9812 ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9901-0004 ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 02 1 9601-0004 ●
97 GROMMET; PARKING BRK CABLE 1-09983-078-0 01 1 9601-0004 ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9601-0004 ●
97 GROMMET; PARKING BRK CABLE 1-09983-078-0 01 1 0005- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9601-9611 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612-0102 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0103- ●
218 NUT; BRKT,PARKING BRK CABLE
EXC. A/T<X9D> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0103- ●
324 BRACKET 1-79996-260-2 01 1 9601-0102 ● ●
324 BRACKET 1-79996-260-2 01 1 0103- ●
324 BRACKET
EXC. A/T<X9D> 		1-79996-260-2 01 1 0103- ●

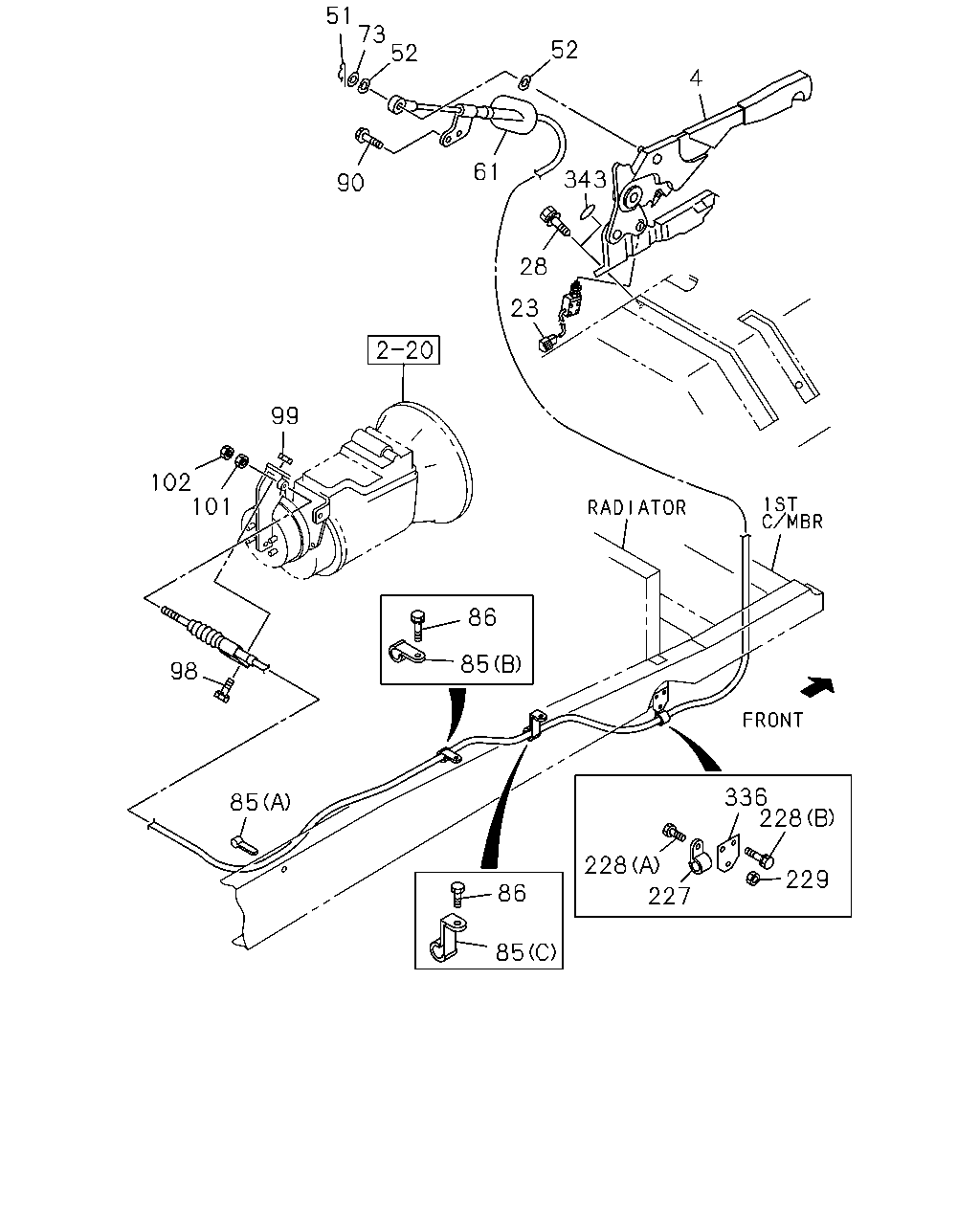

çizim 39904
51 73 52 52 4 61 343 90 28 23 99 102 101 86 85 98 336 228 85 228 229 86 227 85
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-295-0 01 1 9601-9809 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-423-0 01 1 9810-9908 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-485-0 01 1 9909-9911 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-505-0 01 1 9912-0004 ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9601-0004 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-0004 ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9601-0004 ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9601-0004 ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4844 		1-79996-276-0 01 1 9601-9603 ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4405 		1-79996-275-0 01 1 9604-9909 ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694 		1-79996-461-0 01 1 9910-0004 ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794 		1-79996-227-1 01 1 9801-9803 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9601-0004 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9601-9612 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 9701-0004 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9601-0004 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 9601-0004 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9601-0004 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9601-9606 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0004 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9601-9702 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0004 ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46259-007-0 01 1 9601-0004 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9601-9709 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0004 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9601-0004 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9601-0004 ●
229 NUT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9601-9606 ●
229 NUT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-162-1 01 1 9601-0004 ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 9601-0004 ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9601-0004 ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ●
