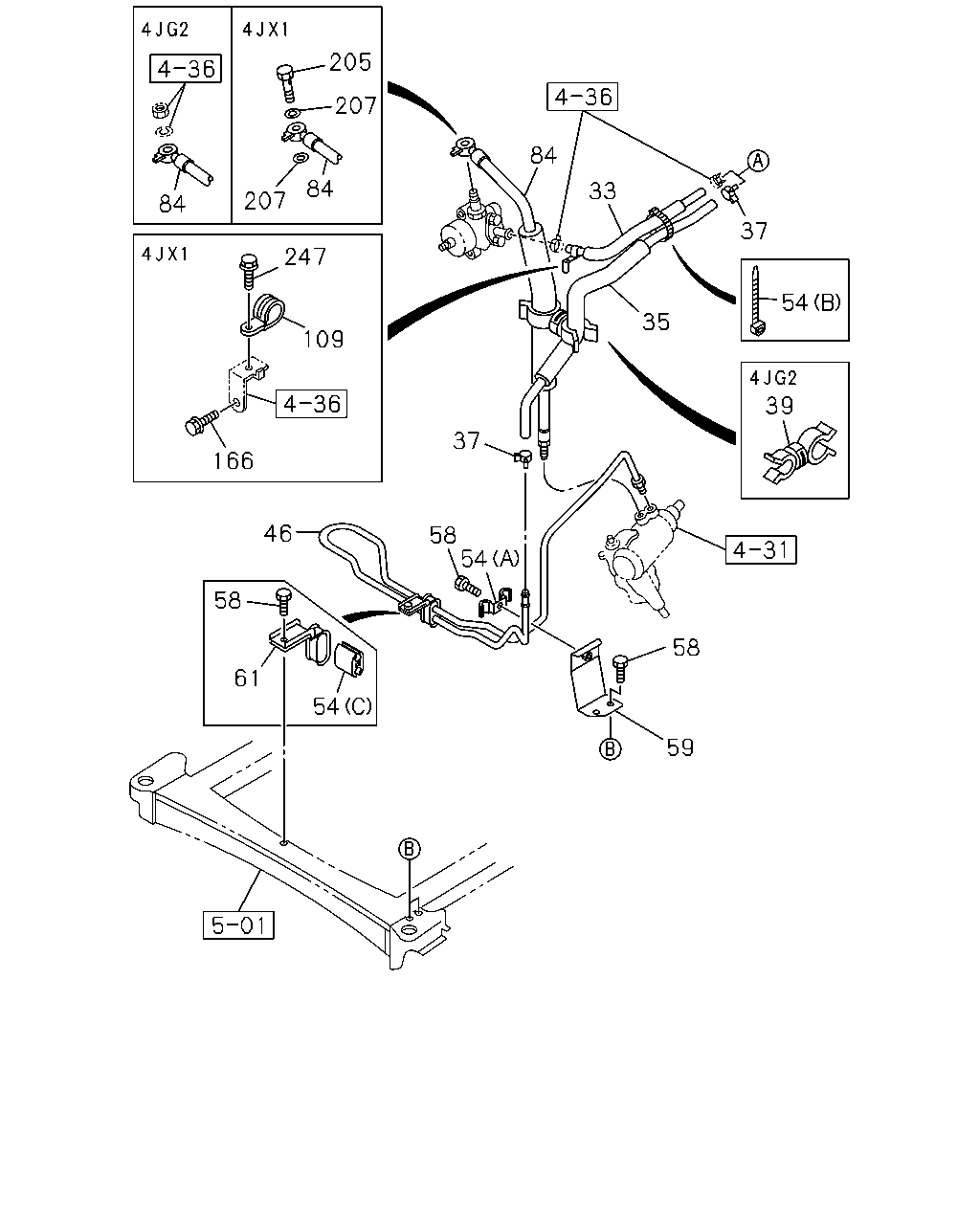

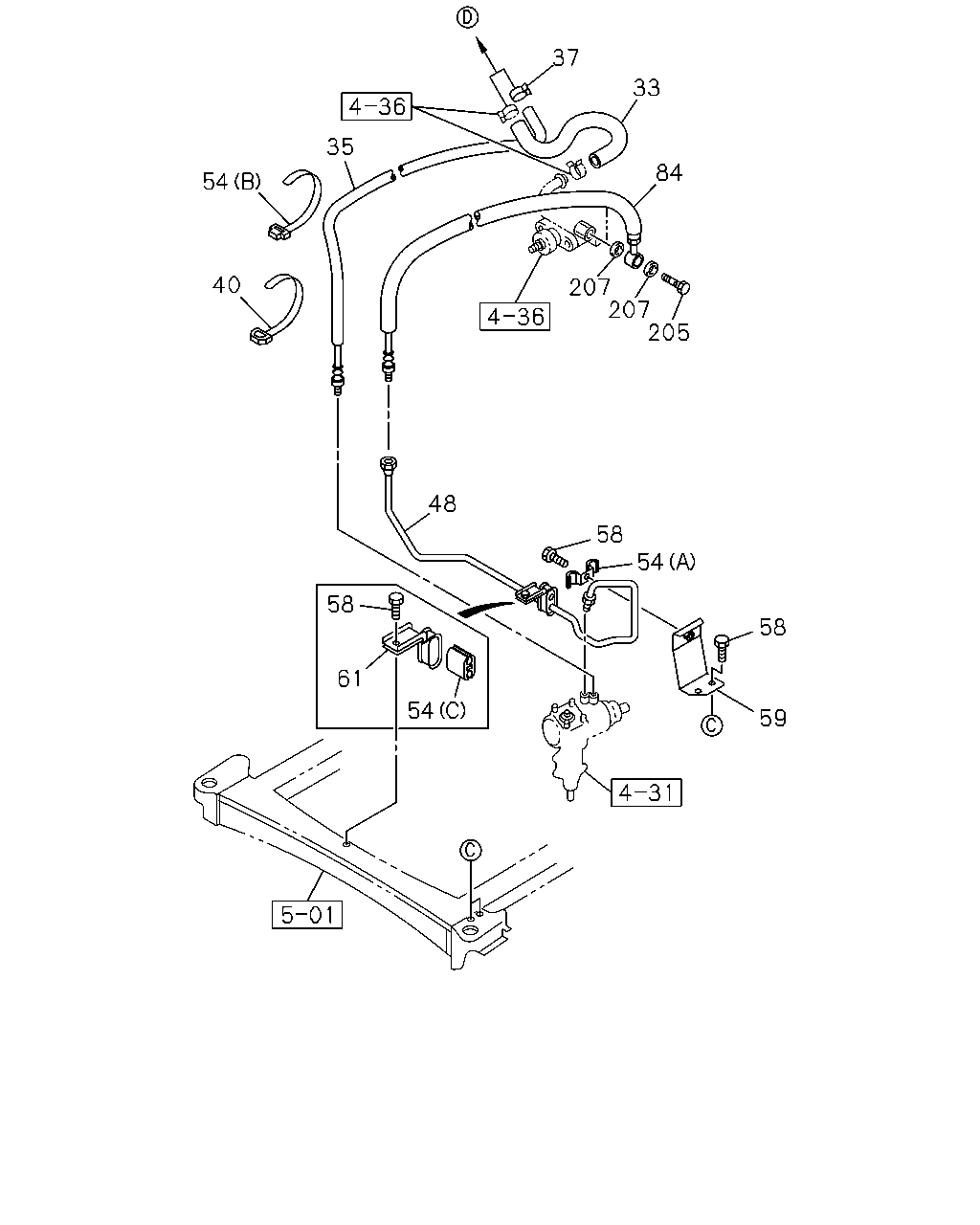

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#37929) — 156 parça

1 1 2 3 25 23 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97115-869-2	01	1	9712-0007	●	●
1	06.635 TANK ASM; OIL,P/S	8-97115-869-2	01	1	0008-	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-2	01	1	9712-0007	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-2	01	1	0008-	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-94363-359-1	01	1	9712-0007	●	●
3	06.673 GASKET; OIL TANK,P/S	8-94363-359-1	01	1	0008-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9712-	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JX1 ENG(RJM)	8-97170-673-0	01	1	9712-0007	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JX1 ENG(RJM)	8-97170-673-0	01	1	0008-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97170-673-0	01	1	0008-			●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97064-085-4	01	1	9712-9905	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97224-313-0	01	1	9906-0105	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97263-412-0	01	1	0106-	●	●
25	06.635 BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	9712-0007	●	●
25	06.635 BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	0008-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9712-	●	●

205 207 84 84 33 207 84 37 247 54 35 109 39 37 166 46 58 54 58 58 61 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) 06.673	8-97037-467-1	01	1	9712-0103	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) TURBOCHARGER<K51> 06.673	8-97037-467-2	01	1	0104-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51>	8-97312-715-0	01	1	0104-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97183-657-0	01	1	9712-9712	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97203-786-2	01	1	9801-0007	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97203-786-4	01	1	0008-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97203-786-4	01	1	0008-			●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-427-1	01	1	9712-0105	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97178-427-1	01	1	0106-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97263-519-1	01	1	0106-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-3	01	1	9712-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97183-655-0	01	1	9712-9712	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97203-787-2	01	1	9801-0007	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97203-787-3	01	1	0008-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97203-787-3	01	1	0008-			●
35	06.671 HOSE; RETURN,P/S TANK 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97171-952-2	01	1	9712-	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.930 ID=16	8-94238-568-0	02	1	9712-9801	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.681 ID=16	8-97173-222-0	02	1	9802-0007	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.681 ID=16	8-97173-222-0	02	1	0008-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 ID=16	8-97173-222-0	02	1	0008-			●
37	01.762 CLIP; HOSE,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.280 ID=17.1	8-94122-679-0	01	1	9712-	●	●
39	06.672 CLIP; FLEX HOSE 4JG2 ENG(RJC) 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0108-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97111-118-0	01	1	9712-0007	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97111-118-0	01	1	0008-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97111-118-0	01	1	0008-			●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	9712-0001	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	0002-0007	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	0008-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	0008-			●
54	06.672 CLIP; OIL PIPE (C)	8-97026-703-0	01	1	9712-0007	●	●
54	06.672 CLIP; OIL PIPE (C)	8-97026-703-0	01	1	0008-	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.342 (A)	8-94222-795-1	01	1	9712-0007	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.342 (A)	8-94222-795-1	01	1	0008-	●	●
54	06.672 CLIP; OIL PIPE 04.342 (A)	8-94222-795-1	01	1	0008-			●
54	06.672 CLIP; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9712-	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9712-0007	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0008-	●	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-0007	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0008-	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE	8-97120-706-0	01	1	9712-0007	●	●
59	06.672 BRACKET; CLIP,OIL PIPE	8-97120-706-0	01	1	0008-	●	●	●
61	06.672 CLIP; OIL PIPE ID=10X2 H=22	8-94252-455-2	01	1	9712-0007	●	●
61	06.672 CLIP; OIL PIPE ID=10X2 H=22	8-94252-455-2	01	1	0008-	●	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC) 06.673	8-97165-976-0	01	1	9712-9809	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC) 06.673	8-97216-178-2	01	1	9810-	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97191-157-2	01	1	9712-9809	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97216-179-0	01	1	9810-0007	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97216-179-2	01	1	0008-	●	●
84	06.670 HOSE; FLEX,P/S	8-97216-179-2	01	1	0008-			●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 06.673	8-97179-756-2	01	1	9712-9810	●	●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97216-180-0	01	1	9811-0105	●	●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97304-157-4	01	1	0106-	●	●
109	06.672 CLIP; RUBBER HOSE 4JX1 ENG(RJM) 08.846 ID=24 L=32	1-09700-766-1	01	1	9712-0007	●	●
109	06.672 CLIP; RUBBER HOSE 4JX1 ENG(RJM) 08.846 ID=24 L=32	1-09700-766-1	01	1	0008-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 ID=24 L=32	1-09700-766-1	01	1	0008-			●
166	06.672 BOLT; CLIP 4JX1 ENG(RJM) 08.155 M8X16 FLANGE	0-28480-816-0	01	1	9712-0007	●	●
166	06.672 BOLT; CLIP 4JX1 ENG(RJM) 08.155 M8X16 FLANGE	0-28480-816-0	01	1	0008-	●	●
166	06.672 BOLT; CLIP 08.155 M8X16 FLANGE	0-28480-816-0	01	1	0008-			●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) M16X28	8-94383-489-0	01	1	9712-0007	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) M16X28	8-94383-489-0	01	1	0008-	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S M16X28	8-94383-489-0	01	1	0008-			●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9712-0007	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0008-	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0008-			●
247	06.672 BOLT; BRKT,CLIP 4JX1 ENG(RJM) 08.155 M8X16 FLANGE	0-28480-816-0	01	1	9712-9712	●	●

37 33 35 84 54 40 207 207 205 48 58 54 58 58 61 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) 06.673	8-97037-467-1	01	1	9712-0103	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) TURBOCHARGER<K51> 06.673	8-97037-467-2	01	1	0104-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51>	8-97312-715-0	01	1	0104-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97183-657-0	01	1	9712-9712	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97203-786-2	01	1	9801-0007	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JX1 ENG(RJM)	8-97203-786-4	01	1	0008-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97203-786-4	01	1	0008-			●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-427-1	01	1	9712-0105	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97178-427-1	01	1	0106-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97263-519-1	01	1	0106-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-3	01	1	9712-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97183-655-0	01	1	9712-9712	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97203-787-2	01	1	9801-0007	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JX1 ENG(RJM)	8-97203-787-3	01	1	0008-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97203-787-3	01	1	0008-			●
35	06.671 HOSE; RETURN,P/S TANK 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97171-952-2	01	1	9712-	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.930 ID=16	8-94238-568-0	02	1	9712-9801	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.681 ID=16	8-97173-222-0	02	1	9802-0007	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.681 ID=16	8-97173-222-0	02	1	0008-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 ID=16	8-97173-222-0	02	1	0008-			●
37	01.762 CLIP; HOSE,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.280 ID=17.1	8-94122-679-0	01	1	9712-	●	●
40	06.672 CLIP; BAND 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.716	8-94368-493-0	01	1	9712-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97165-837-2	01	1	9712-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	9712-0001	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	0002-0007	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	0008-	●	●
54	06.672 CLIP; OIL PIPE 03.162 (B) L=170	5-09707-054-0	01	1	0008-			●
54	06.672 CLIP; OIL PIPE (C)	8-97026-703-0	01	1	9712-0007	●	●
54	06.672 CLIP; OIL PIPE (C)	8-97026-703-0	01	1	0008-	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.342 (A)	8-94222-795-1	01	1	9712-0007	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.342 (A)	8-94222-795-1	01	1	0008-	●	●
54	06.672 CLIP; OIL PIPE 04.342 (A)	8-94222-795-1	01	1	0008-			●
54	06.672 CLIP; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9712-	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9712-0007	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0008-	●	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-0007	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0008-	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE	8-97120-706-0	01	1	9712-0007	●	●
59	06.672 BRACKET; CLIP,OIL PIPE	8-97120-706-0	01	1	0008-	●	●	●
61	06.672 CLIP; OIL PIPE ID=10X2 H=22	8-94252-455-2	01	1	9712-0007	●	●
61	06.672 CLIP; OIL PIPE ID=10X2 H=22	8-94252-455-2	01	1	0008-	●	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC) 06.673	8-97165-976-0	01	1	9712-9809	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC) 06.673	8-97216-178-2	01	1	9810-	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97191-157-2	01	1	9712-9809	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97216-179-0	01	1	9810-0007	●	●
84	06.670 HOSE; FLEX,P/S 4JX1 ENG(RJM)	8-97216-179-2	01	1	0008-	●	●
84	06.670 HOSE; FLEX,P/S	8-97216-179-2	01	1	0008-			●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 06.673	8-97179-756-2	01	1	9712-9810	●	●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97216-180-0	01	1	9811-0105	●	●
84	06.670 HOSE; FLEX,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97304-157-4	01	1	0106-	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) M16X28	8-94383-489-0	01	1	9712-0007	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) M16X28	8-94383-489-0	01	1	0008-	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S M16X28	8-94383-489-0	01	1	0008-			●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9712-0007	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0008-	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0008-			●

1 2 3 1 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97115-869-2	01	1	9712-0007	●	●
1	06.635 TANK ASM; OIL,P/S	8-97115-869-2	01	1	0008-	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-2	01	1	9712-0007	●	●
2	06.672 CAP; OIL TANK,P/S	8-94481-841-2	01	1	0008-	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-94363-359-1	01	1	9712-0007	●	●
3	06.673 GASKET; OIL TANK,P/S	8-94363-359-1	01	1	0008-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9712-	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JX1 ENG(RJM)	8-97170-673-0	01	1	9712-0007	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JX1 ENG(RJM)	8-97170-673-0	01	1	0008-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97170-673-0	01	1	0008-			●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97064-085-4	01	1	9712-9905	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97224-313-0	01	1	9906-0105	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97263-412-0	01	1	0106-	●	●
25	06.635 BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	9712-0007	●	●
25	06.635 BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	0008-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9712-	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JX1 ENG(RJM) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-0007	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JX1 ENG(RJM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0008-	●	●
26	06.635 NUT; OIL TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0008-			●
