4-31 — STEERING COLUMN AND SHAFT (#37927) — 181 parça

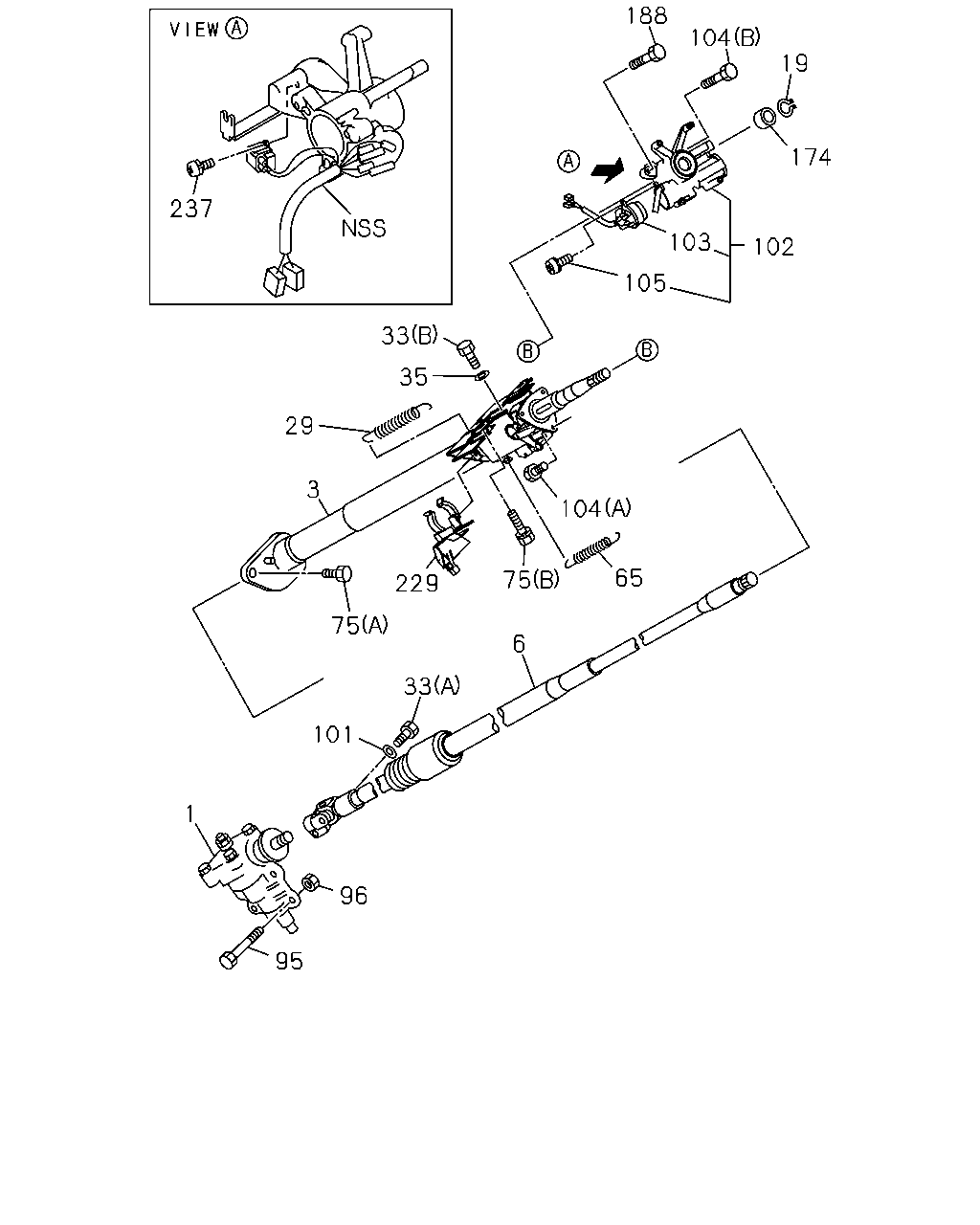

çizim 68906
188 104 19 174 237 103 102 105 33 35 29 3 104 65 75 229 75 6 33 101 1 96 95
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-986-2 01 1 9712-0007 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-986-6 01 1 0008- ● ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97177-377-0 01 1 9712-9908 ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97229-363-0 01 1 9909-0007 ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97229-363-0 01 1 0008- ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97124-163-0 01 1 9712-0007 ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97124-163-0 01 1 0008- ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9712-0007 ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 0008- ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 01 1 9712-0007 ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 01 1 0008- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(A) M8X30 		8-94247-692-0 01 1 9712-0007 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(A) M8X30 		8-94247-692-0 01 1 0008- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (B) 		8-94477-976-1 01 1 9712-0007 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (B) 		8-94477-976-1 01 1 0008- ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 		8-94477-979-0 01 1 9712-0007 ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 		8-94477-979-0 01 1 0008- ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 9712-0007 ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 0008- ● ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 9712-0007 ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 0008- ● ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 9712-0007 ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 0008- ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9712-0007 ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 0008- ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9712-0007 ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0008- ● ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 9712-0007 ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 0008- ● ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-0 01 1 9909-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-1 01 1 0006- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-0 01 1 9909-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-1 01 1 0006- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-989-0 01 1 9712-0004 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-989-0 01 1 0005- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 9712-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-987-0 01 1 9712-0005 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 0006-0007 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97135-987-0 01 1 0006-0007 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 0008- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97135-987-0 01 1 0008- ● ●
102 06.500 LOCK ASM; STRG 8-97135-987-0 01 1 0008- ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-988-0 01 1 9712-0004 ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-988-0 01 1 0005- ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) IMMOBILIZER SYSTEM<7KC> 		8-97251-966-0 01 1 0005- ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 9909-0005 ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 9909-0005 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 0006- ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 0006- ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9909-0004 ● ●
103 02.188 SWITCH; IGNITION
EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9909-0004 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION 8-97128-961-0 01 1 0008- ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 9712-0007 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 0008- ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9712-0005 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0006- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9712-0005 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0006-0007 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0008- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0008- ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9712-0007 ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0008- ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9712-0007 ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0008- ● ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4) 		8-94474-206-0 01 1 9712-0005 ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94474-206-0 01 1 0006- ● ●
229 06.518 PROTECTOR; STRG COLUMN 8-97109-627-2 01 1 9712-0007 ● ●
229 06.518 PROTECTOR; STRG COLUMN 8-97109-627-2 01 1 0008- ● ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909-0004 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909-0004 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0005-0005 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0005-0005 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0006- ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0006- ● ●

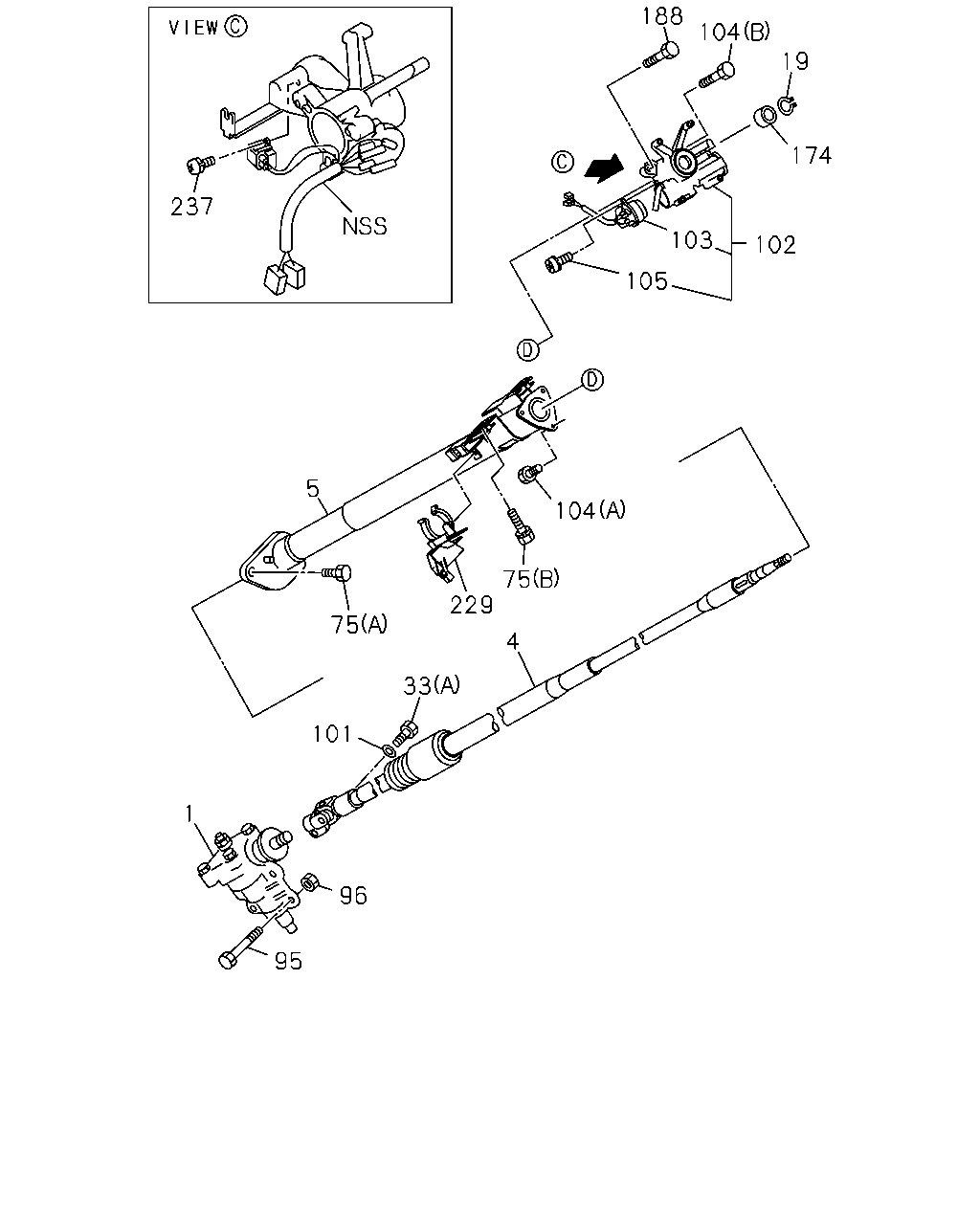

çizim 69036
188 104 19 174 237 103 102 105 5 104 75 229 75 4 33 101 1 96 95
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-986-2 01 1 9712-0007 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-986-6 01 1 0008- ● ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> 		8-97177-375-0 01 1 9712- ● ●
4 06.524 SHAFT; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-178-0 01 1 9712-0007 ● ●
4 06.524 SHAFT; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-178-0 01 1 0008- ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97112-178-0 01 1 0008- ●
5 06.518 COLUMN; STRG
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> 		8-97177-379-0 01 1 9712- ● ●
5 06.518 COLUMN; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-185-0 01 1 9712-0007 ● ●
5 06.518 COLUMN; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-185-0 01 1 0008- ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97112-185-0 01 1 0008- ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9712-0007 ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 0008- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(A) M8X30 		8-94247-692-0 01 1 9712-0007 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(A) M8X30 		8-94247-692-0 01 1 0008- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (B) 		8-94477-976-1 01 1 9712-0007 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (B) 		8-94477-976-1 01 1 0008- ● ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 9712-0007 ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 0008- ● ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 9712-0007 ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 0008- ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9712-0007 ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 0008- ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9712-0007 ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0008- ● ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 9712-0007 ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 0008- ● ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-0 01 1 9909-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97135-991-1 01 1 0006- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-0 01 1 9909-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-990-1 01 1 0006- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-989-0 01 1 9712-0004 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-989-0 01 1 0005- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 9712-0005 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-987-0 01 1 9712-0005 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 0006-0007 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97135-987-0 01 1 0006-0007 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97135-987-0 01 1 0008- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97135-987-0 01 1 0008- ● ●
102 06.500 LOCK ASM; STRG 8-97135-987-0 01 1 0008- ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-988-0 01 1 9712-0004 ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-988-0 01 1 0005- ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) IMMOBILIZER SYSTEM<7KC> 		8-97251-966-0 01 1 0005- ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 9909-0005 ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 9909-0005 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97128-960-0 01 1 0006- ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-960-0 01 1 0006- ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9909-0004 ● ●
103 02.188 SWITCH; IGNITION
EXC. SAUDI ARABIA EQUIPMENT(EU2), IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 9909-0004 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0005-0005 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0006-0007 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) IMMOBILIZER SYSTEM<7KC> 		8-97128-961-0 01 1 0008- ● ●
103 02.188 SWITCH; IGNITION 8-97128-961-0 01 1 0008- ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 9712-0007 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 0008- ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9712-0005 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0006- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9712-0005 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0006-0007 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0008- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0008- ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9712-0007 ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0008- ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9712-0007 ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0008- ● ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4) 		8-94474-206-0 01 1 9712-0005 ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94474-206-0 01 1 0006- ● ●
229 06.518 PROTECTOR; STRG COLUMN 8-97109-627-2 01 1 9712-0007 ● ●
229 06.518 PROTECTOR; STRG COLUMN 8-97109-627-2 01 1 0008- ● ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909-0004 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909-0004 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0005-0005 ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0005-0005 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0006- ● ●
237 02.195 SCREW; DOOR WARNING SW
SAUDI ARABIA EQUIPMENT(EU2) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 0006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
