Sayfa 4-15 - Isuzu EPC

4-15 — FRONT FINAL DRIVE (#37922) — 161 parça

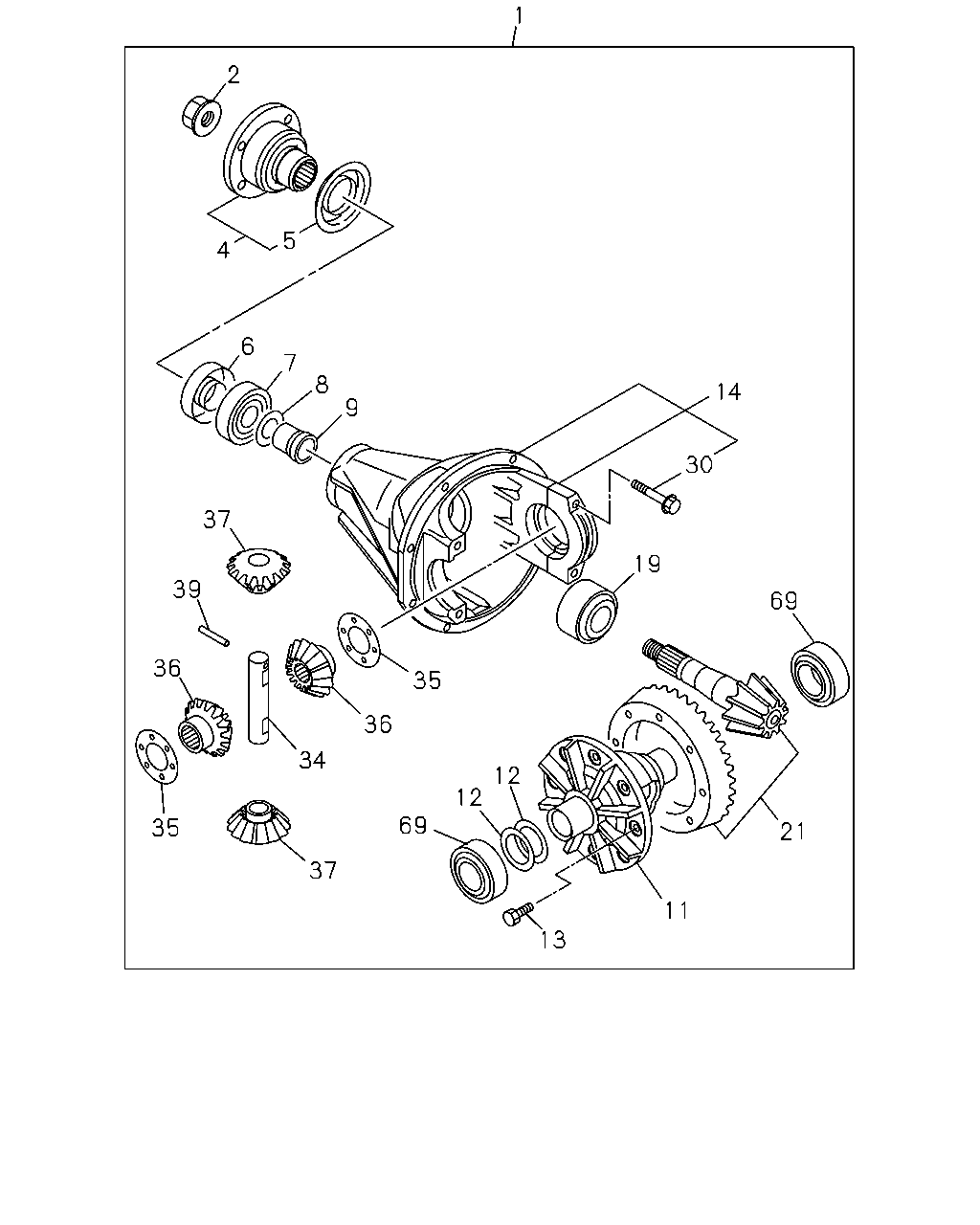

1 2 5 4 6 7 8 14 9 30 37 19 39 69 36 35 36 34 12 12 69 35 21 37 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) 41/10	8-97044-727-0	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) WIDE TREAD SUSPENSION<7FC> 41/10	8-97044-727-0	01	1	9909-0210	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) WIDE TREAD SUSPENSION<7FC> EXC. TORQUE ON DEMAND<7HA> 41/10	8-97044-727-0	01	1	9909-0210		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) BRAKE PAD HEAVY DUTY(J55) EXC. FRT AXLE URETHANE BOOTS<6HV> 41/10	8-97044-727-0	01	1	0211-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>, TORQUEON DEMAND<7HA> 41/10	8-97044-727-0	01	1	0211-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-220-1	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-220-1	01	1	9909-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> 41/9	8-94376-220-1	01	1	9909-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-250-0	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-250-0	01	1	9909-0209	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA> 43/10	8-97039-250-0	01	1	9909-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) 43/10	8-97039-250-0	01	1	0210-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-254-0	01	1	9712-	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	9909-0005		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) EXC. WIDE TREAD SUSPENSION<7FC> 41/10	8-97183-887-0	01	1	0006-0209	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0006-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) EXC. WIDE TREAD SUSPENSION<7FC>,TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0006-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) BRAKE PAD HEAVY DUTY(J55) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC> 41/10	8-97183-887-0	01	1	0210-0210	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>, TORQUEON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0210-0210		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> TORQUE ON DEMAND<7HA> EXC. FRT AXLE URETHANE BOOTS<6HV> 41/10	8-97183-887-0	01	1	0211-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) TORQUE ON DEMAND<7HA> 41/9	8-97183-889-0	01	1	9909-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> BRAKE PAD HEAVY DUTY(J55) 43/10	8-97119-307-0	01	1	9909-0109		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> TORQUE ON DEMAND<7HA> EXC. FRT AXLE URETHANE BOOTS<6HV> 43/10	8-97119-307-0	01	1	0110-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. BRAKE PAD HEAVY DUTY(J55) 43/10	8-97183-888-0	01	1	9909-0105		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC> 43/10	8-97183-888-0	01	1	0106-		●
2	05.595 NUT; FINAL DRIVE PINION M18 LOCK NUT	8-94376-262-0	01	1	9712-	●	●
4	05.545 COUPLING; FINAL DRIVE PINION	8-94318-527-3	01	1	9712-9908	●	●
4	05.545 COUPLING; FINAL DRIVE PINION	8-94318-527-6	01	1	9909-	●
4	05.545 COUPLING; FINAL DRIVE PINION EXC. TORQUE ON DEMAND<7HA>	8-94318-527-6	01	1	9909-		●
4	05.545 COUPLING; FINAL DRIVE PINION TORQUE ON DEMAND<7HA>	8-97139-548-2	01	1	9909-		●
5	05.545 COVER; DUST,PINION,FINAL DRIVE	8-94318-409-1	01	1	9712-	●	●
6	05.469 SEAL; OIL,FINAL PINION	8-94318-520-2	01	1	9712-	●	●
7	05.447 BEARING; PINION,OUTER 05.484 KOYO	8-94472-100-1	01	1	0106-	●	●
7	05.447 BEARING; PINION,OUTER 05.484 NSK	8-94472-099-0	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9712-	●	●
9	05.453 COLLAR; DIST,PINION	8-94472-118-0	01	1	9712-	●	●
11	05.453 CAGE; FINAL PINION	8-97038-515-1	01	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.10	8-97130-386-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.50	8-97130-387-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.24	9-41519-109-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.15	9-41519-111-0	AR	1	9712-	●	●
13	05.531 BOLT; FINAL PINION CAGE M10X17	8-97038-065-0	10	1	9712-	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL	8-94376-231-2	01	1	9712-9908	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL	8-94376-231-3	01	1	9909-	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL EXC. TORQUE ON DEMAND<7HA>	8-94376-231-3	01	1	9909-		●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL TORQUE ON DEMAND<7HA>	8-97183-890-1	01	1	9909-		●
19	05.484 BEARING; PINION,INNER NSK	9-00093-621-0	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/10(GT5) 41/10	8-97044-728-0	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-223-1	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-251-1	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-255-1	01	1	9712-	●	●
30	05.506 BOLT; DIFF CAGE SETTING 05.387 M12X62	8-94376-322-0	04	1	9712-	●	●
34	05.520 PIN; CROSS,DIFF PINION 05.517	9-41521-044-1	01	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.00	5-41562-005-1	02	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.05	5-41562-006-1	02	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.10	5-41562-007-1	02	1	9712-	●	●
36	05.528 GEAR; SIDE,DIFF Z=17	8-97079-519-1	02	1	9712-	●	●
37	05.527 GEAR; PINION DIFF Z=10	8-97079-518-0	02	1	9712-	●	●
39	05.518 PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9712-	●	●
69	05.453 BEARING; DIFF SIDE 05.536 NSK	9-00093-074-0	02	1	9712-	●	●

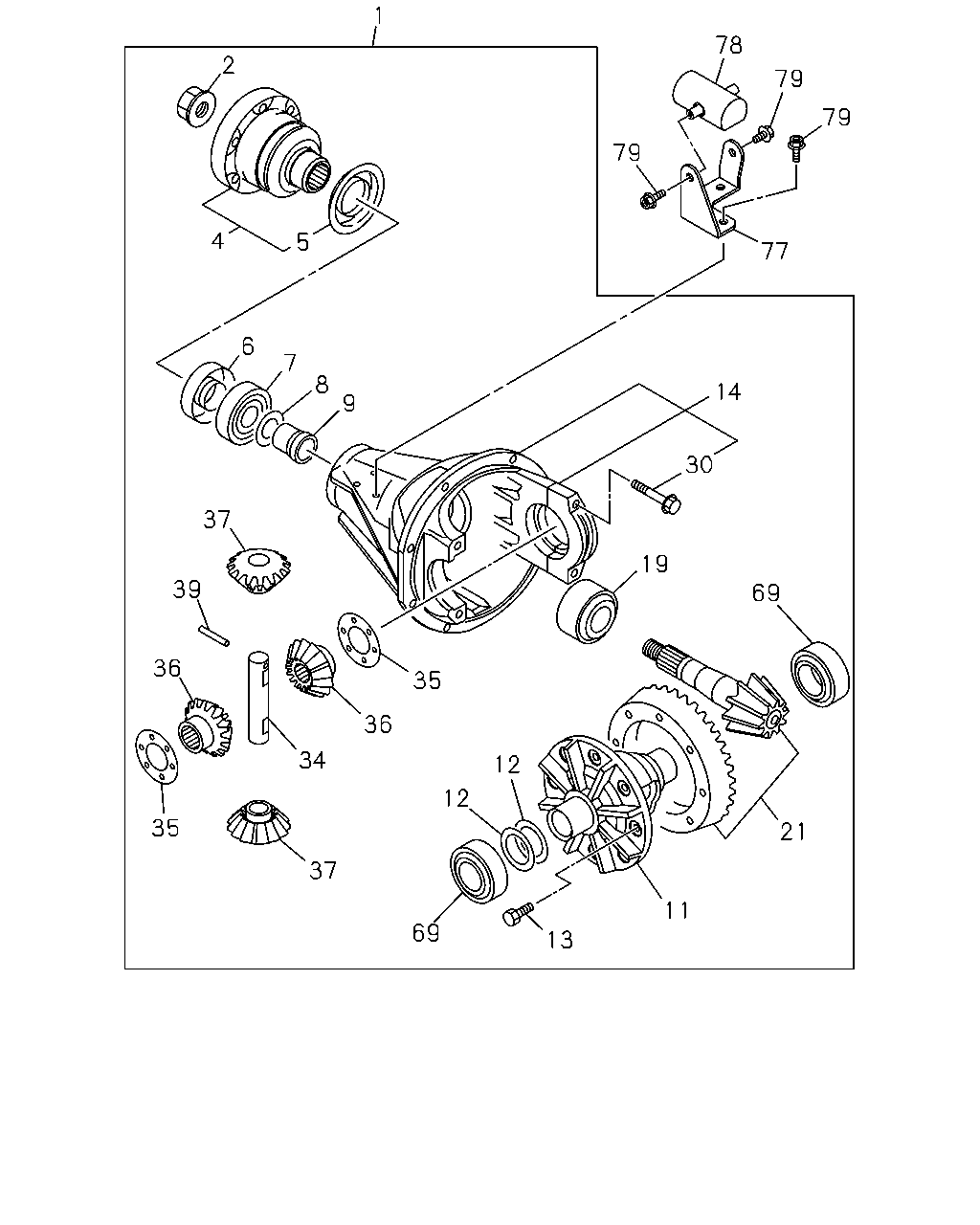

1 78 2 79 79 79 4 5 77 6 7 8 14 9 30 37 19 39 69 36 35 36 34 12 12 35 21 37 11 69 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) 41/10	8-97044-727-0	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) WIDE TREAD SUSPENSION<7FC> 41/10	8-97044-727-0	01	1	9909-0210	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) WIDE TREAD SUSPENSION<7FC> EXC. TORQUE ON DEMAND<7HA> 41/10	8-97044-727-0	01	1	9909-0210		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) BRAKE PAD HEAVY DUTY(J55) EXC. FRT AXLE URETHANE BOOTS<6HV> 41/10	8-97044-727-0	01	1	0211-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>, TORQUEON DEMAND<7HA> 41/10	8-97044-727-0	01	1	0211-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-220-1	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-220-1	01	1	9909-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> 41/9	8-94376-220-1	01	1	9909-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-250-0	01	1	9712-9908	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-250-0	01	1	9909-0209	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA> 43/10	8-97039-250-0	01	1	9909-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) 43/10	8-97039-250-0	01	1	0210-	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-254-0	01	1	9712-	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	9909-0005		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) EXC. WIDE TREAD SUSPENSION<7FC> 41/10	8-97183-887-0	01	1	0006-0209	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0006-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) EXC. WIDE TREAD SUSPENSION<7FC>,TORQUE ON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0006-0209		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) BRAKE PAD HEAVY DUTY(J55) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC> 41/10	8-97183-887-0	01	1	0210-0210	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) MANUAL LOCKING HUB(ED2),SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>, TORQUEON DEMAND<7HA> 41/10	8-97183-887-0	01	1	0210-0210		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> TORQUE ON DEMAND<7HA> EXC. FRT AXLE URETHANE BOOTS<6HV> 41/10	8-97183-887-0	01	1	0211-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6) TORQUE ON DEMAND<7HA> 41/9	8-97183-889-0	01	1	9909-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> BRAKE PAD HEAVY DUTY(J55) 43/10	8-97119-307-0	01	1	9909-0109		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> TORQUE ON DEMAND<7HA> EXC. FRT AXLE URETHANE BOOTS<6HV> 43/10	8-97119-307-0	01	1	0110-		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. BRAKE PAD HEAVY DUTY(J55) 43/10	8-97183-888-0	01	1	9909-0105		●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC> 43/10	8-97183-888-0	01	1	0106-		●
2	05.595 NUT; FINAL DRIVE PINION M18 LOCK NUT	8-94376-262-0	01	1	9712-	●	●
4	05.545 COUPLING; FINAL DRIVE PINION	8-94318-527-3	01	1	9712-9908	●	●
4	05.545 COUPLING; FINAL DRIVE PINION	8-94318-527-6	01	1	9909-	●
4	05.545 COUPLING; FINAL DRIVE PINION EXC. TORQUE ON DEMAND<7HA>	8-94318-527-6	01	1	9909-		●
4	05.545 COUPLING; FINAL DRIVE PINION TORQUE ON DEMAND<7HA>	8-97139-548-2	01	1	9909-		●
5	05.545 COVER; DUST,PINION,FINAL DRIVE	8-94318-409-1	01	1	9712-	●	●
6	05.469 SEAL; OIL,FINAL PINION	8-94318-520-2	01	1	9712-	●	●
7	05.447 BEARING; PINION,OUTER 05.484 KOYO	8-94472-100-1	01	1	0106-	●	●
7	05.447 BEARING; PINION,OUTER 05.484 NSK	8-94472-099-0	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9712-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9712-	●	●
9	05.453 COLLAR; DIST,PINION	8-94472-118-0	01	1	9712-	●	●
11	05.453 CAGE; FINAL PINION	8-97038-515-1	01	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.10	8-97130-386-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.50	8-97130-387-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.24	9-41519-109-0	AR	1	9712-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.15	9-41519-111-0	AR	1	9712-	●	●
13	05.531 BOLT; FINAL PINION CAGE M10X17	8-97038-065-0	10	1	9712-	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL	8-94376-231-2	01	1	9712-9908	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL	8-94376-231-3	01	1	9909-	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL EXC. TORQUE ON DEMAND<7HA>	8-94376-231-3	01	1	9909-		●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL TORQUE ON DEMAND<7HA>	8-97183-890-1	01	1	9909-		●
19	05.484 BEARING; PINION,INNER NSK	9-00093-621-0	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/10(GT5) 41/10	8-97044-728-0	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/9(HC6) 41/9	8-94376-223-1	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/10(S7C) 43/10	8-97039-251-1	01	1	9712-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-255-1	01	1	9712-	●	●
30	05.506 BOLT; DIFF CAGE SETTING 05.387 M12X62	8-94376-322-0	04	1	9712-	●	●
34	05.520 PIN; CROSS,DIFF PINION 05.517	9-41521-044-1	01	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.00	5-41562-005-1	02	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.05	5-41562-006-1	02	1	9712-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.10	5-41562-007-1	02	1	9712-	●	●
36	05.528 GEAR; SIDE,DIFF Z=17	8-97079-519-1	02	1	9712-	●	●
37	05.527 GEAR; PINION DIFF Z=10	8-97079-518-0	02	1	9712-	●	●
39	05.518 PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9712-	●	●
69	05.453 BEARING; DIFF SIDE 05.536 NSK	9-00093-074-0	02	1	9712-	●	●
77	05.510 BRACKET; DAMPER TORQUE ON DEMAND<7HA>	8-97183-627-0	01	1	9909-		●
78	05.500 DAMPER; FINAL DRIVE TORQUE ON DEMAND<7HA>	8-97183-891-0	01	1	9909-		●
79	05.510 BOLT; BRKT TORQUE ON DEMAND<7HA> M8X16	8-97138-666-0	05	1	9909-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
