Isuzu WW
▶
TRUCKS
▶
FVR
▶
10705 - FVR(LHD) EXC.EURO4
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#3792) — 49 parça
Tümü
A - FVR6MC
B - FVR6MF
◀

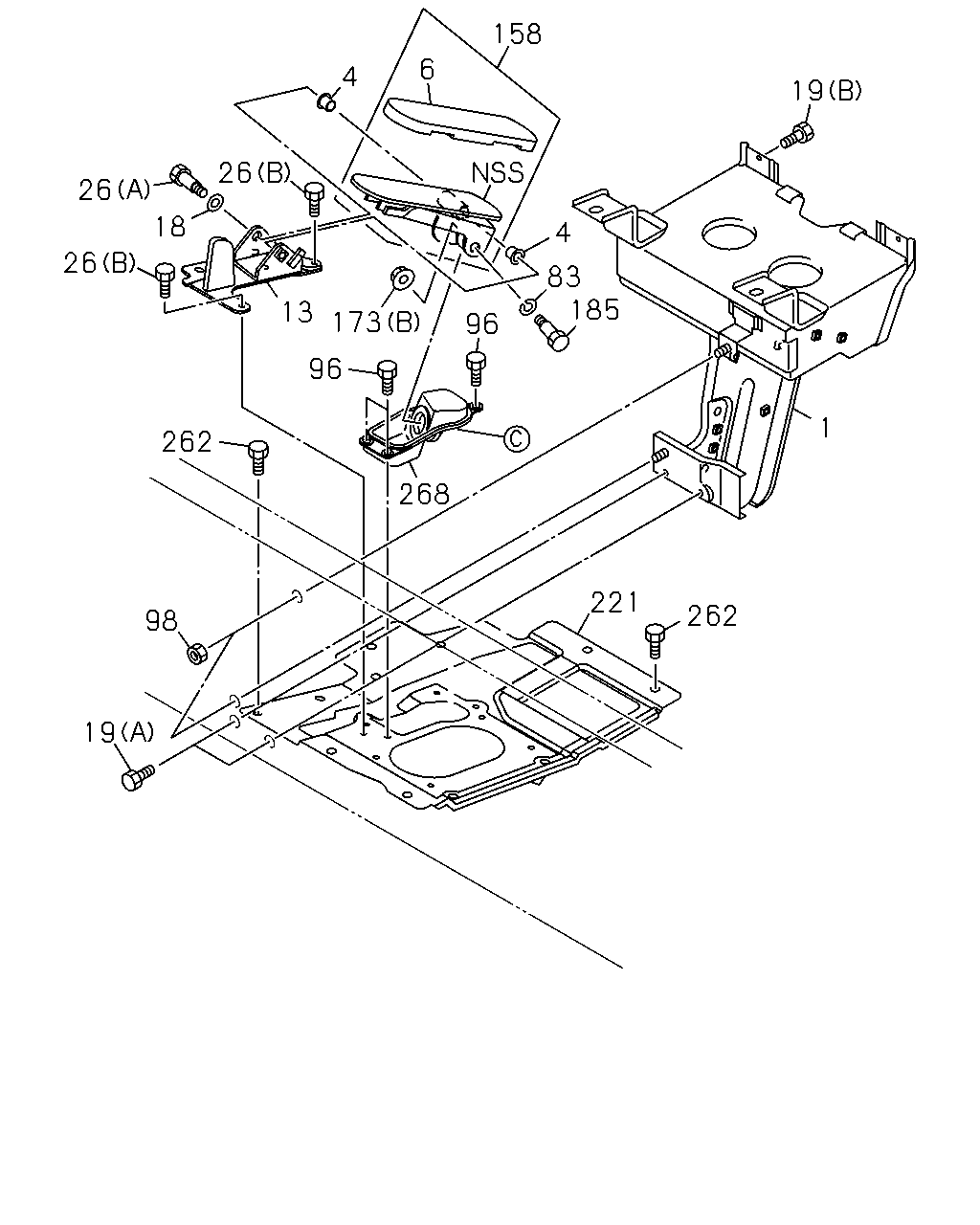

[310A] CAB INSIDE (32 parça)

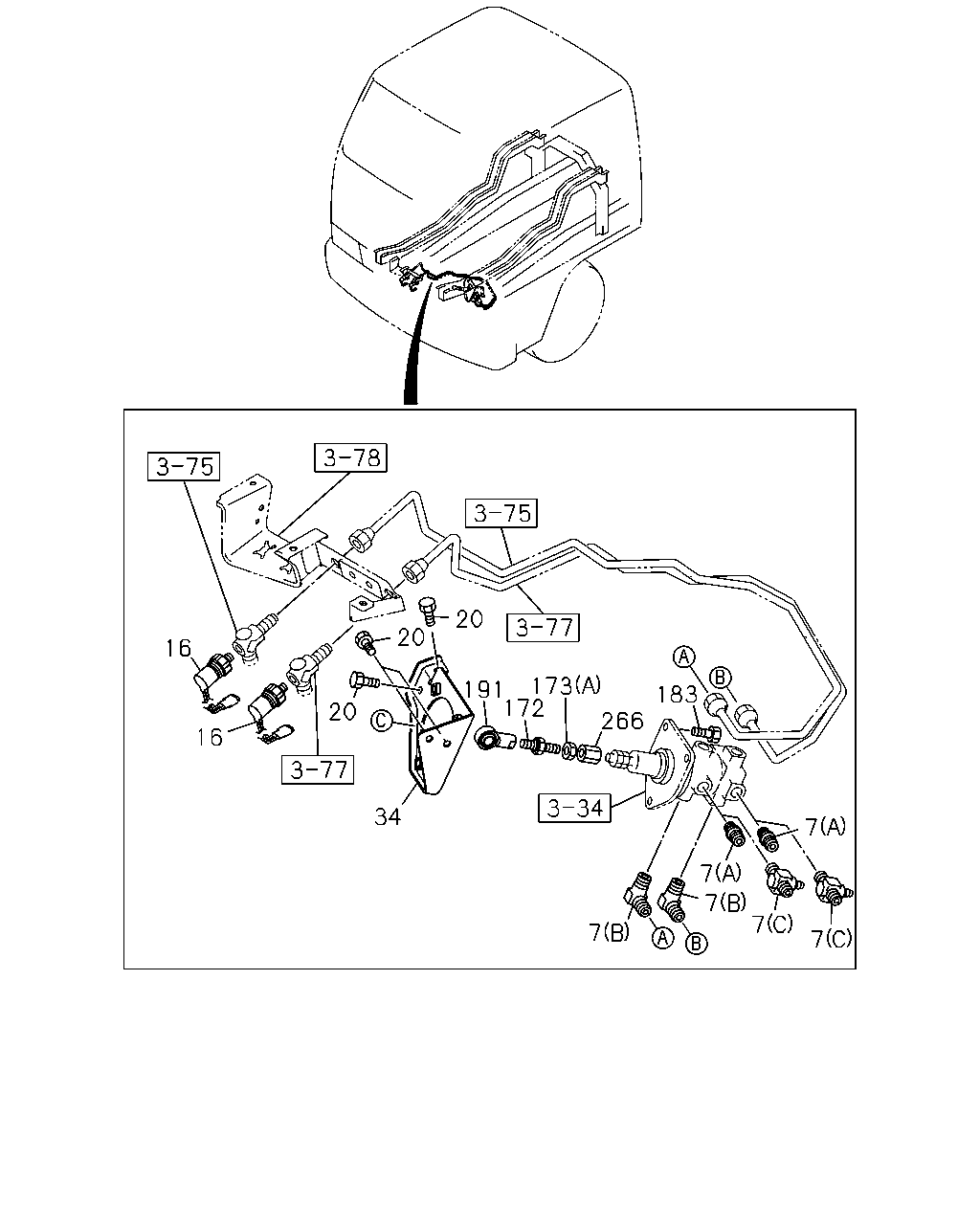

[310A] CAB UNDER (17 parça)
▶
158
6
4
19
26
26
18
4
26
83
185
96
13
173
96
1
262
268
221
262
98
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
AIR ASSIST CLUTCH<PK1>
1-73908-077-8
01
1
9601-0103
●
●
1
BRACKET ASM; PEDAL
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A>,ZF M/T<X9E>
1-73908-077-9
01
1
0104-
●
●
1
BRACKET ASM; PEDAL
A/T<X9D>
1-73908-077-9
01
1
0104-
●
1
BRACKET ASM; PEDAL
EXC. AIR ASSIST CLUTCH<PK1>
1-73908-076-9
01
1
9601-0103
●
●
1
BRACKET ASM; PEDAL
EXC. AIR ASSIST CLUTCH<PK1>,ISUZU M/T<X9A>,ZF M/T<X9E>
1-73908-076-9
01
1
0104-0105
●
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A>,ZF M/T<X9E> EXC. AIR ASSIST CLUTCH<PK1>
1-73908-076-9
01
1
0106-0109
●
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A>,ZF M/T<X9E> EXC. AIR ASSIST CLUTCH<PK1>
1-73908-412-0
01
1
0110-
●
●
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
9601-
●
●
6
COVER; BRK PEDAL
1-48119-333-0
01
1
0005-
●
●
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
9601-0906
●
●
13
BRACKET; BRK PEDAL
1-73908-069-6
01
1
0907-
●
●
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
9601-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9601-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9601-0904
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
●
●
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
9601-
●
●
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
9601-
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
9601-0603
●
●
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
01
1
0604-0607
●
●
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
01
1
0608-
●
●
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
9601-
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9601-
●
●
158
PEDAL ASM; BRK
1-73908-068-5
01
1
9601-
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9601-0602
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
0603-
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9601-0512
●
●
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
0601-
●
●
185
BOLT; BRKT
1-73996-282-1
01
1
9601-
●
●
221
PLATE ASM; SIDE
1-73908-114-7
01
1
9601-
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
9601-0904
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
10
1
0905-
●
●
268
COVER; ROD
1-73908-192-1
01
1
9601-
●
●
20
20
16
191
173
172
183
20
266
16
34
7
7
7
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
CONNECTOR; BRK VALVE
(C)
1-09656-701-0
02
1
9601-0004
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (C)
1-09656-701-0
02
1
9601-0004
●
7
CONNECTOR; BRK VALVE
(C)
1-09656-701-0
02
1
0005-
●
●
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
9601-
●
●
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (A) M16 & PT3/8 STRAIGHT
1-09650-233-1
02
1
9601-0004
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
9601-
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9601-0904
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
●
●
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
9601-
●
●
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
9601-
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9601-0602
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
0603-
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9601-0512
●
●
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
0601-
●
●
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
9601-
●
●
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
9601-
●
●
266
JOINT ROD
1-73908-166-3
01
1
9601-
●
●
