3-58 — FIXING PARTS; OIL PIPING (#37916) — 224 parça

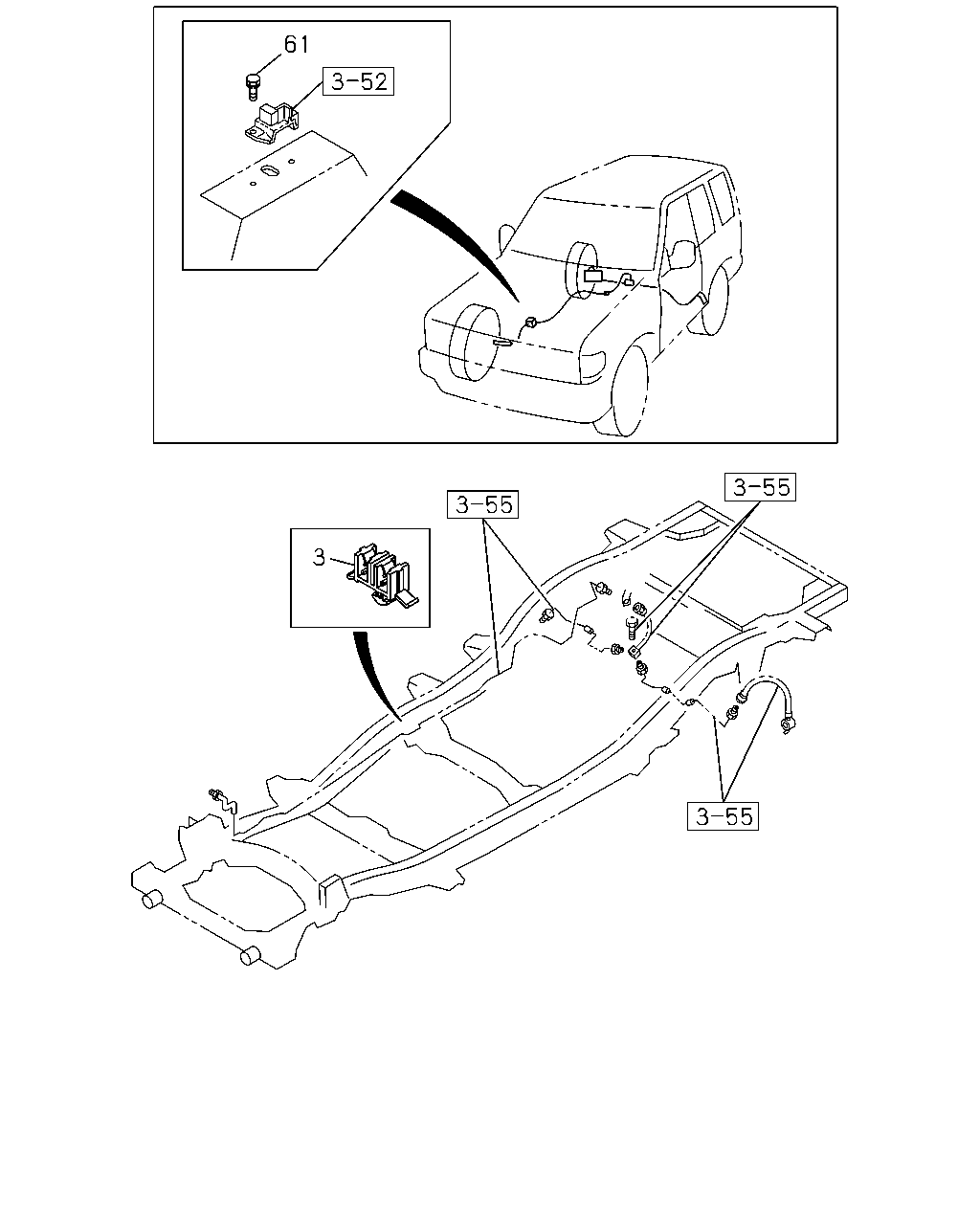

çizim 17923
61 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 04.685 CLIP; BRK PIPE
04.686 		8-94326-752-0 01 1 9712- ●
3 04.685 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.686 		8-94326-752-0 01 1 9712- ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 		8-94326-752-0 05 1 9712-0007 ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 		8-94326-752-0 05 1 0008- ● ●
3 04.685 CLIP; BRK PIPE
04.686 		8-94326-752-0 05 1 0008- ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 		8-94326-752-0 02 1 9712-0007 ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 		8-94326-752-0 02 1 0008- ●
3 04.685 CLIP; BRK PIPE
04.686 		8-94326-752-0 02 1 0008- ●
61 04.686 BOLT; BRK PIPE
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9712-9807 ● ●
61 04.686 BOLT; BRK PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9808-9809 ● ●
61 04.686 BOLT; BRK PIPE
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9810-0007 ● ●
61 04.686 BOLT; BRK PIPE
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0008- ● ● ●

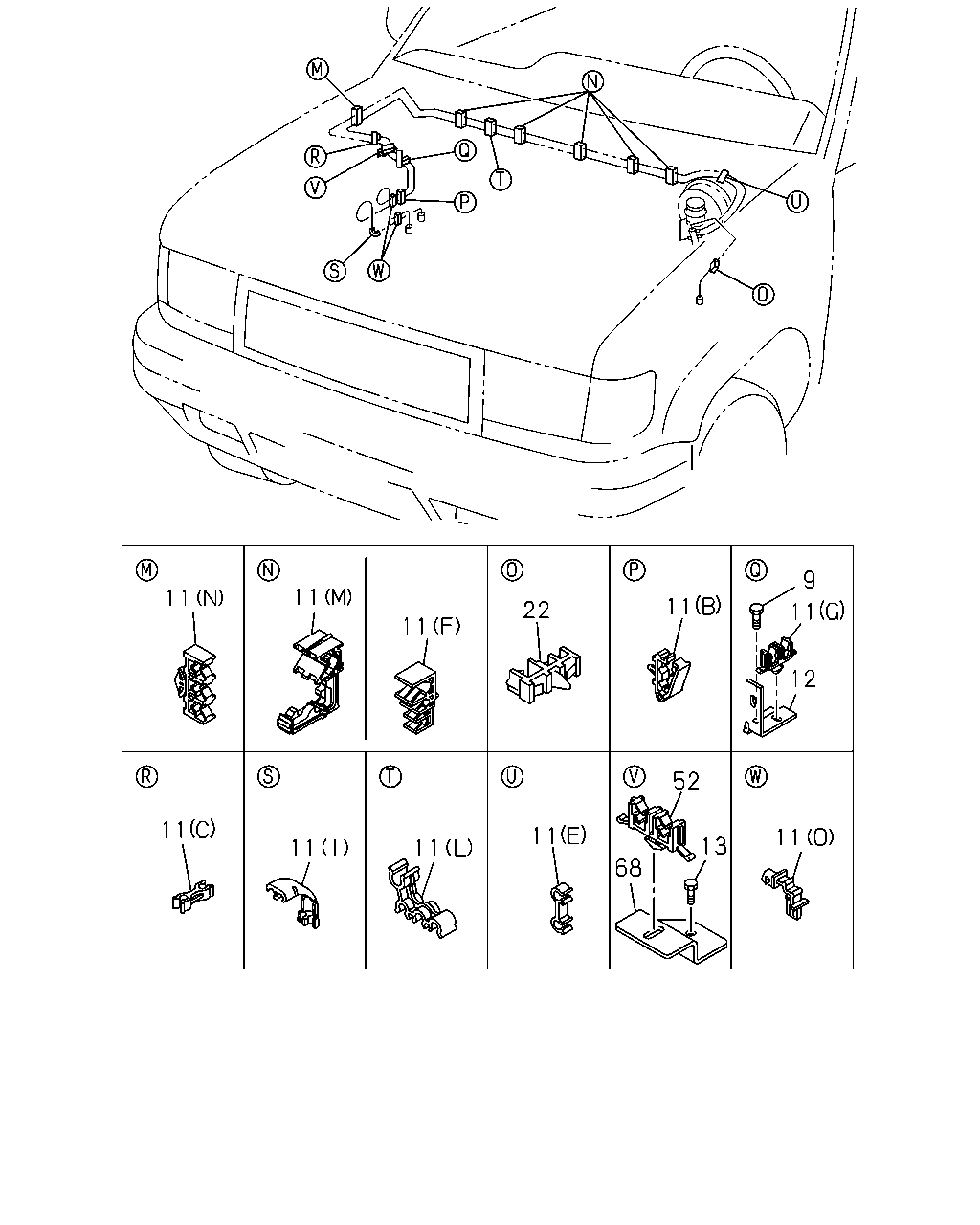

çizim 69725
9 11 11 11 22 11 11 12 52 11 11 11 13 11 11 68
BalonParca AdiParca NoAdetTipApplied Date A B C
9 04.686 BOLT; BRKT
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-0005 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0006-0007 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
(B) 		8-97035-570-3 01 1 9712-0007 ● ●
11 04.686 CLIP; OIL PIPE
(B) 		8-97035-570-3 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 9712-0007 ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 0008-0105 ● ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (I) 		8-97069-554-1 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (I) 		8-97069-554-1 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 0106- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97037-992-3 03 1 9802-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97037-992-3 03 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
(M) 		8-97037-992-3 03 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (E) 		8-94338-104-0 01 1 9801-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),ARGENTINA EQUIPMENT(7SZ) (E) 		8-94338-104-0 01 1 9801-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 9909-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 9909-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0008-0105 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 0008-0105 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0008-0105 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 9801-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9801-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9801-9801 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 9802-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
(L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (K) ID=4.8X3 		8-94487-369-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (K) ID=4.8X3 		8-94487-369-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9904-0007 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (D) ID=4.76X3 		8-94122-333-0 02 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9901- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97037-992-3 05 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (F) H=9.5 		8-94375-291-0 05 1 9712-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (F) 		8-97102-873-0 05 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (O) 		8-97302-252-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909-0105 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909-0105 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 0106- ● ●
12 04.686 BRACKET; OIL PIPE 8-94382-253-0 01 1 9712-9903 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712- ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9712-0007 ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 0008- ● ● ●
52 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 		8-94435-553-0 01 1 9904-0007 ● ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9904-0007 ● ●
52 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 		8-94435-553-0 01 1 0008- ● ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 0008- ● ●
52 04.686 CLIP; BRK PIPE 8-94435-553-0 01 1 0008- ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-94107-743-0 01 1 9904- ● ●
68 04.686 BRACKET; CLIP 8-97213-534-0 01 1 9904-0007 ● ●
68 04.686 BRACKET; CLIP 8-97213-534-0 01 1 0008- ● ● ●

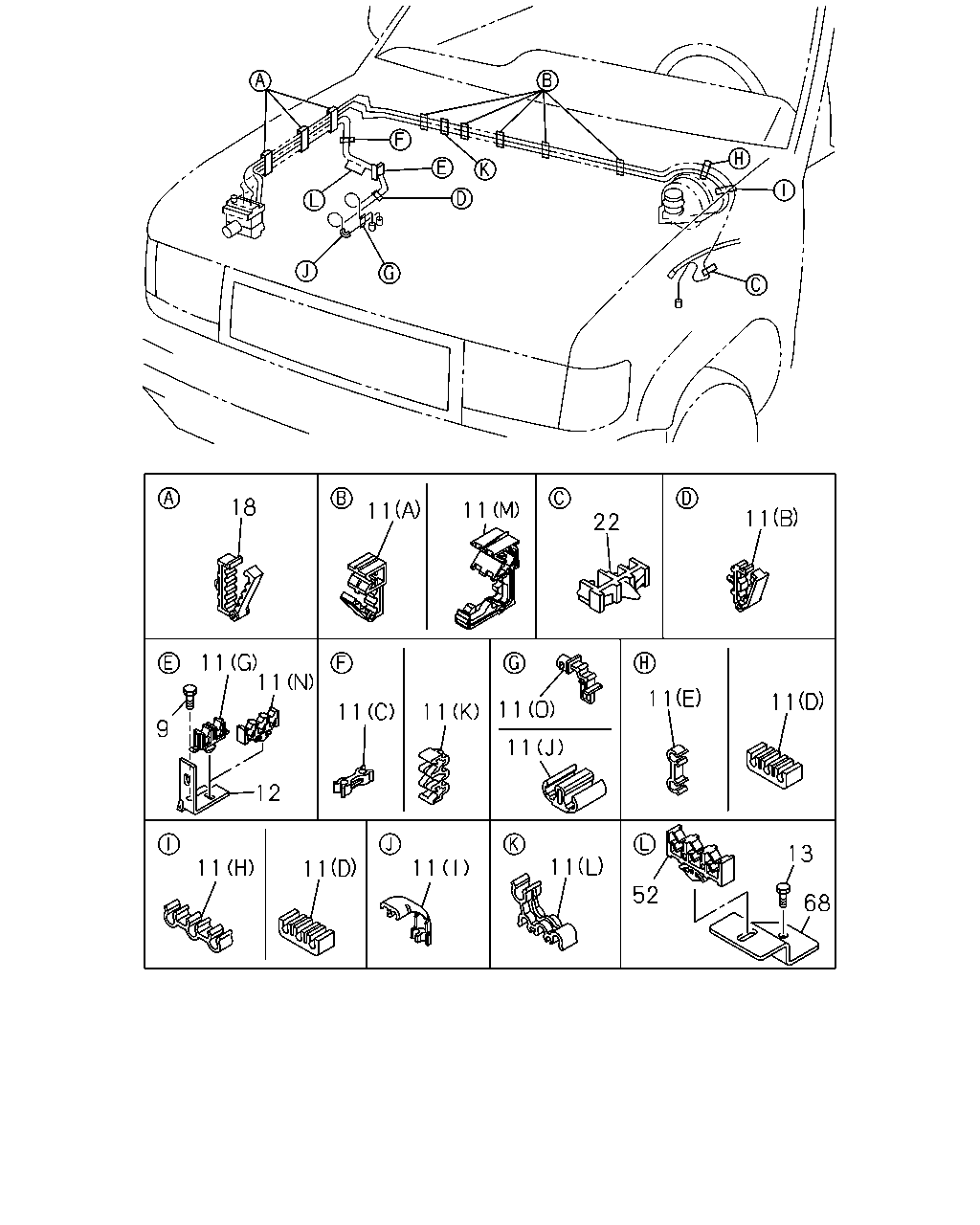

çizim 71621
18 11 11 11 22 11 11 11 11 11 11 11 9 11 12 13 11 11 11 11 52 68
BalonParca AdiParca NoAdetTipApplied Date A B C
9 04.686 BOLT; BRKT
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-0005 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0006-0007 ● ●
9 04.686 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
(B) 		8-97035-570-3 01 1 9712-0007 ● ●
11 04.686 CLIP; OIL PIPE
(B) 		8-97035-570-3 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 9712-0007 ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 0008-0105 ● ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (I) 		8-97069-554-1 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (I) 		8-97069-554-1 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
(I) 		8-97069-554-1 01 1 0106- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (G) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97037-992-3 03 1 9802-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) (M) 		8-97037-992-3 03 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
(M) 		8-97037-992-3 03 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (E) 		8-94338-104-0 01 1 9801-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),ARGENTINA EQUIPMENT(7SZ) (E) 		8-94338-104-0 01 1 9801-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 9909-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 9909-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0008-0105 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 0008-0105 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0008-0105 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-94338-104-0 01 1 0106- ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 9801-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 03 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9712-9712 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9801-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9801-9801 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9802-9907 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9908-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9909-0005 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),6VE1 ENG(RJQ) EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 9802-0005 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0006-0007 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0008- ● ●
11 04.686 CLIP; OIL PIPE
(L) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0008- ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (K) ID=4.8X3 		8-94487-369-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (K) ID=4.8X3 		8-94487-369-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 9904-0007 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) (N) 		8-94107-743-0 01 1 0008- ● ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (D) ID=4.76X3 		8-94122-333-0 02 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9901- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97037-992-3 05 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (F) H=9.5 		8-94375-291-0 05 1 9712-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (F) 		8-97102-873-0 05 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (O) 		8-97302-252-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909-0105 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909-0105 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (J) ID=6.35 & 6.35 		8-94474-113-0 02 1 0106- ● ●
12 04.686 BRACKET; OIL PIPE 8-94382-253-0 01 1 9712-9903 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712- ● ●
18 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97062-177-1 03 1 9712-0007 ● ●
18 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97062-177-1 03 1 0008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9712-0007 ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 0008- ● ● ●
52 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 		8-94435-553-0 01 1 9904-0007 ● ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9904-0007 ● ●
52 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 		8-94435-553-0 01 1 0008- ● ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 0008- ● ●
52 04.686 CLIP; BRK PIPE 8-94435-553-0 01 1 0008- ●
52 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-94107-743-0 01 1 9904- ● ●
68 04.686 BRACKET; CLIP 8-97213-534-0 01 1 9904-0007 ● ●
68 04.686 BRACKET; CLIP 8-97213-534-0 01 1 0008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
