3-55 — BRAKE PIPING; OIL,REAR (#37915) — 155 parça

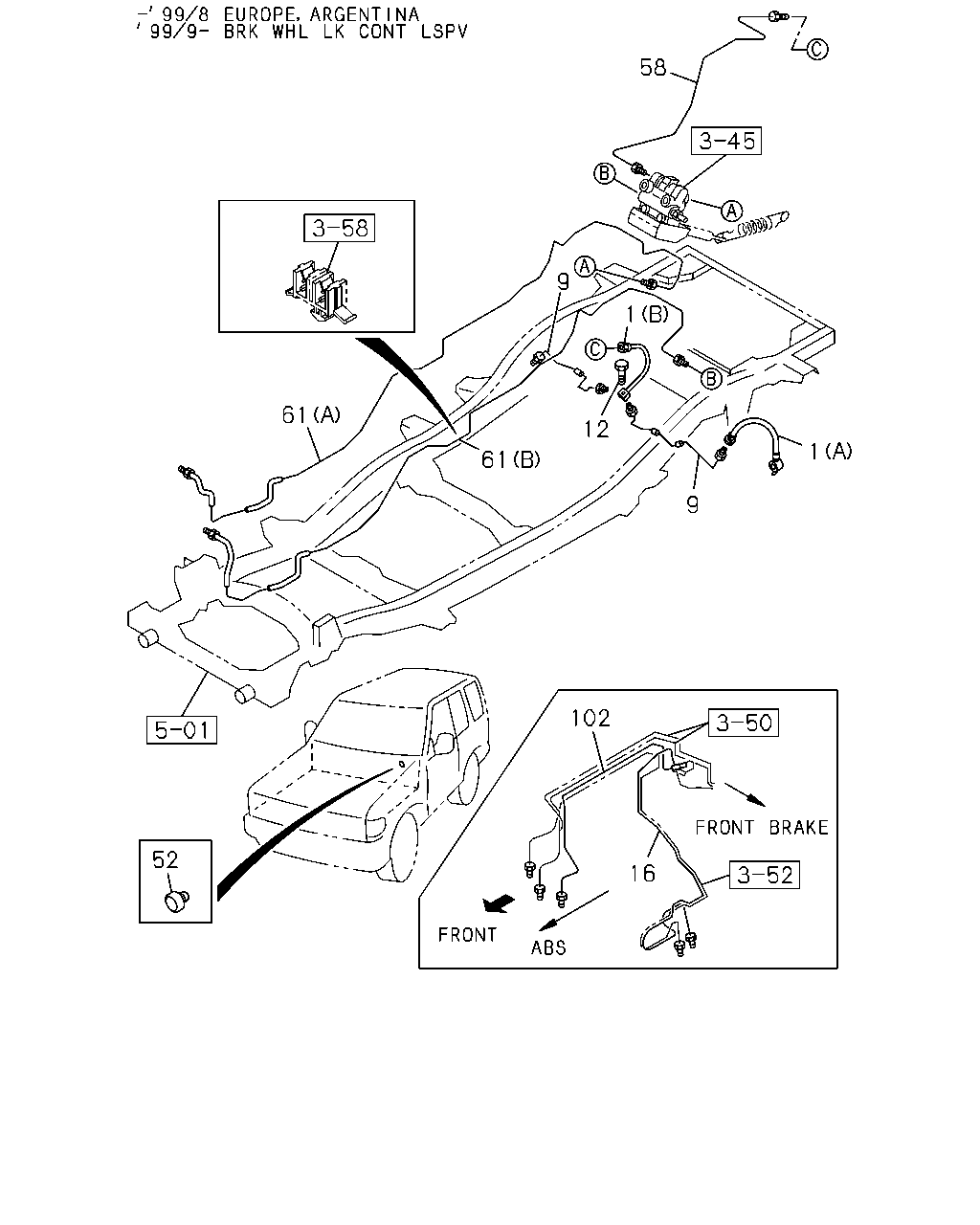

çizim 71152
58 9 1 61 12 1 61 9 102 52 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 0008- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 0008-0206 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-0 02 1 0008-0206 ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-1 02 1 0207- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. WIDE TREAD SUSPENSION<7FC> (A) 		8-94382-793-2 02 1 9712-0206 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97041-709-3 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-94374-974-4 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-4 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-5 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97169-065-5 01 1 0008- ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-2 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-3 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97165-701-3 01 1 0008- ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 9712-0007 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 0008- ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97183-820-0 01 1 9712-9908 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97183-820-0 01 1 9909-0105 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97263-898-1 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 9712-0007 ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC) A/T AISIN(RMD) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0106- ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
EUROPE EQUIPMENT(EK4) 		8-97169-157-1 01 1 9712-9712 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97169-157-1 01 1 9801-9908 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97169-157-1 01 1 9909-0007 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97169-157-2 01 1 0008- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE 8-97169-157-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97169-115-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-115-2 01 1 9909- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-122-0 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-122-1 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (A) 		8-97169-124-2 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-124-3 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-120-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-120-2 01 1 9909- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97169-118-1 01 1 9712-9712 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97169-118-1 01 1 9801-9908 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-118-1 01 1 9909-0007 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-118-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
(A) 		8-97169-118-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-0 01 1 9712-9712 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-0 01 1 9801-9908 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-123-0 01 1 9909-0007 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-123-1 01 1 0008- ●
61 04.685 PIPE ASM; BRK
ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-1 01 1 0008- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (A) 		8-97169-125-2 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-125-3 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-121-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-121-2 01 1 9909- ●
102 04.685 PIPE; ASM,3 WAY TO ABS
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-106-0 01 1 9712-9712 ● ●
102 04.685 PIPE; ASM,3 WAY TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-106-0 01 1 9801-9908 ● ●
102 04.685 PIPE; ASM,3 WAY TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-106-0 01 1 9909-0007 ● ●
102 04.685 PIPE; ASM,3 WAY TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-106-1 01 1 0008- ● ●
102 04.685 PIPE; ASM,3 WAY TO ABS
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-106-1 01 1 0008- ●
102 04.685 PIPE; ASM,3 WAY TO ABS
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-105-0 01 1 9712-9908 ● ●
102 04.685 PIPE; ASM,3 WAY TO ABS
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-105-1 01 1 9909- ● ●

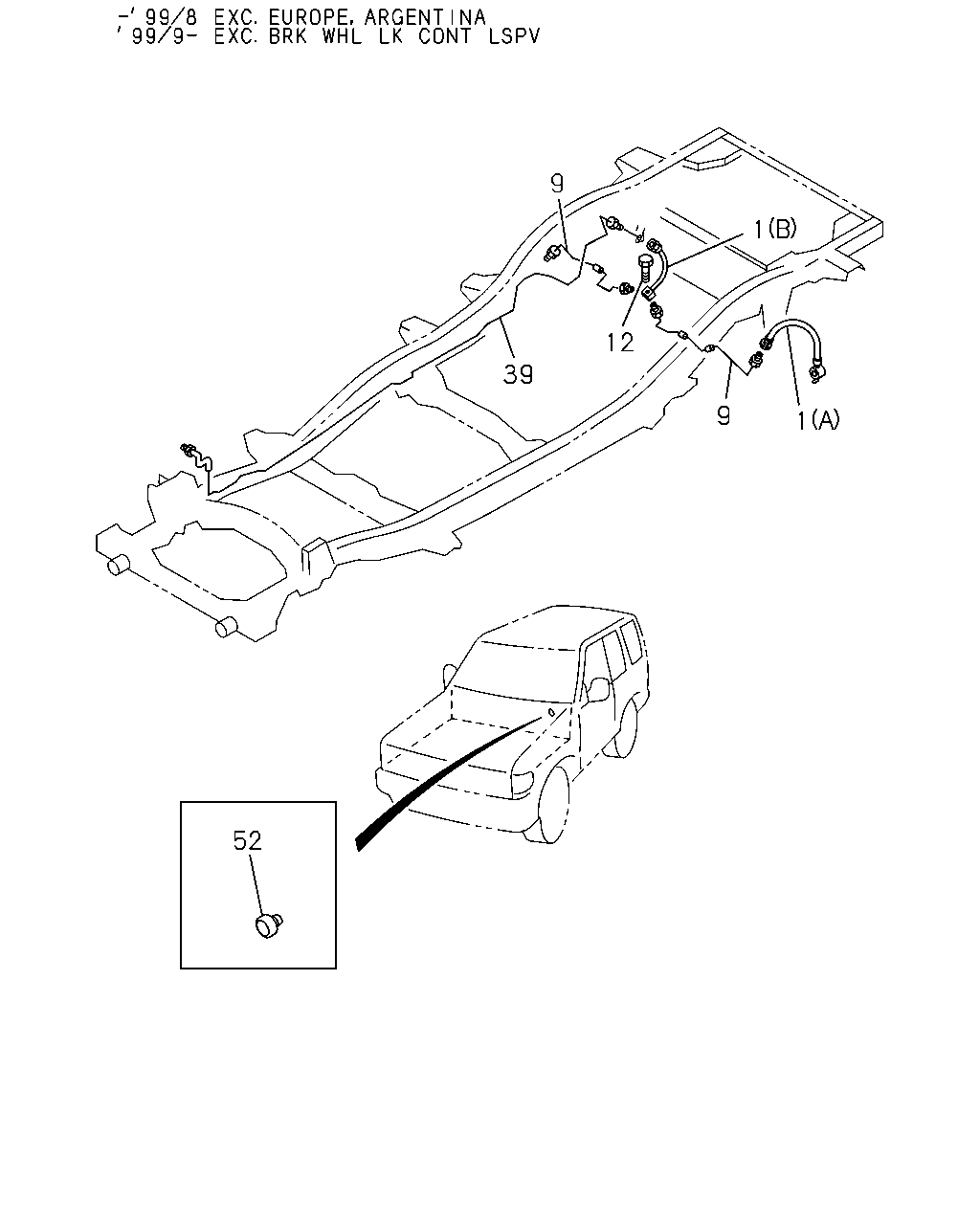

çizim 71528
9 1 12 39 9 1 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 0008- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 0008-0206 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-0 02 1 0008-0206 ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-1 02 1 0207- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. WIDE TREAD SUSPENSION<7FC> (A) 		8-94382-793-2 02 1 9712-0206 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97041-709-3 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-94374-974-4 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-4 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-5 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97169-065-5 01 1 0008- ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-2 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-3 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97165-701-3 01 1 0008- ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 9712-0007 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 0008- ● ● ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 		8-97112-712-3 01 1 9712-9908 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97112-712-4 01 1 9909- ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 		8-97169-158-1 01 1 9712-9908 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97169-158-2 01 1 9909- ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 		8-97112-713-3 01 1 9712-9712 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97112-713-3 01 1 9801-9908 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97112-713-3 01 1 9909-0005 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97112-713-3 01 1 0006-0105 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
4JG2 ENG(RJC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97112-713-4 01 1 0106- ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 		8-97169-159-2 01 1 9712-9908 ●
39 04.685 PIPE; OIL,UNION TO RR FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97169-159-3 01 1 9909- ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 9712-0007 ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC) A/T AISIN(RMD) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0106- ●

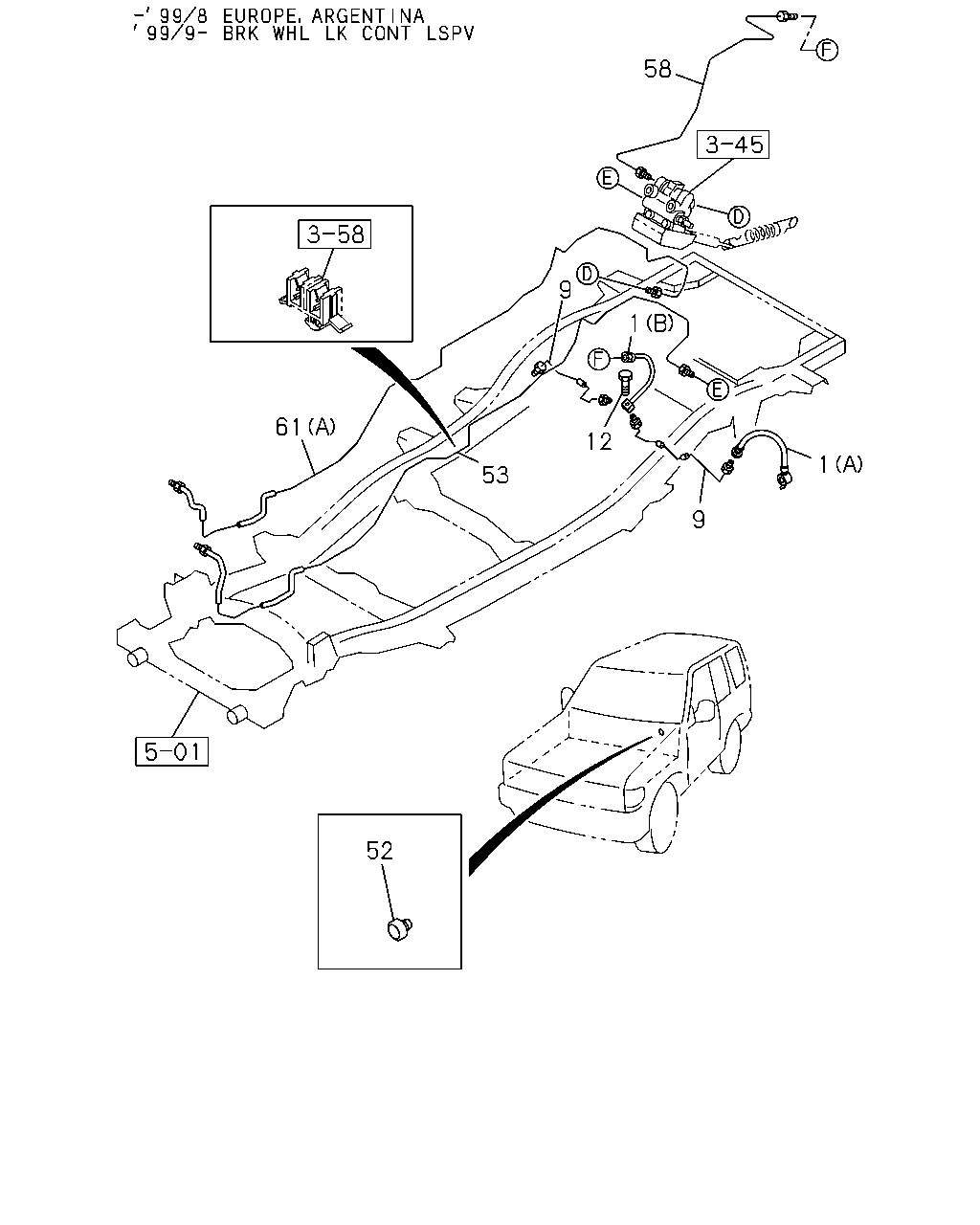

çizim 71802
58 9 1 61 12 1 53 9 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-94385-432-2 01 1 0008- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 9712-0007 ● ●
1 04.680 HOSE; FLEX,RR BRK
WIDE TREAD SUSPENSION<7FC> (A) 		8-97102-841-0 02 1 0008-0206 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-0 02 1 0008-0206 ●
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-97102-841-1 02 1 0207- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. WIDE TREAD SUSPENSION<7FC> (A) 		8-94382-793-2 02 1 9712-0206 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97041-709-3 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-94374-974-4 01 1 9712- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-4 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97169-065-5 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97169-065-5 01 1 0008- ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-2 01 1 9712-0007 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JX1 ENG(RJM),6VE1 ENG(RJQ) 		8-97165-701-3 01 1 0008- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97165-701-3 01 1 0008- ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 9712-0007 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
04.686 M8X30 FLANGE 		0-28680-830-0 01 1 0008- ● ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 9712-0007 ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0008-0105 ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC) A/T AISIN(RMD) 16.550 OD=12 		9-09956-122-0 01 1 0106- ● ●
52 04.686 GROMMET; OIL PIPE
16.550 OD=12 		9-09956-122-0 01 1 0106- ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-110-0 01 1 9712-9908 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-110-1 01 1 9909- ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-112-1 01 1 9712-9908 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-112-2 01 1 9909- ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-111-0 01 1 9712-9712 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-111-0 01 1 9801-9908 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-111-0 01 1 9909-0007 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-111-1 01 1 0008- ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-111-1 01 1 0008- ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-114-1 01 1 9712-9908 ●
53 04.685 PIPE ASM; BRK,LSV 3 WAY
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-114-2 01 1 9909- ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
EUROPE EQUIPMENT(EK4) 		8-97169-157-1 01 1 9712-9712 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97169-157-1 01 1 9801-9908 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97169-157-1 01 1 9909-0007 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97169-157-2 01 1 0008- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE 8-97169-157-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97169-115-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-115-2 01 1 9909- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-122-0 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-122-1 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (A) 		8-97169-124-2 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-124-3 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-120-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-120-2 01 1 9909- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97169-118-1 01 1 9712-9712 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97169-118-1 01 1 9801-9908 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-118-1 01 1 9909-0007 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-118-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
(A) 		8-97169-118-2 01 1 0008- ●
61 04.685 PIPE ASM; BRK
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-0 01 1 9712-9712 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-0 01 1 9801-9908 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-123-0 01 1 9909-0007 ●
61 04.685 PIPE ASM; BRK
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-123-1 01 1 0008- ●
61 04.685 PIPE ASM; BRK
ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-123-1 01 1 0008- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (A) 		8-97169-125-2 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-125-3 01 1 9909- ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97169-121-1 01 1 9712-9908 ●
61 04.685 PIPE ASM; BRK
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-121-2 01 1 9909- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
