Sayfa 3-52 - Isuzu EPC

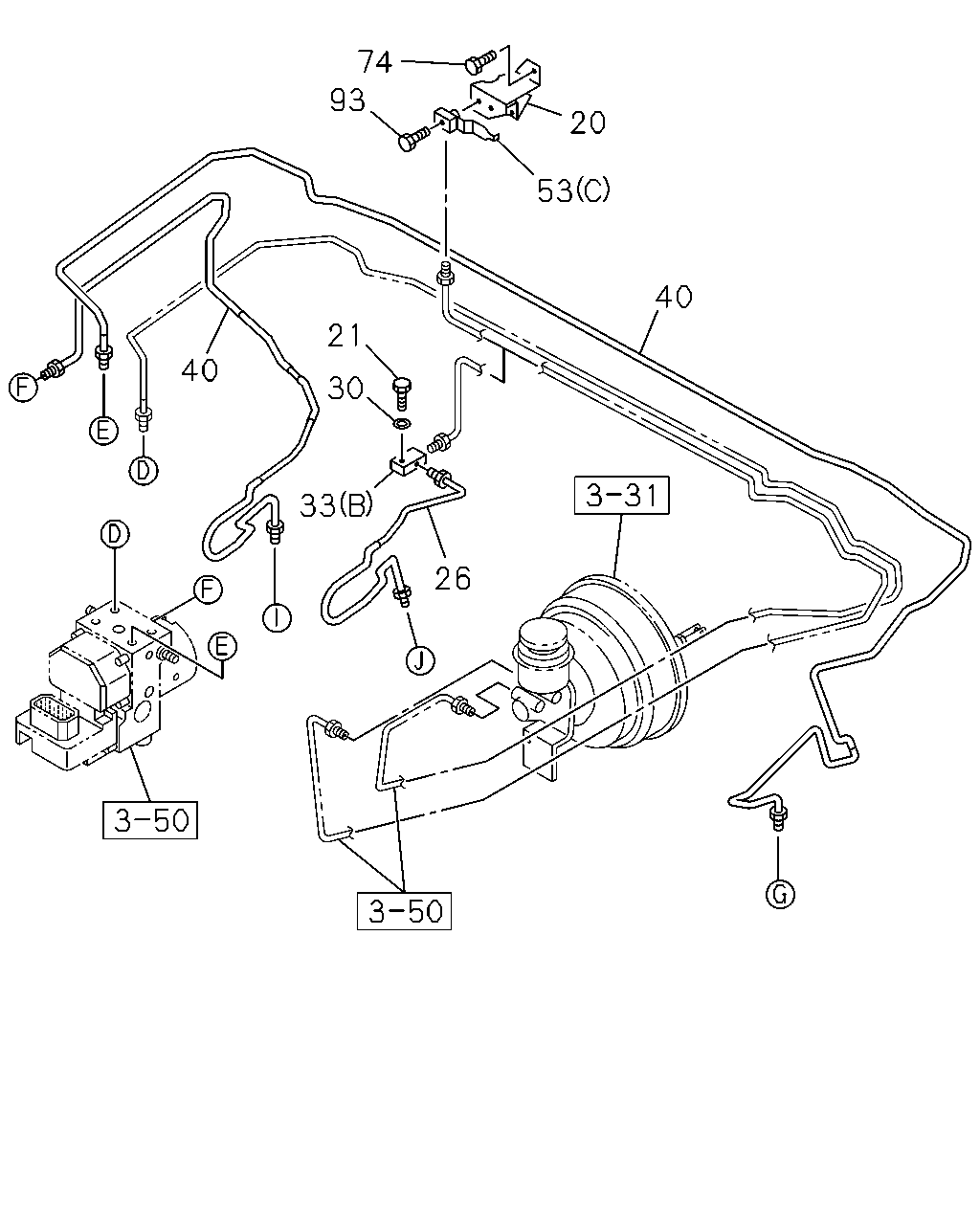

3-52 — BRAKE PIPING; OIL,FRONT (#37914) — 281 parça

74 93 20 53 40 21 40 30 33 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.686 BRACKET; UNION,OIL PIPE 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ANTI THEFT<UA6> 02.812	8-97072-528-0	01	1	9712-9801	●	●
20	04.686 BRACKET; UNION,OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ANTI THEFT<UA6> 02.812	8-97072-528-0	01	1	9802-9908	●	●
20	04.686 BRACKET; UNION,OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> EXC. ANTI THEFT<UA6> 02.812	8-97072-528-0	01	1	9909-0002	●	●
20	04.686 BRACKET; UNION,OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> EXC. ANTI THEFT<UA6> 02.810	8-97219-838-0	01	1	0003-	●	●
21	04.686 BOLT; UNION BRKT 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9712-9712	●	●
21	04.686 BOLT; UNION BRKT 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9801-9908	●	●
21	04.686 BOLT; UNION BRKT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 01.652 M6X30 FLANGE	0-28080-630-0	01	1	9909-0007	●	●
21	04.686 BOLT; UNION BRKT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 01.652 M6X30 FLANGE	0-28080-630-0	01	1	0008-	●	●
21	04.686 BOLT; UNION BRKT ANTI LOCK BRAKE SYSTEM(JE5) 01.652 M6X30 FLANGE	0-28080-630-0	01	1	0008-			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-561-1	01	1	9712-9712	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-561-1	01	1	9801-9908	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97181-561-1	01	1	9909-0007	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97181-561-2	01	1	0008-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-561-2	01	1	0008-			●
30	04.686 WASHER; PL,UNION 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) ID=6.4	1-09985-038-0	01	1	9712-9712	●	●
30	04.686 WASHER; PL,UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) ID=6.4	1-09985-038-0	01	1	9801-9908	●	●
30	04.686 WASHER; PL,UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> ID=6.4	1-09985-038-0	01	1	9909-0007	●	●
30	04.686 WASHER; PL,UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> ID=6.4	1-09985-038-0	01	1	0008-	●	●
30	04.686 WASHER; PL,UNION ANTI LOCK BRAKE SYSTEM(JE5) ID=6.4	1-09985-038-0	01	1	0008-			●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97110-846-1	01	1	9712-9712	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97110-846-1	01	1	9801-9901	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-0	01	1	9902-9908	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-0	01	1	9909-0007	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-0	01	1	0008-0105	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-0	01	1	0008-0105			●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	0106-	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	0106-			●
33	04.686 UNION; OIL PIPE 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	9712-9712	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	9801-9908	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	9909-0007	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	0008-0105	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	0008-0105			●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-2	01	1	0106-	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-2	01	1	0106-			●
33	04.686 UNION; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97302-250-3	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-323-3	01	1	9712-9902	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97212-635-0	01	1	9903-0007	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97212-635-0	01	1	0008-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97212-635-0	01	1	0008-0105			●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5)	8-97212-635-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-553-2	01	1	9712-0007	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-553-3	01	1	0008-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-553-3	01	1	0008-			●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5)	8-97309-462-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT ANTI LOCK BRAKE SYSTEM(JE5)	8-97309-462-1	01	1	0106-			●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-324-5	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-825-3	01	1	9712-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH>	8-97183-825-4	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97263-894-1	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97115-928-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	02	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97263-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97302-251-3	01	1	0106-	●	●
74	04.686 BOLT; BRKT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ANTI THEFT<UA6> 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-9801	●	●
74	04.686 BOLT; BRKT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ANTI THEFT<UA6> 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9802-9908	●	●
74	04.686 BOLT; BRKT 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> EXC. ANTI THEFT<UA6> 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9909-	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-9712	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9801-9908	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9801-9908	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-0007	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-0007	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-	●	●
93	04.686 BOLT; CONNECTOR EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-			●

33 5 9 9 8 8 1 8 5 8 9 1 5 8 53 38 8 9 9 1 8 9 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-0	02	1	9712-0007	●	●
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-1	02	1	0008-	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97102-757-1	02	1	0008-			●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-2	02	1	9712-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9712-0007	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	0008-	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9712-0007	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	0008-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9712-0007	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	0008-	●	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97110-846-1	01	1	9712-9712	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97110-846-1	01	1	9801-9901	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-0	01	1	9902-9908	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-0	01	1	9909-0007	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-0	01	1	0008-0105	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-0	01	1	0008-0105			●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	0106-	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	0106-			●
33	04.686 UNION; OIL PIPE 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	9712-9712	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	9801-9908	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	9909-0007	●	●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-94406-895-0	01	1	0008-0105	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-94406-895-0	01	1	0008-0105			●
33	04.686 UNION; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97180-914-2	01	1	0106-	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-914-2	01	1	0106-			●
33	04.686 UNION; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (A)	8-97302-250-3	01	1	0106-	●	●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	9712-0007		●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	0008-		●
38	04.686 CLIP 03.162 L=8.9	8-94435-551-1	01	1	0008-			●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97115-928-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	02	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97263-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97302-251-3	01	1	0106-	●	●

10 10 38 5 9 53 8 8 9 9 9 1 1 8 5 8 5 8 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-0	02	1	9712-0007	●	●
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-1	02	1	0008-	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97102-757-1	02	1	0008-			●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-2	02	1	9712-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9712-0007	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	0008-	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9712-0007	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	0008-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9712-0007	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	0008-	●	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-325-2	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97184-325-2	01	1	9909-0105	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97184-325-3	01	1	0106-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-547-3	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97186-547-3	01	1	9909-0105	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97186-547-4	01	1	0106-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-327-2	01	1	9712-9907	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-327-2	01	1	9908-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97184-327-3	01	1	9909-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-821-4	01	1	9712-9907	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-821-4	01	1	9908-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHLLK CONT LSPV<6PH>	8-97183-821-5	01	1	9909-	●	●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	9712-0007		●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	0008-		●
38	04.686 CLIP 03.162 L=8.9	8-94435-551-1	01	1	0008-			●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97115-928-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	02	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97263-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97302-251-3	01	1	0106-	●	●

13 18 53 53 18 93 38 5 9 8 8 9 9 9 1 1 8 5 8 5 8 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-0	02	1	9712-0007	●	●
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-1	02	1	0008-	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97102-757-1	02	1	0008-			●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-2	02	1	9712-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9712-0007	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	0008-	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9712-0007	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	0008-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9712-0007	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	0008-	●	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-564-1	01	1	9712-9712	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-564-4	01	1	9801-9908	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-564-4	01	1	9909-0007	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-564-5	01	1	0008-	●	●
13	04.685 PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97186-564-5	01	1	0008-			●
13	04.685 PIPE; OIL,UNION TO UNION 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-831-4	01	1	9712-9908	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-831-4	01	1	9909-0105	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97263-900-3	01	1	0106-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-328-0	01	1	9712-9712	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-328-1	01	1	9801-9908	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-328-1	01	1	9909-0007	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-328-2	01	1	0008-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97184-328-2	01	1	0008-			●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-2	01	1	9712-9712	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-2	01	1	9801-9908	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-2	01	1	9909-0007	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-3	01	1	0008-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-94374-808-3	01	1	0008-			●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	9712-0007		●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	0008-		●
38	04.686 CLIP 03.162 L=8.9	8-94435-551-1	01	1	0008-			●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97162-282-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97115-928-0	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	01	1	0006-0007	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-0	02	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97180-911-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97180-915-2	01	1	0106-			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9712-9712	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97012-437-2	01	1	9801-9901	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	9909-0007	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97180-910-0	01	1	0008-0105			●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (C)	8-97263-910-0	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97302-251-3	01	1	0106-	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-9712	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9801-9908	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9801-9908	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-0007	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-0007	●	●
93	04.686 BOLT; CONNECTOR 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-	●	●
93	04.686 BOLT; CONNECTOR EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0008-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
