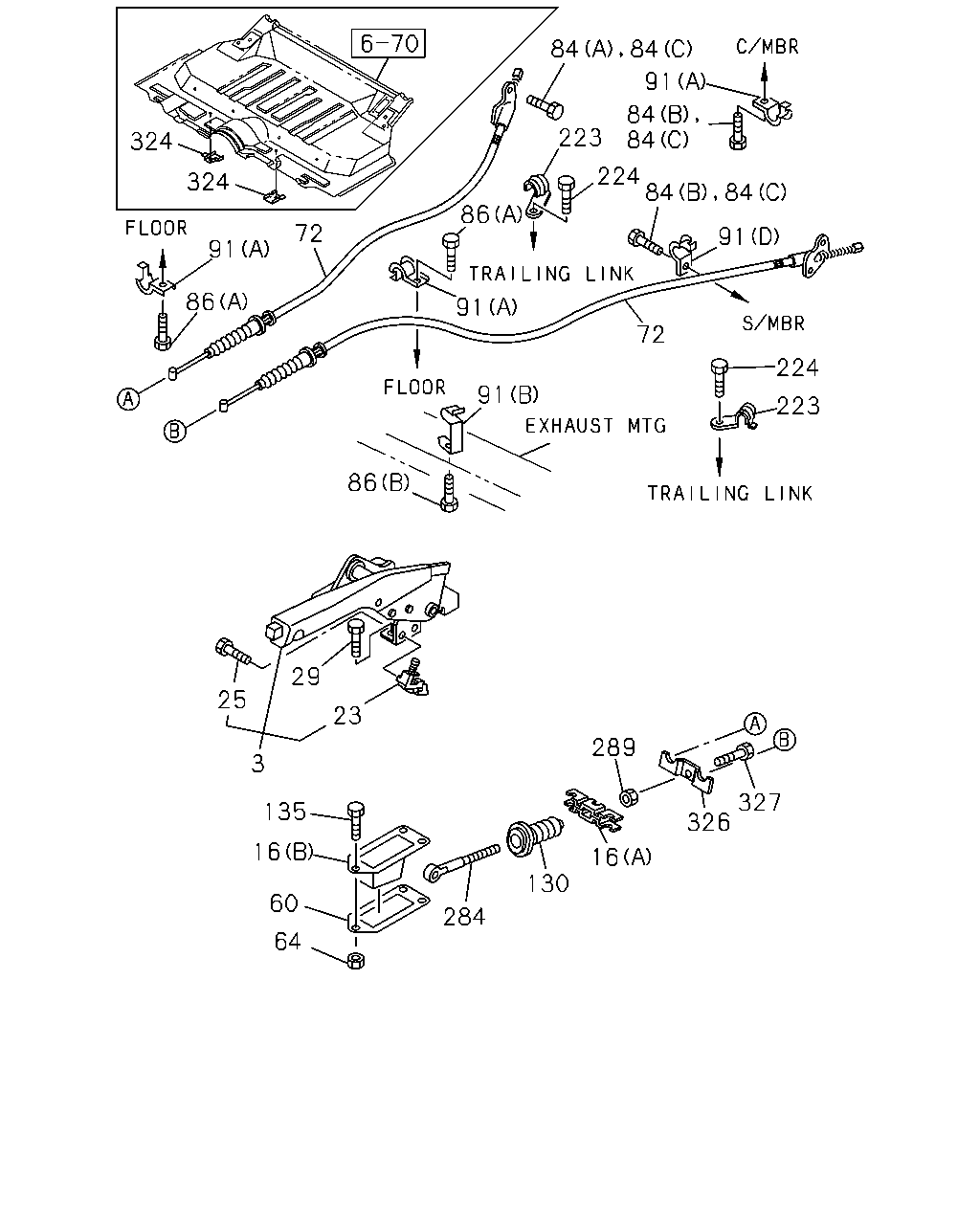

3-11 — PARKING BRAKE CONTROL (#37908) — 164 parça

84 84 91 84 84 223 324 224 324 86 72 91 91 86 91 72 224 91 223 86 29 25 23 289 3 327 326 135 16 16 130 60 284 64 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.591 LEVER; PARKING BRK GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4)	8-97187-693-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK LEATHER GRIP PACKAGE<7GZ>	8-97187-693-0	01	1	9909-0007	●	●
3	04.591 LEVER; PARKING BRK LEATHER GRIP PACKAGE<7GZ>	8-97187-693-0	01	1	0008-	●	●
3	04.591 LEVER; PARKING BRK	8-97187-693-0	01	1	0008-			●
3	04.591 LEVER; PARKING BRK GRADE S/SE(RBA)	8-97187-692-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4)	8-97187-692-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK EXC. LEATHER GRIP PACKAGE<7GZ>	8-97187-692-0	01	1	9909-	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9712-0007	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	0008-	●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97046-793-2	01	1	9712-9809	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9810-0007	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	0008-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97094-937-0	01	1	9712-0007	●	●
23	04.589 SWITCH; PARKING BRK	8-97094-937-0	01	1	0008-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9712-0007	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	0008-	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-0007	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0008-	●	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9712-0007	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	0008-	●	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9712-0007	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	0008-	●	●	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97133-242-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97133-241-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-240-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-263-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97131-204-0	01	1	9712-9904		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-099-0	01	1	9905-0007		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-099-1	01	1	0008-		●
72	04.779 CABLE; PARKING BRK	8-97227-099-1	01	1	0008-			●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97131-203-0	01	1	9712-9904		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-098-0	01	1	9905-0007		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-098-0	01	1	0008-		●
72	04.779 CABLE; PARKING BRK	8-97227-098-0	01	1	0008-			●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-237-1	01	1	9712-		●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-236-0	01	1	9712-		●
84	04.790 BOLT; CABLE 02.559 (B) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9712-9810	●
84	04.790 BOLT; CABLE 00.738 (B) M6X16 FLANGE	0-28080-616-0	01	1	9811-0204	●
84	04.790 BOLT; CABLE 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0205-	●
84	04.790 BOLT; CABLE 08.900 (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810	●	●
84	04.790 BOLT; CABLE 01.428 (C) M6X12 FLANGE	0-28080-612-0	06	1	9811-0007	●	●
84	04.790 BOLT; CABLE 01.428 (C) M6X12 FLANGE	0-28080-612-0	06	1	0008-	●	●	●
84	04.790 BOLT; CABLE 12.187 (A) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9712-9810	●	●
86	04.785 BOLT 08.900 (C) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9712-9810	●
86	04.785 BOLT 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	9811-	●
86	04.785 BOLT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	9712-0007		●
86	04.785 BOLT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0008-		●	●
86	04.785 BOLT 08.900 (A) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810		●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9811-0007		●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	0008-		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97133-304-0	01	1	9712-	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	9712-0007	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	0008-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	9712-0007	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	0008-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-97021-566-0	01	1	9712-0007		●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-97021-566-0	01	1	0008-0108		●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-97146-506-0	01	1	9712-0007		●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-97146-506-0	01	1	0008-		●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9712-0007	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	0008-	●	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9712-0007	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	0008-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	9712-0007	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	0008-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	9712-0007	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	0008-	●	●	●
224	04.785 BOLT; CABLE CLIP 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810	●	●
224	04.785 BOLT; CABLE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0007	●	●
224	04.785 BOLT; CABLE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0008-	●	●	●
284	04.595 ROD; HAND BRK	8-97142-955-1	01	1	9712-0007	●	●
284	04.595 ROD; HAND BRK	8-97142-955-1	01	1	0008-	●	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0007	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	0008-	●	●	●
324	04.785 BRACKET 16.545 (A)	8-97801-525-0	01	1	9712-	●
324	04.785 BRACKET 16.545 (B)	8-97803-500-0	01	1	9712-	●
324	04.785 BRACKET 16.545	8-97801-525-0	02	1	9712-0007		●
324	04.785 BRACKET 16.545	8-97801-525-0	02	1	0008-		●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9712-0007	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	0008-	●	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-0007	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0008-	●	●	●

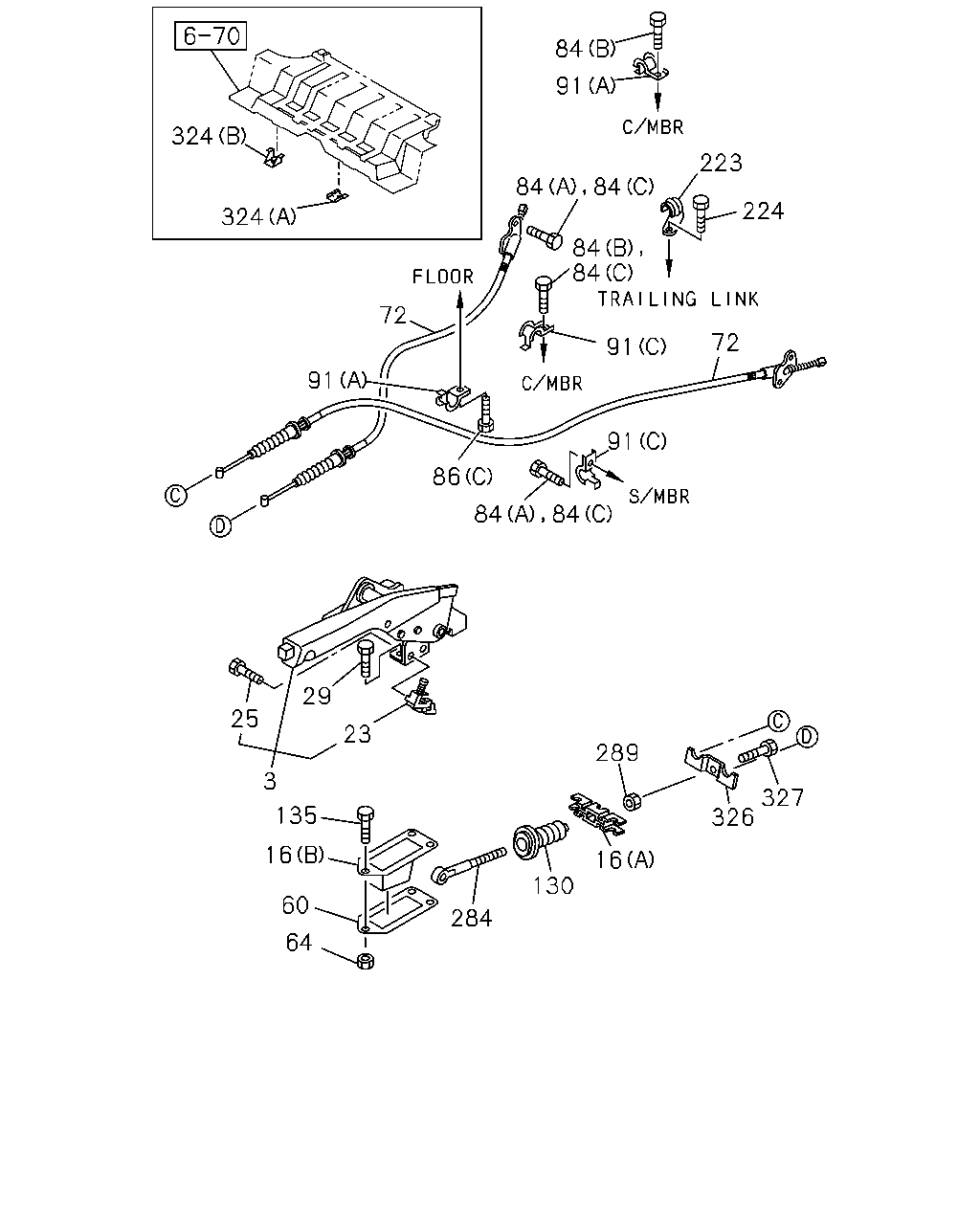

84 91 324 223 84 84 224 324 84 84 72 72 91 91 91 86 84 84 29 25 23 289 3 327 326 135 16 16 130 60 284 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.591 LEVER; PARKING BRK GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4)	8-97187-693-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK LEATHER GRIP PACKAGE<7GZ>	8-97187-693-0	01	1	9909-0007	●	●
3	04.591 LEVER; PARKING BRK LEATHER GRIP PACKAGE<7GZ>	8-97187-693-0	01	1	0008-	●	●
3	04.591 LEVER; PARKING BRK	8-97187-693-0	01	1	0008-			●
3	04.591 LEVER; PARKING BRK GRADE S/SE(RBA)	8-97187-692-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4)	8-97187-692-0	01	1	9712-9908	●	●
3	04.591 LEVER; PARKING BRK EXC. LEATHER GRIP PACKAGE<7GZ>	8-97187-692-0	01	1	9909-	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9712-0007	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	0008-	●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97046-793-2	01	1	9712-9809	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9810-0007	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	0008-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97094-937-0	01	1	9712-0007	●	●
23	04.589 SWITCH; PARKING BRK	8-97094-937-0	01	1	0008-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9712-0007	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	0008-	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-0007	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0008-	●	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9712-0007	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	0008-	●	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9712-0007	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	0008-	●	●	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97133-242-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97133-241-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-240-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-263-0	01	1	9712-	●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97131-204-0	01	1	9712-9904		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-099-0	01	1	9905-0007		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-099-1	01	1	0008-		●
72	04.779 CABLE; PARKING BRK	8-97227-099-1	01	1	0008-			●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97131-203-0	01	1	9712-9904		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-098-0	01	1	9905-0007		●
72	04.779 CABLE; PARKING BRK WIDE TREAD SUSPENSION<7FC>	8-97227-098-0	01	1	0008-		●
72	04.779 CABLE; PARKING BRK	8-97227-098-0	01	1	0008-			●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-237-1	01	1	9712-		●
72	04.779 CABLE; PARKING BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-236-0	01	1	9712-		●
84	04.790 BOLT; CABLE 02.559 (B) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9712-9810	●
84	04.790 BOLT; CABLE 00.738 (B) M6X16 FLANGE	0-28080-616-0	01	1	9811-0204	●
84	04.790 BOLT; CABLE 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0205-	●
84	04.790 BOLT; CABLE 08.900 (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810	●	●
84	04.790 BOLT; CABLE 01.428 (C) M6X12 FLANGE	0-28080-612-0	06	1	9811-0007	●	●
84	04.790 BOLT; CABLE 01.428 (C) M6X12 FLANGE	0-28080-612-0	06	1	0008-	●	●	●
84	04.790 BOLT; CABLE 12.187 (A) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9712-9810	●	●
86	04.785 BOLT 08.900 (C) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9712-9810	●
86	04.785 BOLT 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	9811-	●
86	04.785 BOLT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	9712-0007		●
86	04.785 BOLT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0008-		●	●
86	04.785 BOLT 08.900 (A) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810		●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9811-0007		●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	0008-		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97133-304-0	01	1	9712-	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	9712-0007	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	0008-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	9712-0007	●	●
91	04.785 CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	0008-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-97021-566-0	01	1	9712-0007		●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-97021-566-0	01	1	0008-0108		●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-97146-506-0	01	1	9712-0007		●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-97146-506-0	01	1	0008-		●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9712-0007	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	0008-	●	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9712-0007	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	0008-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	9712-0007	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	0008-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	9712-0007	●	●
223	04.785 CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	0008-	●	●	●
224	04.785 BOLT; CABLE CLIP 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9712-9810	●	●
224	04.785 BOLT; CABLE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0007	●	●
224	04.785 BOLT; CABLE CLIP 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0008-	●	●	●
284	04.595 ROD; HAND BRK	8-97142-955-1	01	1	9712-0007	●	●
284	04.595 ROD; HAND BRK	8-97142-955-1	01	1	0008-	●	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0007	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	0008-	●	●	●
324	04.785 BRACKET 16.545 (A)	8-97801-525-0	01	1	9712-	●
324	04.785 BRACKET 16.545 (B)	8-97803-500-0	01	1	9712-	●
324	04.785 BRACKET 16.545	8-97801-525-0	02	1	9712-0007		●
324	04.785 BRACKET 16.545	8-97801-525-0	02	1	0008-		●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9712-0007	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	0008-	●	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-0007	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
