Isuzu WW
▶
SUV
▶
UBS
▶
50775 - UBS-LHD
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

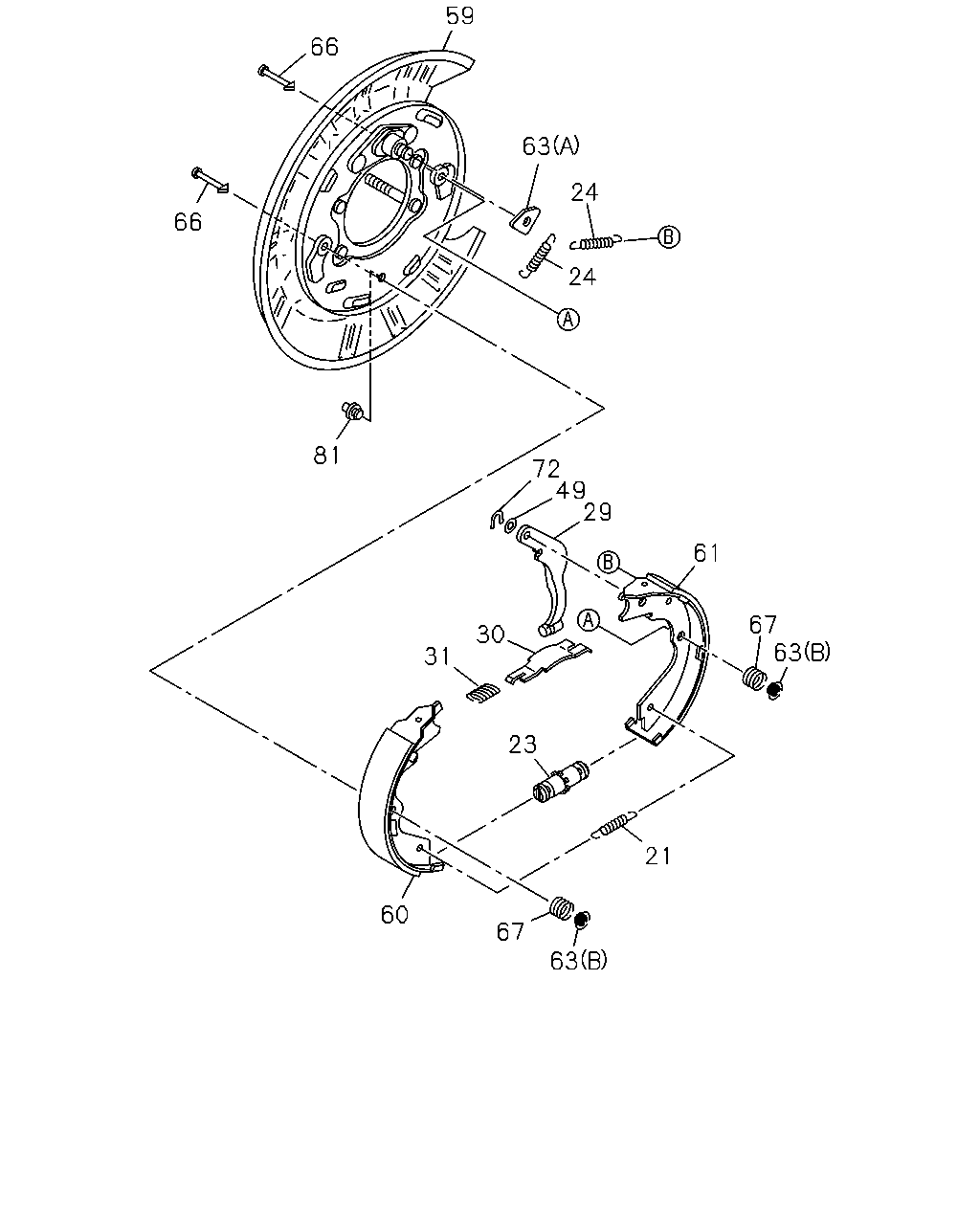

3-08 — PARKING BRAKE
(#37906) — 20 parça
Tümü
A - A/T AISIN
B - M/T MUA 5 SPEED
C - A/T THM
D - M/T AR-5 5 SPEED
59
66
63
24
66
24
81
72
49
29
61
67
63
30
31
23
21
60
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
21
05.606 SPRING; RETURN,PARKING BRK SHOE
8-97034-749-0
02
1
9712-
●
●
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-97034-750-0
02
1
9712-
●
●
●
●
24
05.605 SPRING; BRK SHOE
05.606
8-97034-748-0
04
1
9712-
●
●
●
●
29
04.591 LEVER; PARKING BRK
8-97034-741-0
01
1
9712-
●
●
●
●
29
04.591 LEVER; PARKING BRK
8-97034-740-0
01
1
9712-
●
●
●
●
30
05.605 STRUT; PARKING BRK
8-97034-745-0
01
1
9712-
●
●
●
●
30
05.605 STRUT; PARKING BRK
8-97034-744-0
01
1
9712-
●
●
●
●
31
05.605 SPRING; SHOE TO STRUT
8-97034-746-0
02
1
9712-
●
●
●
●
49
04.591 WASHER; PARKING BRK LEVER
8-97034-742-0
02
1
9712-
●
●
●
●
59
05.610 COVER; DUST,PARKING BRK
8-97034-736-2
01
1
9712-
●
●
●
●
59
05.610 COVER; DUST,PARKING BRK
8-97034-735-2
01
1
9712-
●
●
●
●
60
05.610 SHOE; PARKING BRK,PRIMARY
LEADING
8-97034-737-1
02
1
9712-
●
●
●
●
61
05.610 SHOE; PARKING BRK,SECONDARY
TRAILING
8-97034-739-1
01
1
9712-
●
●
●
●
61
05.610 SHOE; PARKING BRK,SECONDARY
TRAILING
8-97034-738-1
01
1
9712-
●
●
●
●
63
04.591 RETAINER; PARKING BRK LEVER
05.606 (A)
8-97034-747-0
02
1
9712-
●
●
●
●
63
04.591 RETAINER; PARKING BRK LEVER
05.605 (B)
8-97034-753-0
04
1
9712-
●
●
●
●
66
05.610 PIN; SHOE HOLD,PARKING BRK
8-97034-751-0
04
1
9712-
●
●
●
●
67
05.610 SPRING; SHOE HOLD,PARKING BRK
8-97034-752-0
04
1
9712-
●
●
●
●
72
05.605 RING; SNAP
04.591
8-97034-743-0
02
1
9712-
●
●
●
●
81
05.606 COVER; CHECK HOLE,PARKING BRK
8-97034-754-0
04
1
9712-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
