3-06 — REAR DISC BRAKE CALIPER (#37905) — 29 parça

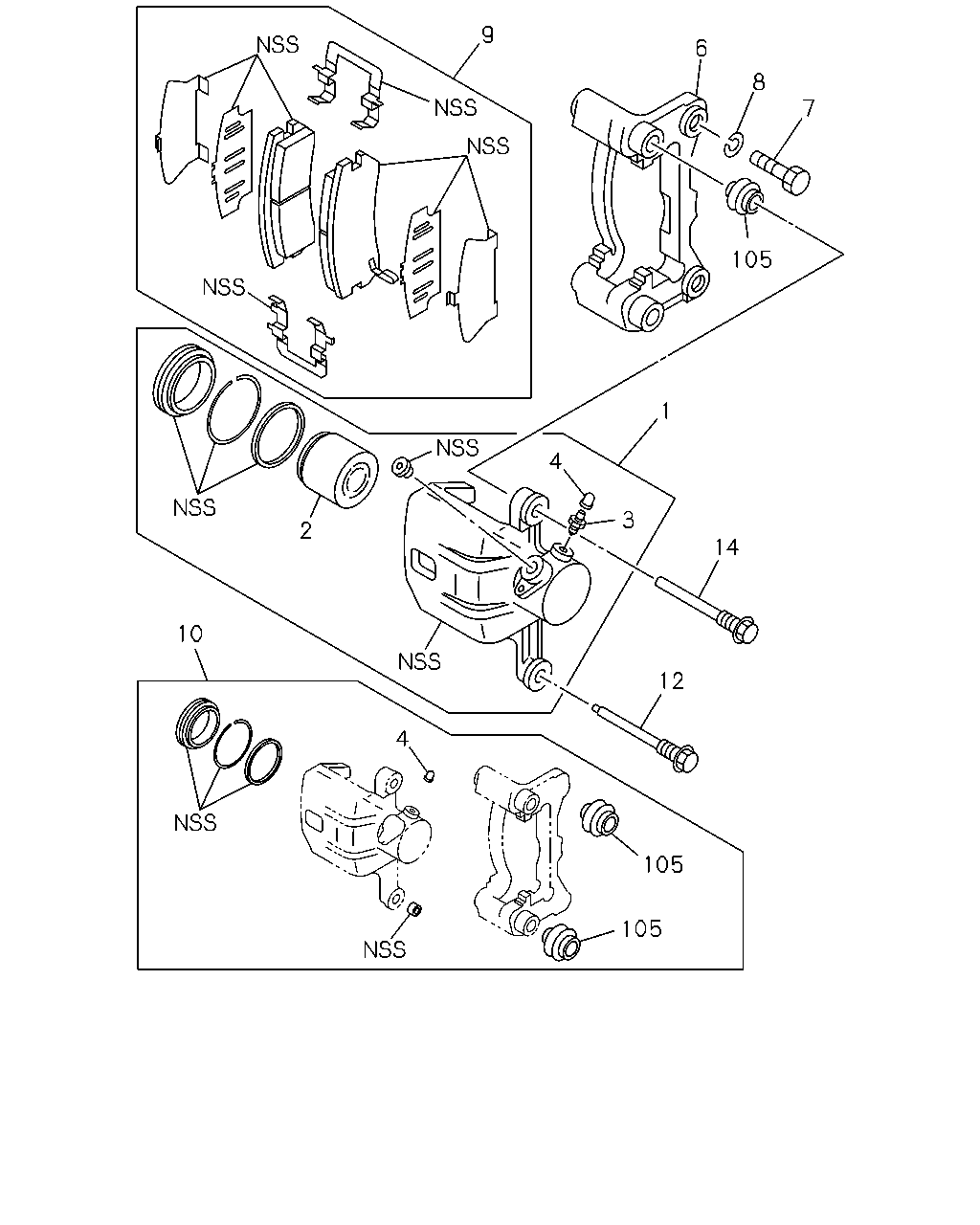

çizim 18774
9 6 8 7 105 1 4 3 2 14 10 12 4 105 105
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; RR DISC BRK 8-97144-479-0 01 1 9712-0007 ● ●
1 04.665 CALIPER; RR DISC BRK 8-97144-479-0 01 1 0008- ● ● ●
1 04.665 CALIPER; RR DISC BRK 8-97144-478-0 01 1 9712-0007 ● ●
1 04.665 CALIPER; RR DISC BRK 8-97144-478-0 01 1 0008- ● ● ●
2 04.665 PISTON; CALIPER,RR 8-97035-261-0 02 1 9712-0007 ● ●
2 04.665 PISTON; CALIPER,RR 8-97035-261-0 02 1 0008- ● ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR 8-97113-867-0 02 1 9712-0007 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR 8-97113-867-0 02 1 0008- ● ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		1-47619-009-0 02 1 9712-0007 ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		1-47619-009-0 02 1 0008- ● ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-97035-260-0 02 1 9712-0007 ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-97035-260-0 02 1 0008- ● ● ●
7 04.665 BOLT; DISC BRK
M12X27 		8-97126-215-1 04 1 9712-0007 ● ●
7 04.665 BOLT; DISC BRK
M12X27 		8-97126-215-1 04 1 0008-0206 ● ● ●
7 04.665 BOLT; DISC BRK
M12X27 		8-97351-108-0 04 1 0207- ● ● ●
8 04.665 WASHER; LK,DISC BRK
00.002 ID=12.2 		9-09150-812-0 04 1 9712-0007 ● ●
8 04.665 WASHER; LK,DISC BRK
00.002 ID=12.2 		9-09150-812-0 04 1 0008- ● ● ●
9 04.667 PAD KIT; CALIPER,RR
BRAKE PAD HEAVY DUTY(J55) 		8-97039-269-1 01 1 9712- ● ●
9 04.667 PAD KIT; CALIPER,RR
EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97035-266-0 01 1 9712-0007 ● ●
9 04.667 PAD KIT; CALIPER,RR
EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97035-266-0 01 1 0008- ● ●
9 04.667 PAD KIT; CALIPER,RR 8-97035-266-0 01 1 0008- ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-97134-718-0 01 1 9712-0007 ● ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-97134-718-0 01 1 0008- ● ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK 8-94362-821-0 02 1 9712-0007 ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK 8-94362-821-0 02 1 0008- ● ● ●
14 04.665 PIN; GUIDE,CALIPER 8-94362-820-0 02 1 9712-0007 ● ●
14 04.665 PIN; GUIDE,CALIPER 8-94362-820-0 02 1 0008- ● ● ●
105 04.665 BOOT; PIN 8-94362-823-0 04 1 9712-0007 ● ●
105 04.665 BOOT; PIN 8-94362-823-0 04 1 0008- ● ● ●
