3-02 — FRONT DISC BRAKE CALIPER (#37904) — 33 parça

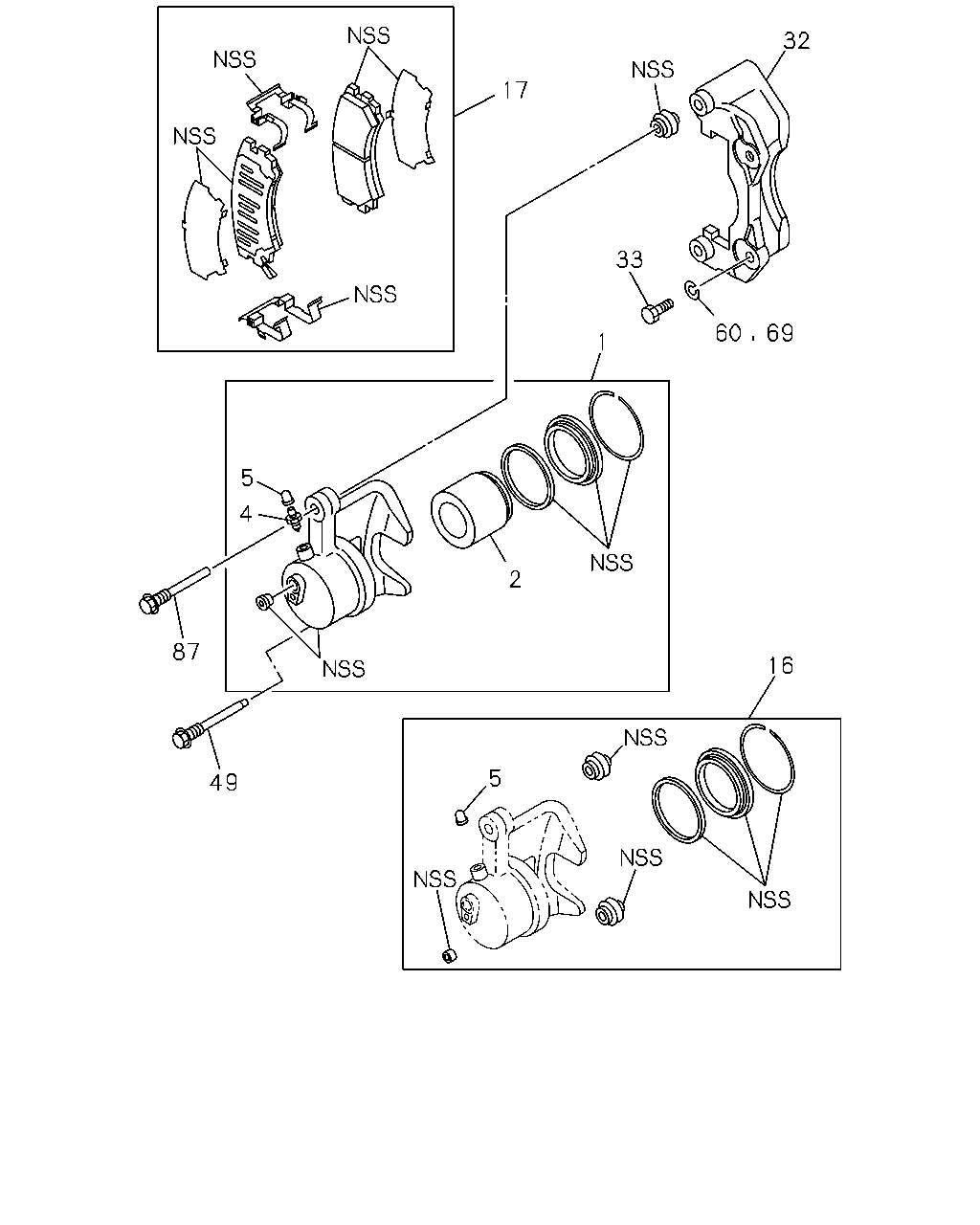

çizim 68940
32 17 33 60 69 1 5 4 2 87 16 5 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK 8-97144-477-0 01 1 9712-0007 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97144-477-0 01 1 0008- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97144-476-0 01 1 9712-0007 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97144-476-0 01 1 0008- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9712-0007 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 0008- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 02 1 9712-0007 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 02 1 0008- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9712-0007 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0008- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97134-716-0 01 1 9712-0007 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97134-716-0 01 1 0008- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
CHINA EQUIPMENT(YT2) EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97191-014-0 01 1 0210- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
BRAKE PAD HEAVY DUTY(J55) 		8-97180-525-1 01 1 9712- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97035-257-1 01 1 9712-0007 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97035-257-1 01 1 0008-0209 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97035-257-1 01 1 0008-0209 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. BRAKE PAD HEAVY DUTY(J55) 		8-97035-257-1 01 1 0210- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. BRAKE PAD HEAVY DUTY(J55),CHINA EQUIPMENT(YT2) 		8-97035-257-1 01 1 0210- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97035-257-1 01 1 0210- ●
32 04.665 SUPPORT; FRT DISC BRK 8-97035-250-1 02 1 9712-0007 ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97035-250-1 02 1 0008- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97126-347-0 04 1 9712-0007 ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97126-347-0 04 1 0008-0203 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97327-422-0 04 1 0204- ● ● ●
49 04.665 PIN; SLIDE,CALIPER 8-97035-254-0 02 1 9712-0007 ● ●
49 04.665 PIN; SLIDE,CALIPER 8-97035-254-0 02 1 0008- ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
05.422 ID=14.2 		9-09150-814-0 02 1 9712-0007 ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
05.422 ID=14.2 		9-09150-814-0 02 1 0008- ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
05.422 ID=14.2 		9-09150-814-0 02 1 9712-0007 ● ●
69 04.665 WASHER; LK,FRT DISC BRK
05.422 ID=14.2 		9-09150-814-0 02 1 0008- ● ● ●
87 04.665 PIN; LOCK 8-97035-255-0 02 1 9712-0007 ● ●
87 04.665 PIN; LOCK 8-97035-255-0 02 1 0008- ● ● ●
