◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#37901) — 27 parça
çizim 69455
21 25 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.162 SHAFT; GEAR,INPUT 8-94381-284-2 01 1 9712-9908 ● ●
1 04.162 SHAFT; GEAR,INPUT
EXC. TORQUE ON DEMAND<7HA> 		8-94381-284-2 01 1 9909- ● ●
1 04.162 SHAFT; GEAR,INPUT
TORQUE ON DEMAND<7HA> 		8-97129-043-0 01 1 9909- ●
7 04.163 SPACER; INPUT SHAFT BRG 8-94368-834-3 01 1 9712-9908 ● ●
7 04.163 SPACER; INPUT SHAFT BRG
EXC. TORQUE ON DEMAND<7HA> 		8-94368-834-3 01 1 9909- ● ●
21 04.162 RING; SNAP,PILOT BRG 8-94368-832-0 01 1 9712-9908 ● ●
21 04.162 RING; SNAP,PILOT BRG
EXC. TORQUE ON DEMAND<7HA> 		8-94368-832-0 01 1 9909- ● ●
21 04.162 RING; SNAP,PILOT BRG
TORQUE ON DEMAND<7HA> 		8-97129-047-0 01 1 9909- ●
25 04.164 BEARING; BALL,INPUT SHAFT
04.520 NSK 		8-94422-052-0 01 1 9712-9908 ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
EXC. TORQUE ON DEMAND<7HA> 04.520 NSK 		8-94422-052-0 01 1 9909- ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-001-0 01 1 9909- ●

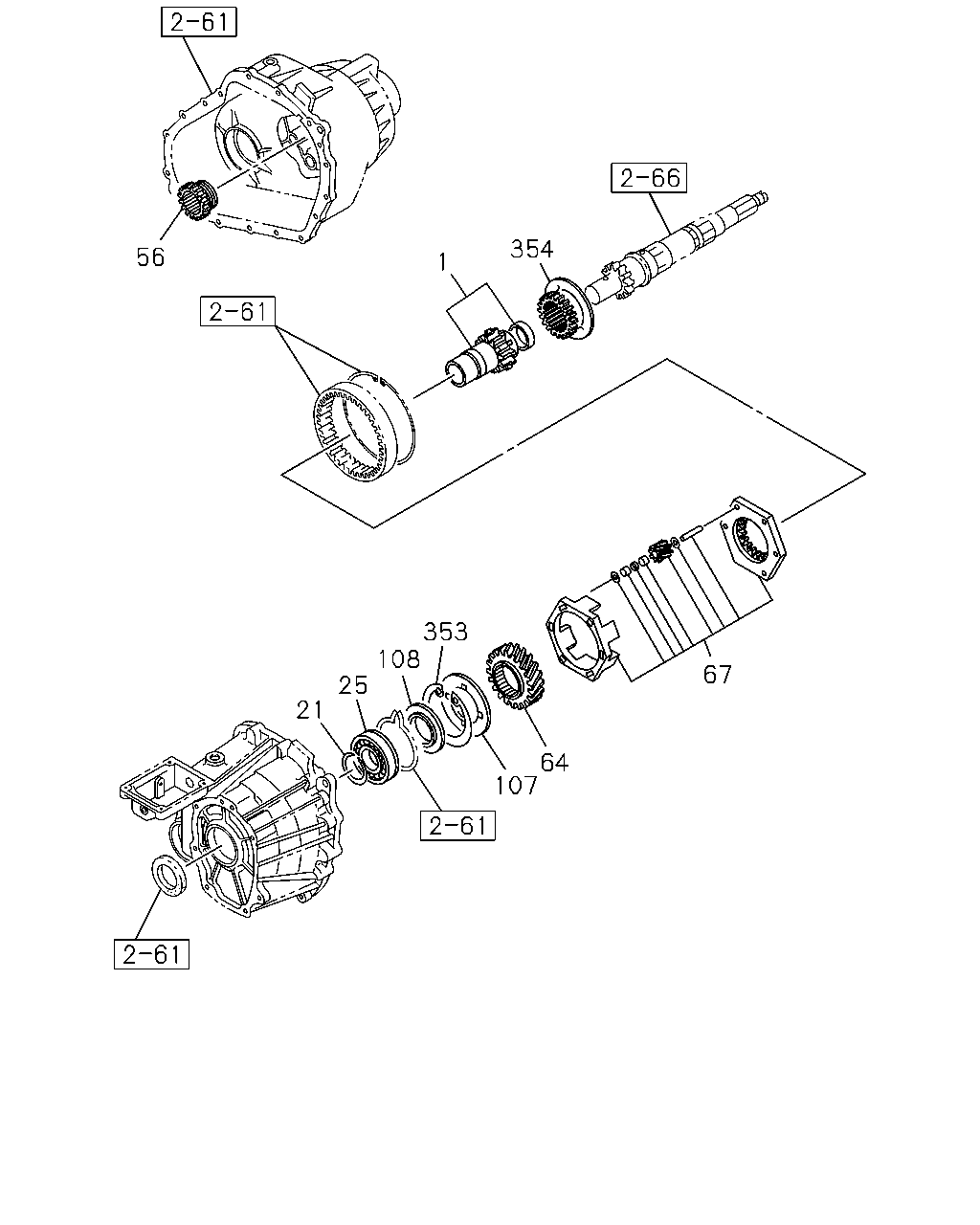

çizim 71888
354 56 1 353 108 67 25 21 64 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.162 SHAFT; GEAR,INPUT 8-94381-284-2 01 1 9712-9908 ● ●
1 04.162 SHAFT; GEAR,INPUT
EXC. TORQUE ON DEMAND<7HA> 		8-94381-284-2 01 1 9909- ● ●
1 04.162 SHAFT; GEAR,INPUT
TORQUE ON DEMAND<7HA> 		8-97129-043-0 01 1 9909- ●
21 04.162 RING; SNAP,PILOT BRG 8-94368-832-0 01 1 9712-9908 ● ●
21 04.162 RING; SNAP,PILOT BRG
EXC. TORQUE ON DEMAND<7HA> 		8-94368-832-0 01 1 9909- ● ●
21 04.162 RING; SNAP,PILOT BRG
TORQUE ON DEMAND<7HA> 		8-97129-047-0 01 1 9909- ●
25 04.164 BEARING; BALL,INPUT SHAFT
04.520 NSK 		8-94422-052-0 01 1 9712-9908 ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
EXC. TORQUE ON DEMAND<7HA> 04.520 NSK 		8-94422-052-0 01 1 9909- ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-001-0 01 1 9909- ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97129-270-0 01 1 9909- ●
64 04.532 GEAR; SUN,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97129-044-0 01 1 9909- ●
67 04.532 CARRIER; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97129-048-0 01 1 9909- ●
107 04.533 PLATE; THRUST,SUN GEAR
TORQUE ON DEMAND<7HA> 		8-97129-045-0 01 1 9909- ●
108 04.535 HUB; INPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-046-0 01 1 9909- ●
353 04.545 RING; SNAP,CARRIER
TORQUE ON DEMAND<7HA> 		8-97129-049-0 01 1 9909- ●
354 04.535 HUB; REDUCTION
TORQUE ON DEMAND<7HA> 		8-97129-050-0 01 1 9909- ●
