Sayfa 2-62 - Isuzu EPC

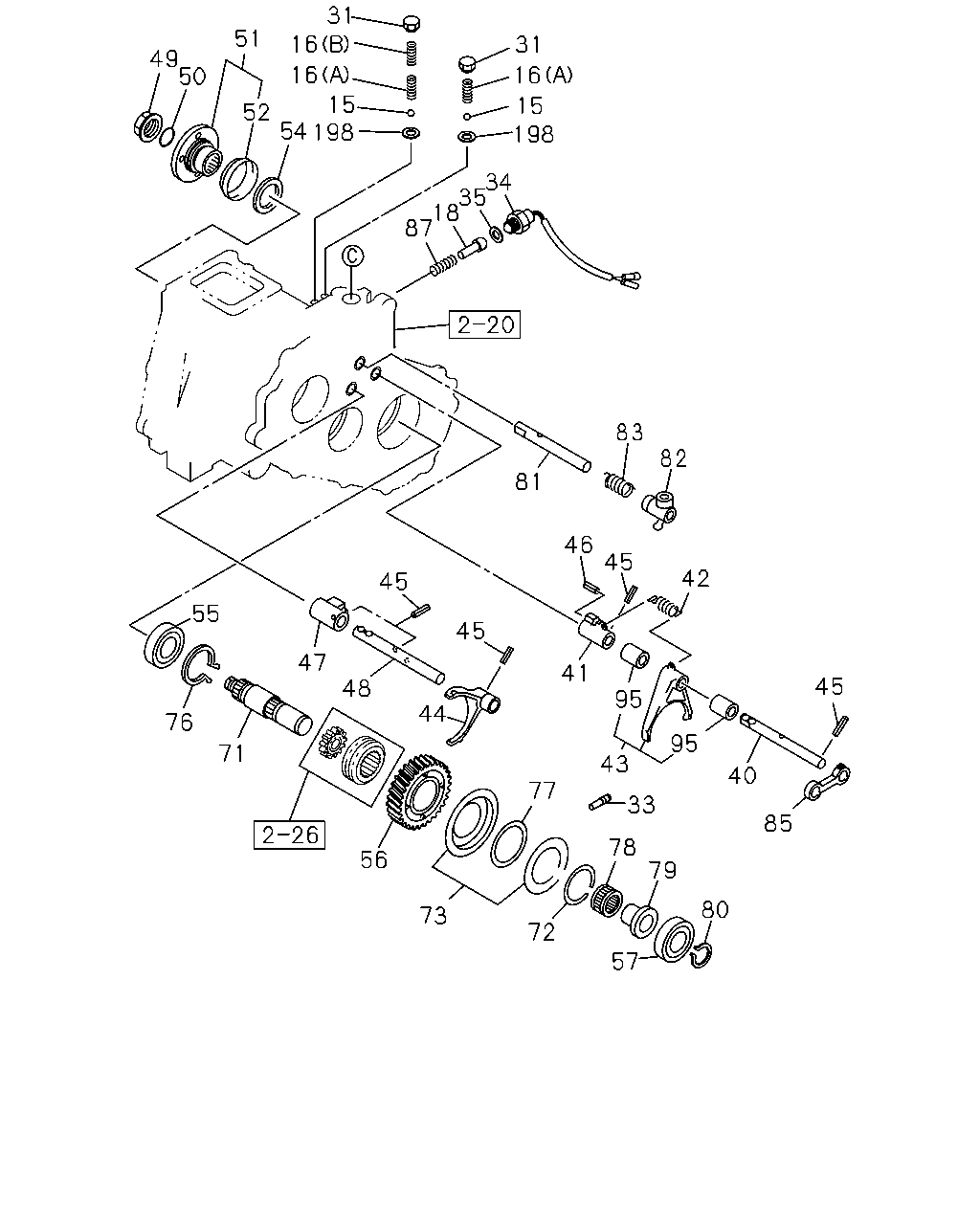

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#37900) — 165 parça

31 16 51 31 49 50 16 16 15 15 198 52 34 35 18 87 83 82 81 46 45 42 45 55 45 47 41 45 48 95 44 76 95 71 43 40 77 33 85 78 56 79 80 73 72 57 54 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	9712-9908	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94435-335-0	02	1	9909-	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (A) L=23.4	8-97145-374-0	02	1	9712-9812	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND<7HA> 04.311 (A) L=26.8	8-94320-193-0	02	1	0006-	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (A) L=23.4	8-97145-374-0	02	1	9901-9908	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND<7HA> (A) L=23.4	8-97145-374-0	02	1	9909-0005	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (A) L=23.4	8-97145-374-0	02	1	0006-0006	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND<7HA> (A) L=23.4	8-97145-374-0	02	1	0006-0006		●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND<7HA> (B) L=23.2	8-97241-351-0	01	1	0006-	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF	8-94461-898-0	01	1	9712-9908	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF EXC. TORQUE ON DEMAND<7HA>	8-94461-898-0	01	1	9909-	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	9712-9908	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER EXC. TORQUE ON DEMAND<7HA> M12X9	9-99202-312-0	02	1	9909-	●	●
33	04.557 SCREW; STOPPER,TRANSFER M6X18	8-94448-812-1	01	1	9712-9908	●	●
33	04.557 SCREW; STOPPER,TRANSFER M6X18	8-94448-812-2	01	1	9909-	●
33	04.557 SCREW; STOPPER,TRANSFER EXC. TORQUE ON DEMAND<7HA> M6X18	8-94448-812-2	01	1	9909-		●
34	04.075 SWITCH; TRANSFER INDICATOR	8-97138-632-0	01	1	9712-9908	●	●
34	04.075 SWITCH; TRANSFER INDICATOR EXC. TORQUE ON DEMAND<7HA>	8-97138-632-1	01	1	9909-	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-9908	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE EXC. TORQUE ON DEMAND<7HA> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9909-	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER ONE TOUCH 4X4 SYSTEM(7QY)	8-97127-547-0	01	1	9712-9908	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97127-547-0	01	1	9909-	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97070-675-2	01	1	9712-0005	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY)	8-97070-675-2	01	1	0006-	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER ONE TOUCH 4X4 SYSTEM(7QY)	8-97068-781-0	01	1	9712-9809	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER ONE TOUCH 4X4 SYSTEM(7QY)	8-97210-555-0	01	1	9810-9908	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97210-555-0	01	1	9909-	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97033-094-2	01	1	9712-0005	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY)	8-97033-094-2	01	1	0006-	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF L=30	8-94422-188-0	01	1	9712-9908	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF EXC. TORQUE ON DEMAND<7HA> L=30	8-94422-188-0	01	1	9909-	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	9712-9908	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97100-915-2	01	1	9909-	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	9712-9908	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94421-922-3	01	1	9909-	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD ONE TOUCH 4X4 SYSTEM(7QY) D=4.2 L=25	8-94171-541-0	05	1	9712-9908	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> D=4.2 L=25	8-94171-541-0	05	1	9909-	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD EXC. ONE TOUCH 4X4 SYSTEM(7QY) D=4.2 L=25	8-94171-541-0	06	1	9712-0005	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) D=4.2 L=25	8-94171-541-0	06	1	0006-	●	●
46	04.555 PIN; SPR,SELECT LEVER EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-94448-816-1	01	1	9712-0005	●	●
46	04.555 PIN; SPR,SELECT LEVER EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY)	8-94448-816-1	01	1	0006-	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	9712-9908	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97141-883-1	01	1	9909-	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-0	01	1	9712-9908	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97182-406-1	01	1	9909-	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	9712-9908	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT EXC. TORQUE ON DEMAND<7HA> M27 FLANGE	8-94422-073-0	01	1	9909-	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP	8-94483-035-0	01	1	9712-9908	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP EXC. TORQUE ON DEMAND<7HA>	8-94483-035-0	01	1	9909-	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-94453-699-5	01	1	9712-9908	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN EXC. TORQUE ON DEMAND<7HA>	8-94453-699-7	01	1	9909-	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE	8-94320-867-2	01	1	9712-9908	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA>	8-94320-867-3	01	1	9909-	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	9712-9908	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-702-0	01	1	9909-0010	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	9712-9908	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-703-2	01	1	9909-	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR NSK	8-94422-172-1	01	1	9712-9908	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-172-1	01	1	9909-	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	9712-9908	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=49	8-97126-101-1	01	1	9909-	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR NSK	8-94422-052-0	01	1	9712-9908	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-052-0	01	1	9909-	●	●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94377-437-5	01	1	9712-9908	●	●
71	05.555 SHAFT; TRANSFER OUTPUT EXC. TORQUE ON DEMAND<7HA>	8-94377-437-5	01	1	9909-	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94482-501-0	01	1	9712-	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97164-346-0	01	1	9712-	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	9712-9908	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER EXC. TORQUE ON DEMAND<7HA> OD=77.0	8-94422-092-0	01	1	9909-	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94482-499-0	01	1	9712-	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 NSK	8-94422-064-0	01	1	9712-9908	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE EXC. TORQUE ON DEMAND<7HA> 04.419 NSK	8-94422-064-0	01	1	9909-	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 KOYO	8-94422-065-1	01	1	9809-9908	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE EXC. TORQUE ON DEMAND<7HA> 04.419 KOYO	8-94422-065-1	01	1	9909-	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER 04.419	8-94422-076-1	01	1	9712-9908	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER EXC. TORQUE ON DEMAND<7HA> 04.419	8-94422-076-1	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.55 WHITE	8-94422-180-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.60 YELLOW	8-94422-181-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.65 BLUE	8-94422-182-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.70 PINK	8-94422-183-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.75 GREEN	8-94422-184-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.80 BROWN	8-94422-185-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.85 RED	8-94422-186-0	01	1	9909-	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	9712-9908	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.90 ORANGE	8-94422-187-0	01	1	9909-	●	●
81	04.309 ROD; TRANSFER SELECT	8-94370-499-2	01	1	9712-9908	●	●
81	04.309 ROD; TRANSFER SELECT EXC. TORQUE ON DEMAND<7HA>	8-94370-499-2	01	1	9909-	●	●
82	04.555 BLOCK; TRANSFER	8-97033-092-1	01	1	9712-9908	●	●
82	04.555 BLOCK; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97033-092-1	01	1	9909-	●	●
83	04.515 SPRING; SELECT	8-94462-235-0	01	1	9712-9908	●	●
83	04.515 SPRING; SELECT EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-94462-235-0	01	1	9909-0005	●	●
83	04.515 SPRING; SELECT EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY)	8-94462-235-0	01	1	0006-	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	9712-9908	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97128-522-0	01	1	9909-	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	9712-9908	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94461-897-0	01	1	9909-	●	●
95	04.570 BUSHING	8-97103-115-0	02	1	9712-9908	●	●
95	04.570 BUSHING EXC. TORQUE ON DEMAND<7HA>	8-97103-115-0	02	1	9909-	●	●
198	04.520 GASKET; PLUG,DETENT EXC. TORQUE ON DEMAND<7HA> 01.531 ID=12.2	1-09630-084-0	02	1	0006-	●	●

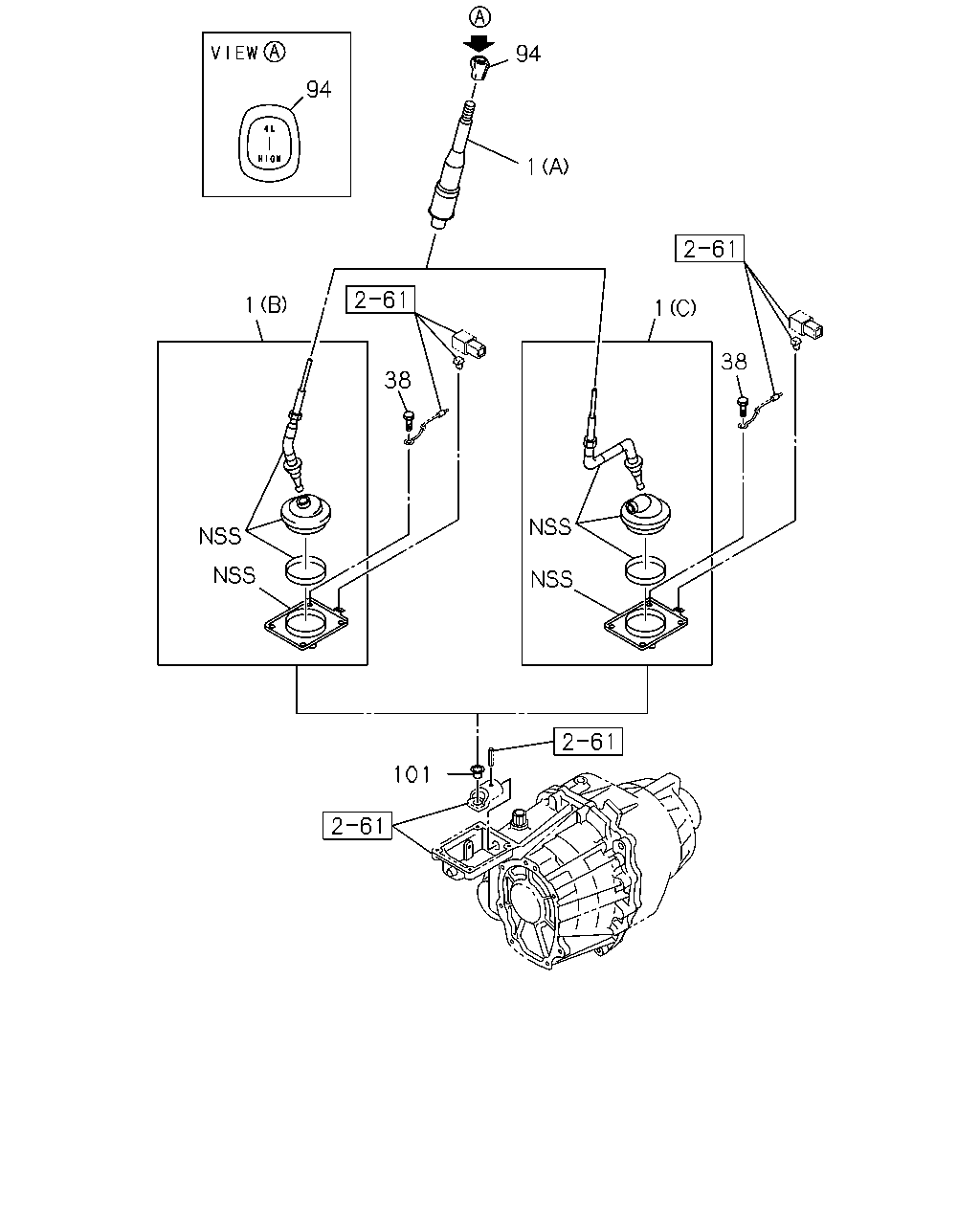

94 94 1 1 1 38 38 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-97179-998-2	01	1	9712-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97179-999-0	01	1	9712-9908	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (B)	8-97179-999-0	01	1	9909-9910	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (B)	8-97179-999-2	01	1	9911-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A)	8-97179-996-2	01	1	9712-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97179-997-0	01	1	9712-9908	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A)	8-97179-997-2	01	1	9909-	●	●
1	04.570 LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (A)	8-97090-614-0	01	1	9909-		●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> (C)	8-97181-615-0	01	1	9909-		●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97181-589-0	01	1	9909-		●
38	04.012 BOLT; CHANGE LEVER TO CASE TORQUE ON DEMAND<7HA>	8-97129-290-0	04	1	9909-		●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4) ONE TOUCH 4X4 SYSTEM(7QY)	8-97164-193-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE S/SE(RBA) ONE TOUCH 4X4 SYSTEM(7QY)	8-97143-755-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) ONE TOUCH 4X4 SYSTEM(7QY) EXC. EUROPE EQUIPMENT(EK4)	8-97143-755-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER ONE TOUCH 4X4 SYSTEM(7QY) EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ONDEMAND<7HA>	8-97143-755-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE S/SE(RBA) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4),ONE TOUCH 4X4SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ONDEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> BLACK	8-97096-174-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> TORQUE ON DEMAND<7HA>	8-97163-253-0	01	1	9909-		●
94	04.570 KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> EXC. LEATHER GRIP PACKAGE<7GZ>	8-97163-250-0	01	1	9909-		●
101	04.570 BUSHING; CHANGE LEVER TORQUE ON DEMAND<7HA>	8-97129-327-0	01	1	9909-		●

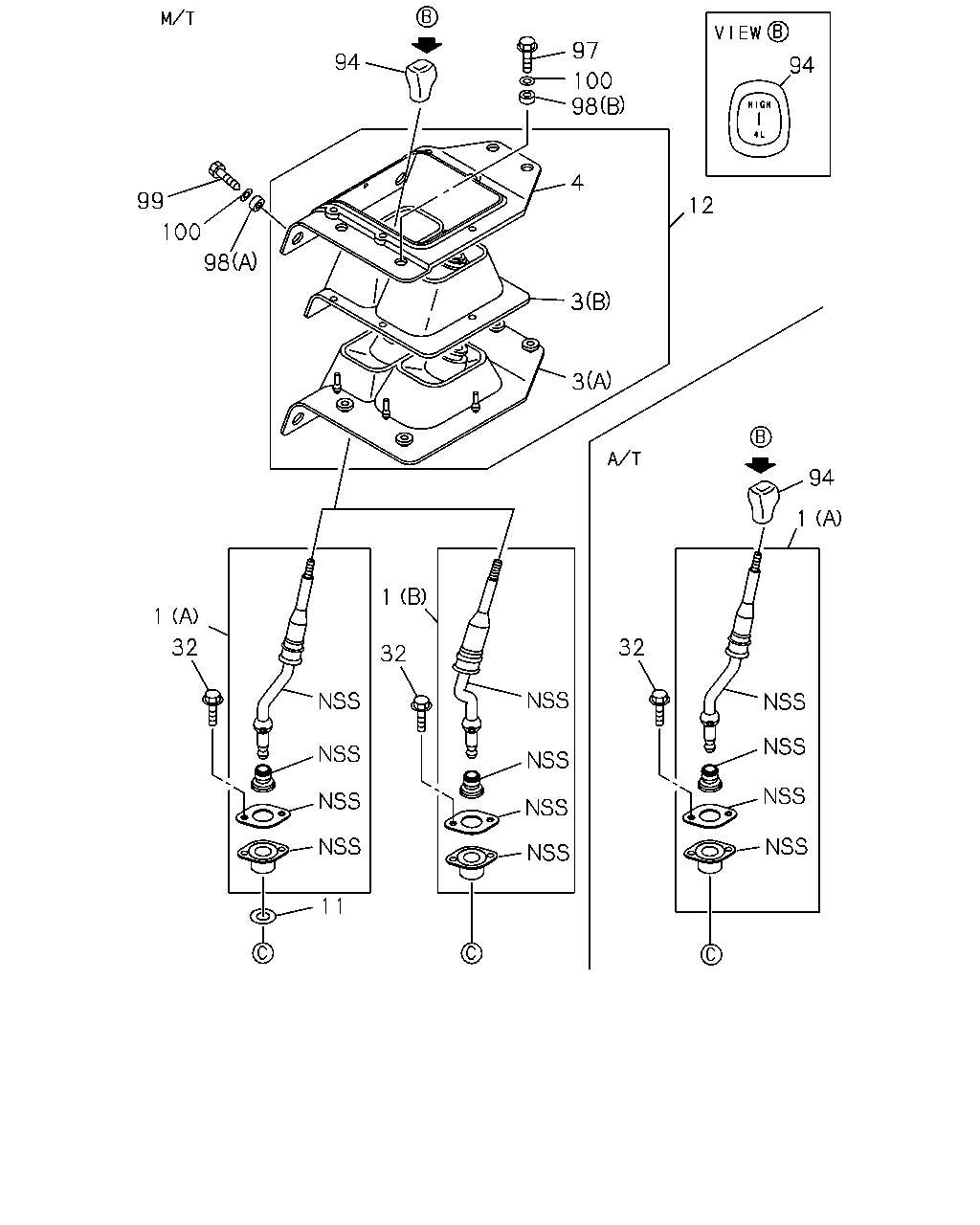

97 94 94 100 98 4 99 12 100 98 3 3 94 1 1 1 32 32 32 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-97179-998-2	01	1	9712-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97179-999-0	01	1	9712-9908	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (B)	8-97179-999-0	01	1	9909-9910	●	●
1	04.570 LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (B)	8-97179-999-2	01	1	9911-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A)	8-97179-996-2	01	1	9712-	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A)	8-97179-997-0	01	1	9712-9908	●	●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A)	8-97179-997-2	01	1	9909-	●	●
1	04.570 LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (A)	8-97090-614-0	01	1	9909-		●
1	04.570 LEVER ASM; TRANSFER CONT 4JX1 ENG(RJM) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> (C)	8-97181-615-0	01	1	9909-		●
1	04.570 LEVER ASM; TRANSFER CONT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97181-589-0	01	1	9909-		●
3	04.570 COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A)	8-94381-105-2	01	1	9712-	●	●
3	04.570 COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (B)	8-94381-106-1	01	1	9712-	●	●
4	04.570 RETAINER; CHANGE LEVER,TRANSFER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94381-046-1	01	1	9712-	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) ID=35.2	9-09561-235-0	01	1	9712-9801	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9802-	●	●
12	04.570 GROMMET; TRANSFER LEVER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97185-203-0	01	1	9712-	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-9809	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9810-9908	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9909-	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE EXC. TORQUE ON DEMAND<7HA> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9909-		●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4) ONE TOUCH 4X4 SYSTEM(7QY)	8-97164-193-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE S/SE(RBA) ONE TOUCH 4X4 SYSTEM(7QY)	8-97143-755-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) ONE TOUCH 4X4 SYSTEM(7QY) EXC. EUROPE EQUIPMENT(EK4)	8-97143-755-0	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER ONE TOUCH 4X4 SYSTEM(7QY) EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ONDEMAND<7HA>	8-97143-755-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE S/SE(RBA) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4),ONE TOUCH 4X4SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9712-9908	●	●
94	04.570 KNOB; TRANSFER LEVER EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ONDEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.006 BLACK	8-94453-161-1	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> BLACK	8-97096-174-0	01	1	9909-	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> TORQUE ON DEMAND<7HA>	8-97163-253-0	01	1	9909-		●
94	04.570 KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> EXC. LEATHER GRIP PACKAGE<7GZ>	8-97163-250-0	01	1	9909-		●
97	04.570 BOLT; GROMMET M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9712-	●	●
98	04.570 PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.012 (A) OD=13 T=4.5	8-94230-464-1	02	1	9712-	●	●
98	04.570 PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.008 (B) OD=15 T=6.8	8-94437-495-0	04	1	9712-	●	●
99	04.570 SCREW; GROMMET M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 03.483	8-94220-277-0	02	1	9712-	●	●
100	04.570 WASHER; GROMMET M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
