◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-08A - PARKING BRAKE ▶
3-08A — PARKING BRAKE (#3790) — 73 parça

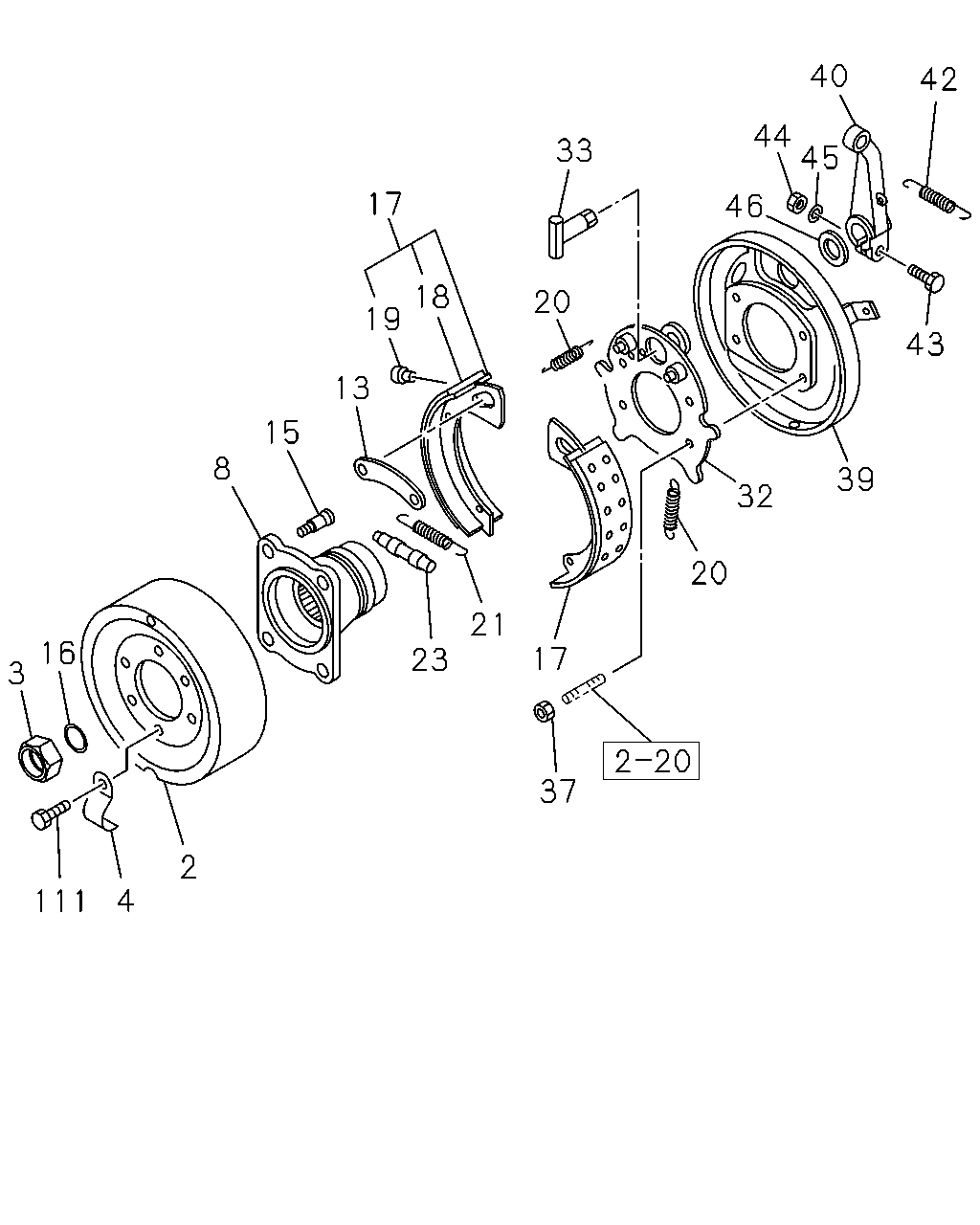

çizim 37962
40 42 44 45 33 17 46 18 20 19 43 13 15 8 39 32 20 21 16 17 23 3 37 2 4 111
BalonParca AdiParca NoAdetTipApplied Date A B
2 DRUM; PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46211-019-0 01 1 9601-9711 ●
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-019-0 01 1 9712-9803 ● ●
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-019-0 01 1 9804-0004 ●
3 NUT; LK
MIDDLE CHASSIS(FV***F) M36 FLANGE 		1-09449-063-0 01 1 9601-9711 ●
3 NUT; LK
PARKING BRAKE DRUM 10"(B1T) M36 FLANGE 		1-09449-063-0 01 1 9712-9803 ● ●
3 NUT; LK
PARKING BRAKE DRUM 10"(B1T) M36 FLANGE 		1-09449-063-0 01 1 9804-0004 ●
4 COVER; ADJ HOLE
MIDDLE CHASSIS(FV***F) 		1-46219-030-0 02 1 9601-9711 ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		1-46219-030-0 02 1 9712-9803 ● ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		1-46219-030-0 02 1 9804-0004 ●
8 FLANGE; PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-37243-235-0 01 1 9601-9711 ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-37243-235-0 01 1 9712-9803 ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-37243-235-0 01 1 9804-0004 ●
13 BRACE; PARKING BRK
MIDDLE CHASSIS(FV***F) 		9-46239-002-0 01 1 9601-9711 ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 9712-9803 ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 9804-0004 ●
15 BOLT; FLANGE
MIDDLE CHASSIS(FV***F) M16X55 		1-46219-039-0 04 1 9601-9711 ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X55 		1-46219-039-0 04 1 9712-9803 ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X55 		1-46219-039-0 04 1 9804-0004 ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). MIDDLE CHASSIS(FV***F) ID=47 T=5 		1-09623-380-0 01 1 9601-9711 ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 10"(B1T) ID=47 T=5 		1-09623-380-0 01 1 9712-9803 ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 10"(B1T) ID=47 T=5 		1-09623-380-0 01 1 9804-0004 ●
17 SHOE; PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46220-022-0 02 1 9601-9711 ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-0 02 1 9712-9803 ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-0 02 1 9804-0004 ●
18 LINING; BRK,PARKING
MIDDLE CHASSIS(FV***F) 		1-46225-023-0 02 1 9601-9711 ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 9712-9803 ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 9804-0004 ●
19 RIVET; LINING,PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-09732-012-0 32 1 9601-9711 ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 9712-9803 ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 9804-0004 ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
MIDDLE CHASSIS(FV***F) 		9-09942-434-0 02 1 9601-9711 ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 9712-9803 ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 9804-0004 ●
21 SPRING; RETURN,PARKING BRK SHOE
MIDDLE CHASSIS(FV***F) 		9-09942-516-0 01 1 9601-9711 ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 9712-9803 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 9804-0004 ●
23 SCREW; ADJ,PARKING BRK SHOE
MIDDLE CHASSIS(FV***F) 		1-46240-003-0 01 1 9601-9711 ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 9712-9803 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 9804-0004 ●
32 PLATE; SUPPORT,PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46213-039-0 01 1 9601-9711 ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-039-0 01 1 9712-9803 ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-039-0 01 1 9804-0004 ●
33 SHAFT; CAM,PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46251-006-0 01 1 9601-9711 ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46251-006-0 01 1 9712-9803 ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46251-006-0 01 1 9804-0004 ●
37 NUT; SUPPORT PLATE
MIDDLE CHASSIS(FV***F) M14 FLANGE 		1-09440-048-0 04 1 9601-9711 ●
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		1-09440-048-0 04 1 9712-9803 ● ●
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		1-09440-048-0 04 1 9804-0004 ●
39 COVER; DUST,PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46213-038-0 01 1 9601-9711 ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-038-0 01 1 9712-9803 ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-038-0 01 1 9804-0004 ●
40 LEVER; CM/SHF,PARKING BRK
MIDDLE CHASSIS(FV***F) 		1-46252-013-0 01 1 9601-9711 ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-013-0 01 1 9712-9803 ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-013-0 01 1 9804-0004 ●
42 SPRING; RETURN,LEVER
MIDDLE CHASSIS(FV***F) 		1-09583-104-0 01 1 9601-9711 ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-104-0 01 1 9712-9803 ● ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-104-0 01 1 9804-0004 ●
43 BOLT; LEVER TO CM/SHF
MIDDLE CHASSIS(FV***F) 		0-10811-040-0 01 1 9601-9711 ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-040-0 01 1 9712-9803 ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-040-0 01 1 9804-0004 ●
44 NUT; LEVER TO CM/SHF
MIDDLE CHASSIS(FV***F) M10 		9-09111-410-0 01 1 9601-9711 ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		9-09111-410-0 01 1 9712-9803 ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		9-09111-410-0 01 1 9804-0004 ●
45 WASHER; LK,LEVER TO CM/SHF
MIDDLE CHASSIS(FV***F) ID=10.2 		9-09150-010-0 01 1 9601-9608 ●
45 WASHER; LK,LEVER TO CM/SHF
MIDDLE CHASSIS(FV***F) ID=10.2 		9-09150-510-0 01 1 9609-9711 ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		9-09150-510-0 01 1 9712-9803 ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
46 WASHER; LEVER
MIDDLE CHASSIS(FV***F) 		9-09855-362-0 01 1 9601-9711 ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 9712-9803 ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 9804-0004 ●
111 BOLT; COVER,CHECK HOLE
MIDDLE CHASSIS(FV***F) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9601-9711 ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712-9803 ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-0004 ●
