4-11 — FRONT HUB AND DRUM OR ROTOR (#379) — 60 parça

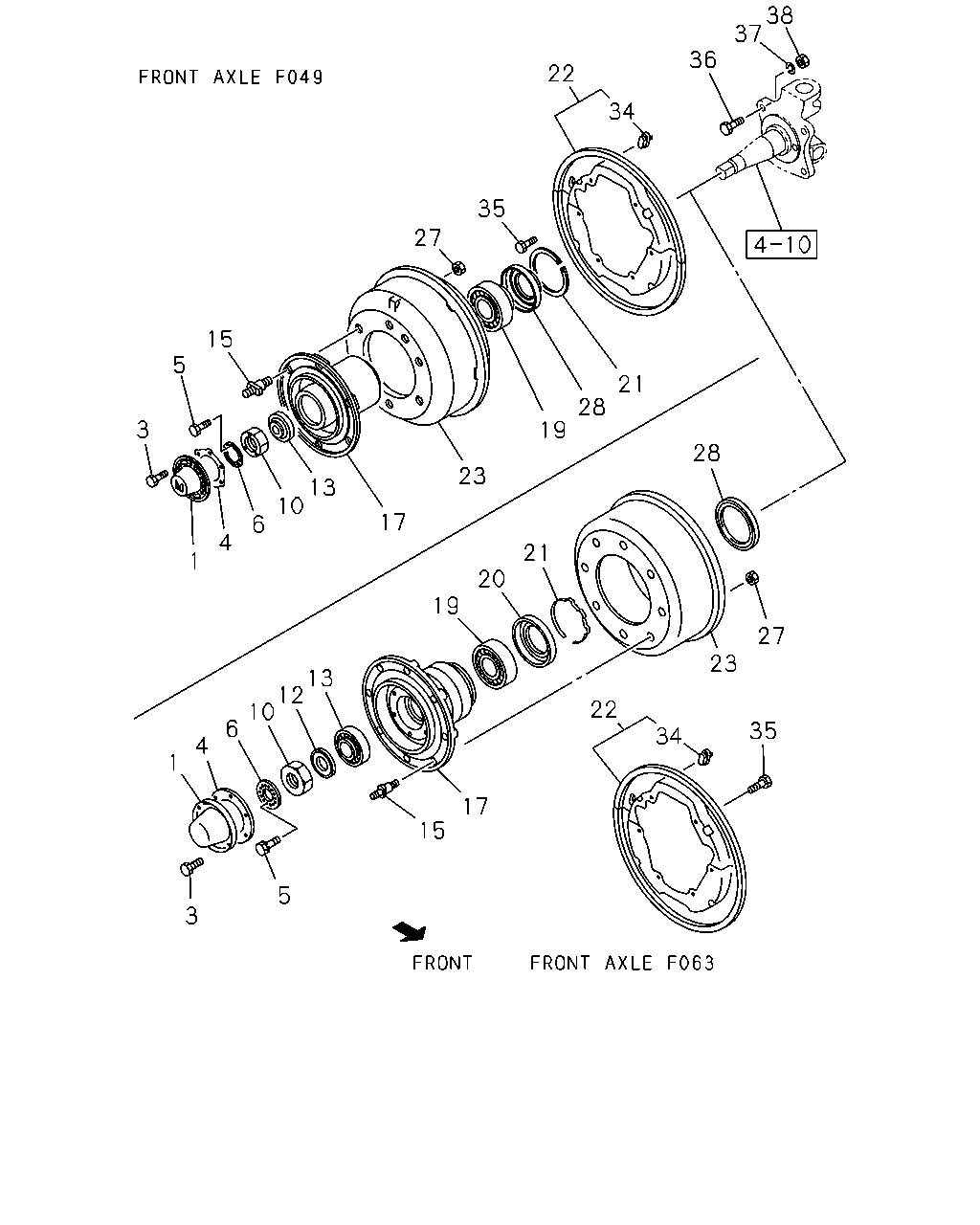

çizim 28205
38 37 36 22 34 35 27 15 5 21 28 3 19 28 23 13 10 17 6 4 21 1 20 19 27 23 13 12 10 22 6 35 34 4 1 17 15 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
FRONT AXLE F049(FS4) OD=136 		1-42313-007-1 02 1 9202- ● ●
1 CAP; HUB,FRT AXLE
FRONT AXLE F063(FS7) OD=156 		9-42313-123-2 02 1 9202- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		9-01900-814-0 12 1 9202-9204 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		0-50040-814-0 12 1 9205- ● ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F049(FS4) 		1-42319-028-0 02 1 9202- ● ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F063(FS7) 		1-42319-029-0 02 1 9202- ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9202- ● ●
6 WASHER; LK,FRT HUB
FRONT AXLE F049(FS4) ID=39 		1-09841-003-0 02 1 9202- ● ●
6 WASHER; LK,FRT HUB
FRONT AXLE F063(FS7) ID=48 		1-09533-012-1 02 1 9202- ● ●
10 NUT; FRT HUB BRG
FRONT AXLE F049(FS4) M39 		1-09840-019-1 02 1 9202- ● ●
10 NUT; FRT HUB BRG
FRONT AXLE F063(FS7) M48 		1-09840-012-3 02 1 9202- ● ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F063(FS7) ID=48 		1-09533-016-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F049(FS4) NSK 		9-00093-146-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F049(FS4) KOYO 		9-00093-147-1 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F063(FS7) NSK 		1-09812-084-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F063(FS7) KOYO 		1-09812-085-0 02 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 10STUD 20X7.00T(Q58) M22X48.8,M22X61.5 RH THREAD 		1-42337-009-0 20 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M24X37.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-112-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M24X37.5,M22X51.5 RH THREAD 		1-42331-112-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9202- ● ●
17 HUB; FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 10STUD 20X7.00T(Q58) 		1-42312-053-1 02 1 9202- ● ●
17 HUB; FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-037-1 02 1 9202-9211 ● ●
17 HUB; FRT AXLE
FRONT AXLE F049(FS4) DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-113-0 02 1 9212- ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42312-055-0 02 1 9202-9404 ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42312-100-0 02 1 9405- ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-047-2 02 1 9202-9211 ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-111-0 02 1 9212-9404 ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-109-0 02 1 9405-9506 ● ●
17 HUB; FRT AXLE
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42312-128-0 02 1 9507- ● ●
19 BEARING; HUB INNER,FRT AXLE
FRONT AXLE F049(FS4) KOYO 		9-00093-114-0 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
FRONT AXLE F063(FS7) NSK 		1-09812-142-0 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
FRONT AXLE F063(FS7) KOYO 		1-09812-143-0 02 1 9202- ● ●
20 COVER; HUB BRG INNER
FRONT AXLE F063(FS7) 		1-42319-039-0 02 1 9202- ● ●
21 RING; SNAP,HUB
FRONT AXLE F049(FS4) 		9-09950-164-0 02 1 9202- ● ●
21 RING; SNAP,HUB
FRONT AXLE F063(FS7) 		1-09587-017-0 02 1 9202- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 9202- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F049(FS4) DISC WHEEL 10STUD 20X7.00T(Q58) 		1-42315-218-4 02 1 9202- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F049(FS4) DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) H=195 		1-42315-208-1 02 1 9202- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063(FS7) DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42315-333-1 02 1 9202-9307 ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063(FS7) DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42315-337-0 02 1 9308- ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42315-329-1 02 1 9202-9307 ● ●
23 DRUM; BRK,FRT
FRONT AXLE F063(FS7) DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42315-336-1 02 1 9308- ● ●
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22 		1-09400-071-0 20 1 9202- ● ●
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M22 		9-09110-522-0 16 1 9202- ● ●
28 SEAL; OIL,FRT HUB
FRONT AXLE F049(FS4) OD=128 		1-09625-129-0 02 1 9202- ● ●
28 SEAL; OIL,FRT HUB
FRONT AXLE F063(FS7) OD=140 		1-09625-041-0 02 1 9202- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-095-0 04 1 9202-9501 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9502- ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		9-01901-016-0 12 1 9202-9409 ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9410- ● ●
36 BOLT; BACK PLATE
M16X52 		1-09044-001-1 04 1 9202- ● ●
36 BOLT; BACK PLATE
FRONT AXLE F049(FS4) M16X61 		1-09040-058-1 04 1 9202- ● ●
37 WASHER; LK,BACK PLATE
FRONT AXLE F049(FS4) ID=16.2 		9-09150-616-0 08 1 9202-9401 ● ●
37 WASHER; LK,BACK PLATE
FRONT AXLE F049(FS4) ID=16.2 		9-09150-816-0 08 1 9402- ● ●
37 WASHER; LK,BACK PLATE
FRONT AXLE F063(FS7) ID=16.2 		9-09150-516-0 04 1 9202-9401 ● ●
37 WASHER; LK,BACK PLATE
FRONT AXLE F063(FS7) ID=16.2 		9-09150-816-0 04 1 9402- ● ●
38 NUT; BACK PLATE
FRONT AXLE F049(FS4) M16 		9-99110-416-0 08 1 9202- ● ●
38 NUT; BACK PLATE
FRONT AXLE F063(FS7) M16 		9-99110-416-0 04 1 9202- ● ●
