2-61 — TRANSFER CASE AND GEAR SHIFTER (#37899) — 122 parça

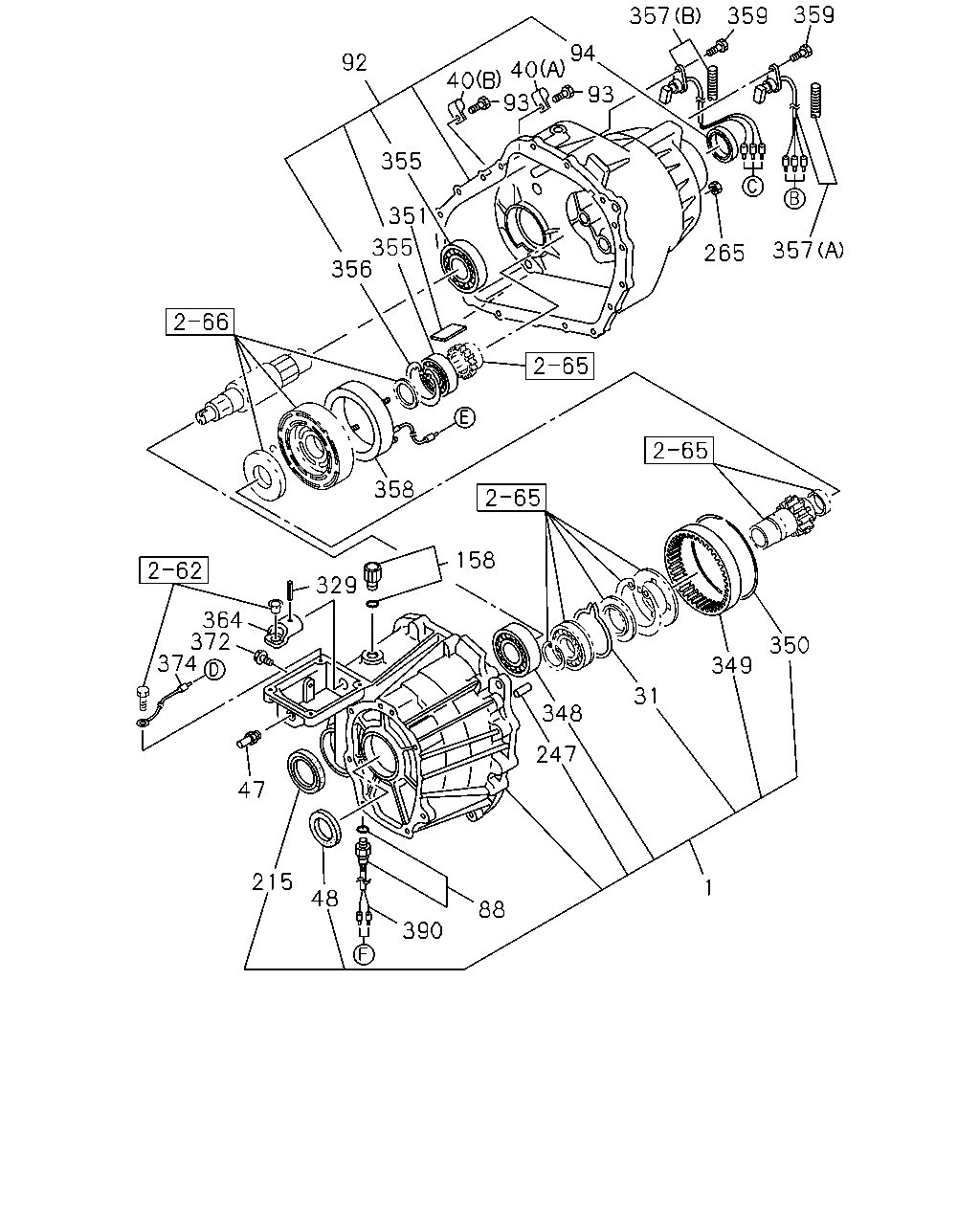

çizim 69091
359 359 357 94 92 40 40 93 93 355 351 355 356 357 265 358 158 329 364 372 374 350 349 31 348 247 47 215 1 48 88 390
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.510 CASE; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-309-0 01 1 9909- ●
31 04.525 RING; SNAP,INPUT
TORQUE ON DEMAND<7HA> 		8-97129-002-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
4JX1 ENG(RJM) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 03.162 (D) L=140 		5-09707-031-1 01 1 9802-9908 ● ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (B) 		8-97129-219-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (C) 		8-97131-242-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 		8-97129-218-0 01 1 9909- ●
47 04.510 BREATHER; TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-053-0 01 1 9909- ●
48 04.515 SEAL; OIL,INPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-041-0 01 1 9909- ●
88 04.538 SWITCH; 4WD,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-620-0 01 1 9909- ●
92 04.552 COVER; RR,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-313-0 01 1 9909- ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND<7HA> 		8-97129-274-0 16 1 9909- ●
94 04.515 SEAL; OIL,RR COVER,OUTPUT
TORQUE ON DEMAND<7HA> 04.318 		8-97129-040-0 01 1 9909- ●
158 04.510 PLUG; DETENT BALL
TORQUE ON DEMAND<7HA> 		8-97187-679-0 01 1 9909- ●
215 04.318 SEAL; OIL,TRANSFER CASE,FRT
TORQUE ON DEMAND<7HA> 		8-97129-040-0 01 1 9909- ●
247 04.105 PIN; DOWEL,TRANSFER CASE COVER
TORQUE ON DEMAND<7HA> 		8-97129-039-0 02 1 9909- ●
265 04.510 NUT; TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-272-0 03 1 9909- ●
329 04.107 PIN; SPRING,SHIFT ROD
04.042 OD=5.4 		9-09678-510-0 01 1 9712-9908 ● ●
329 04.107 PIN; SPRING,SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> 04.042 OD=5.4 		9-09678-510-0 01 1 9909- ● ●
329 04.107 PIN; SPRING,SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-329-0 01 1 9909- ●
348 04.520 BEARING; FRT OUTPUT
TORQUE ON DEMAND<7HA> 		8-97129-037-0 01 1 9909- ●
349 04.210 GEAR; RING
TORQUE ON DEMAND<7HA> 		8-97129-038-0 01 1 9909- ●
350 04.525 RING; SNAP,RING GEAR
TORQUE ON DEMAND<7HA> 		8-97129-042-0 01 1 9909- ●
351 04.105 MAGNET; CASE
TORQUE ON DEMAND<7HA> 		8-97129-228-0 01 1 9909- ●
355 04.520 BEARING; OUTPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-037-0 02 1 9909- ●
356 04.525 RING; SNAP,BEARING
TORQUE ON DEMAND<7HA> 		8-97129-268-0 01 1 9909- ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (A) 		8-97181-578-0 01 1 9909-0006 ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (A) 		8-97251-685-0 01 1 0007- ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (B) 		8-97181-579-0 01 1 9909-0006 ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (B) 		8-97251-686-0 01 1 0007- ●
358 04.510 COIL; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-617-0 01 1 9909- ●
359 04.319 BOLT; SENSOR
TORQUE ON DEMAND<7HA> 		8-97129-279-0 02 1 9909- ●
364 04.246 LEVER; GUIDE
TORQUE ON DEMAND<7HA> 		8-97181-618-0 01 1 9909- ●
372 04.525 BOLT; SHIFT GUIDE
TORQUE ON DEMAND<7HA> 		8-97129-281-0 01 1 9909- ●
374 04.510 WIRE; POWER GND
TORQUE ON DEMAND<7HA> 		8-97181-629-0 01 1 9909- ●
390 04.510 HARNESS; SWITCH
TORQUE ON DEMAND<7HA> 		8-97181-315-0 01 1 9909- ●

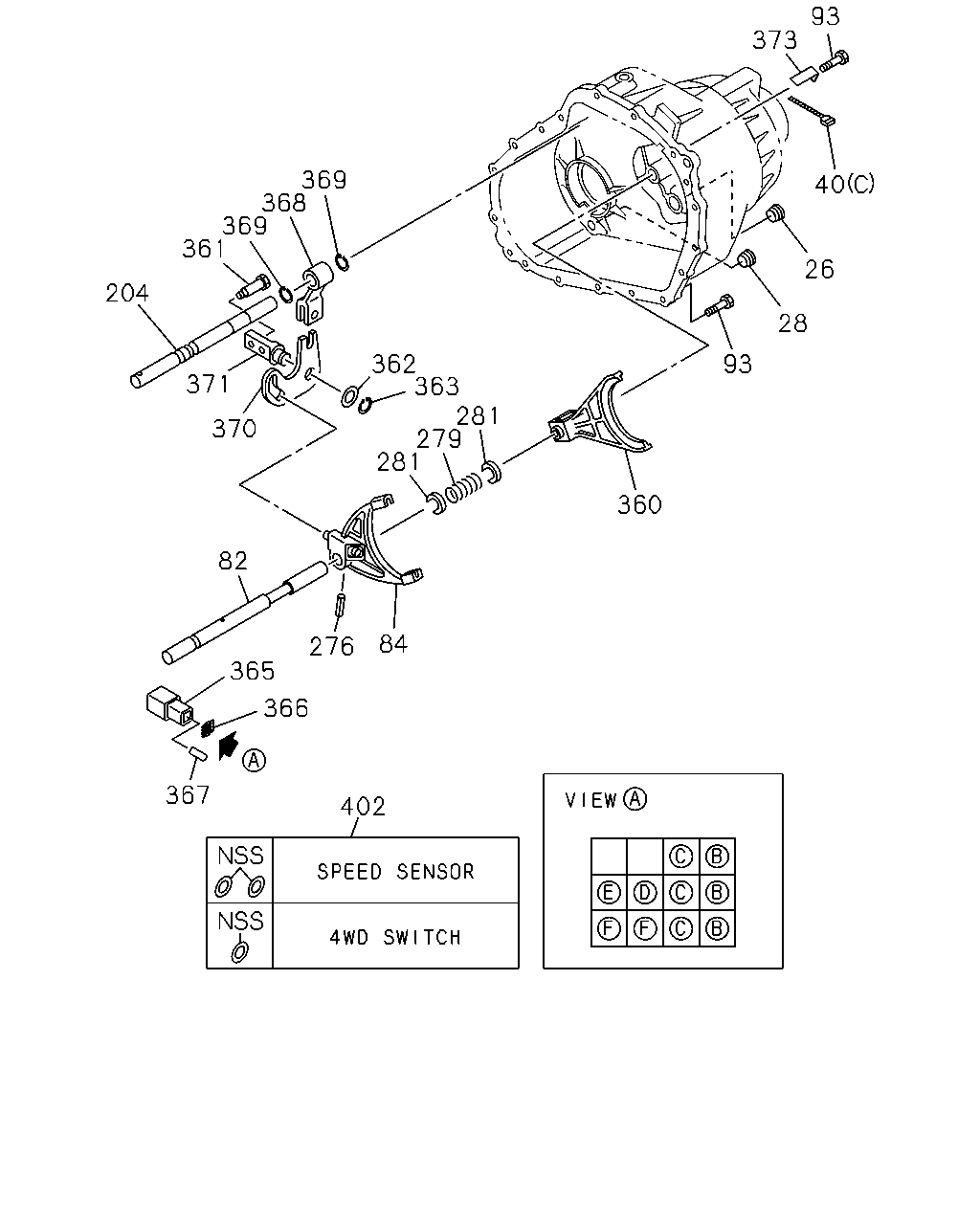

çizim 72034
93 373 369 368 369 361 40 26 204 28 362 363 281 279 281 93 371 370 360 82 84 276 365 366 367 402
BalonParca AdiParca NoAdetTipApplied Date A B
26 04.510 PLUG; FILLER,TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-280-0 01 1 9909- ●
28 04.510 PLUG; DRAIN,TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-280-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
4JX1 ENG(RJM) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 03.162 (D) L=140 		5-09707-031-1 01 1 9802-9908 ● ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (B) 		8-97129-219-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (C) 		8-97131-242-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 		8-97129-218-0 01 1 9909- ●
82 04.309 ROD; SHIFT,LOW & HIGH
TORQUE ON DEMAND<7HA> 		8-97181-577-0 01 1 9909- ●
84 04.555 FORK; SHIFT,LOW & HIGH
TORQUE ON DEMAND<7HA> 		8-97129-051-0 01 1 9909- ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND<7HA> 		8-97129-274-0 16 1 9909- ●
204 04.246 ROD; SHIFT,TRANSFER CONT 8-97176-249-2 01 1 9712-9908 ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97176-249-2 01 1 9909- ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
TORQUE ON DEMAND<7HA> 		8-97129-282-0 01 1 9909- ●
276 04.107 PIN; SHIFT FORK
TORQUE ON DEMAND<7HA> 		8-97129-052-0 01 1 9909- ●
279 04.198 SPRING; SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-284-0 01 1 9909- ●
281 04.198 RETAINER; SPRING
TORQUE ON DEMAND<7HA> 		8-97129-285-0 02 1 9909- ●
360 04.555 FORK; SHIFT,LOCKUP
TORQUE ON DEMAND<7HA> 		8-97129-283-0 01 1 9909- ●
361 04.319 BOLT; CAM PIVOT
TORQUE ON DEMAND<7HA> 		8-97129-289-0 02 1 9909- ●
362 04.510 WASHER; THRUST,CAM
TORQUE ON DEMAND<7HA> 		8-97129-332-0 01 1 9909- ●
363 04.525 RING; SNAP,CAM
TORQUE ON DEMAND<7HA> 		8-97129-333-0 01 1 9909- ●
365 04.510 CONNECTOR; HARNESS
TORQUE ON DEMAND<7HA> 		8-97129-211-0 01 1 9909- ●
366 04.510 HOLDER; LOCK
TORQUE ON DEMAND<7HA> 		8-97129-212-0 01 1 9909- ●
367 04.510 PLUG; CONNECTOR
TORQUE ON DEMAND<7HA> 		8-97129-213-0 01 1 9909- ●
368 04.510 LEVER; REDUCTION
TORQUE ON DEMAND<7HA> 		8-97129-214-0 01 1 9909- ●
369 04.525 RING; SNAP,REDUCTION LEVER
TORQUE ON DEMAND<7HA> 		8-97129-215-0 02 1 9909- ●
370 04.525 CAM; SHIFT
TORQUE ON DEMAND<7HA> 		8-97129-216-0 01 1 9909- ●
371 04.525 BLOCK; CAM PIVOT
TORQUE ON DEMAND<7HA> 		8-97129-217-0 01 1 9909- ●
373 04.510 BRACKET; HARNESS
TORQUE ON DEMAND<7HA> 		8-97181-314-0 01 1 9909- ●
402 04.318 GASKET SET; SWITCH
TORQUE ON DEMAND<7HA> 		8-97217-758-0 01 1 9909- ●

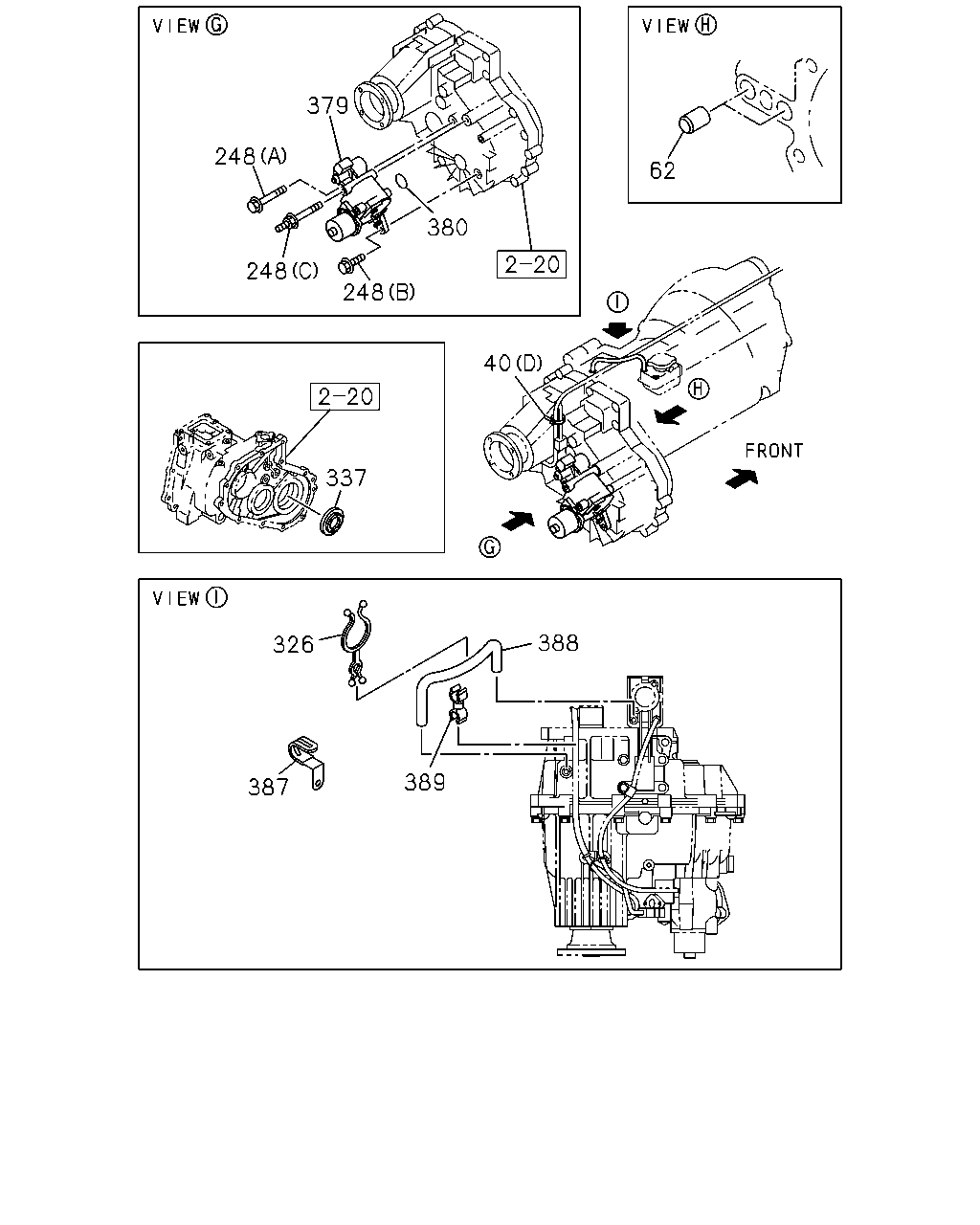

çizim 72467
379 248 62 380 248 248 40 337 388 326 389 387
BalonParca AdiParca NoAdetTipApplied Date A B
40 04.128 CLIP; HARNESS
4JX1 ENG(RJM) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 03.162 (D) L=140 		5-09707-031-1 01 1 9802-9908 ● ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (B) 		8-97129-219-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (C) 		8-97131-242-0 01 1 9909- ●
40 04.128 CLIP; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 		8-97129-218-0 01 1 9909- ●
62 04.510 CAP; SHIFT ROD 8-94321-479-1 02 1 9712-9902 ● ●
62 04.510 CAP; SHIFT ROD 8-97221-078-0 02 1 9903-9908 ● ●
62 04.510 CAP; SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> 		8-97221-078-0 02 1 9909- ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) 01.840 (A) M8X70 FLANGE 		0-28080-870-0 01 1 9712-9908 ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 01.840 (A) M8X70 FLANGE 		0-28080-870-0 01 1 9909- ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9908 ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909- ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) 04.570 (C) M8 		8-97161-466-0 01 1 9712-9908 ● ●
248 04.105 BOLT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.570 (C) M8 		8-97161-466-0 01 1 9909- ● ●
326 04.128 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 02.251 ID=44 		8-94420-658-0 01 1 9712- ● ●
337 04.500 PLATE; LOCK
M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) 04.422 		8-97102-940-0 01 1 9810- ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
ONE TOUCH 4X4 SYSTEM(7QY) 		8-97182-672-0 01 1 9712-9908 ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 		8-97182-672-0 01 1 9909- ● ●
380 04.505 GASKET; ACTUATOR
ONE TOUCH 4X4 SYSTEM(7QY) 04.570 		8-97171-385-0 01 1 9712-9908 ● ●
380 04.505 GASKET; ACTUATOR
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.570 		8-97171-385-0 01 1 9909- ● ●
387 04.319 CLAMP; HOSE
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 02.313 		5-09700-359-0 02 1 9712-9908 ● ●
387 04.319 CLAMP; HOSE
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 02.313 		5-09700-359-0 02 1 9909-0105 ● ●
387 04.319 CLAMP; HOSE
4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA> 02.313 		5-09700-359-0 02 1 0106- ● ●
387 04.319 CLAMP; HOSE
4JG2 ENG(RJC) A/T AISIN(RMD) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> 02.313 		5-09700-359-0 02 1 0106- ● ●
388 04.510 HOSE; AIR,TRANSFER
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 		8-97173-553-0 01 1 9712-9908 ● ●
388 04.510 HOSE; AIR,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-97173-553-0 01 1 9909- ● ●
388 04.510 HOSE; AIR,TRANSFER
M/T MUA 5 SPEED(RMN) 		8-97172-683-0 01 1 9712- ● ●
389 04.510 CLAMP; HOSE
A/T THM(RMQ) ONE TOUCH 4X4 SYSTEM(7QY) 04.681 ID=8.3 & 8.3 		8-94426-175-0 02 1 9712-9908 ● ●
389 04.510 CLAMP; HOSE
A/T THM(RMQ) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.681 ID=8.3 & 8.3 		8-94426-175-0 02 1 9909- ● ●
389 04.510 CLAMP; HOSE
A/T THM(RMQ) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 04.681 ID=8.3 & 8.3 		8-94426-175-0 01 1 9712-9908 ● ●
389 04.510 CLAMP; HOSE
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) 04.681 ID=8.3 & 8.3 		8-94426-175-0 01 1 9909- ● ●
389 04.510 CLAMP; HOSE
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) ONE TOUCH 4X4 SYSTEM(7QY) 04.342 ID=8.3 & 10 		8-94176-792-0 02 1 9712- ● ●
389 04.510 CLAMP; HOSE
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 04.342 ID=8.3 & 10 		8-94176-792-0 01 1 9712- ● ●

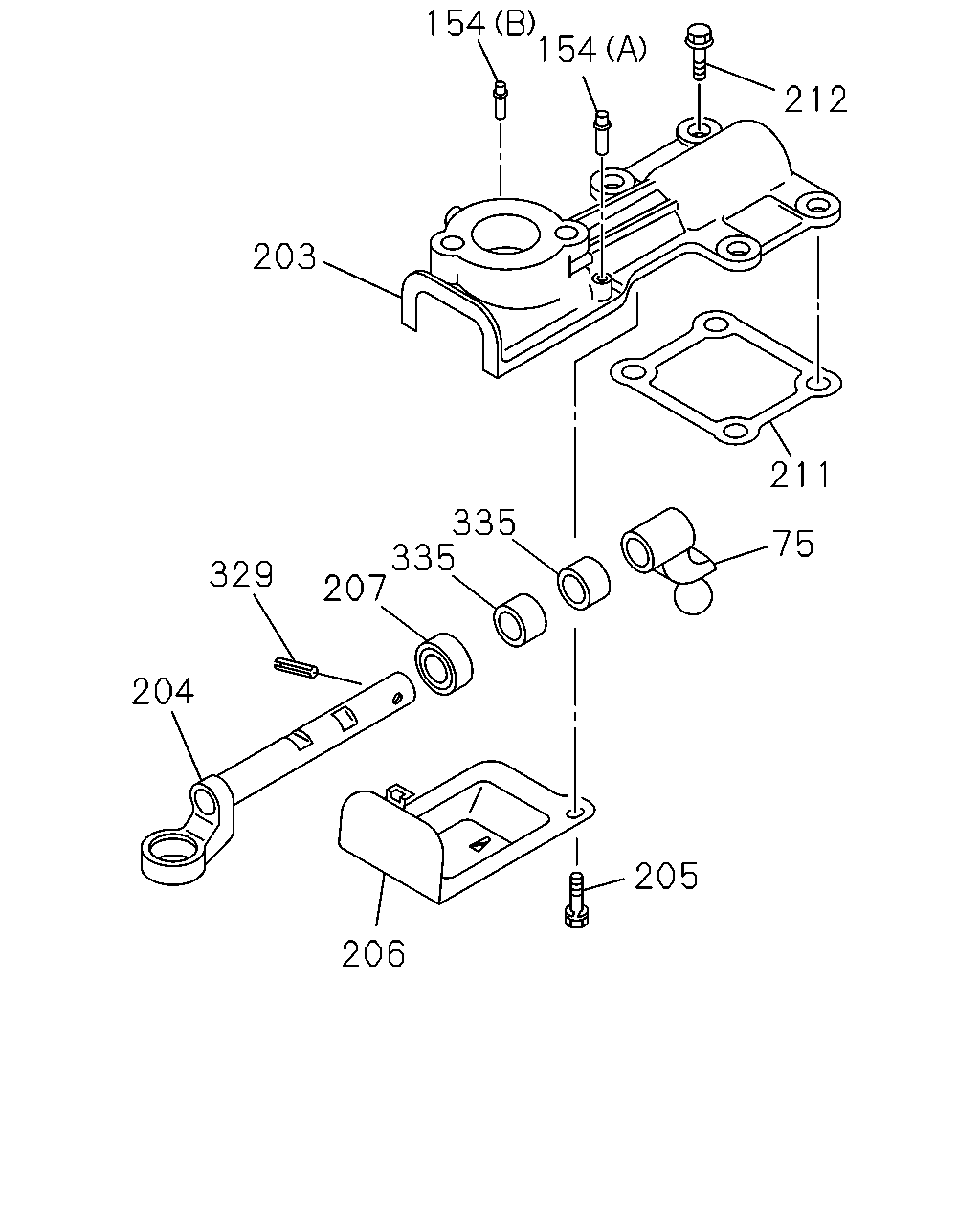

çizim 72500
154 154 212 203 211 335 335 207 75 329 204 205 206
BalonParca AdiParca NoAdetTipApplied Date A B
75 04.246 LEVER ASM; L-H CONT,INTERNAL 8-94367-929-2 01 1 9712-9908 ● ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
EXC. TORQUE ON DEMAND<7HA> 		8-94367-929-2 01 1 9909- ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97173-544-0 01 1 9909- ●
154 04.510 PIPE; BREATHER
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97173-544-0 01 1 9909- ●
154 04.510 PIPE; BREATHER
(A) 		8-97173-544-0 01 1 9712-9908 ● ●
154 04.510 PIPE; BREATHER
(B) 		8-97173-545-0 01 1 9712-9908 ● ●
154 04.510 PIPE; BREATHER
GRADE LS/LTD(RBD) INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> (B) 		8-97173-545-0 01 1 9909- ●
203 04.510 BOX; TRANSFER CONT 8-97173-546-0 01 1 9712-9908 ● ●
203 04.510 BOX; TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97173-546-1 01 1 9909- ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT 8-97176-249-2 01 1 9712-9908 ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97176-249-2 01 1 9909- ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
TORQUE ON DEMAND<7HA> 		8-97129-282-0 01 1 9909- ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
09.775 M6X8 		9-03490-608-0 01 1 9712-9908 ● ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
EXC. TORQUE ON DEMAND<7HA> 09.775 M6X8 		9-03490-608-0 01 1 9909- ● ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER 8-97106-784-1 01 1 9712-9908 ● ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-97106-784-1 01 1 9909- ● ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA 8-94221-533-1 01 1 9712-9908 ● ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
EXC. TORQUE ON DEMAND<7HA> 		8-94221-533-1 01 1 9909- ● ●
211 04.109 GASKET; CONT BOX,TRANSFER
04.019 		8-94368-327-0 01 1 9712-9908 ● ●
211 04.109 GASKET; CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 04.019 		8-94368-327-0 01 1 9909- ● ●
212 04.105 BOLT; CONT BOX,TRANSFER
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9712-9908 ● ●
212 04.105 BOLT; CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9909- ● ●
329 04.107 PIN; SPRING,SHIFT ROD
04.042 OD=5.4 		9-09678-510-0 01 1 9712-9908 ● ●
329 04.107 PIN; SPRING,SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> 04.042 OD=5.4 		9-09678-510-0 01 1 9909- ● ●
329 04.107 PIN; SPRING,SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-329-0 01 1 9909- ●
335 04.105 BUSHING 8-94388-205-1 02 1 9712-9908 ● ●
335 04.105 BUSHING
EXC. TORQUE ON DEMAND<7HA> 		8-94388-205-1 02 1 9909- ● ●
