2-53 — TRANSMISSION OIL COOLER SYSTEM (#37895) — 52 parça

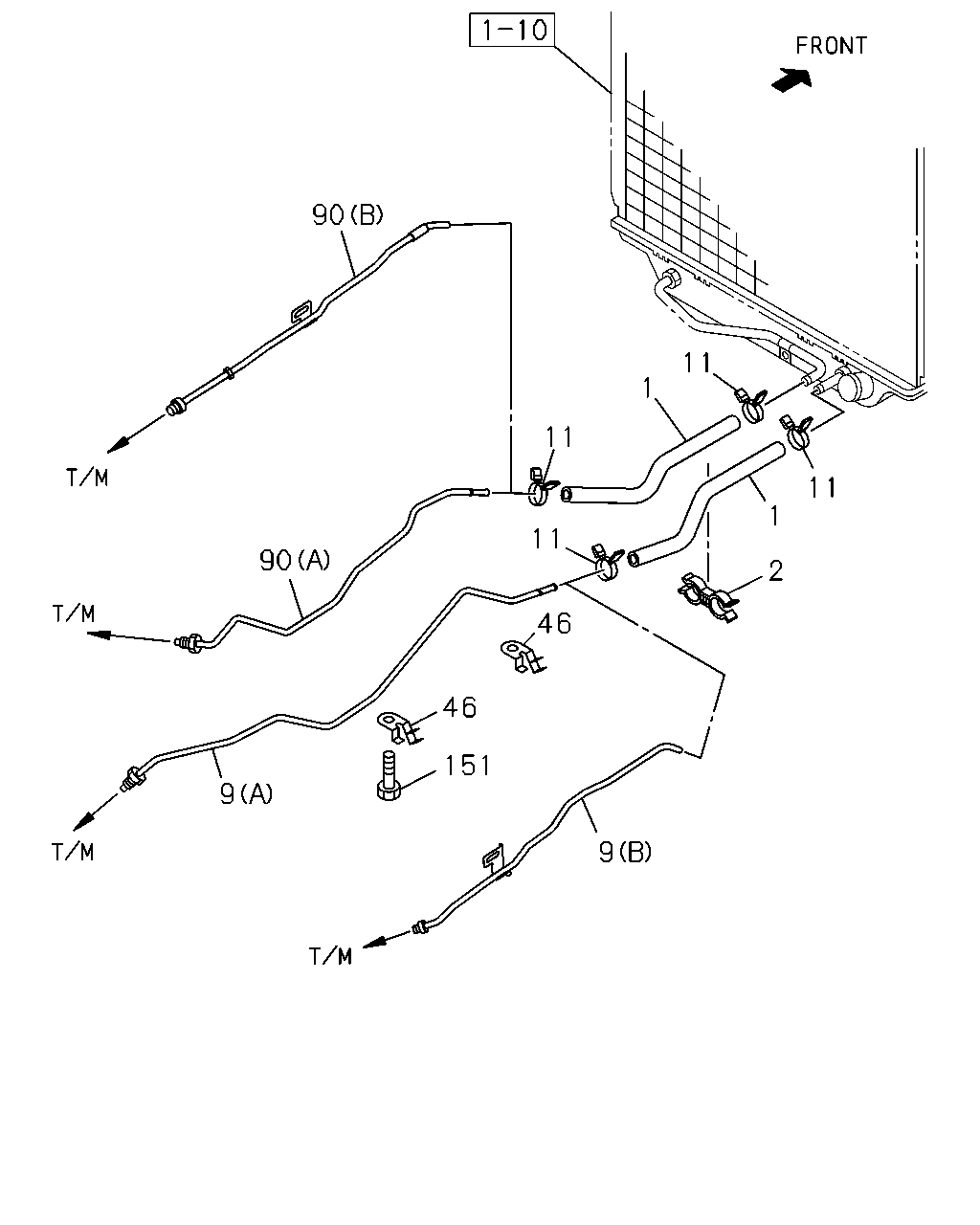

90 11 1 11 11 1 11 90 2 46 46 151 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250	8-97089-701-0	02	1	9712-	●
1	04.128 HOSE; ATF 4JX1 ENG(RJM)	8-97218-471-1	02	1	9909-		●
1	04.128 HOSE; ATF 4JG2 ENG(RJC) L=96	8-97019-868-1	02	1	0106-		●
2	04.128 WIRE; CLAMP,ATF HOSE 4JX1 ENG(RJM)	8-97210-049-0	01	1	9909-		●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97177-591-1	01	1	9712-0008	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. TORQUE ON DEMAND<7HA> (A)	8-97177-591-1	01	1	0009-0111	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97327-171-0	01	1	0112-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> (A)	8-97222-650-0	01	1	0009-0111	●
9	04.128 PIPE; ATF,INL,A/T 4JG2 ENG(RJC) (A)	8-97065-884-1	01	1	0106-		●
9	04.128 PIPE; ATF,INL,A/T 4JX1 ENG(RJM) (B)	8-97207-548-0	01	1	9909-		●
9	04.128 PIPE; ATF,INL,A/T 4JG2 ENG(RJC) (B)	8-97309-687-1	01	1	0106-		●
11	04.128 CLIP; PIPE 01.166 ID=14	8-94238-572-0	04	1	9712-9712	●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	9801-9908	●
11	04.128 CLIP; PIPE 4X4(UBS***) 03.162 ID=14	8-97173-221-0	04	1	9801-9908		●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	9909-0007	●	●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	0008-	●	●
11	04.128 CLIP; PIPE 4JG2 ENG(RJC) 03.162 ID=14	8-97173-221-0	04	1	0008-		●
46	04.128 BRACKET; OIL PIPE	8-97177-700-0	02	1	9712-	●
46	04.128 BRACKET; OIL PIPE 4JX1 ENG(RJM)	8-97177-700-0	01	1	9909-		●
90	04.128 PIPE ASM; ATF (A)	8-97177-592-0	01	1	9712-	●
90	04.128 PIPE ASM; ATF 4JG2 ENG(RJC) (A)	8-97065-885-1	01	1	0106-		●
90	04.128 PIPE ASM; ATF 4JX1 ENG(RJM) (B)	8-97207-547-1	01	1	9909-0105		●
90	04.128 PIPE ASM; ATF 4JX1 ENG(RJM) (B)	8-97301-760-0	01	1	0106-		●
90	04.128 PIPE ASM; ATF 4JG2 ENG(RJC) (B)	8-97309-688-2	01	1	0106-		●
151	04.128 BOLT; BRKT,OIL PIPE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9908	●
151	04.128 BOLT; BRKT,OIL PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9909-	●
151	04.128 BOLT; BRKT,OIL PIPE 4JX1 ENG(RJM) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9909-		●
151	04.128 BOLT; BRKT,OIL PIPE 4JX1 ENG(RJM) 16.320 M8X22	1-09980-055-0	01	1	9909-		●

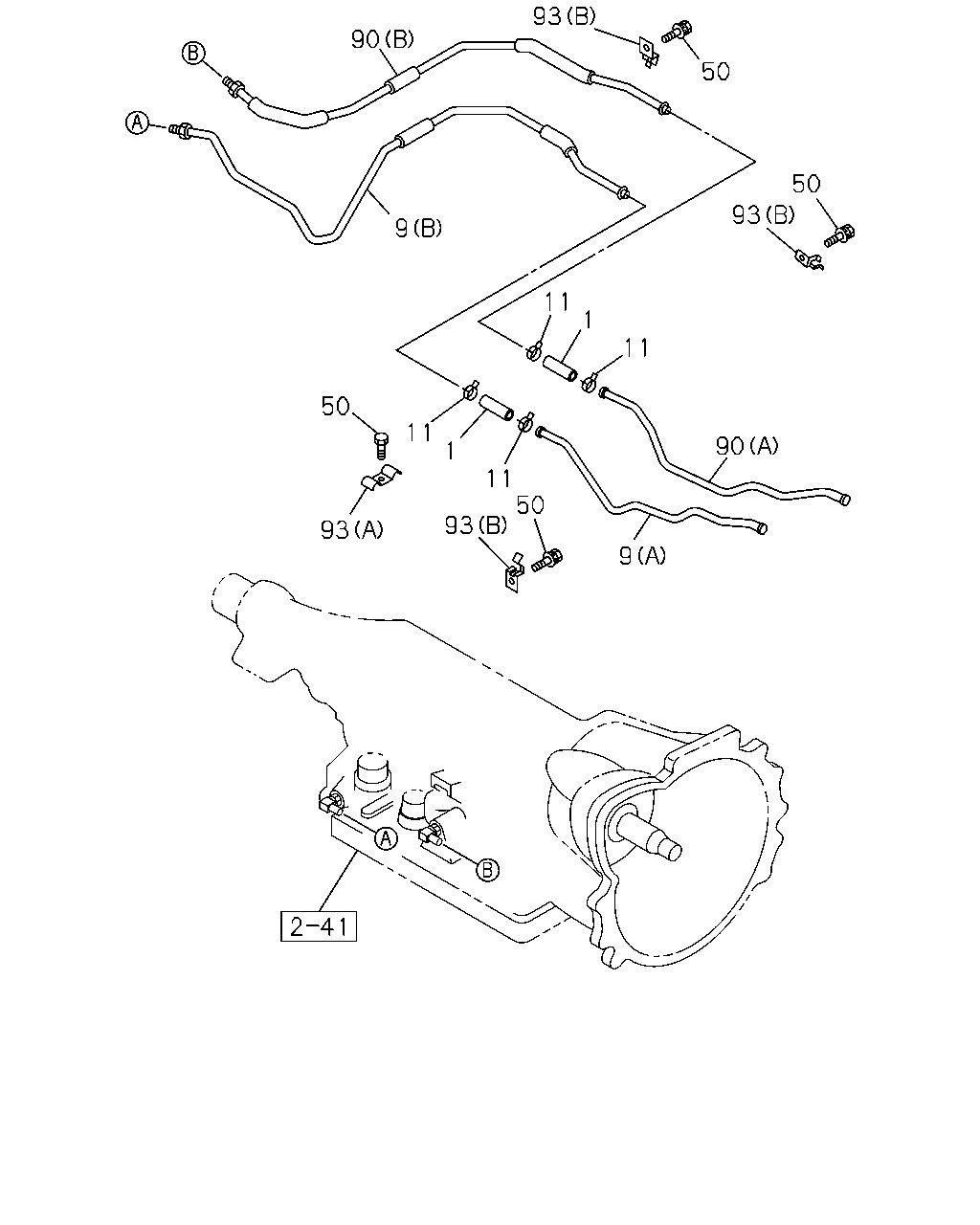

93 90 50 50 93 9 11 1 11 50 11 90 1 11 50 93 93 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250	8-97089-701-0	02	1	9712-	●
1	04.128 HOSE; ATF 4JX1 ENG(RJM)	8-97218-471-1	02	1	9909-		●
1	04.128 HOSE; ATF 4JG2 ENG(RJC) L=96	8-97019-868-1	02	1	0106-		●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97177-591-1	01	1	9712-0008	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. TORQUE ON DEMAND<7HA> (A)	8-97177-591-1	01	1	0009-0111	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97327-171-0	01	1	0112-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> (A)	8-97222-650-0	01	1	0009-0111	●
9	04.128 PIPE; ATF,INL,A/T 4JG2 ENG(RJC) (A)	8-97065-884-1	01	1	0106-		●
9	04.128 PIPE; ATF,INL,A/T 4JX1 ENG(RJM) (B)	8-97207-548-0	01	1	9909-		●
9	04.128 PIPE; ATF,INL,A/T 4JG2 ENG(RJC) (B)	8-97309-687-1	01	1	0106-		●
11	04.128 CLIP; PIPE 01.166 ID=14	8-94238-572-0	04	1	9712-9712	●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	9801-9908	●
11	04.128 CLIP; PIPE 4X4(UBS***) 03.162 ID=14	8-97173-221-0	04	1	9801-9908		●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	9909-0007	●	●
11	04.128 CLIP; PIPE 03.162 ID=14	8-97173-221-0	04	1	0008-	●	●
11	04.128 CLIP; PIPE 4JG2 ENG(RJC) 03.162 ID=14	8-97173-221-0	04	1	0008-		●
50	04.128 BOLT; CLIP 4JG2 ENG(RJC) 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	0106-		●
90	04.128 PIPE ASM; ATF (A)	8-97177-592-0	01	1	9712-	●
90	04.128 PIPE ASM; ATF 4JG2 ENG(RJC) (A)	8-97065-885-1	01	1	0106-		●
90	04.128 PIPE ASM; ATF 4JX1 ENG(RJM) (B)	8-97207-547-1	01	1	9909-0105		●
90	04.128 PIPE ASM; ATF 4JX1 ENG(RJM) (B)	8-97301-760-0	01	1	0106-		●
90	04.128 PIPE ASM; ATF 4JG2 ENG(RJC) (B)	8-97309-688-2	01	1	0106-		●
93	04.128 CLIP; BRKT 4JG2 ENG(RJC) (A)	8-94334-345-1	01	1	0106-		●
93	04.128 CLIP; BRKT 4JG2 ENG(RJC) (B)	8-97062-040-0	03	1	0106-		●
