Sayfa 2-48 - Isuzu EPC

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#37892) — 286 parça

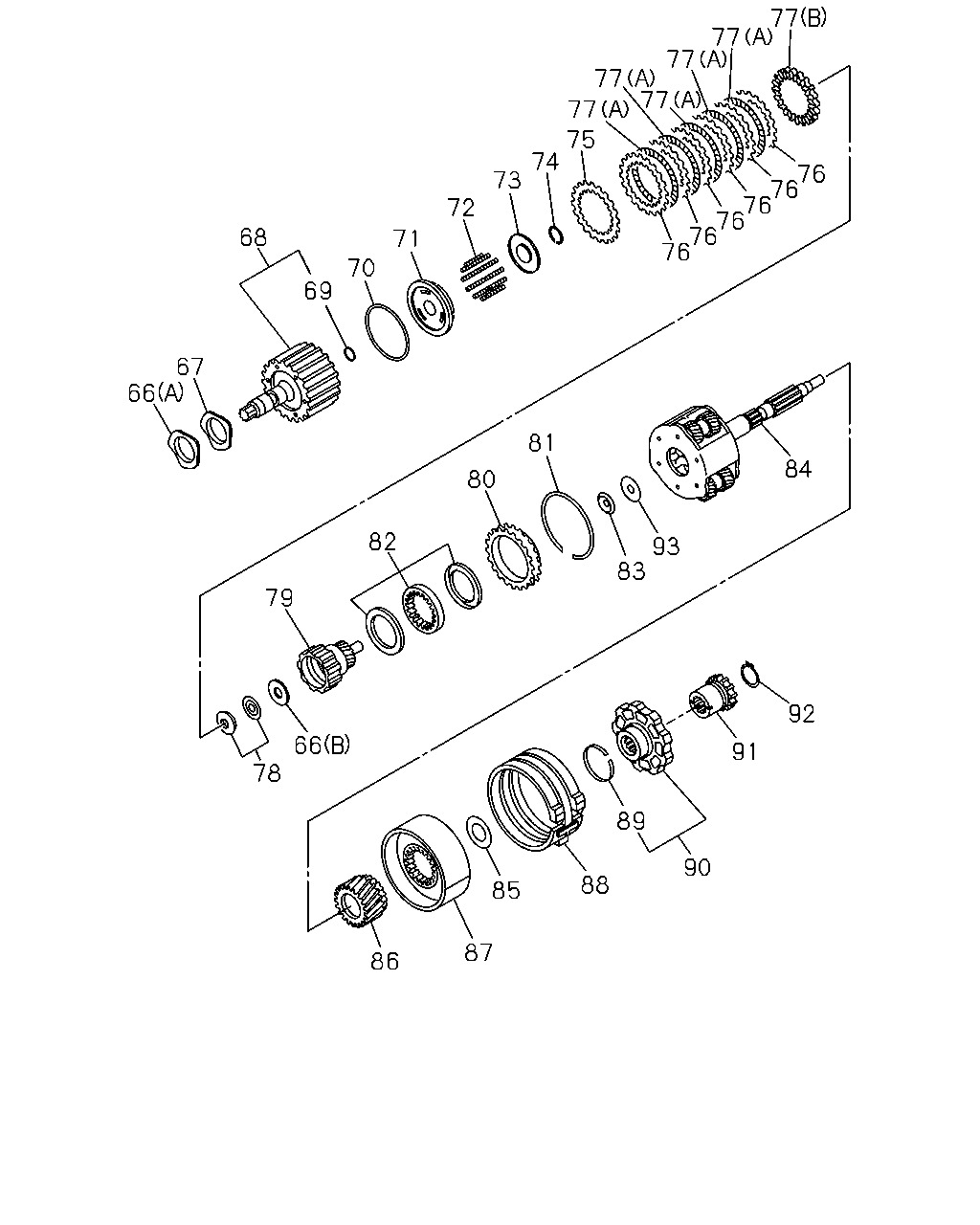

77 77 77 77 77 77 75 74 76 76 76 76 76 76 73 72 68 71 70 69 67 66 81 84 80 82 93 83 79 92 66 91 78 89 90 88 85 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.169 WASHER; THRUST,3RD CLU (A)	8-96013-403-0	01	1	9712-	●
66	04.169 WASHER; THRUST,3RD CLU 04.158 (B)	8-96015-459-0	01	1	9712-	●
67	04.169 WASHER; THRUST,CLU HUB	8-05258-945-0	01	1	9712-	●
68	04.169 DRUM; 3RD CLU	8-96041-095-0	01	1	9712-	●
69	04.262 SEAL; 3RD CLU PISTON INNER	8-96018-543-0	01	1	9712-	●
70	04.262 SEAL; 3RD CLU PISTON OUTER	8-96014-296-0	01	1	9712-	●
71	04.262 PISTON; 3RD CLU 04.116	8-96016-223-0	01	1	9712-	●
72	04.262 SPRING; PISTON CLU	8-08958-719-0	12	1	9712-	●
73	04.262 SEAT; SPR,3RD CLU	8-05258-039-0	01	1	9712-	●
74	04.262 RING; RET	8-05258-094-0	01	1	9712-	●
75	04.262 PLATE; SPR,CLU	8-96017-603-0	01	1	9712-	●
76	04.262 PLATE; 3RD CLU	8-05258-955-0	06	1	9712-	●
77	04.262 PLATE ASM; 3RD CLU (B)	8-96017-370-0	01	1	9712-	●
77	04.262 PLATE ASM; 3RD CLU (A)	8-96017-371-0	05	1	9712-	●
78	04.262 WASHER & THRUST BEARING KIT	8-96040-078-0	01	1	9712-	●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-	●
79	04.262 GEAR ASM; INPUT SUN 4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	9909-0105		●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	0106-		●
80	04.262 RACE; SPRAG	8-96017-373-0	01	1	9712-	●
81	04.262 RING; RET,SPRAG	8-08958-684-0	01	1	9712-	●
82	04.256 SPRAG KIT	8-96017-149-0	01	1	9712-	●
83	04.256 BEARING; OUTPUT SHAFT	8-96014-602-0	01	1	9712-	●
84	04.256 CARRIER ASM; PLANETARY	8-96017-348-0	01	1	9712-	●
85	04.256 THRUST BEARING & WASHER KIT	8-96016-084-0	01	1	9712-	●
86	04.256 GEAR; REACTION SUN	8-96015-037-0	01	1	9712-	●
87	04.256 DRUM; REACTION SUN	8-96018-009-0	01	1	9712-	●
88	04.256 BAND; BRAKE	8-96014-805-0	01	1	9712-	●
89	04.256 SEAL; RING,PARKING LOCK	8-05258-837-0	01	1	9712-	●
90	04.256 WHEEL; PARKING LOCK	8-96016-669-0	01	1	9712-	●
91	04.256 WHEEL; SPD	8-96015-053-0	01	1	9712-	●
92	04.256 RING; RET	8-96015-123-0	01	1	9712-	●
93	04.008 WASHER; OUTPUT SHAFT 04.262	8-96014-607-0	01	1	9712-	●

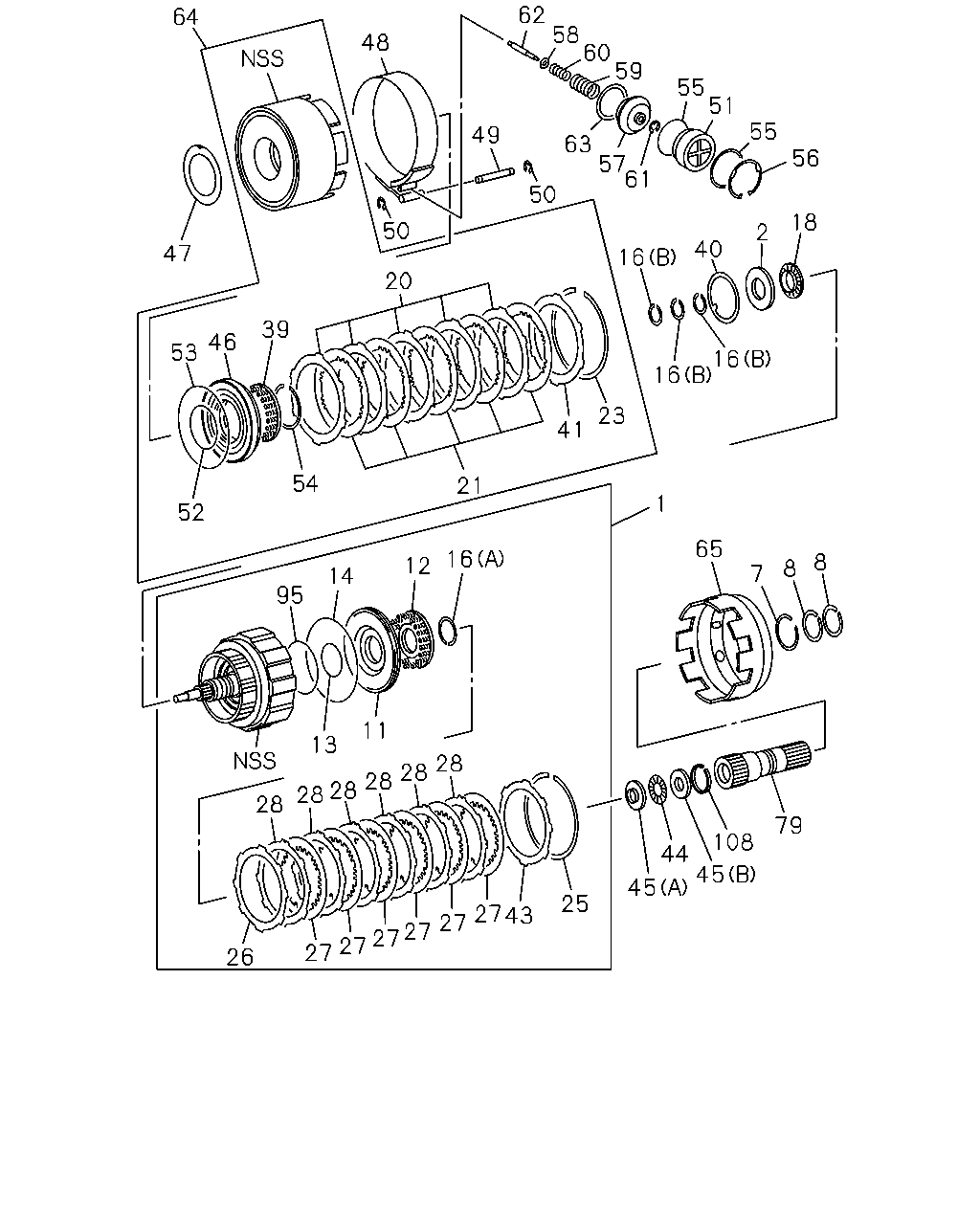

62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 18 50 2 40 47 16 20 39 46 53 16 16 23 41 54 21 1 52 65 16 8 12 8 7 14 95 11 13 28 28 28 28 28 28 79 108 44 45 45 25 27 27 27 27 27 26 27 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JG2 ENG(RJC)	8-97184-340-0	01	1	0106-		●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JX1 ENG(RJM)	8-97232-038-0	01	1	9909-		●
2	04.164 RACE; THRUST BRG,A/T 4JX1 ENG(RJM) 04.472	8-94479-763-0	01	1	9909-0105		●
2	04.164 RACE; THRUST BRG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.472	8-94479-763-0	01	1	0106-		●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94479-844-0	01	1	9909-0105		●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-844-0	01	1	0106-		●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94166-003-0	02	1	9909-0105		●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94166-003-0	02	1	0106-		●
11	04.166 PISTON ASM; CLU,A/T 4JG2 ENG(RJC)	8-97025-836-0	01	1	0106-		●
11	04.166 PISTON ASM; CLU,A/T 4JX1 ENG(RJM)	8-97232-055-0	01	1	9909-		●
12	04.164 SPRING; CLU RETURN,A/T 4JX1 ENG(RJM)	8-94479-770-0	01	1	9909-0105		●
12	04.164 SPRING; CLU RETURN,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-770-0	01	1	0106-		●
13	04.166 GASKET; INNER,CLU,A/T 4JX1 ENG(RJM)	8-94364-919-0	01	1	9909-0105		●
13	04.166 GASKET; INNER,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-919-0	01	1	0106-		●
14	04.166 GASKET; OUTER,CLU,A/T 4JX1 ENG(RJM)	8-94364-920-0	01	1	9909-0105		●
14	04.166 GASKET; OUTER,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-920-0	01	1	0106-		●
16	04.166 RING; SNAP,CLU,A/T 4JX1 ENG(RJM) (A)	8-94479-769-0	01	1	9909-0105		●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-769-0	01	1	0106-		●
16	04.166 RING; SNAP,CLU,A/T 4JX1 ENG(RJM) (B)	8-94479-775-0	03	1	9909-0105		●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-94479-775-0	03	1	0106-		●
18	04.164 BEARING; THRUST,CLU,A/T 4JX1 ENG(RJM)	8-94479-764-0	01	1	9909-0105		●
18	04.164 BEARING; THRUST,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-764-0	01	1	0106-		●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-97214-543-0	04	1	0106-		●
20	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-057-0	01	1	9909-		●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97214-544-0	04	1	0106-		●
21	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97214-544-0	01	1	9909-		●
23	04.164 RING; RET,CLU,A/T 4JX1 ENG(RJM)	8-97214-553-0	01	1	9909-0105		●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97214-553-0	01	1	0106-		●
25	04.164 RING; RET,BACKING PLATE,A/T 4JX1 ENG(RJM)	8-94250-342-0	01	1	9909-0105		●
25	04.164 RING; RET,BACKING PLATE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94250-342-0	01	1	0106-		●
26	04.163 PLATE; CLU,BACKING,A/T 4JX1 ENG(RJM)	8-94479-772-0	01	1	9909-0105		●
26	04.163 PLATE; CLU,BACKING,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-772-0	01	1	0106-		●
27	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-083-0	05	1	0106-		●
27	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97232-041-0	06	1	9909-		●
28	04.163 DISC; CLU,A/T 4JG2 ENG(RJC) OPT	8-97184-342-0	05	1	0106-		●
28	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-058-0	06	1	9909-		●
39	04.164 SPRING; DIRECT CLU RETURN 4JX1 ENG(RJM)	8-97019-543-0	01	1	9909-0105		●
39	04.164 SPRING; DIRECT CLU RETURN 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97019-543-0	01	1	0106-		●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JX1 ENG(RJM)	8-94479-796-0	01	1	9909-0105		●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-796-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97288-908-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97288-909-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97288-910-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-97288-911-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-97288-912-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.8	8-97288-913-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.0	8-97214-545-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.1	8-97214-546-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.2	8-97214-547-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.3	8-97214-548-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.4	8-97214-549-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.5	8-97214-550-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.9	8-97214-551-0	01	1	9909-0105		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.9	8-97214-551-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=4.0	8-97214-552-0	01	1	9909-0105		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.0	8-97214-552-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.0	8-97025-841-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.0	8-97025-841-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.2	8-97025-843-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.2	8-97025-843-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.4	8-97025-844-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.4	8-97025-844-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.6	8-97232-043-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.6	8-97232-043-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.8	8-97232-044-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.8	8-97232-044-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.0	8-97232-045-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.0	8-97232-045-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.2	8-97232-046-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.2	8-97232-046-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.4	8-97232-047-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.4	8-97232-047-0	01	1	0106-		●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JX1 ENG(RJM)	8-94479-778-0	01	1	9909-0105		●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-778-0	01	1	0106-		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JX1 ENG(RJM) (A)	8-94479-776-0	01	1	9909-0105		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-776-0	01	1	0106-		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JX1 ENG(RJM) 04.180 (B)	8-94479-777-0	01	1	9909-0105		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.180 (B)	8-94479-777-0	01	1	0106-		●
46	04.166 PISTON; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-94364-921-0	01	1	9909-0105		●
46	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-921-0	01	1	0106-		●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JX1 ENG(RJM)	8-94479-779-0	01	1	9909-0105		●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-779-0	01	1	0106-		●
48	04.251 BAND; 2ND COAST BRK 4JX1 ENG(RJM)	8-97143-086-0	01	1	9909-0105		●
48	04.251 BAND; 2ND COAST BRK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-086-0	01	1	0106-		●
49	04.169 PIN; 2ND COAST BRK BAND 4JX1 ENG(RJM)	8-94479-825-0	01	1	9909-0105		●
49	04.169 PIN; 2ND COAST BRK BAND 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-825-0	01	1	0106-		●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JX1 ENG(RJM) 04.166	8-94479-818-0	02	1	9909-0105		●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.166	8-94479-818-0	02	1	0106-		●
51	04.166 COVER; 2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-94479-822-0	01	1	9909-0105		●
51	04.166 COVER; 2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-822-0	01	1	0106-		●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JX1 ENG(RJM) 04.460	8-97184-321-0	01	1	9909-0105		●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.460	8-97184-321-0	01	1	0106-		●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JX1 ENG(RJM) 04.166	8-94364-920-0	01	1	9909-0105		●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.166	8-94364-920-0	01	1	0106-		●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JX1 ENG(RJM)	8-94479-783-0	01	1	9909-0105		●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-783-0	01	1	0106-		●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-94479-824-0	02	1	9909-0105		●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-824-0	02	1	0106-		●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JX1 ENG(RJM)	8-97069-458-0	01	1	9909-0105		●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-458-0	01	1	0106-		●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-97143-132-0	01	1	9909-0105		●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-132-0	01	1	0106-		●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JX1 ENG(RJM)	8-94479-817-0	01	1	9909-0105		●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-817-0	01	1	0106-		●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JX1 ENG(RJM)	8-94479-812-0	01	1	9909-0105		●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-812-0	01	1	0106-		●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JX1 ENG(RJM)	8-94479-815-0	01	1	9909-0105		●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-815-0	01	1	0106-		●
61	04.166 RING; SNAP,2ND COAST BRK 4JX1 ENG(RJM)	8-94479-818-0	01	1	9909-0105		●
61	04.166 RING; SNAP,2ND COAST BRK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-818-0	01	1	0106-		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JX1 ENG(RJM) L=71.4	8-94479-816-0	01	1	9909-0105		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) L=71.4	8-94479-816-0	01	1	0106-		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JX1 ENG(RJM) L=72.9	8-94479-820-0	01	1	9909-0105		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) L=72.9	8-94479-820-0	01	1	0106-		●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JX1 ENG(RJM)	8-94479-813-0	01	1	9909-0105		●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-813-0	01	1	0106-		●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97214-542-0	01	1	0106-		●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97232-039-0	01	1	9909-		●
65	04.169 DRUM; SUN GEAR INPUT 4JX1 ENG(RJM)	8-97024-255-0	01	1	9909-0105		●
65	04.169 DRUM; SUN GEAR INPUT 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97024-255-0	01	1	0106-		●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-	●
79	04.262 GEAR ASM; INPUT SUN 4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	9909-0105		●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	0106-		●
95	04.166 GASKET; CLU HUB 4JX1 ENG(RJM)	8-97122-978-0	01	1	9909-0105		●
95	04.166 GASKET; CLU HUB 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97122-978-0	01	1	0106-		●
108	04.159 RING; SNAP,SUN GEAR 4JX1 ENG(RJM)	8-94479-845-0	01	1	9909-0105		●
108	04.159 RING; SNAP,SUN GEAR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-845-0	01	1	0106-		●

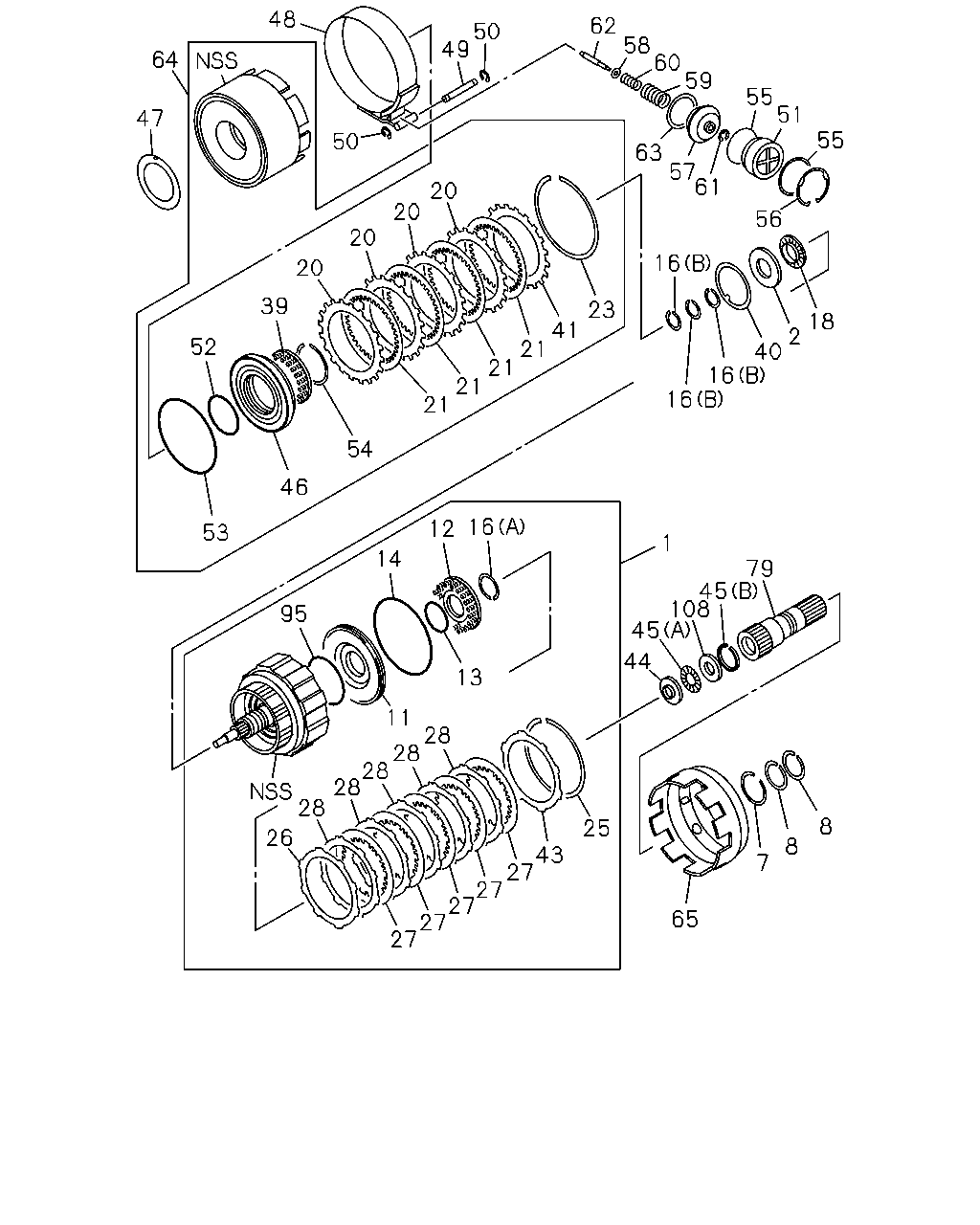

48 62 58 60 59 50 49 64 55 51 47 55 50 63 57 61 20 20 56 20 16 20 39 23 18 2 40 16 16 41 21 21 21 21 52 54 46 16 12 53 1 14 79 45 108 45 95 44 13 11 28 28 28 28 28 8 25 26 8 43 27 27 27 27 27 7 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JG2 ENG(RJC)	8-97184-340-0	01	1	0106-		●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JX1 ENG(RJM)	8-97232-038-0	01	1	9909-		●
2	04.164 RACE; THRUST BRG,A/T 4JX1 ENG(RJM) 04.472	8-94479-763-0	01	1	9909-0105		●
2	04.164 RACE; THRUST BRG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.472	8-94479-763-0	01	1	0106-		●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94479-844-0	01	1	9909-0105		●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-844-0	01	1	0106-		●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94166-003-0	02	1	9909-0105		●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94166-003-0	02	1	0106-		●
11	04.166 PISTON ASM; CLU,A/T 4JG2 ENG(RJC)	8-97025-836-0	01	1	0106-		●
11	04.166 PISTON ASM; CLU,A/T 4JX1 ENG(RJM)	8-97232-055-0	01	1	9909-		●
12	04.164 SPRING; CLU RETURN,A/T 4JX1 ENG(RJM)	8-94479-770-0	01	1	9909-0105		●
12	04.164 SPRING; CLU RETURN,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-770-0	01	1	0106-		●
13	04.166 GASKET; INNER,CLU,A/T 4JX1 ENG(RJM)	8-94364-919-0	01	1	9909-0105		●
13	04.166 GASKET; INNER,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-919-0	01	1	0106-		●
14	04.166 GASKET; OUTER,CLU,A/T 4JX1 ENG(RJM)	8-94364-920-0	01	1	9909-0105		●
14	04.166 GASKET; OUTER,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-920-0	01	1	0106-		●
16	04.166 RING; SNAP,CLU,A/T 4JX1 ENG(RJM) (A)	8-94479-769-0	01	1	9909-0105		●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-769-0	01	1	0106-		●
16	04.166 RING; SNAP,CLU,A/T 4JX1 ENG(RJM) (B)	8-94479-775-0	03	1	9909-0105		●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-94479-775-0	03	1	0106-		●
18	04.164 BEARING; THRUST,CLU,A/T 4JX1 ENG(RJM)	8-94479-764-0	01	1	9909-0105		●
18	04.164 BEARING; THRUST,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-764-0	01	1	0106-		●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-97214-543-0	04	1	0106-		●
20	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-057-0	01	1	9909-		●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97214-544-0	04	1	0106-		●
21	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97214-544-0	01	1	9909-		●
23	04.164 RING; RET,CLU,A/T 4JX1 ENG(RJM)	8-97214-553-0	01	1	9909-0105		●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97214-553-0	01	1	0106-		●
25	04.164 RING; RET,BACKING PLATE,A/T 4JX1 ENG(RJM)	8-94250-342-0	01	1	9909-0105		●
25	04.164 RING; RET,BACKING PLATE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94250-342-0	01	1	0106-		●
26	04.163 PLATE; CLU,BACKING,A/T 4JX1 ENG(RJM)	8-94479-772-0	01	1	9909-0105		●
26	04.163 PLATE; CLU,BACKING,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-772-0	01	1	0106-		●
27	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-083-0	05	1	0106-		●
27	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97232-041-0	06	1	9909-		●
28	04.163 DISC; CLU,A/T 4JG2 ENG(RJC) OPT	8-97184-342-0	05	1	0106-		●
28	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-058-0	06	1	9909-		●
39	04.164 SPRING; DIRECT CLU RETURN 4JX1 ENG(RJM)	8-97019-543-0	01	1	9909-0105		●
39	04.164 SPRING; DIRECT CLU RETURN 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97019-543-0	01	1	0106-		●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JX1 ENG(RJM)	8-94479-796-0	01	1	9909-0105		●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-796-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97288-908-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97288-909-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97288-910-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-97288-911-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-97288-912-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.8	8-97288-913-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.0	8-97214-545-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.1	8-97214-546-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.2	8-97214-547-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.3	8-97214-548-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.4	8-97214-549-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.5	8-97214-550-0	01	1	9909-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.9	8-97214-551-0	01	1	9909-0105		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.9	8-97214-551-0	01	1	0106-		●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=4.0	8-97214-552-0	01	1	9909-0105		●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.0	8-97214-552-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.0	8-97025-841-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.0	8-97025-841-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.2	8-97025-843-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.2	8-97025-843-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.4	8-97025-844-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.4	8-97025-844-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.6	8-97232-043-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.6	8-97232-043-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.8	8-97232-044-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.8	8-97232-044-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.0	8-97232-045-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=4.0	8-97232-045-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.2	8-97232-046-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.2	8-97232-046-0	01	1	0106-		●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.4	8-97232-047-0	01	1	9909-0105		●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC),4JX1 ENG(RJM) T=3.4	8-97232-047-0	01	1	0106-		●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JX1 ENG(RJM)	8-94479-778-0	01	1	9909-0105		●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-778-0	01	1	0106-		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JX1 ENG(RJM) (A)	8-94479-776-0	01	1	9909-0105		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-776-0	01	1	0106-		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JX1 ENG(RJM) 04.180 (B)	8-94479-777-0	01	1	9909-0105		●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.180 (B)	8-94479-777-0	01	1	0106-		●
46	04.166 PISTON; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-94364-921-0	01	1	9909-0105		●
46	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-921-0	01	1	0106-		●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JX1 ENG(RJM)	8-94479-779-0	01	1	9909-0105		●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-779-0	01	1	0106-		●
48	04.251 BAND; 2ND COAST BRK 4JX1 ENG(RJM)	8-97143-086-0	01	1	9909-0105		●
48	04.251 BAND; 2ND COAST BRK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-086-0	01	1	0106-		●
49	04.169 PIN; 2ND COAST BRK BAND 4JX1 ENG(RJM)	8-94479-825-0	01	1	9909-0105		●
49	04.169 PIN; 2ND COAST BRK BAND 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-825-0	01	1	0106-		●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JX1 ENG(RJM) 04.166	8-94479-818-0	02	1	9909-0105		●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.166	8-94479-818-0	02	1	0106-		●
51	04.166 COVER; 2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-94479-822-0	01	1	9909-0105		●
51	04.166 COVER; 2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-822-0	01	1	0106-		●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JX1 ENG(RJM) 04.460	8-97184-321-0	01	1	9909-0105		●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.460	8-97184-321-0	01	1	0106-		●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JX1 ENG(RJM) 04.166	8-94364-920-0	01	1	9909-0105		●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.166	8-94364-920-0	01	1	0106-		●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JX1 ENG(RJM)	8-94479-783-0	01	1	9909-0105		●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-783-0	01	1	0106-		●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-94479-824-0	02	1	9909-0105		●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-824-0	02	1	0106-		●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JX1 ENG(RJM)	8-97069-458-0	01	1	9909-0105		●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-458-0	01	1	0106-		●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JX1 ENG(RJM)	8-97143-132-0	01	1	9909-0105		●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-132-0	01	1	0106-		●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JX1 ENG(RJM)	8-94479-817-0	01	1	9909-0105		●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-817-0	01	1	0106-		●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JX1 ENG(RJM)	8-94479-812-0	01	1	9909-0105		●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-812-0	01	1	0106-		●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JX1 ENG(RJM)	8-94479-815-0	01	1	9909-0105		●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-815-0	01	1	0106-		●
61	04.166 RING; SNAP,2ND COAST BRK 4JX1 ENG(RJM)	8-94479-818-0	01	1	9909-0105		●
61	04.166 RING; SNAP,2ND COAST BRK 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-818-0	01	1	0106-		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JX1 ENG(RJM) L=71.4	8-94479-816-0	01	1	9909-0105		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) L=71.4	8-94479-816-0	01	1	0106-		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JX1 ENG(RJM) L=72.9	8-94479-820-0	01	1	9909-0105		●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) L=72.9	8-94479-820-0	01	1	0106-		●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JX1 ENG(RJM)	8-94479-813-0	01	1	9909-0105		●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-813-0	01	1	0106-		●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97214-542-0	01	1	0106-		●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97232-039-0	01	1	9909-		●
65	04.169 DRUM; SUN GEAR INPUT 4JX1 ENG(RJM)	8-97024-255-0	01	1	9909-0105		●
65	04.169 DRUM; SUN GEAR INPUT 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97024-255-0	01	1	0106-		●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-	●
79	04.262 GEAR ASM; INPUT SUN 4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	9909-0105		●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.159	8-94479-846-0	01	1	0106-		●
95	04.166 GASKET; CLU HUB 4JX1 ENG(RJM)	8-97122-978-0	01	1	9909-0105		●
95	04.166 GASKET; CLU HUB 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97122-978-0	01	1	0106-		●
108	04.159 RING; SNAP,SUN GEAR 4JX1 ENG(RJM)	8-94479-845-0	01	1	9909-0105		●
108	04.159 RING; SNAP,SUN GEAR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-845-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
