2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#37891) — 72 parça

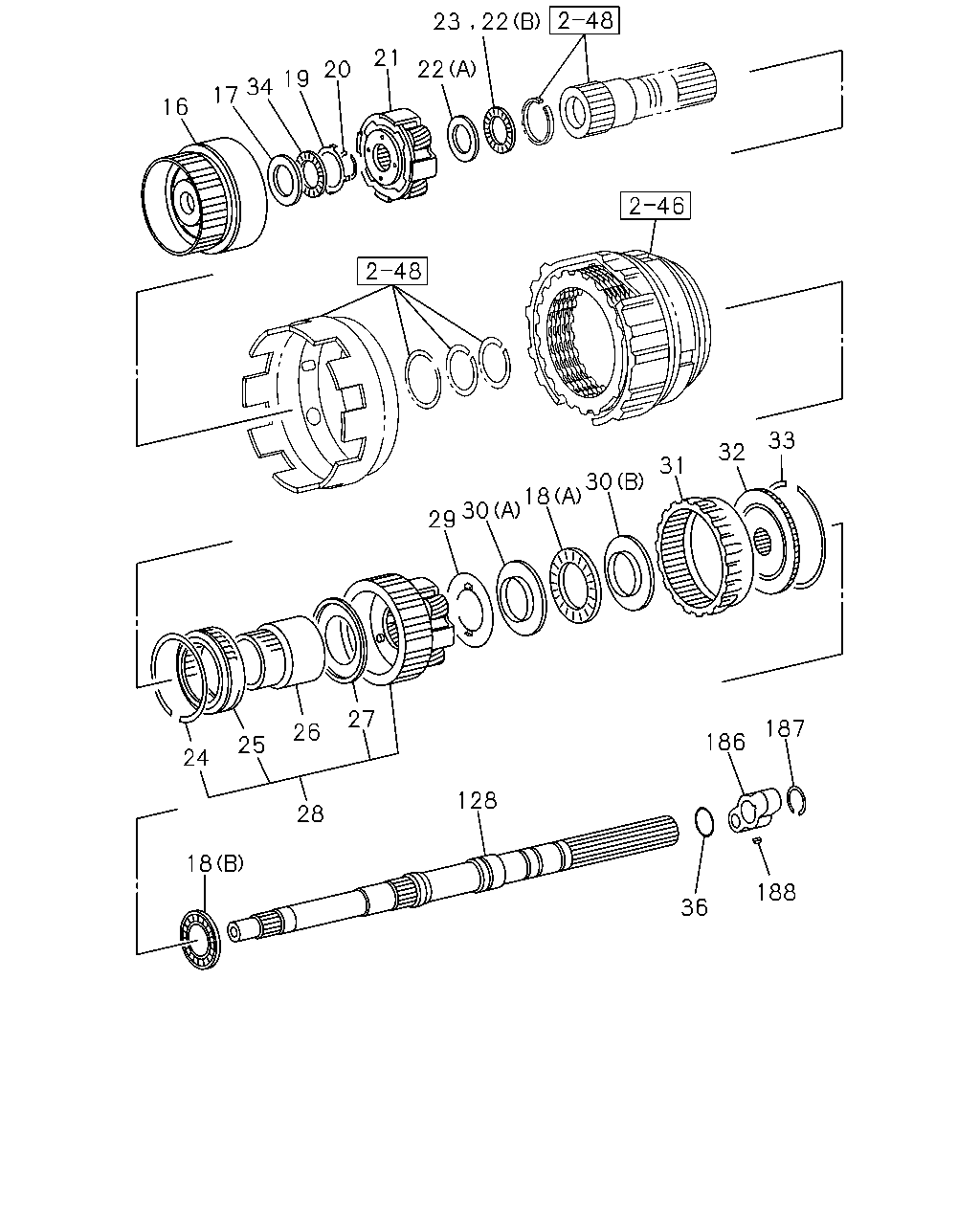

23 22 21 22 20 19 34 17 16 33 32 31 30 18 30 29 27 187 26 186 25 24 128 28 18 188 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JX1 ENG(RJM)	8-97143-082-0	01	1	9909-0105	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-082-0	01	1	0106-	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JX1 ENG(RJM)	8-94479-836-0	01	1	9909-0105	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-836-0	01	1	0106-	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4JG2 ENG(RJC) (B)	8-97249-735-0	01	1	0106-	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4JX1 ENG(RJM) 04.166 (A)	8-94479-847-0	01	1	9909-0105	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.166 (A)	8-94479-847-0	01	1	0106-	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4JX1 ENG(RJM) 04.164 (B)	8-94479-855-0	01	1	9909-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JX1 ENG(RJM)	8-94479-837-0	01	1	9909-0105	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-837-0	01	1	0106-	●
20	04.164 RING; RET,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94479-842-0	01	1	9909-0105	●
20	04.164 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-842-0	01	1	0106-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 4JX1 ENG(RJM)	8-94479-839-0	01	1	9909-0105	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-839-0	01	1	0106-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 4JX1 ENG(RJM) (A)	8-94479-840-0	01	1	9909-0105	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-840-0	01	1	0106-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 4JX1 ENG(RJM) 04.164 (B)	8-94479-841-0	01	1	9909-	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 4JG2 ENG(RJC)	8-94479-841-0	01	1	0106-	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4JX1 ENG(RJM)	8-97143-129-0	01	1	9909-0105	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97143-129-0	01	1	0106-	●
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4JX1 ENG(RJM)	8-94364-924-0	01	1	9909-0105	●
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94364-924-0	01	1	0106-	●
26	04.168 RACE; ONEWAY CLU,A/T 4JX1 ENG(RJM)	8-97019-542-0	01	1	9909-0105	●
26	04.168 RACE; ONEWAY CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97019-542-0	01	1	0106-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 4JX1 ENG(RJM)	8-94313-577-0	01	1	9909-0105	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94313-577-0	01	1	0106-	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 4JG2 ENG(RJC)	8-94479-850-0	01	1	0106-	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 4JX1 ENG(RJM)	8-97232-050-0	01	1	9909-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4JX1 ENG(RJM) 04.164	8-94479-851-0	01	1	9909-0105	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.164	8-94479-851-0	01	1	0106-	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL 4JX1 ENG(RJM) (A)	8-94479-848-0	01	1	9909-0105	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-94479-848-0	01	1	0106-	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL 4JX1 ENG(RJM) (B)	8-94479-849-0	01	1	9909-0105	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-94479-849-0	01	1	0106-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 4JX1 ENG(RJM)	8-94479-854-0	01	1	9909-0105	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-854-0	01	1	0106-	●
32	04.164 FLANGE; RING GEAR,RR PLANETARY,A 4JX1 ENG(RJM)	8-94479-852-0	01	1	9909-0105	●
32	04.164 FLANGE; RING GEAR,RR PLANETARY,A 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-852-0	01	1	0106-	●
33	04.166 RING; RET,PLANETARY GEAR,A/T 4JX1 ENG(RJM)	8-94479-853-0	01	1	9909-0105	●
33	04.166 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-853-0	01	1	0106-	●
34	04.164 BEARING; THRUST,FRT PLANETARY SH 4JX1 ENG(RJM) 04.187	8-94479-838-0	01	1	9909-0105	●
34	04.164 BEARING; THRUST,FRT PLANETARY SH 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.187	8-94479-838-0	01	1	0106-	●
36	04.164 RING; SEALING,FRT PLANETARY SHAF 4JX1 ENG(RJM)	8-94479-902-0	01	1	9909-0105	●
36	04.164 RING; SEALING,FRT PLANETARY SHAF 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-902-0	01	1	0106-	●
128	04.175 SHAFT; OUTPUT,A/T 4JX1 ENG(RJM)	8-97069-456-0	01	1	9909-0105	●
128	04.175 SHAFT; OUTPUT,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-456-0	01	1	0106-	●
186	04.329 ROTOR; SPEED SENSOR 4JX1 ENG(RJM)	8-97069-450-0	01	1	9909-0105	●
186	04.329 ROTOR; SPEED SENSOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-450-0	01	1	0106-	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4JX1 ENG(RJM) 04.337	8-94479-905-0	01	1	9909-0105	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.337	8-94479-905-0	01	1	0106-	●
188	04.330 KEY; SPEED SENSOR ROTOR 4JX1 ENG(RJM) 04.337	8-94479-904-0	01	1	9909-0105	●
188	04.330 KEY; SPEED SENSOR ROTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.337	8-94479-904-0	01	1	0106-	●

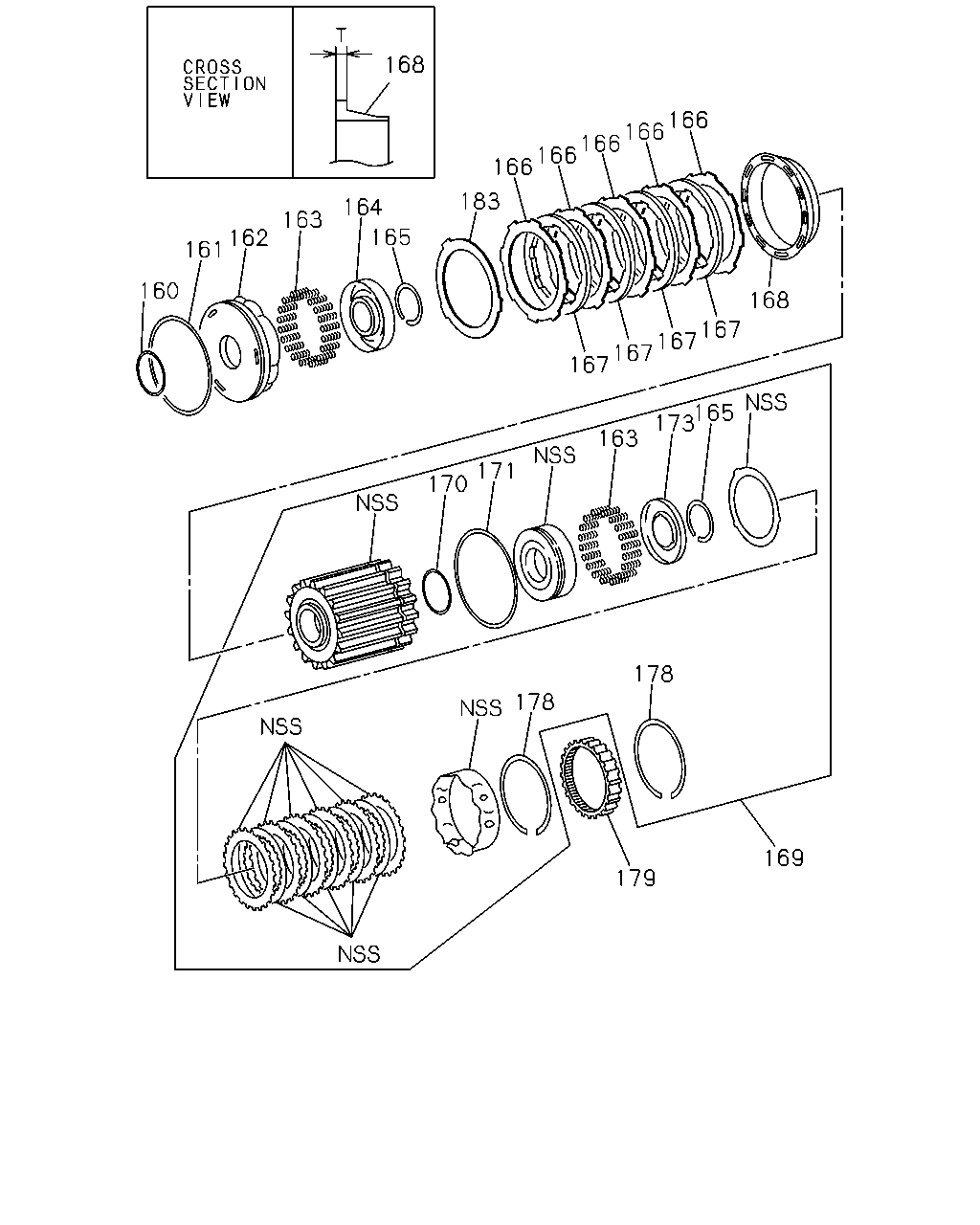

168 166 166 166 166 166 183 164 163 165 162 161 160 168 167 167 167 167 165 173 163 171 170 178 178 169 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
160	04.167 SEAL; REV CLU PISTON INNER	8-96014-331-0	01	1	9712-	●
161	04.167 SEAL; REV CLU PISTON OUTER	8-96014-332-0	01	1	9712-	●
162	04.167 PISTON; REV CLU	8-96014-964-0	01	1	9712-	●
163	04.176 SPRING; PISTON CLU 04.262	8-08958-719-0	46	1	9712-	●
164	04.176 SEAT; SPR,REV CLU	8-05258-021-0	01	1	9712-	●
165	04.176 RING; RET	8-05258-093-0	02	1	9712-	●
166	04.176 PLATE; REV CLU	8-96017-283-0	05	1	9712-	●
167	04.176 PLATE ASM; REV CLU	8-96014-269-0	04	1	9712-	●
168	04.176 PLATE; REV CLU PRESS T=6.35	8-96014-622-0	01	1	9712-	●
168	04.176 PLATE; REV CLU PRESS T=6.64	8-96014-623-0	01	1	9902-	●
168	04.176 PLATE; REV CLU PRESS T=6.93	8-96014-624-0	01	1	9902-	●
168	04.176 PLATE; REV CLU PRESS T=7.22	8-96014-625-0	01	1	9902-	●
168	04.176 PLATE; REV CLU PRESS T=7.51	8-96014-626-0	01	1	9902-	●
169	04.169 DRUM; 2ND CLU	8-96041-054-0	01	1	9712-	●
170	04.169 SEAL; 2ND CLU INNER	8-96014-305-0	01	1	9712-	●
171	04.169 SEAL; 2ND CLU OUTER	8-96014-306-0	01	1	9712-	●
173	04.169 SEAT; SPR,2ND CLU	8-05258-038-0	01	1	9712-	●
178	04.187 RING; RET	8-08958-619-0	02	1	9712-	●
179	04.190 GEAR; RING	8-96014-576-0	01	1	9712-	●
183	04.176 PLATE; REV CLU	8-96017-451-0	01	1	9712-	●
