1 |
SHOE; BRK,RR
|
1-47120-401-0 |
04 |
1 |
0005-0110 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47120-401-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47120-401-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47120-401-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47120-401-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
LEADING
|
1-47120-713-0 |
01 |
1 |
0212- |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0212- |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
LEADING
|
1-47120-715-0 |
01 |
1 |
0212- |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0212- |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47170-241-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47170-241-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47170-241-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47170-241-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47170-241-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47170-241-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47170-241-0 |
04 |
1 |
0209- |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47120-218-0 |
04 |
1 |
9601-9711 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47120-218-0 |
04 |
1 |
9712-9803 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47120-708-0 |
04 |
1 |
9804-9805 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47120-708-0 |
04 |
1 |
9806-0004 |
|
● |
| |
1 |
SHOE; BRK,RR
|
1-47120-401-0 |
04 |
1 |
9601-9705 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47120-401-0 |
04 |
1 |
9601-9705 |
|
● |
| |
1 |
SHOE; BRK,RR
|
1-47120-401-0 |
04 |
1 |
9706-9803 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47120-401-0 |
04 |
1 |
9706-9803 |
|
● |
| |
1 |
SHOE; BRK,RR
|
1-47120-401-0 |
04 |
1 |
9804-0004 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47120-401-0 |
04 |
1 |
9804-0004 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(E)
|
1-47119-116-0 |
04 |
1 |
9601-9705 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(E)
|
1-47119-116-0 |
04 |
1 |
9601-9705 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(E)
|
1-47119-116-0 |
04 |
1 |
9706-9803 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(E)
|
1-47119-116-0 |
04 |
1 |
9706-9803 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(E)
|
1-47119-116-0 |
04 |
1 |
9804-0004 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(E)
|
1-47119-116-0 |
04 |
1 |
9804-0004 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(E)
|
1-47119-116-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(E)
|
1-47119-116-0 |
04 |
1 |
0106- |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(D)
|
1-47119-021-0 |
04 |
1 |
0212-1209 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(C)
|
1-47119-029-0 |
04 |
1 |
0212- |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(A)
|
1-09744-051-0 |
04 |
1 |
9601-9711 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(A)
|
1-09744-051-0 |
04 |
1 |
9712-9803 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(A)
|
1-09744-051-0 |
04 |
1 |
9804-9805 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(A)
|
1-09744-051-0 |
04 |
1 |
9806-0004 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(B)
|
1-47119-025-0 |
04 |
1 |
9601-9711 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(B)
|
1-47119-025-0 |
04 |
1 |
9712-9803 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(B)
|
1-47119-025-0 |
04 |
1 |
9804-9805 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(B)
|
1-47119-025-0 |
04 |
1 |
9806-0004 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-47119-114-0 |
04 |
1 |
9601-9705 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(A)
|
1-47119-114-0 |
04 |
1 |
9601-9705 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-47119-114-0 |
04 |
1 |
9706-9803 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(A)
|
1-47119-114-0 |
04 |
1 |
9706-9803 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-47119-114-0 |
04 |
1 |
9804-0004 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
|
1-47119-114-0 |
04 |
1 |
9804-0004 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-47119-114-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
|
1-47119-114-0 |
04 |
1 |
0106- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-47119-115-0 |
02 |
1 |
9601-9705 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(B)
|
1-47119-115-0 |
02 |
1 |
9601-9705 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-47119-115-0 |
02 |
1 |
9706-9803 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(B)
|
1-47119-115-0 |
02 |
1 |
9706-9803 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-47119-115-0 |
02 |
1 |
9804-0004 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47119-115-0 |
02 |
1 |
9804-0004 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-47119-115-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47119-115-0 |
02 |
1 |
0106- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(A)
|
1-09583-175-0 |
02 |
1 |
0212-1209 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(A)
|
8-98219-175-0 |
02 |
1 |
1210- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(B)
|
1-09583-196-0 |
02 |
1 |
0212-1209 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(A)
|
1-09583-175-0 |
02 |
1 |
9601-9711 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(A)
|
1-09583-175-0 |
02 |
1 |
9712-9803 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(A)
|
1-09583-175-0 |
02 |
1 |
9804-9805 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(A)
|
1-09583-175-0 |
02 |
1 |
9806-0004 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(B)
|
1-09583-210-0 |
04 |
1 |
9601-9711 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(B)
|
1-09583-210-0 |
04 |
1 |
9712-9803 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 16.5" HYPOID(W3L)
(B)
|
1-09583-210-0 |
04 |
1 |
9804-9805 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
(B)
|
1-09583-210-0 |
04 |
1 |
9806-0004 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47131-046-0 |
04 |
1 |
9601-9705 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
|
1-47131-046-0 |
04 |
1 |
9706-9803 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47131-046-0 |
04 |
1 |
9706-9803 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
|
1-47131-046-0 |
04 |
1 |
9804-0004 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47131-046-0 |
04 |
1 |
9804-0004 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
|
1-47131-046-0 |
04 |
1 |
0005-0110 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47131-046-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-046-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-046-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-046-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC
WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0212-0302 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0303- |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47131-040-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47131-040-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-040-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-040-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47131-040-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47131-040-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47131-040-0 |
04 |
1 |
0209- |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 16.5" HYPOID(W3L)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9601-9711 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9712-9803 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 16.5" HYPOID(W3L)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9804-9805 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9806-0004 |
|
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47119-117-0 |
04 |
1 |
9601-9705 |
● |
|
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47119-117-0 |
04 |
1 |
9601-9705 |
|
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47119-117-0 |
04 |
1 |
9706-9803 |
● |
|
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47119-117-0 |
04 |
1 |
9706-9803 |
|
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47119-117-0 |
04 |
1 |
9804-0004 |
● |
|
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47119-117-0 |
04 |
1 |
9804-0004 |
|
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47119-117-0 |
04 |
1 |
0005-0110 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47119-117-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-117-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-117-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-117-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47113-005-0 |
04 |
1 |
0212- |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47119-141-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47119-141-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-141-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-141-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47119-141-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47119-141-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47119-141-0 |
04 |
1 |
0209- |
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
1-47119-118-0 |
04 |
1 |
9601-9705 |
● |
|
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47119-118-0 |
04 |
1 |
9601-9705 |
|
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
1-47119-118-0 |
04 |
1 |
9706-9803 |
● |
|
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47119-118-0 |
04 |
1 |
9706-9803 |
|
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
1-47119-118-0 |
04 |
1 |
9804-0004 |
● |
|
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47119-118-0 |
04 |
1 |
9804-0004 |
|
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
1-47119-118-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47119-118-0 |
04 |
1 |
0106- |
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
9-47119-022-0 |
04 |
1 |
0212- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-641-0 |
01 |
1 |
9601-9705 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47151-641-0 |
01 |
1 |
9601-9705 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-641-0 |
01 |
1 |
9706-9803 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47151-641-0 |
01 |
1 |
9706-9803 |
|
● |
| |
25 |

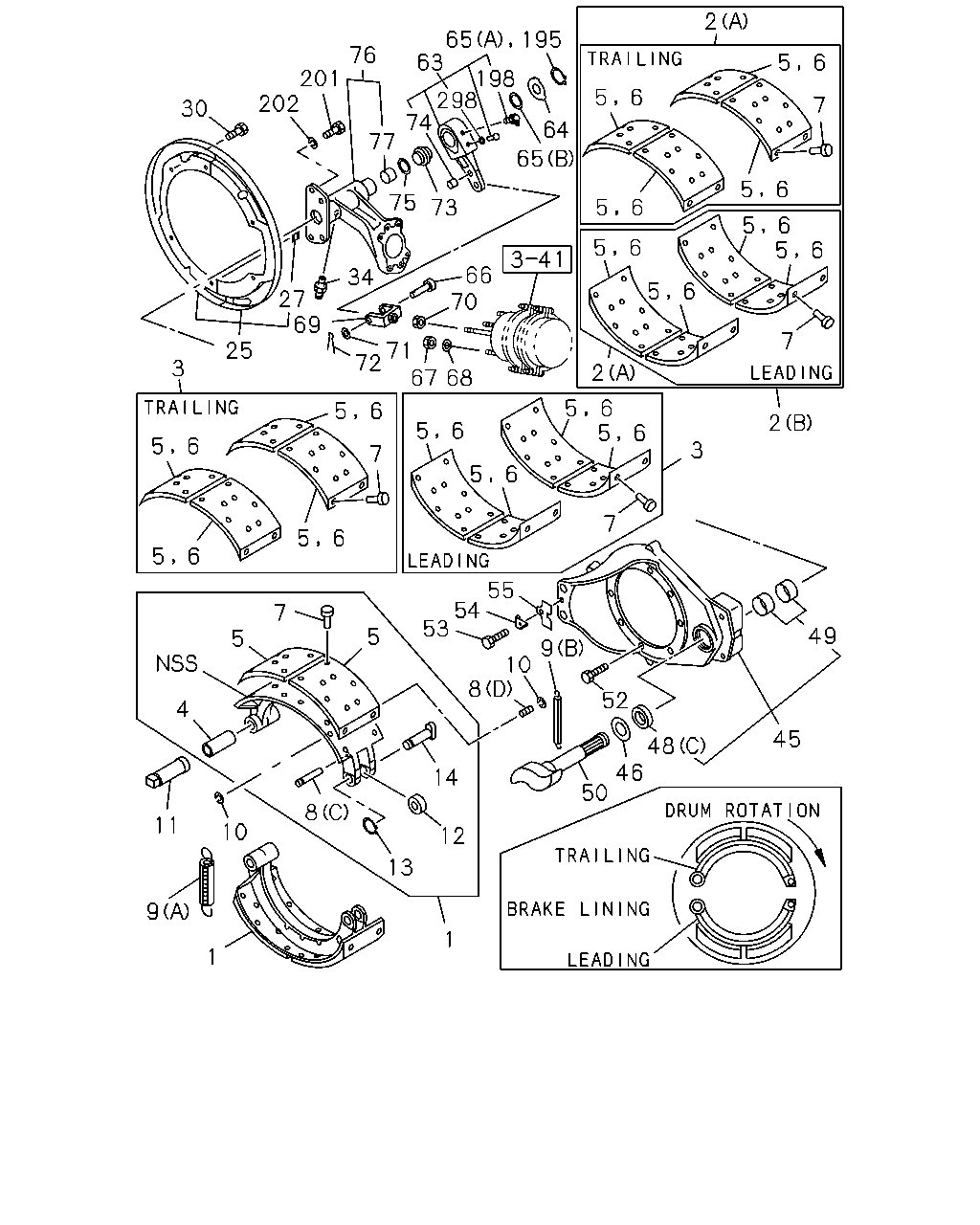

COVER SET; RR BRK DRUM
|
1-47151-641-0 |
01 |
1 |
9804-0004 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47151-641-0 |
01 |
1 |
9804-0004 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-641-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47151-641-0 |
01 |
1 |
0106- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-640-0 |
01 |
1 |
9601-9705 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47151-640-0 |
01 |
1 |
9601-9705 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-640-0 |
01 |
1 |
9706-9803 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47151-640-0 |
01 |
1 |
9706-9803 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-640-0 |
01 |
1 |
9804-0004 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47151-640-0 |
01 |
1 |
9804-0004 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-640-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47151-640-0 |
01 |
1 |
0106- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47151-462-1 |
02 |
1 |
0212- |
● |
● |
| |
25 |

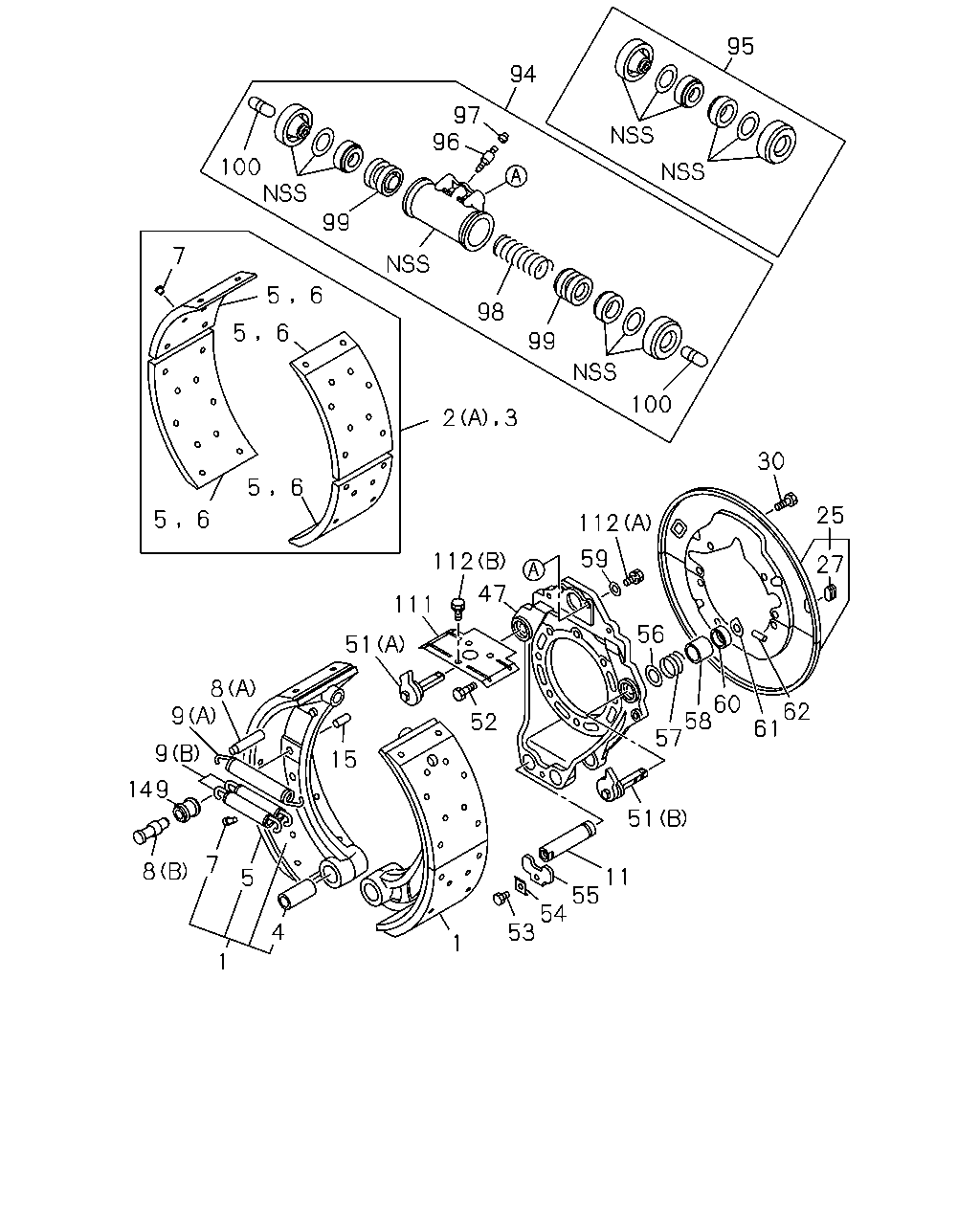

COVER SET; RR BRK DRUM
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47151-461-1 |
02 |
1 |
9601-9711 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47151-461-1 |
02 |
1 |
9712-9803 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47151-461-1 |
02 |
1 |
9804-9805 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47151-461-1 |
02 |
1 |
9806-0004 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-87050-011-0 |
04 |
1 |
9601-9705 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-87050-011-0 |
04 |
1 |
9601-9705 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-87050-011-0 |
04 |
1 |
9706-9803 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-87050-011-0 |
04 |
1 |
9706-9803 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-87050-011-0 |
04 |
1 |
9804-0004 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-011-0 |
04 |
1 |
9804-0004 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-87050-011-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-011-0 |
04 |
1 |
0106- |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-09333-151-0 |
04 |
1 |
0212- |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-09333-151-0 |
04 |
1 |
9601-9711 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-09333-151-0 |
04 |
1 |
9712-9803 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-09333-151-0 |
04 |
1 |
9804-9805 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-09333-151-0 |
04 |
1 |
9806-0004 |
|
● |
| |
30 |
BOLT; DRUM COVER
|
1-47159-176-0 |
12 |
1 |
9601-9705 |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47159-176-0 |
12 |
1 |
9601-9705 |
|
● |
| |
30 |
BOLT; DRUM COVER
|
1-47159-176-0 |
12 |
1 |
9706-9803 |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47159-176-0 |
12 |
1 |
9706-9803 |
|
● |
| |
30 |
BOLT; DRUM COVER
|
1-47159-176-0 |
12 |
1 |
9804-0004 |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47159-176-0 |
12 |
1 |
9804-0004 |
|
● |
| |
30 |
BOLT; DRUM COVER
|
1-47159-176-0 |
12 |
1 |
0005-0105 |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47159-176-0 |
12 |
1 |
0106- |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0212-0906 |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907-1209 |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M10X12
|
1-47159-187-0 |
12 |
1 |
1210- |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/7 16.5" HYPOID(W3L)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9601-9711 |
|
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9712-9803 |
|
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/7 16.5" HYPOID(W3L)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9804-9805 |
|
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9806-0004 |
|
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
|
1-48259-253-0 |
02 |
1 |
9601-9705 |
● |
|
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-48259-253-0 |
02 |
1 |
9601-9705 |
|
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
|
1-48259-253-0 |
02 |
1 |
9706-9803 |
● |
|
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48259-253-0 |
02 |
1 |
9706-9803 |
|
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
|
1-48259-253-0 |
02 |
1 |
9804-0004 |
● |
|
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48259-253-0 |
02 |
1 |
9804-0004 |
|
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
|
1-48259-253-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48259-253-0 |
02 |
1 |
0106- |
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
0212-0512 |
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-332-0 |
02 |
1 |
9601-9705 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47137-332-0 |
02 |
1 |
9601-9705 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-332-0 |
02 |
1 |
9706-9803 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47137-332-0 |
02 |
1 |
9706-9803 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-332-0 |
02 |
1 |
9804-0004 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47137-332-0 |
02 |
1 |
9804-0004 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-332-0 |
02 |
1 |
0005-0110 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47137-332-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-332-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-332-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-332-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47137-542-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47137-542-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-542-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-542-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47137-542-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47137-542-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47137-542-0 |
02 |
1 |
0209- |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47137-151-0 |
02 |
1 |
9601-9711 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47137-151-0 |
02 |
1 |
9712-9803 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 16.5" HYPOID(W3L)
|
1-47137-151-0 |
02 |
1 |
9804-9805 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
|
1-47137-151-0 |
02 |
1 |
9806-0004 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(A)
|
1-47149-056-0 |
02 |
1 |
9601-9705 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(A)
|
1-47149-056-0 |
02 |
1 |
9601-9705 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(A)
|
1-47149-056-0 |
02 |
1 |
9706-9803 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(A)
|
1-47149-056-0 |
02 |
1 |
9706-9803 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(A)
|
1-47149-056-0 |
02 |
1 |
9804-0004 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
|
1-47149-056-0 |
02 |
1 |
9804-0004 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(A)
|
1-47149-056-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
|
1-47149-056-0 |
02 |
1 |
0106- |
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(B)
|
1-47149-057-0 |
04 |
1 |
9601-9705 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(B)
|
1-47149-057-0 |
04 |
1 |
9601-9705 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(B)
|
1-47149-057-0 |
04 |
1 |
9706-9803 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-057-0 |
04 |
1 |
9706-9803 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(B)
|
1-47149-057-0 |
04 |
1 |
9804-0004 |
● |
|
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-057-0 |
04 |
1 |
9804-0004 |
|
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
(B)
|
1-47149-057-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-057-0 |
04 |
1 |
0106- |
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(C)
|
1-09625-228-0 |
02 |
1 |
0212- |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-098-0 |
01 |
1 |
9601-9705 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47141-098-0 |
01 |
1 |
9601-9705 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-098-0 |
01 |
1 |
9706-9803 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47141-098-0 |
01 |
1 |
9706-9803 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-098-0 |
01 |
1 |
9804-0004 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47141-098-0 |
01 |
1 |
9804-0004 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-098-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47141-098-0 |
01 |
1 |
0106- |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-099-0 |
01 |
1 |
9601-9705 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47141-099-0 |
01 |
1 |
9601-9705 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-099-0 |
01 |
1 |
9706-9803 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47141-099-0 |
01 |
1 |
9706-9803 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-099-0 |
01 |
1 |
9804-0004 |
● |
|
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47141-099-0 |
01 |
1 |
9804-0004 |
|
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-099-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47141-099-0 |
01 |
1 |
0106- |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47141-053-0 |
01 |
1 |
0212- |
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47141-054-0 |
01 |
1 |
0212- |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M16X50
|
1-42119-077-0 |
32 |
1 |
9601-9705 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
M16X50
|
1-42119-077-0 |
32 |
1 |
9601-9705 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
M16X50
|
1-42119-077-0 |
32 |
1 |
9706-9803 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
32 |
1 |
9706-9803 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
M16X50
|
1-42119-077-0 |
32 |
1 |
9804-0004 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
32 |
1 |
9804-0004 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
M16X50
|
1-42119-077-0 |
32 |
1 |
0005-0110 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
M16X50
|
1-42119-077-0 |
32 |
1 |
0111-0112 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
32 |
1 |
0201-0206 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
32 |
1 |
0201-0206 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
32 |
1 |
0207-0208 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M14X50
|
1-09040-066-0 |
02 |
1 |
0212-1209 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
16 |
1 |
0111-0112 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
16 |
1 |
0209- |
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 16.5" HYPOID(W3L)
M14X50
|
1-09040-066-0 |
02 |
1 |
9601-9711 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
M14X50
|
1-09040-066-0 |
02 |
1 |
9712-9803 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 16.5" HYPOID(W3L)
M14X50
|
1-09040-066-0 |
02 |
1 |
9804-9805 |
|
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 43/7
16.5" HYPOID(W3L)
M14X50
|
1-09040-066-0 |
02 |
1 |
9806-0004 |
|
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-079-0 |
02 |
1 |
9601-9705 |
● |
|
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-48270-079-0 |
02 |
1 |
9601-9705 |
|
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-079-0 |
02 |
1 |
9706-9803 |
● |
|
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48270-079-0 |
02 |
1 |
9706-9803 |
|
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-079-0 |
02 |
1 |
9804-0004 |
● |
|
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48270-079-0 |
02 |
1 |
9804-0004 |
|
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-079-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48270-079-0 |
02 |
1 |
0106- |
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48270-045-0 |
01 |
1 |
0212- |
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48270-046-0 |
01 |
1 |
0212- |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C)
|
1-47149-058-0 |
02 |
1 |
9601-9705 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(C)
|
1-47149-058-0 |
02 |
1 |
9601-9705 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C)
|
1-47149-058-0 |
02 |
1 |
9706-9803 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(C)
|
1-47149-058-0 |
02 |
1 |
9706-9803 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C)
|
1-47149-058-0 |
02 |
1 |
9804-0004 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(C)
|
1-47149-058-0 |
02 |
1 |
9804-0004 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C)
|
1-47149-058-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(C)
|
1-47149-058-0 |
02 |
1 |
0106- |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B)
|
1-47149-059-0 |
02 |
1 |
9601-9705 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(B)
|
1-47149-059-0 |
02 |
1 |
9601-9705 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B)
|
1-47149-059-0 |
02 |
1 |
9706-9803 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-059-0 |
02 |
1 |
9706-9803 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B)
|
1-47149-059-0 |
02 |
1 |
9804-0004 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-059-0 |
02 |
1 |
9804-0004 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B)
|
1-47149-059-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(B)
|
1-47149-059-0 |
02 |
1 |
0106- |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9601-9705 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9601-9705 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9706-9803 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9706-9803 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9804-0004 |
● |
|
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
9804-0004 |
|
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
0005-0110 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(B)
|
1-47143-004-0 |
02 |
1 |
0212- |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
(A)
|
9-09180-038-0 |
01 |
1 |
0212- |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
(A)
T=0.03"
|
1-47149-060-0 |
02 |
1 |
0209- |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-158-0 |
01 |
1 |
9601-9705 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-48258-158-0 |
01 |
1 |
9601-9705 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-158-0 |
01 |
1 |
9706-9803 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48258-158-0 |
01 |
1 |
9706-9803 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-158-0 |
01 |
1 |
9804-0004 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48258-158-0 |
01 |
1 |
9804-0004 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-158-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48258-158-0 |
01 |
1 |
0106- |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-159-0 |
01 |
1 |
9601-9705 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-48258-159-0 |
01 |
1 |
9601-9705 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-159-0 |
01 |
1 |
9706-9803 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48258-159-0 |
01 |
1 |
9706-9803 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-159-0 |
01 |
1 |
9804-0004 |
● |
|
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48258-159-0 |
01 |
1 |
9804-0004 |
|
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-159-0 |
01 |
1 |
0005-0105 |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48258-159-0 |
01 |
1 |
0106- |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48258-083-0 |
01 |
1 |
0212-0906 |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48258-248-0 |
01 |
1 |
0907- |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48258-084-0 |
01 |
1 |
0212-0906 |
● |
● |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-48258-249-0 |
01 |
1 |
0907- |
● |
● |
| |
77 |
BUSHING
|
1-47146-014-0 |
04 |
1 |
9601-9705 |
● |
|
| |
77 |
BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47146-014-0 |
04 |
1 |
9601-9705 |
|
● |
| |
77 |
BUSHING
|
1-47146-014-0 |
04 |
1 |
9706-9803 |
● |
|
| |
77 |
BUSHING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47146-014-0 |
04 |
1 |
9706-9803 |
|
● |
| |
77 |
BUSHING
|
1-47146-014-0 |
04 |
1 |
9804-0004 |
● |
|
| |
77 |
BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47146-014-0 |
04 |
1 |
9804-0004 |
|
● |
| |
77 |
BUSHING
|
1-47146-014-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
77 |
BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47146-014-0 |
04 |
1 |
0106- |
● |
● |
| |
77 |
BUSHING
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
1-47146-003-1 |
02 |
1 |
0212- |
● |
● |
| |
78 |
BUSHING; BRKT
|
1-47139-117-0 |
04 |
1 |
9601-9705 |
● |
|
| |
78 |
BUSHING; BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-117-0 |
04 |
1 |
9601-9705 |
|
● |
| |
78 |
BUSHING; BRKT
|
1-47139-117-0 |
04 |
1 |
9706-9803 |
● |
|
| |
78 |
BUSHING; BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-117-0 |
04 |
1 |
9706-9803 |
|
● |
| |
78 |
BUSHING; BRKT
|
1-47139-117-0 |
04 |
1 |
9804-0004 |
● |
|
| |
78 |
BUSHING; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-117-0 |
04 |
1 |
9804-0004 |
|
● |
| |
78 |
BUSHING; BRKT
|
1-47139-117-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
78 |
BUSHING; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-117-0 |
04 |
1 |
0106- |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
|
1-47139-126-0 |
32 |
1 |
9601-9705 |
● |
|
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-126-0 |
32 |
1 |
9601-9705 |
|
● |
| |
152 |
NUT; ANCHOR BRKT
|
1-47139-126-0 |
32 |
1 |
9706-9803 |
● |
|
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
32 |
1 |
9706-9803 |
|
● |
| |
152 |
NUT; ANCHOR BRKT
|
1-47139-126-0 |
32 |
1 |
9804-0004 |
● |
|
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
32 |
1 |
9804-0004 |
|
● |
| |
152 |
NUT; ANCHOR BRKT
|
1-47139-126-0 |
32 |
1 |
0005-0110 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47139-126-0 |
32 |
1 |
0111-0112 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
32 |
1 |
0201-0206 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
32 |
1 |
0201-0206 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
32 |
1 |
0207-0208 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47139-126-0 |
16 |
1 |
0111-0112 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47139-126-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
152 |
NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
16 |
1 |
0209- |
● |
● |
| |
167 |
WASHER; ADJ CAM
|
1-47149-061-0 |
02 |
1 |
9601-9608 |
● |
|
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47149-061-0 |
02 |
1 |
9601-9608 |
|
● |
| |
167 |
WASHER; ADJ CAM
|
1-47149-064-0 |
02 |
1 |
9609-9705 |
● |
|
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47149-064-0 |
02 |
1 |
9609-9705 |
|
● |
| |
167 |
WASHER; ADJ CAM
|
1-47149-064-0 |
02 |
1 |
9706-9803 |
● |
|
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47149-064-0 |
02 |
1 |
9706-9803 |
|
● |
| |
167 |
WASHER; ADJ CAM
|
1-47149-064-0 |
02 |
1 |
9804-0004 |
● |
|
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47149-064-0 |
02 |
1 |
9804-0004 |
|
● |
| |
167 |
WASHER; ADJ CAM
|
1-47149-064-0 |
02 |
1 |
0005-0110 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47149-064-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-064-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-064-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-064-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47149-077-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47149-077-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-077-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-077-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47149-077-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47149-077-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
167 |
WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47149-077-0 |
02 |
1 |
0209- |
● |
● |
| |
195 |
RING; SNAP,CM/SHF
|
1-87050-005-0 |
02 |
1 |
9601-9705 |
● |
|
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-87050-005-0 |
02 |
1 |
9601-9705 |
|
● |
| |
195 |
RING; SNAP,CM/SHF
|
1-87050-005-0 |
02 |
1 |
9706-9803 |
● |
|
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-87050-005-0 |
02 |
1 |
9706-9803 |
|
● |
| |
195 |
RING; SNAP,CM/SHF
|
1-87050-005-0 |
02 |
1 |
9804-0004 |
● |
|
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-005-0 |
02 |
1 |
9804-0004 |
|
● |
| |
195 |
RING; SNAP,CM/SHF
|
1-87050-005-0 |
02 |
1 |
0005-0105 |
● |
● |
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-005-0 |
02 |
1 |
0106- |
● |
● |
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
|
9-09180-038-0 |
01 |
1 |
0212- |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
|
1-47139-116-0 |
08 |
1 |
9601-9705 |
● |
|
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-116-0 |
08 |
1 |
9601-9705 |
|
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
|
1-47139-116-0 |
08 |
1 |
9706-9803 |
● |
|
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-116-0 |
08 |
1 |
9706-9803 |
|
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
|
1-47139-116-0 |
08 |
1 |
9804-0004 |
● |
|
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-116-0 |
08 |
1 |
9804-0004 |
|
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
|
1-47139-116-0 |
08 |
1 |
0005-0110 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47139-116-0 |
08 |
1 |
0111-0112 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-116-0 |
08 |
1 |
0201-0206 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-116-0 |
08 |
1 |
0201-0206 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-116-0 |
08 |
1 |
0207-0208 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M14X35
|
0-28081-435-0 |
08 |
1 |
0212-1209 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7
17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5"
HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR
41/6 17.5" HYPOID(W4W)
M14X35
|
0-20851-435-0 |
08 |
1 |
1210- |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47139-119-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47139-119-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-119-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-119-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-119-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-119-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
201 |
BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-119-0 |
04 |
1 |
0209- |
● |
● |
| |
212 |
STAY
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
212 |
STAY
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
212 |
STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
212 |
STAY
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
212 |
STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
212 |
STAY
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
212 |
STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
0209- |
● |
● |
| |
217 |
LINING KIT; RR BRK
|
1-87050-154-0 |
01 |
1 |
9601-9705 |
● |
|
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-87050-154-0 |
01 |
1 |
9601-9705 |
|
● |
| |
217 |
LINING KIT; RR BRK
|
1-87050-154-0 |
01 |
1 |
9706-9803 |
● |
|
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-87050-154-0 |
01 |
1 |
9706-9803 |
|
● |
| |
217 |
LINING KIT; RR BRK
|
1-87050-154-0 |
01 |
1 |
9804-0004 |
● |
|
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-154-0 |
01 |
1 |
9804-0004 |
|
● |
| |
217 |
LINING KIT; RR BRK
|
1-87050-154-0 |
01 |
1 |
0005-0110 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-87050-154-0 |
01 |
1 |
0111-0112 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-154-0 |
01 |
1 |
0201-0206 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-154-0 |
01 |
1 |
0201-0206 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-154-0 |
01 |
1 |
0207-0208 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-87050-157-0 |
01 |
1 |
0111-0112 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-87050-157-0 |
01 |
1 |
0201-0206 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-157-0 |
01 |
1 |
0201-0206 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-157-0 |
01 |
1 |
0201-0206 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-87050-157-0 |
01 |
1 |
0207-0208 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-87050-157-0 |
01 |
1 |
0207-0208 |
● |
● |
| |
217 |
LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-87050-157-0 |
01 |
1 |
0209- |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
|
1-47139-125-0 |
64 |
1 |
9601-9705 |
● |
|
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-125-0 |
64 |
1 |
9601-9705 |
|
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
|
1-47139-125-0 |
64 |
1 |
9706-9803 |
● |
|
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
64 |
1 |
9706-9803 |
|
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
|
1-47139-125-0 |
64 |
1 |
9804-0004 |
● |
|
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
64 |
1 |
9804-0004 |
|
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
|
1-47139-125-0 |
64 |
1 |
0005-0110 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47139-125-0 |
64 |
1 |
0111-0112 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
64 |
1 |
0201-0206 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
64 |
1 |
0201-0206 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
64 |
1 |
0207-0208 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47139-125-0 |
16 |
1 |
0111-0112 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47139-125-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
16 |
1 |
0201-0206 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-125-0 |
16 |
1 |
0207-0208 |
● |
● |
| |
263 |
WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
16 |
1 |
0209- |
● |
● |
| |
277 |
SUPPORT; BRKT
|
1-48259-287-0 |
02 |
1 |
9601-9705 |
● |
|
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-48259-287-0 |
02 |
1 |
9601-9705 |
|
● |
| |
277 |
SUPPORT; BRKT
|
1-48259-287-0 |
02 |
1 |
9706-9803 |
● |
|
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
9706-9803 |
|
● |
| |
277 |
SUPPORT; BRKT
|
1-48259-287-0 |
02 |
1 |
9804-0004 |
● |
|
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-48259-287-0 |
02 |
1 |
9804-0004 |
|
● |
| |
277 |
SUPPORT; BRKT
|
1-48259-287-0 |
02 |
1 |
0005-0110 |
● |
● |
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-48259-287-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
277 |
SUPPORT; BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-48259-287-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
278 |
BOLT; SUPPORT
M16X50
|
1-42119-077-0 |
02 |
1 |
9601-9705 |
● |
|
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
M16X50
|
1-42119-077-0 |
02 |
1 |
9601-9705 |
|
● |
| |
278 |
BOLT; SUPPORT
M16X50
|
1-42119-077-0 |
02 |
1 |
9706-9803 |
● |
|
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
02 |
1 |
9706-9803 |
|
● |
| |
278 |
BOLT; SUPPORT
M16X50
|
1-42119-077-0 |
02 |
1 |
9804-0004 |
● |
|
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
02 |
1 |
9804-0004 |
|
● |
| |
278 |
BOLT; SUPPORT
M16X50
|
1-42119-077-0 |
02 |
1 |
0005-0110 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
M16X50
|
1-42119-077-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X50
|
1-42119-077-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
278 |
BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
M16X50
|
1-42119-077-0 |
04 |
1 |
0209- |
● |
● |
| |
279 |
WASHER; SUPPORT
|
1-47139-125-0 |
04 |
1 |
9601-9705 |
● |
|
| |
279 |
WASHER; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-125-0 |
04 |
1 |
9601-9705 |
|
● |
| |
279 |
WASHER; SUPPORT
|
1-47139-125-0 |
04 |
1 |
9706-9803 |
● |
|
| |
279 |
WASHER; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
04 |
1 |
9706-9803 |
|
● |
| |
279 |
WASHER; SUPPORT
|
1-47139-125-0 |
04 |
1 |
9804-0004 |
● |
|
| |
279 |
WASHER; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
04 |
1 |
9804-0004 |
|
● |
| |
279 |
WASHER; SUPPORT
|
1-47139-125-0 |
04 |
1 |
0005-0105 |
● |
● |
| |
279 |
WASHER; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-125-0 |
04 |
1 |
0106- |
● |
● |
| |
280 |
NUT; SUPPORT
|
1-47139-126-0 |
02 |
1 |
9601-9705 |
● |
|
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C)
|
1-47139-126-0 |
02 |
1 |
9601-9705 |
|
● |
| |
280 |
NUT; SUPPORT
|
1-47139-126-0 |
02 |
1 |
9706-9803 |
● |
|
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR
44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18"
ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR
43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
02 |
1 |
9706-9803 |
|
● |
| |
280 |
NUT; SUPPORT
|
1-47139-126-0 |
02 |
1 |
9804-0004 |
● |
|
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
02 |
1 |
9804-0004 |
|
● |
| |
280 |
NUT; SUPPORT
|
1-47139-126-0 |
02 |
1 |
0005-0110 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C)
|
1-47139-126-0 |
02 |
1 |
0111-0112 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
02 |
1 |
0201-0206 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
02 |
1 |
0207-0208 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6
18" ROCKWELL(W6N)
|
1-47139-126-0 |
04 |
1 |
0111-0112 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7
18" ROCKWELL(W6M),FINAL GEAR 41/6 18"
ROCKWELL(W6N)
|
1-47139-126-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
04 |
1 |
0201-0206 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 45/7 18"
ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47139-126-0 |
04 |
1 |
0207-0208 |
● |
● |
| |
280 |
NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8
18" ROCKWELL(W6B),FINAL GEAR 43/7 18"
ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR
41/6 18" ROCKWELL(W6N)
|
1-47139-126-0 |
04 |
1 |
0209- |
● |
● |
