Sayfa 2-44 - Isuzu EPC

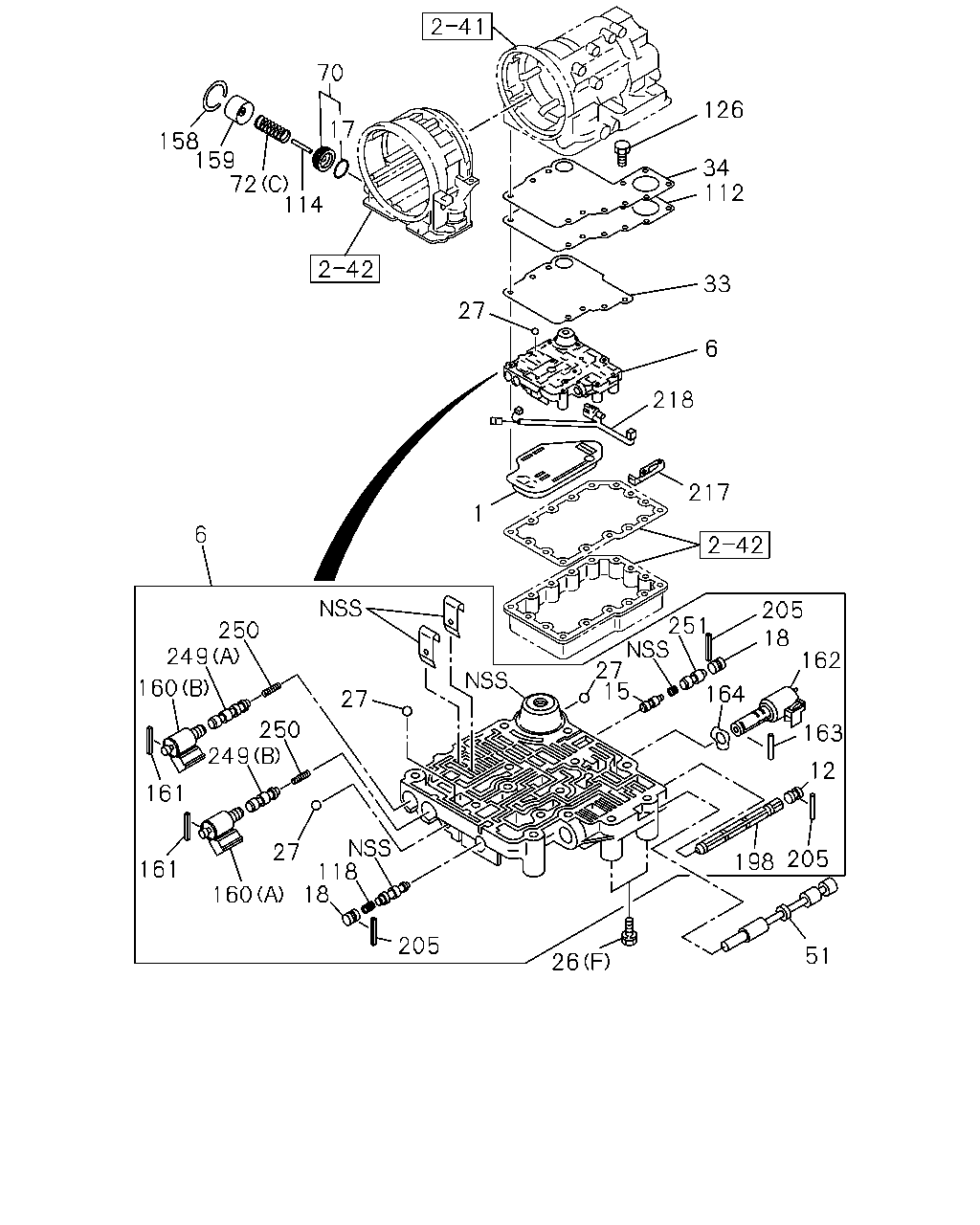

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#37889) — 262 parça

26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F)	8-00179-826-0	12	1	9712-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (A) M5X28	8-94473-616-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (B) M5X20	8-94473-620-0	09	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (C) M6X23	8-94479-925-0	05	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (D) M6X32	8-94479-926-0	12	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (E) M5X38	8-94480-095-0	13	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (A) M6X28	8-94473-611-0	10	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (B) M6X36	8-94473-630-0	06	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (C) M6X23	8-94479-925-0	04	1	9909-		●

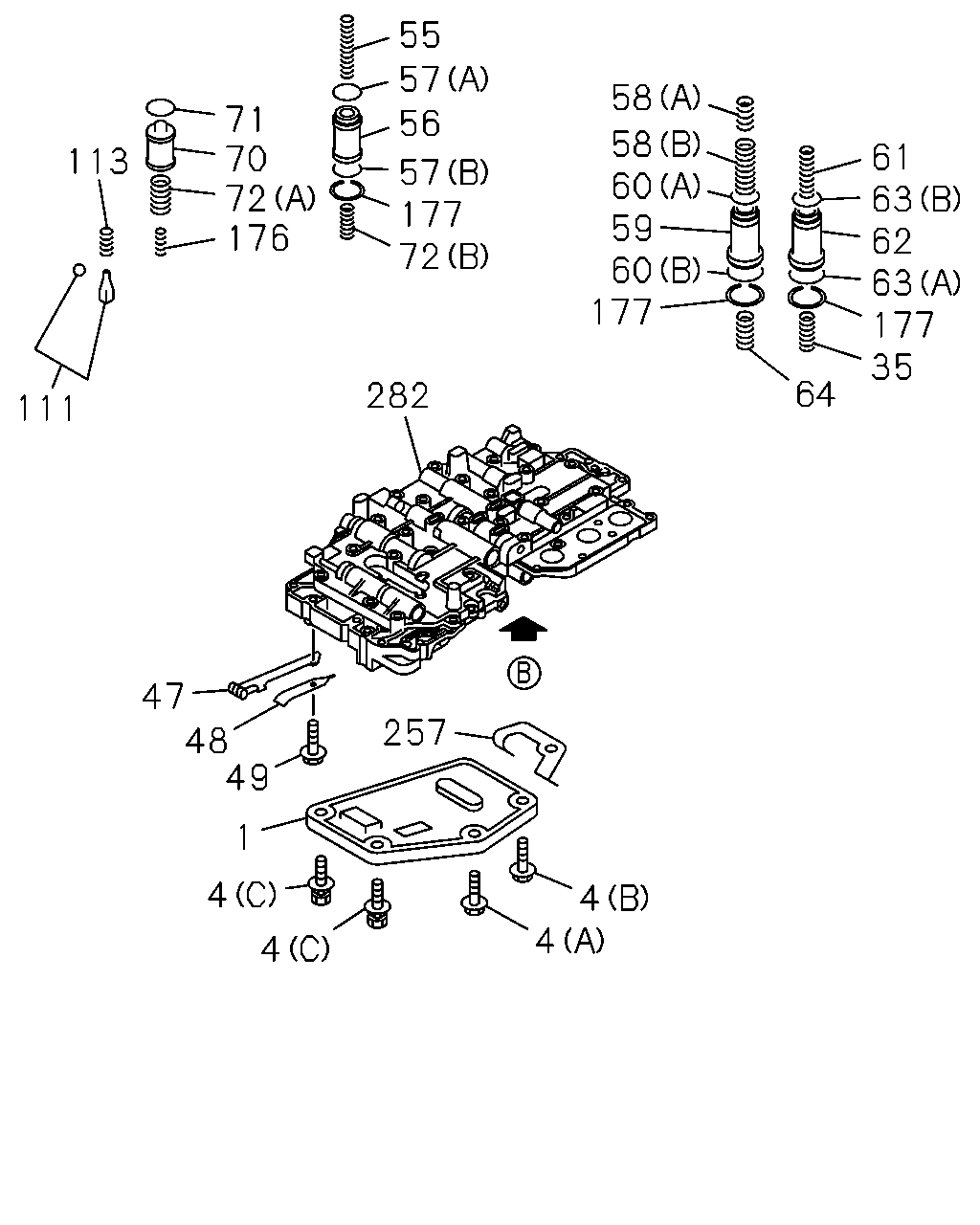

55 57 56 57 177 72 58 58 60 59 60 177 71 70 72 176 61 63 62 63 177 35 113 64 282 111 47 48 49 257 1 4 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T	8-96015-062-0	01	1	9712-	●
1	04.197 STRAINER ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-386-0	01	1	0106-		●
1	04.197 STRAINER ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-143-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JG2 ENG(RJC) 04.265 (D) L=12	8-94479-927-0	04	1	0106-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) 04.265 (A) M6X20	8-94479-922-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) 04.265 (B) M6X23	8-94479-925-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) (C)	8-97207-142-0	02	1	9909-		●
35	04.265 SPRING; LWR VLV BODY 4JG2 ENG(RJC)	8-97313-513-0	01	1	0106-		●
35	04.265 SPRING; LWR VLV BODY 4JX1 ENG(RJM)	8-97025-856-0	01	1	9909-		●
47	04.050 SPRING; DETENT,A/T 4JX1 ENG(RJM)	8-94480-098-0	01	1	9909-0105		●
47	04.050 SPRING; DETENT,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94480-098-0	01	1	0106-		●
48	04.052 PLATE; DETENT SPR,A/T 4JX1 ENG(RJM)	8-94480-097-0	01	1	9909-0105		●
48	04.052 PLATE; DETENT SPR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94480-097-0	01	1	0106-		●
49	04.052 BOLT; DETENT SPR PLATE,A/T 4JX1 ENG(RJM) 04.265 L=16	8-94480-096-0	01	1	9909-0105		●
49	04.052 BOLT; DETENT SPR PLATE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265 L=16	8-94480-096-0	01	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC)	8-97027-208-0	01	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM)	8-97232-087-0	01	1	9909-		●
56	04.241 PISTON; ACCUMLATOR 4JX1 ENG(RJM)	8-97027-207-0	01	1	9909-0105		●
56	04.241 PISTON; ACCUMLATOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97027-207-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JX1 ENG(RJM) (A)	8-97184-885-0	01	1	9909-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-885-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JX1 ENG(RJM) (B)	8-97184-886-0	01	1	9909-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97184-886-0	01	1	0106-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JG2 ENG(RJC) (C)	8-97025-822-0	01	1	0106-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JX1 ENG(RJM) (A)	8-97027-204-0	01	1	9909-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JX1 ENG(RJM) (B)	8-97232-089-0	01	1	9909-		●
59	04.166 PISTON; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97025-819-0	01	1	9909-0105		●
59	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-819-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JX1 ENG(RJM) (A)	8-97184-887-0	01	1	9909-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-887-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JX1 ENG(RJM) 04.167 (B)	8-97184-888-0	01	1	9909-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.167 (B)	8-97184-888-0	01	1	0106-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4JG2 ENG(RJC)	8-97025-818-0	01	1	0106-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4JX1 ENG(RJM)	8-97232-088-0	01	1	9909-		●
62	04.166 PISTON; FWD CLU,A/T 4JX1 ENG(RJM)	8-97025-817-0	01	1	9909-0105		●
62	04.166 PISTON; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-817-0	01	1	0106-		●
63	04.167 GASKET; FWD CLU,A/T 4JX1 ENG(RJM) (A)	8-97184-888-0	01	1	9909-0105		●
63	04.167 GASKET; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-888-0	01	1	0106-		●
63	04.167 GASKET; FWD CLU,A/T 4JX1 ENG(RJM) (B)	8-97184-889-0	01	1	9909-0105		●
63	04.167 GASKET; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97184-889-0	01	1	0106-		●
64	04.164 SPRING; DIRECT CLU 4JX1 ENG(RJM)	8-97025-820-0	01	1	9909-0105		●
64	04.164 SPRING; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-820-0	01	1	0106-		●
70	04.241 PISTON; ACCUMLATOR	8-96016-916-0	01	1	9712-	●
70	04.241 PISTON; ACCUMLATOR 4JX1 ENG(RJM)	8-97027-205-0	01	1	9909-0105		●
70	04.241 PISTON; ACCUMLATOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97027-205-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JX1 ENG(RJM)	8-97184-884-0	01	1	9909-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97184-884-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON (C)	8-96016-972-0	01	1	9712-	●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	0106-		●
111	04.169 BODY; CHECK BALL 4JX1 ENG(RJM)	8-94479-931-0	01	1	9909-0105		●
111	04.169 BODY; CHECK BALL 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-931-0	01	1	0106-		●
113	04.164 SPRING; CHECK BALL 4JX1 ENG(RJM)	8-94479-930-0	01	1	9909-0105		●
113	04.164 SPRING; CHECK BALL 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-930-0	01	1	0106-		●
176	04.265 SPRING; ACCUM INNER 4JX1 ENG(RJM)	8-97025-825-0	01	1	9909-0105		●
176	04.265 SPRING; ACCUM INNER 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-825-0	01	1	0106-		●
177	04.265 RING; SNAP 4JX1 ENG(RJM)	8-97025-821-0	03	1	9909-0105		●
177	04.265 RING; SNAP 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-821-0	03	1	0106-		●
257	04.265 CLAMP; HARNESS 4JX1 ENG(RJM)	8-97232-037-0	01	1	9909-		●
282	04.265 BODY ASM; VLV,A/T 4JX1 ENG(RJM)	8-97254-125-0	01	1	9909-		●

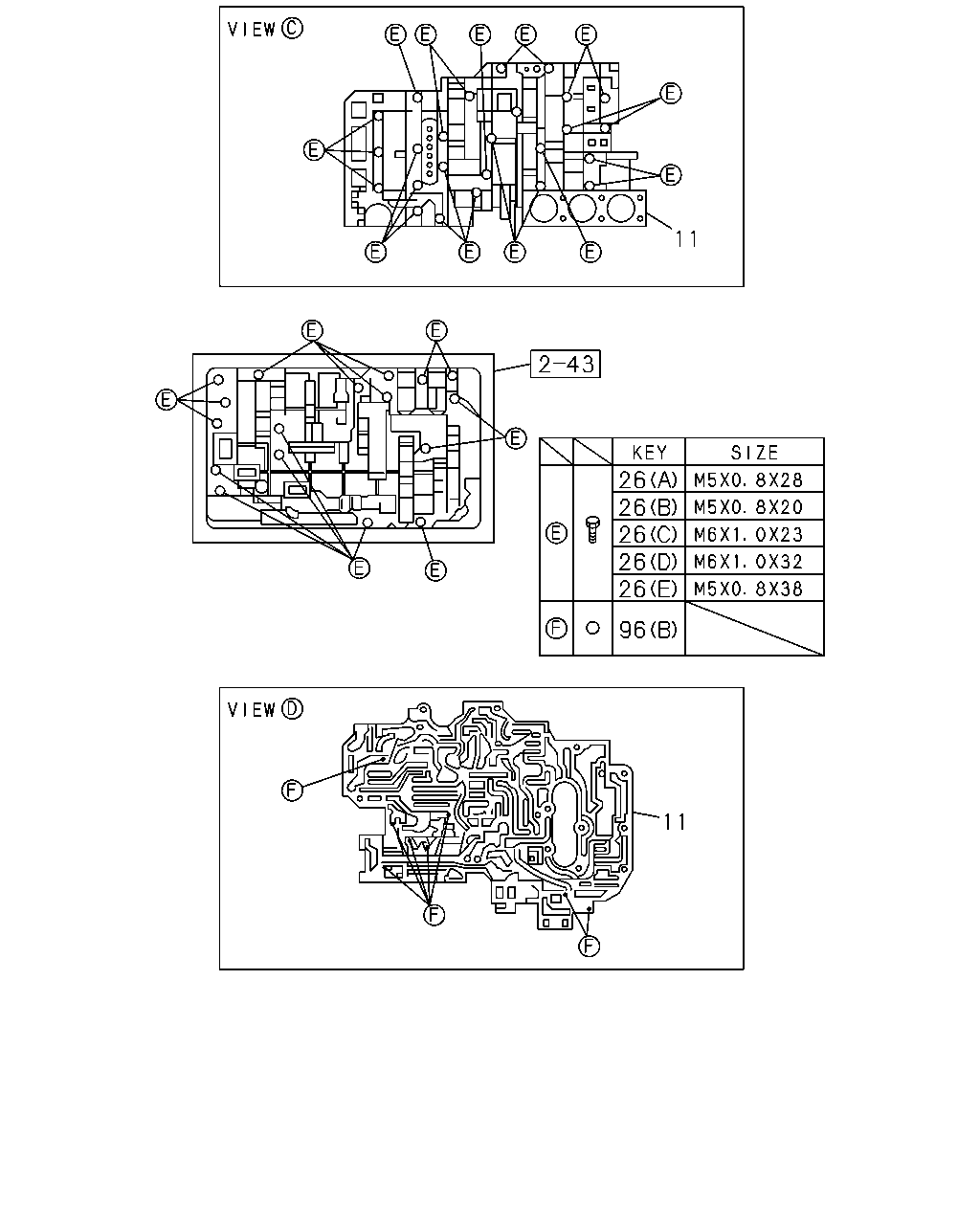

11 26 26 26 26 26 96 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.265 BODY; VLV LWR,A/T 4JG2 ENG(RJC)	8-97143-367-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F)	8-00179-826-0	12	1	9712-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (A) M5X28	8-94473-616-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (B) M5X20	8-94473-620-0	09	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (C) M6X23	8-94479-925-0	05	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (D) M6X32	8-94479-926-0	12	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (E) M5X38	8-94480-095-0	13	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (A) M6X28	8-94473-611-0	10	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (B) M6X36	8-94473-630-0	06	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (C) M6X23	8-94479-925-0	04	1	9909-		●
96	04.262 BALL; RUBBER,VLV LWR,A/T 4JG2 ENG(RJC) 04.265 (A) OD=6.35	8-94364-913-0	01	1	0106-		●
96	04.262 BALL; RUBBER,VLV LWR,A/T 4JG2 ENG(RJC) (B) OD=5.595	8-94473-576-0	08	1	0106-		●

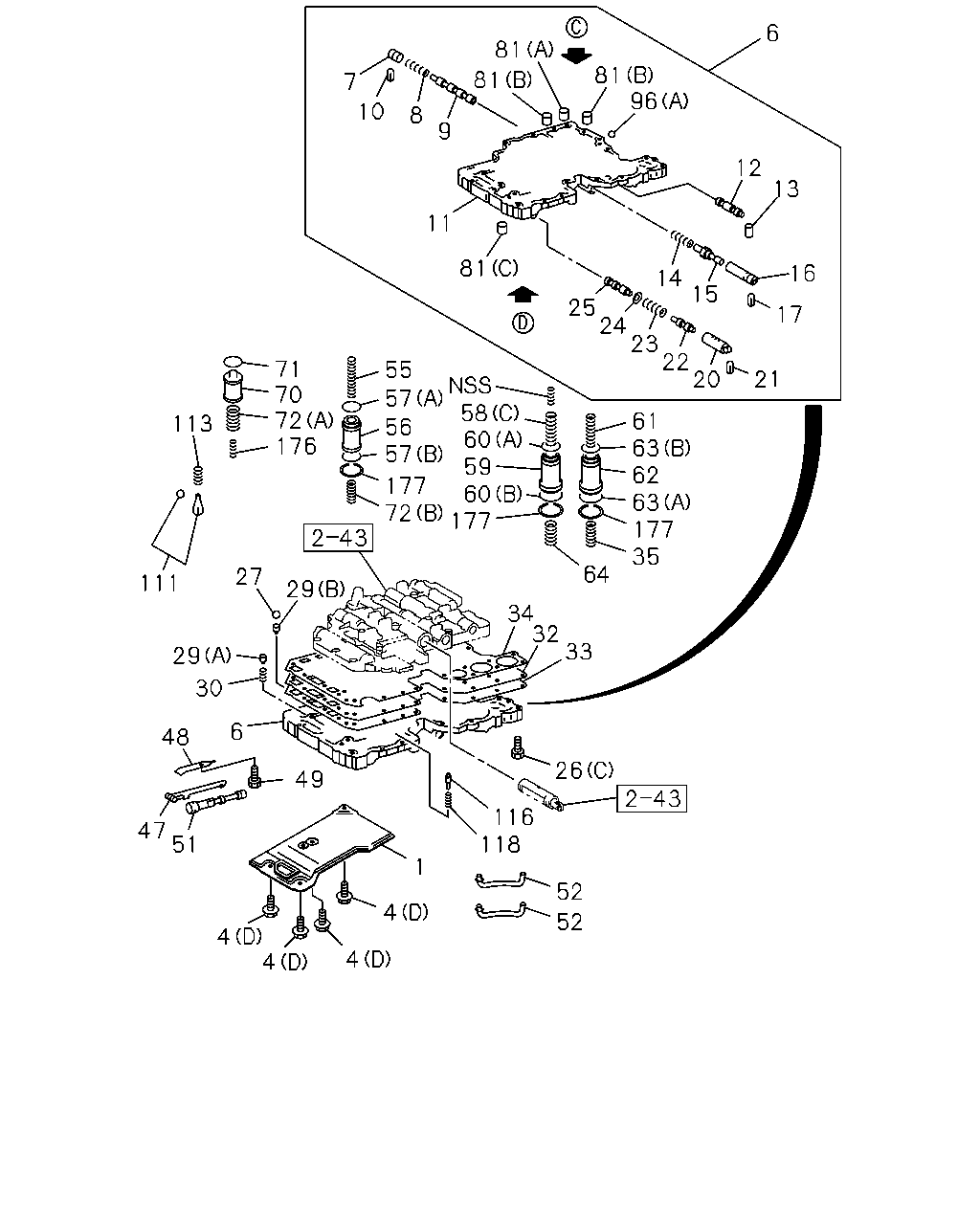

6 81 81 96 81 7 10 8 9 12 13 11 81 16 14 15 25 24 23 22 20 17 71 70 72 176 55 57 21 58 60 59 177 60 72 177 61 63 62 63 177 35 113 56 57 64 27 111 29 34 32 33 29 30 6 48 26 49 116 118 47 51 1 52 4 52 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T	8-96015-062-0	01	1	9712-	●
1	04.197 STRAINER ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-386-0	01	1	0106-		●
1	04.197 STRAINER ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-143-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JG2 ENG(RJC) 04.265 (D) L=12	8-94479-927-0	04	1	0106-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) 04.265 (A) M6X20	8-94479-922-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) 04.265 (B) M6X23	8-94479-925-0	01	1	9909-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JX1 ENG(RJM) (C)	8-97207-142-0	02	1	9909-		●
6	04.265 BODY ASM; VLV LWR,A/T	8-96018-289-0	01	1	9712-0105	●
6	04.265 BODY ASM; VLV LWR,A/T 6VD1 ENG(RLV)	8-96018-289-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96018-289-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-557-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 4JG2 ENG(RJC)	8-97214-537-0	01	1	0106-		●
7	04.265 PLUG; VLV,1-2 SHIFT,VLV LWR,A/T 4JG2 ENG(RJC)	8-94480-059-0	01	1	0106-		●
8	04.265 SPRING; 1ST VALVE 4JG2 ENG(RJC)	8-94480-057-0	01	1	0106-		●
9	04.262 VALVE; 1-2 SHIFT UPR,VLV LWR,A/T 4JG2 ENG(RJC)	8-94480-058-0	01	1	0106-		●
10	04.265 RETAINER; 1-2 SHIFT VLV,VLV LWR, 4JG2 ENG(RJC)	8-94480-060-0	01	1	0106-		●
11	04.265 BODY; VLV LWR,A/T 4JG2 ENG(RJC)	8-97143-367-0	01	1	0106-		●
12	04.265 PLUG; LWR BODY	8-96014-439-0	01	1	9712-	●
12	04.265 PLUG; LWR BODY 4JG2 ENG(RJC)	8-97023-521-0	01	1	0106-		●
13	04.265 PIN; LWR BODY 4JG2 ENG(RJC)	8-94480-078-0	01	1	0106-		●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4JG2 ENG(RJC)	8-94364-915-0	01	1	0106-		●
15	04.265 VALVE; ACCUMLATOR CONT	8-96014-434-0	01	1	9712-	●
15	04.265 VALVE; ACCUMLATOR CONT 4JG2 ENG(RJC)	8-94364-914-0	01	1	0106-		●
16	04.265 SLEEVE; ACCUMLATOR CONT VALVE 4JG2 ENG(RJC)	8-94364-916-0	01	1	0106-		●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE	8-96014-566-0	01	1	9712-	●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4JG2 ENG(RJC)	5-34538-004-0	01	1	0106-		●
20	04.265 SLEEVE; REG VLV,VLV LWR,A/T 4JG2 ENG(RJC)	8-97025-815-0	01	1	0106-		●
21	04.265 RETAINER; SLEEVE,VLV LWR,A/T 4JG2 ENG(RJC)	8-94480-053-0	01	1	0106-		●
22	04.265 PLUNGER; REG VLV,VLV LWR,A/T 4JG2 ENG(RJC)	8-97025-814-0	01	1	0106-		●
23	04.265 SPRING; REG VLV,VLV LWR,A/T 4JG2 ENG(RJC)	8-97025-813-0	01	1	0106-		●
24	04.265 WASHER; PRIMARY VALVE 4JG2 ENG(RJC)	8-94480-054-0	01	1	0106-		●
25	04.265 VALVE; REG,PRIMARY,VLV LWR,A/T 4JG2 ENG(RJC)	8-94480-052-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F)	8-00179-826-0	12	1	9712-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (A) M5X28	8-94473-616-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (B) M5X20	8-94473-620-0	09	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (C) M6X23	8-94479-925-0	05	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (D) M6X32	8-94479-926-0	12	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (E) M5X38	8-94480-095-0	13	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (A) M6X28	8-94473-611-0	10	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (B) M6X36	8-94473-630-0	06	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (C) M6X23	8-94479-925-0	04	1	9909-		●
27	04.265 BALL; STEEL,VLV,A/T	8-11066-201-0	05	1	9712-	●
27	04.265 BALL; STEEL,VLV,A/T 4JG2 ENG(RJC) 04.256	8-94167-674-0	01	1	0106-		●
29	04.265 VALVE; ORIFICE,CHECK,A/T 4JG2 ENG(RJC) (A)	8-94480-086-0	01	1	0106-		●
29	04.265 VALVE; ORIFICE,CHECK,A/T 4JG2 ENG(RJC) (B)	8-97184-332-0	01	1	0106-		●
30	04.265 SPRING; ORIFICE,CHECK,A/T 4JG2 ENG(RJC)	8-94479-759-0	01	1	0106-		●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4JG2 ENG(RJC)	8-97214-540-0	01	1	0106-		●
33	04.265 GASKET; LWR,VLV BODY,A/T	8-96015-417-0	01	1	9712-	●
33	04.265 GASKET; LWR,VLV BODY,A/T 4JG2 ENG(RJC)	8-97019-529-0	01	1	0106-		●
34	04.265 GASKET; UPR,VLV BODY,A/T	8-96018-338-0	01	1	9712-	●
34	04.265 GASKET; UPR,VLV BODY,A/T 4JG2 ENG(RJC)	8-97019-528-0	01	1	0106-		●
35	04.265 SPRING; LWR VLV BODY 4JG2 ENG(RJC)	8-97313-513-0	01	1	0106-		●
35	04.265 SPRING; LWR VLV BODY 4JX1 ENG(RJM)	8-97025-856-0	01	1	9909-		●
47	04.050 SPRING; DETENT,A/T 4JX1 ENG(RJM)	8-94480-098-0	01	1	9909-0105		●
47	04.050 SPRING; DETENT,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94480-098-0	01	1	0106-		●
48	04.052 PLATE; DETENT SPR,A/T 4JX1 ENG(RJM)	8-94480-097-0	01	1	9909-0105		●
48	04.052 PLATE; DETENT SPR,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94480-097-0	01	1	0106-		●
49	04.052 BOLT; DETENT SPR PLATE,A/T 4JX1 ENG(RJM) 04.265 L=16	8-94480-096-0	01	1	9909-0105		●
49	04.052 BOLT; DETENT SPR PLATE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265 L=16	8-94480-096-0	01	1	0106-		●
51	04.265 VALVE; MANUAL,A/T	8-96014-445-0	01	1	9712-	●
51	04.265 VALVE; MANUAL,A/T 4JG2 ENG(RJC)	8-94480-099-0	01	1	0106-		●
52	04.052 TUBE; DETENT SW,A/T 4JG2 ENG(RJC)	8-97027-211-0	02	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC)	8-97027-208-0	01	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM)	8-97232-087-0	01	1	9909-		●
56	04.241 PISTON; ACCUMLATOR 4JX1 ENG(RJM)	8-97027-207-0	01	1	9909-0105		●
56	04.241 PISTON; ACCUMLATOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97027-207-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JX1 ENG(RJM) (A)	8-97184-885-0	01	1	9909-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-885-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JX1 ENG(RJM) (B)	8-97184-886-0	01	1	9909-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97184-886-0	01	1	0106-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JG2 ENG(RJC) (C)	8-97025-822-0	01	1	0106-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JX1 ENG(RJM) (A)	8-97027-204-0	01	1	9909-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4JX1 ENG(RJM) (B)	8-97232-089-0	01	1	9909-		●
59	04.166 PISTON; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97025-819-0	01	1	9909-0105		●
59	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-819-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JX1 ENG(RJM) (A)	8-97184-887-0	01	1	9909-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-887-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JX1 ENG(RJM) 04.167 (B)	8-97184-888-0	01	1	9909-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.167 (B)	8-97184-888-0	01	1	0106-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4JG2 ENG(RJC)	8-97025-818-0	01	1	0106-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4JX1 ENG(RJM)	8-97232-088-0	01	1	9909-		●
62	04.166 PISTON; FWD CLU,A/T 4JX1 ENG(RJM)	8-97025-817-0	01	1	9909-0105		●
62	04.166 PISTON; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-817-0	01	1	0106-		●
63	04.167 GASKET; FWD CLU,A/T 4JX1 ENG(RJM) (A)	8-97184-888-0	01	1	9909-0105		●
63	04.167 GASKET; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97184-888-0	01	1	0106-		●
63	04.167 GASKET; FWD CLU,A/T 4JX1 ENG(RJM) (B)	8-97184-889-0	01	1	9909-0105		●
63	04.167 GASKET; FWD CLU,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97184-889-0	01	1	0106-		●
64	04.164 SPRING; DIRECT CLU 4JX1 ENG(RJM)	8-97025-820-0	01	1	9909-0105		●
64	04.164 SPRING; DIRECT CLU 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-820-0	01	1	0106-		●
70	04.241 PISTON; ACCUMLATOR	8-96016-916-0	01	1	9712-	●
70	04.241 PISTON; ACCUMLATOR 4JX1 ENG(RJM)	8-97027-205-0	01	1	9909-0105		●
70	04.241 PISTON; ACCUMLATOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97027-205-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JX1 ENG(RJM)	8-97184-884-0	01	1	9909-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97184-884-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON (C)	8-96016-972-0	01	1	9712-	●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	0106-		●
81	04.197 STRAINER; SOLENOID OIL 4JG2 ENG(RJC) (A)	8-94480-090-0	01	1	0106-		●
81	04.197 STRAINER; SOLENOID OIL 4JG2 ENG(RJC) (B)	8-94480-091-0	02	1	0106-		●
81	04.197 STRAINER; SOLENOID OIL 4JG2 ENG(RJC) (C)	8-97027-387-0	01	1	0106-		●
96	04.262 BALL; RUBBER,VLV LWR,A/T 4JG2 ENG(RJC) 04.265 (A) OD=6.35	8-94364-913-0	01	1	0106-		●
96	04.262 BALL; RUBBER,VLV LWR,A/T 4JG2 ENG(RJC) (B) OD=5.595	8-94473-576-0	08	1	0106-		●
111	04.169 BODY; CHECK BALL 4JX1 ENG(RJM)	8-94479-931-0	01	1	9909-0105		●
111	04.169 BODY; CHECK BALL 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-931-0	01	1	0106-		●
113	04.164 SPRING; CHECK BALL 4JX1 ENG(RJM)	8-94479-930-0	01	1	9909-0105		●
113	04.164 SPRING; CHECK BALL 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-930-0	01	1	0106-		●
116	04.265 VALVE; PRESSURE RELIEF 4JG2 ENG(RJC)	8-94480-088-0	01	1	0106-		●
118	04.265 SPRING; PRESSURE RELIEF VALVE	8-08958-690-0	01	1	9712-	●
118	04.265 SPRING; PRESSURE RELIEF VALVE 4JG2 ENG(RJC)	8-94480-087-0	01	1	0106-		●
176	04.265 SPRING; ACCUM INNER 4JX1 ENG(RJM)	8-97025-825-0	01	1	9909-0105		●
176	04.265 SPRING; ACCUM INNER 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-825-0	01	1	0106-		●
177	04.265 RING; SNAP 4JX1 ENG(RJM)	8-97025-821-0	03	1	9909-0105		●
177	04.265 RING; SNAP 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97025-821-0	03	1	0106-		●

70 126 17 158 159 72 114 34 112 33 27 6 218 217 1 6 205 18 251 27 15 250 249 162 160 164 27 250 249 163 12 161 118 18 27 205 198 161 160 205 51 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T	8-96015-062-0	01	1	9712-	●
1	04.197 STRAINER ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-386-0	01	1	0106-		●
1	04.197 STRAINER ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-143-0	01	1	9909-		●
6	04.265 BODY ASM; VLV LWR,A/T	8-96018-289-0	01	1	9712-0105	●
6	04.265 BODY ASM; VLV LWR,A/T 6VD1 ENG(RLV)	8-96018-289-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96018-289-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-557-0	01	1	0106-	●
6	04.265 BODY ASM; VLV LWR,A/T 4JG2 ENG(RJC)	8-97214-537-0	01	1	0106-		●
12	04.265 PLUG; LWR BODY	8-96014-439-0	01	1	9712-	●
12	04.265 PLUG; LWR BODY 4JG2 ENG(RJC)	8-97023-521-0	01	1	0106-		●
15	04.265 VALVE; ACCUMLATOR CONT	8-96014-434-0	01	1	9712-	●
15	04.265 VALVE; ACCUMLATOR CONT 4JG2 ENG(RJC)	8-94364-914-0	01	1	0106-		●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE	8-96014-566-0	01	1	9712-	●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4JG2 ENG(RJC)	5-34538-004-0	01	1	0106-		●
18	04.265 PLUG; PRESSURE	8-05258-333-0	02	1	9712-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F)	8-00179-826-0	12	1	9712-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (A) M5X28	8-94473-616-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (B) M5X20	8-94473-620-0	09	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (C) M6X23	8-94479-925-0	05	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (D) M6X32	8-94479-926-0	12	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JG2 ENG(RJC) (E) M5X38	8-94480-095-0	13	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (A) M6X28	8-94473-611-0	10	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (B) M6X36	8-94473-630-0	06	1	9909-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JX1 ENG(RJM) (C) M6X23	8-94479-925-0	04	1	9909-		●
27	04.265 BALL; STEEL,VLV,A/T	8-11066-201-0	05	1	9712-	●
27	04.265 BALL; STEEL,VLV,A/T 4JG2 ENG(RJC) 04.256	8-94167-674-0	01	1	0106-		●
33	04.265 GASKET; LWR,VLV BODY,A/T	8-96015-417-0	01	1	9712-	●
33	04.265 GASKET; LWR,VLV BODY,A/T 4JG2 ENG(RJC)	8-97019-529-0	01	1	0106-		●
34	04.265 GASKET; UPR,VLV BODY,A/T	8-96018-338-0	01	1	9712-	●
34	04.265 GASKET; UPR,VLV BODY,A/T 4JG2 ENG(RJC)	8-97019-528-0	01	1	0106-		●
51	04.265 VALVE; MANUAL,A/T	8-96014-445-0	01	1	9712-	●
51	04.265 VALVE; MANUAL,A/T 4JG2 ENG(RJC)	8-94480-099-0	01	1	0106-		●
70	04.241 PISTON; ACCUMLATOR	8-96016-916-0	01	1	9712-	●
70	04.241 PISTON; ACCUMLATOR 4JX1 ENG(RJM)	8-97027-205-0	01	1	9909-0105		●
70	04.241 PISTON; ACCUMLATOR 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97027-205-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON (C)	8-96016-972-0	01	1	9712-	●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) (A)	8-97027-206-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	9909-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.164 (B)	8-97027-209-0	01	1	0106-		●
112	04.265 PLATE; VLV BODY CVR,VLV LWR,A/T	8-96018-290-0	01	1	9712-	●
114	04.164 PIN; ACCUMLATOR PISTON (B-2)	8-96017-098-0	01	1	9712-	●
118	04.265 SPRING; PRESSURE RELIEF VALVE	8-08958-690-0	01	1	9712-	●
118	04.265 SPRING; PRESSURE RELIEF VALVE 4JG2 ENG(RJC)	8-94480-087-0	01	1	0106-		●
126	04.265 BOLT; CVR,VLV LWR,A/T 04.115	8-00117-461-0	02	1	9712-	●
158	04.265 RING; SNAP,ADAPTER	8-96015-714-0	01	1	9712-	●
159	04.265 COVER; PISTON	8-96017-093-0	01	1	9712-	●
160	04.265 SOLENOID; ON-OFF (A)	8-96014-224-0	01	1	9712-	●
160	04.265 SOLENOID; ON-OFF (B)	8-96014-593-0	01	1	9712-	●
161	04.265 PIN; SPRING,SOLENOID	8-96014-443-0	02	1	9712-	●
162	04.265 SOLENOID; BAND CONT	8-96042-006-0	01	1	9712-	●
163	04.265 PIN; SOLENOID	8-96014-440-0	01	1	9712-	●
164	04.265 WASHER; SOLENOID	8-96014-555-0	01	1	9712-	●
198	04.265 STRAINER	8-96041-012-0	01	1	9712-	●
205	04.054 PIN; SPRING	8-05258-849-0	03	1	9712-	●
217	04.262 ROLLER ASM; SPR,DETENT 04.226	8-96015-354-0	01	1	9712-	●
218	04.115 HARNESS; SOLENOID WIRE	8-96014-855-0	01	1	9712-0105	●
218	04.115 HARNESS; SOLENOID WIRE 6VD1 ENG(RLV)	8-96014-855-0	01	1	0106-	●
218	04.115 HARNESS; SOLENOID WIRE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96014-855-0	01	1	0106-	●
218	04.115 HARNESS; SOLENOID WIRE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-581-0	01	1	0106-	●
249	04.265 VALVE; SHIFT (A)	8-96014-427-0	01	1	9712-	●
249	04.265 VALVE; SHIFT (B)	8-96014-429-0	01	1	9712-	●
250	04.265 SPRING; SHIFT VALVE	8-96014-428-0	02	1	9712-	●
251	04.265 VALVE; ACCUMULATOR	8-05258-806-0	01	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
