Sayfa 2-41 - Isuzu EPC

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#37886) — 390 parça

329 355 48 148 155 154 189 188 184 185 186 185 187 189 188 357 190 191 182 183 188 189 188 189 356 329 192 284 1 11 42 38 8 49 49 93 4 20 92 11 42 8

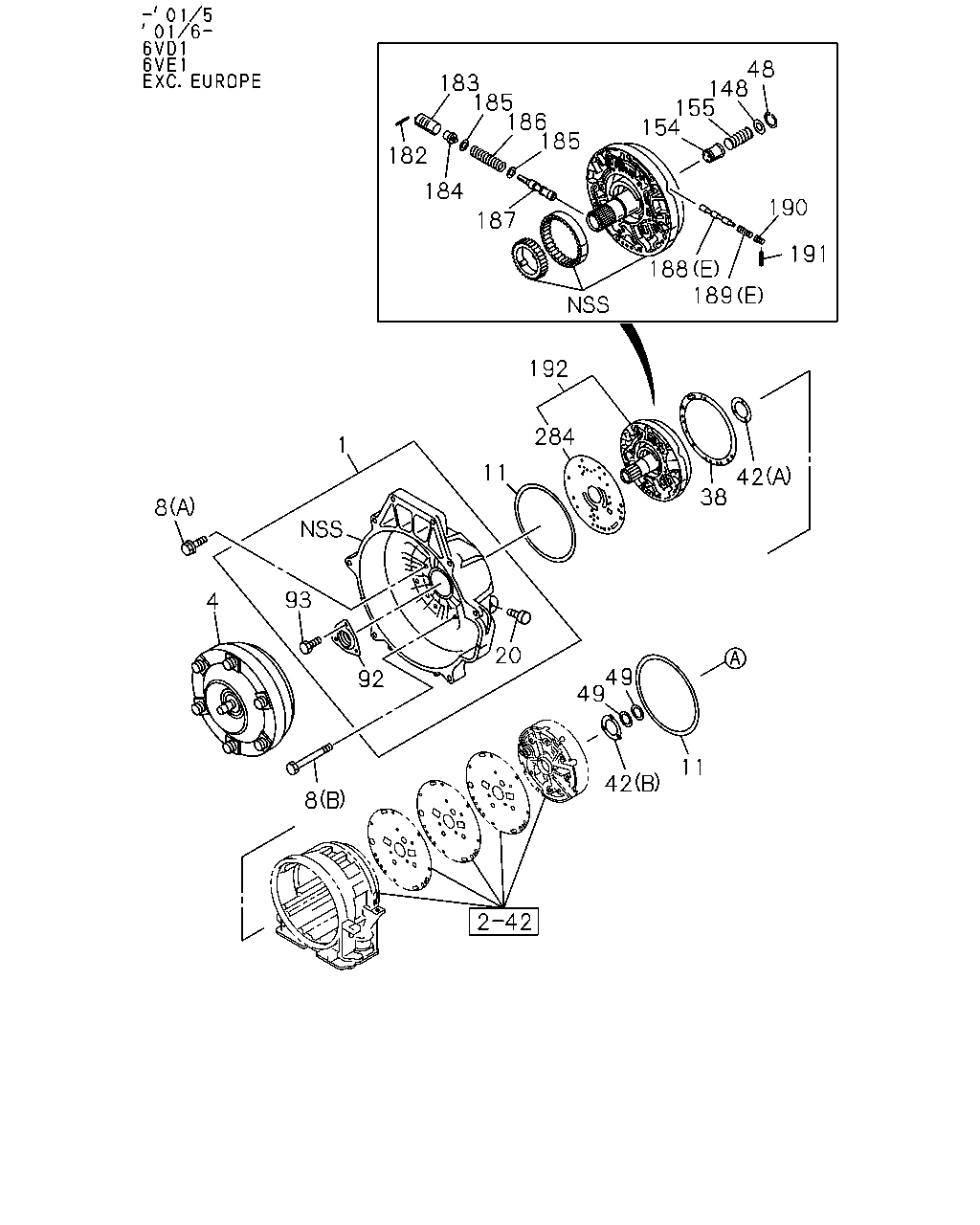

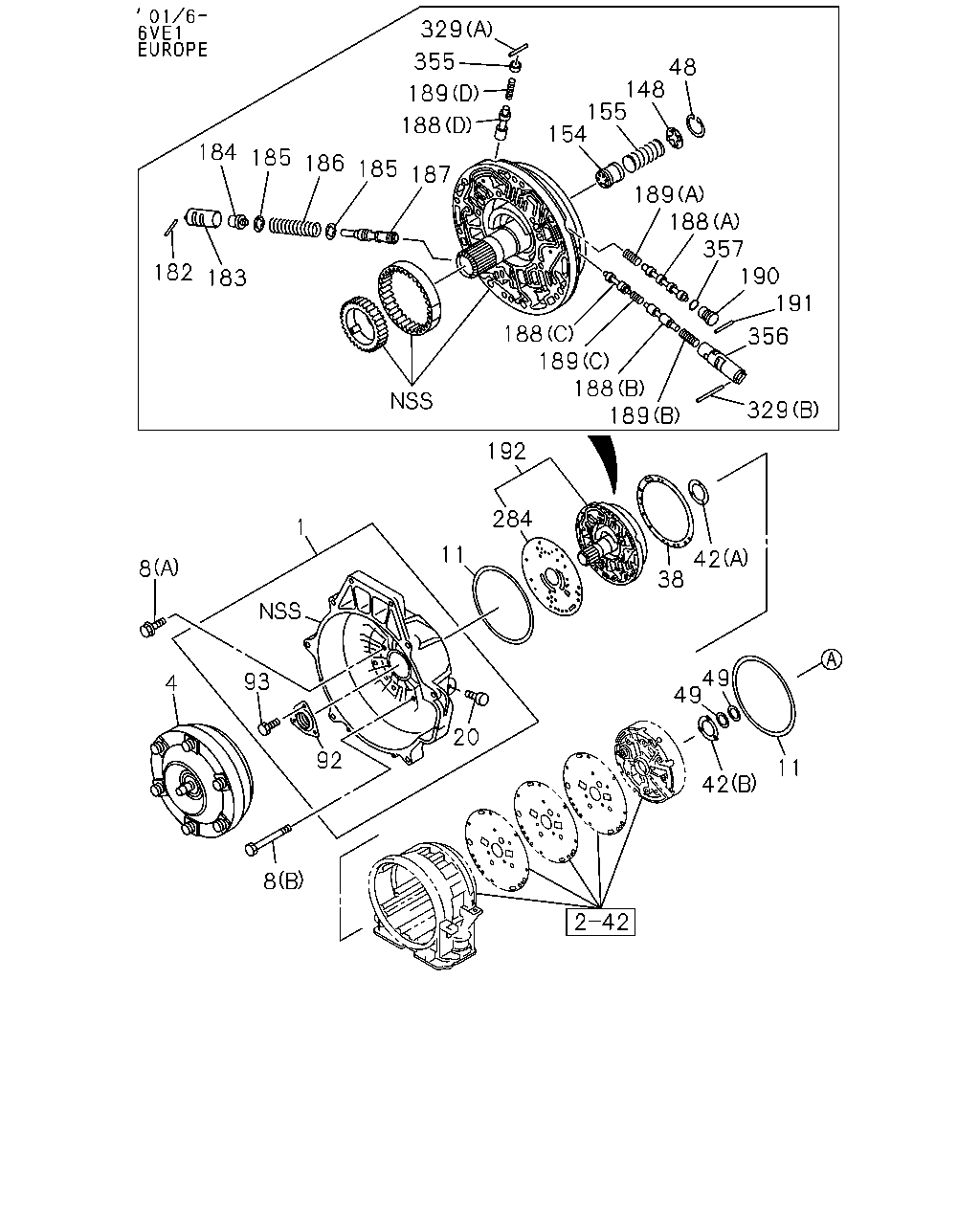

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T	8-96042-233-0	01	1	9712-0105	●
1	04.103 HOUSING; CONV,A/T 6VD1 ENG(RLV)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-623-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 4JX1 ENG(RJM)	8-97179-520-0	01	1	9909-0105		●
1	04.103 HOUSING; CONV,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97179-520-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VD1 ENG(RLV)	8-24210-868-0	01	1	9712-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ)	8-24210-869-0	01	1	9712-0105	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-24210-869-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-24213-406-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JG2 ENG(RJC)	8-97130-918-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JX1 ENG(RJM)	8-97188-447-0	01	1	9909-		●
8	04.217 BOLT; HSG TO CASE (A)	8-96013-210-0	05	1	9712-	●
8	04.217 BOLT; HSG TO CASE (B)	8-96016-795-0	07	1	9712-9802	●
8	04.217 BOLT; HSG TO CASE (B)	8-96018-559-0	07	1	9803-	●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	0106-		●
11	04.104 RING; SEALING,TRANS CASE	8-96017-189-0	02	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE	8-08662-173-0	01	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE 4JX1 ENG(RJM)	8-97232-067-0	01	1	9909-		●
38	04.226 GASKET; OIL PUMP,A/T	8-96014-973-0	01	1	9712-	●
38	04.226 GASKET; OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-748-0	01	1	9909-0105		●
38	04.226 GASKET; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-748-0	01	1	0106-		●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) YELLOW	8-96013-761-0	01	1	9712-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) YELLOW	8-96017-289-0	01	1	9712-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) RED	8-96013-762-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) BLACK	8-96013-763-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) NATURAL	8-96013-764-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) GREEN	8-96013-765-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) BLUE	8-96013-766-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) RED	8-96017-290-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) BLACK	8-96017-291-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) WHITE	8-96017-292-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) GREEN	8-96017-293-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) BLUE	8-96017-294-0	01	1	9902-	●
48	04.175 RING; SNAP,OIL PUMP,A/T	8-96014-406-0	01	1	9712-	●
49	04.226 RING; OIL SEAL	8-96017-553-0	02	1	9712-	●
92	04.226 COVER ASM; A/T	8-96015-187-0	01	1	9712-	●
93	04.226 BOLT; COVER & BUSHING,A/T	8-96015-215-0	03	1	9712-	●
148	04.226 RETAINER; SPRING,CAM RING,OIL PU	8-96014-405-0	01	1	9712-	●
154	04.166 PISTON; ACCUMLATOR,OIL PUMP	8-96014-403-0	01	1	9712-	●
155	04.164 SPRING; SERVO,ACCUMLATOR PISTON,	8-96014-404-0	01	1	9712-	●
182	04.052 PIN; BOOST VALVE SLEEVE	8-08958-824-0	01	1	9712-	●
183	04.052 SLEEVE; BOOST VALVE	8-96014-996-0	01	1	9712-	●
184	04.205 VALVE; BOOST	8-96014-997-0	01	1	9712-	●
185	04.205 SEAT; SPR,REG VALVE	8-05258-219-0	02	1	9712-	●
186	04.205 SPRING; REG VALVE	8-96017-526-0	01	1	9712-	●
187	04.205 VALVE; PRESSURE REG	8-96016-072-0	01	1	9712-	●
188	04.205 VALVE; CONV CLU CONT (E)	8-96014-396-0	01	1	9712-0105	●
188	04.205 VALVE; CONV CLU CONT 6VD1 ENG(RLV) (E)	8-96014-396-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (E)	8-96014-396-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A)	8-96018-515-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B)	8-96018-518-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (C)	8-96018-520-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (D)	8-96018-522-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE (E)	8-96014-397-0	01	1	9712-0105	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VD1 ENG(RLV) (E)	8-96014-397-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (E)	8-96014-397-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A)	8-96018-516-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B)	8-96018-519-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (C)	8-96018-521-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (D)	8-96018-523-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE	8-96013-218-0	01	1	9712-0105	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VD1 ENG(RLV)	8-96013-218-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96013-218-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-463-0	01	1	0106-	●
191	04.205 PIN; SPR,PLUG	8-96013-658-0	01	1	9712-	●
192	04.200 PUMP KIT; OIL	8-96042-234-0	01	1	9712-0105	●
192	04.200 PUMP KIT; OIL 6VD1 ENG(RLV)	8-96042-234-0	01	1	0106-	●
192	04.200 PUMP KIT; OIL 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-234-0	01	1	0106-	●
192	04.200 PUMP KIT; OIL 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-624-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 04.226	8-96017-926-0	01	1	9712-0105	●
284	04.224 PLATE; WEAR,OIL PUMP 6VD1 ENG(RLV) 04.226	8-96017-926-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) 04.226	8-96017-926-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-492-0	01	1	0106-	●
329	04.115 PIN; STRAIGHT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 04.205 (A)	8-96013-658-0	01	1	0106-	●
329	04.115 PIN; STRAIGHT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B)	8-96023-513-0	01	1	0106-	●
355	04.115 GUIDE; SPRING,CONV 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96022-613-0	01	1	0106-	●
356	04.119 SLEEVE; CONV CLU 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-472-0	01	1	0106-	●
357	04.115 GASKET; PLUG,CONV 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-465-0	01	1	0106-	●

8 41 41 4 37 37 1 47 38 8 7 32 33 39 30 23 22 167 20 241 12 14 26 216 22 21 13 3 2 13 17 363 160 304

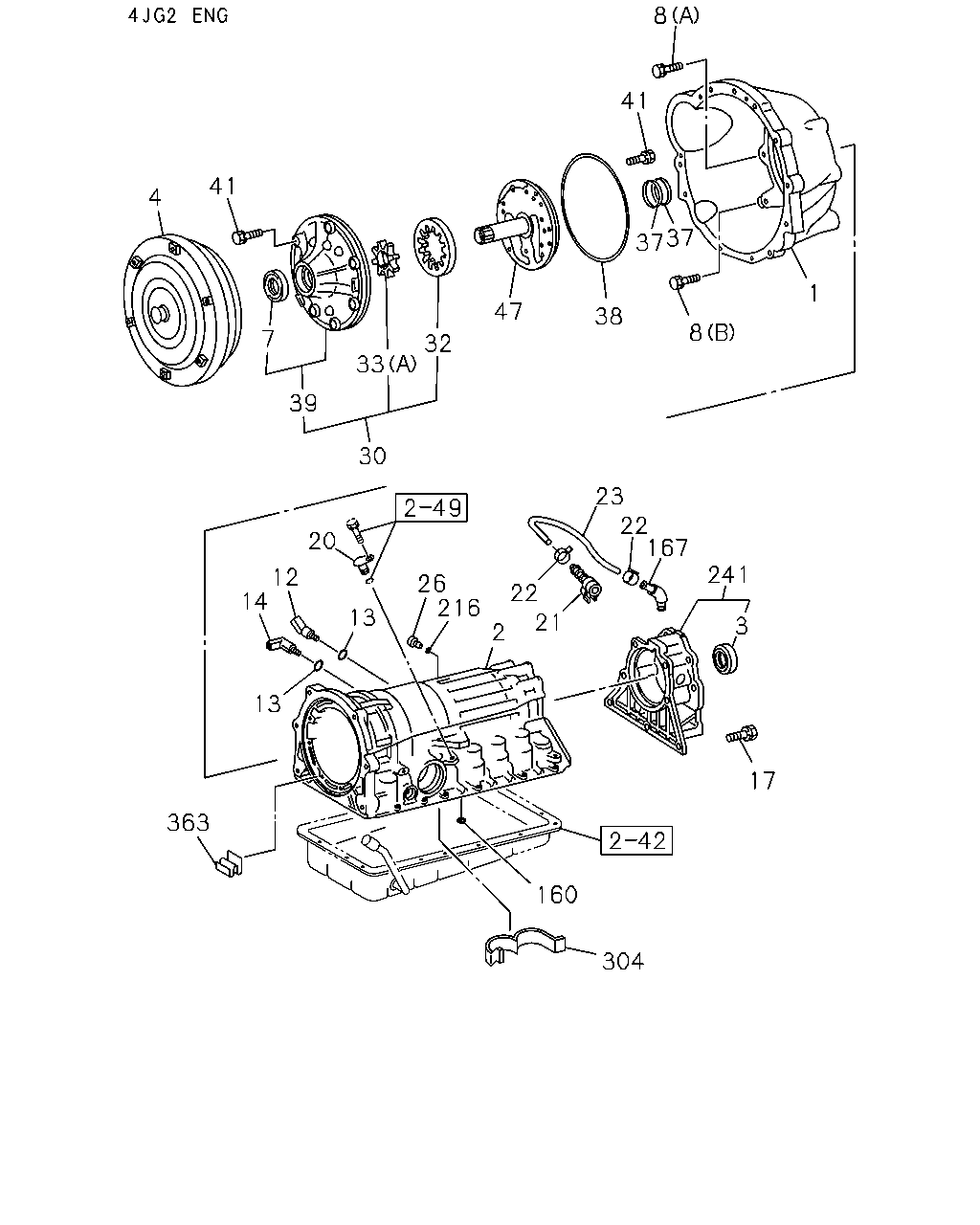

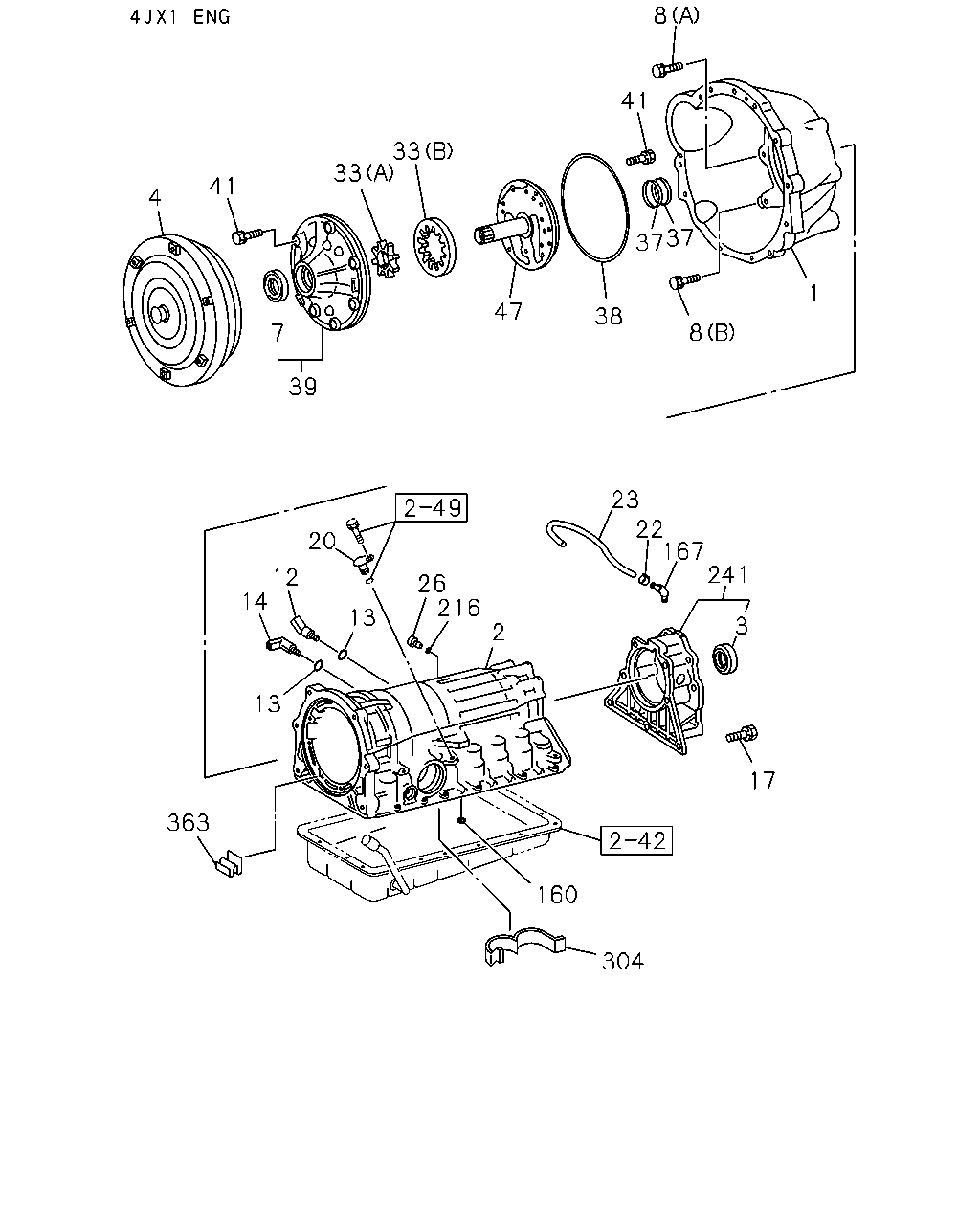

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T	8-96042-233-0	01	1	9712-0105	●
1	04.103 HOUSING; CONV,A/T 6VD1 ENG(RLV)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-623-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 4JX1 ENG(RJM)	8-97179-520-0	01	1	9909-0105		●
1	04.103 HOUSING; CONV,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97179-520-0	01	1	0106-		●

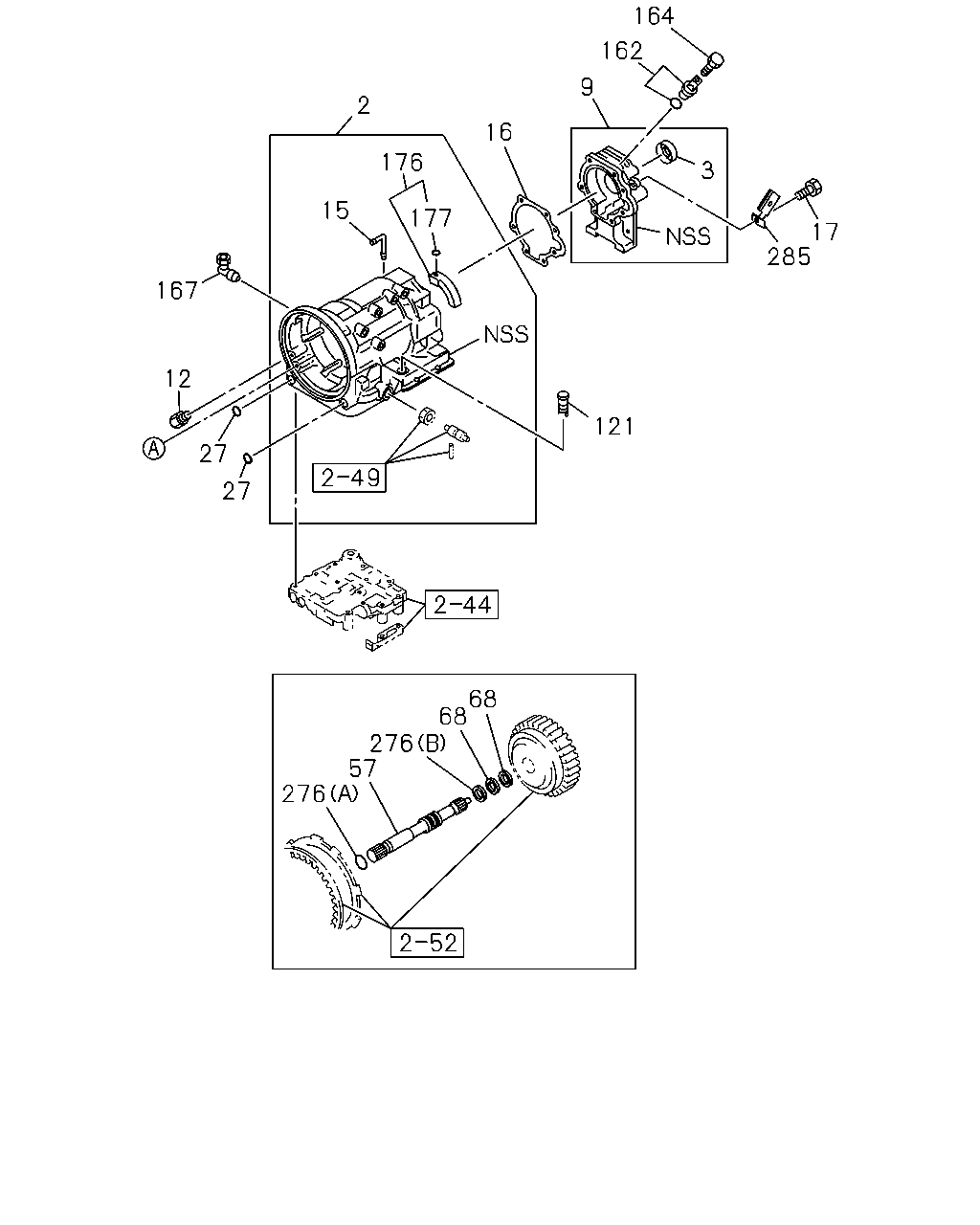

2	04.103 CASE ASM; A/T	8-96041-374-0	01	1	9712-0105	●
2	04.103 CASE ASM; A/T 6VD1 ENG(RLV)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-537-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 4JG2 ENG(RJC) 04.317	8-94450-758-0	01	1	0106-		●
2	04.103 CASE ASM; A/T 4JX1 ENG(RJM)	8-97232-111-0	01	1	9909-		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-96014-416-0	01	1	9712-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4JX1 ENG(RJM)	8-97069-465-0	01	1	9909-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-465-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VD1 ENG(RLV)	8-24210-868-0	01	1	9712-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ)	8-24210-869-0	01	1	9712-0105	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-24210-869-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-24213-406-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JG2 ENG(RJC)	8-97130-918-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JX1 ENG(RJM)	8-97188-447-0	01	1	9909-		●
7	04.226 SEAL; OIL,LIP,A/T 4JX1 ENG(RJM)	8-94479-742-0	01	1	9909-0105		●
7	04.226 SEAL; OIL,LIP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-742-0	01	1	0106-		●
8	04.217 BOLT; HSG TO CASE (A)	8-96013-210-0	05	1	9712-	●
8	04.217 BOLT; HSG TO CASE (B)	8-96016-795-0	07	1	9712-9802	●
8	04.217 BOLT; HSG TO CASE (B)	8-96018-559-0	07	1	9803-	●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	0106-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP	8-96015-476-0	01	1	9712-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	9909-0105		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	0106-		●
13	04.205 GASKET; OIL COOLER PIPE 4JX1 ENG(RJM) 04.265	8-94479-724-0	02	1	9909-0105		●
13	04.205 GASKET; OIL COOLER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94479-724-0	02	1	0106-		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JX1 ENG(RJM) 04.265	8-94450-762-0	01	1	9909-0105		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94450-762-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE	8-96015-271-0	07	1	9712-	●
17	04.319 BOLT; REAR COVER TO CASE 4JX1 ENG(RJM)	8-94479-936-0	07	1	9909-0105		●
17	04.319 BOLT; REAR COVER TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-936-0	07	1	0106-		●
20	04.105 PLUG; TAPER,A/T CASE	8-08662-173-0	01	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE 4JX1 ENG(RJM)	8-97232-067-0	01	1	9909-		●
21	04.104 PLUG; BREATHER,A/T 4JG2 ENG(RJC)	8-94479-729-0	01	1	0106-		●
22	04.101 CLIP; BREATHER HOSE,A/T 4JG2 ENG(RJC)	8-94479-730-0	02	1	0106-		●
22	04.101 CLIP; BREATHER HOSE,A/T 4JX1 ENG(RJM)	8-94479-730-0	01	1	9909-		●
23	04.101 HOSE; BREATHER,A/T 4JG2 ENG(RJC)	8-97313-512-0	01	1	0106-		●
23	04.101 HOSE; BREATHER,A/T 4JX1 ENG(RJM)	8-97232-051-0	01	1	9909-		●
26	04.195 PLUG; TRANS CASE 4JX1 ENG(RJM) 04.103	5-34119-002-0	02	1	9909-0105		●
26	04.195 PLUG; TRANS CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.103	5-34119-002-0	02	1	0106-		●
30	04.224 PUMP ASM; OIL,A/T 4JG2 ENG(RJC)	8-97143-135-0	01	1	0106-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JG2 ENG(RJC) W=10.715 H MARK	8-97184-337-0	01	1	0106-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JG2 ENG(RJC) W=10.695 F MARK	8-97213-029-0	01	1	0106-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JG2 ENG(RJC) W=10.705 G MARK	8-97213-030-0	01	1	0106-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JG2 ENG(RJC) W=10.725 J MARK	8-97213-031-0	01	1	0106-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JG2 ENG(RJC) W=10.735 K MARK	8-97213-032-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.715 H MARK	8-97147-426-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.715 H MARK	8-97147-426-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.715 H MARK	8-97184-337-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.695 F MARK	8-97213-025-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.695 F MARK	8-97213-025-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.705 G MARK	8-97213-026-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.705 G MARK	8-97213-026-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.725 J MARK	8-97213-027-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.725 J MARK	8-97213-027-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.735 K MARK	8-97213-028-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.735 K MARK	8-97213-028-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.695 F MARK	8-97213-029-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.705 G MARK	8-97213-030-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.725 J MARK	8-97213-031-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.735 K MARK	8-97213-032-0	01	1	9909-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-747-0	02	1	9909-0105		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-747-0	02	1	0106-		●
38	04.226 GASKET; OIL PUMP,A/T	8-96014-973-0	01	1	9712-	●
38	04.226 GASKET; OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-748-0	01	1	9909-0105		●
38	04.226 GASKET; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-748-0	01	1	0106-		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-741-0	01	1	9909-0105		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-741-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JX1 ENG(RJM) M8X35	8-94479-749-0	07	1	9909-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) M8X35	8-94479-749-0	07	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JX1 ENG(RJM) M6X15.5	8-97019-532-0	13	1	9909-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) M6X15.5	8-97019-532-0	13	1	0106-		●
47	04.226 SHAFT; OIL PUMP,A/T 4JX1 ENG(RJM)	8-97019-531-0	01	1	9909-0105		●
47	04.226 SHAFT; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97019-531-0	01	1	0106-		●
160	04.265 GASKET; BRK DRUM,A/T 4JX1 ENG(RJM)	8-94313-576-0	01	1	9909-0105		●
160	04.265 GASKET; BRK DRUM,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94313-576-0	01	1	0106-		●
167	04.052 CONNECTOR; CASE,A/T	8-96015-477-0	01	1	9712-0105	●
167	04.052 CONNECTOR; CASE,A/T 6VD1 ENG(RLV)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-299-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	9909-0105		●
167	04.052 CONNECTOR; CASE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	0106-		●
216	04.265 GASKET; SOLENOID OUTER 4JX1 ENG(RJM) 04.103	5-34119-001-0	02	1	9909-0105		●
216	04.265 GASKET; SOLENOID OUTER 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.103	5-34119-001-0	02	1	0106-		●
241	04.317 ADAPTER; A/T 4JX1 ENG(RJM)	8-97132-838-0	01	1	9909-0105		●
241	04.317 ADAPTER; A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97132-838-0	01	1	0106-		●
304	04.205 SPRING; LEAF,A/T 4JX1 ENG(RJM)	8-97184-331-0	01	1	9909-0105		●
304	04.205 SPRING; LEAF,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97184-331-0	01	1	0106-		●
363	04.054 SPRING; PLATE,OVERDRIVE BRAKE 4JX1 ENG(RJM)	8-97232-090-0	01	1	9909-		●

8 41 33 33 41 4 37 37 1 47 38 8 7 39 23 22 167 241 20 12 14 26 216 13 3 2 13 17 363 160 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T	8-96042-233-0	01	1	9712-0105	●
1	04.103 HOUSING; CONV,A/T 6VD1 ENG(RLV)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-623-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 4JX1 ENG(RJM)	8-97179-520-0	01	1	9909-0105		●
1	04.103 HOUSING; CONV,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97179-520-0	01	1	0106-		●
2	04.103 CASE ASM; A/T	8-96041-374-0	01	1	9712-0105	●
2	04.103 CASE ASM; A/T 6VD1 ENG(RLV)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-537-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 4JG2 ENG(RJC) 04.317	8-94450-758-0	01	1	0106-		●
2	04.103 CASE ASM; A/T 4JX1 ENG(RJM)	8-97232-111-0	01	1	9909-		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-96014-416-0	01	1	9712-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4JX1 ENG(RJM)	8-97069-465-0	01	1	9909-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-465-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VD1 ENG(RLV)	8-24210-868-0	01	1	9712-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ)	8-24210-869-0	01	1	9712-0105	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-24210-869-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-24213-406-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JG2 ENG(RJC)	8-97130-918-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JX1 ENG(RJM)	8-97188-447-0	01	1	9909-		●
7	04.226 SEAL; OIL,LIP,A/T 4JX1 ENG(RJM)	8-94479-742-0	01	1	9909-0105		●
7	04.226 SEAL; OIL,LIP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-742-0	01	1	0106-		●
8	04.217 BOLT; HSG TO CASE (A)	8-96013-210-0	05	1	9712-	●
8	04.217 BOLT; HSG TO CASE (B)	8-96016-795-0	07	1	9712-9802	●
8	04.217 BOLT; HSG TO CASE (B)	8-96018-559-0	07	1	9803-	●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	0106-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP	8-96015-476-0	01	1	9712-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	9909-0105		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	0106-		●
13	04.205 GASKET; OIL COOLER PIPE 4JX1 ENG(RJM) 04.265	8-94479-724-0	02	1	9909-0105		●
13	04.205 GASKET; OIL COOLER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94479-724-0	02	1	0106-		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JX1 ENG(RJM) 04.265	8-94450-762-0	01	1	9909-0105		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94450-762-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE	8-96015-271-0	07	1	9712-	●
17	04.319 BOLT; REAR COVER TO CASE 4JX1 ENG(RJM)	8-94479-936-0	07	1	9909-0105		●
17	04.319 BOLT; REAR COVER TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-936-0	07	1	0106-		●
20	04.105 PLUG; TAPER,A/T CASE	8-08662-173-0	01	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE 4JX1 ENG(RJM)	8-97232-067-0	01	1	9909-		●
22	04.101 CLIP; BREATHER HOSE,A/T 4JG2 ENG(RJC)	8-94479-730-0	02	1	0106-		●
22	04.101 CLIP; BREATHER HOSE,A/T 4JX1 ENG(RJM)	8-94479-730-0	01	1	9909-		●
23	04.101 HOSE; BREATHER,A/T 4JG2 ENG(RJC)	8-97313-512-0	01	1	0106-		●
23	04.101 HOSE; BREATHER,A/T 4JX1 ENG(RJM)	8-97232-051-0	01	1	9909-		●
26	04.195 PLUG; TRANS CASE 4JX1 ENG(RJM) 04.103	5-34119-002-0	02	1	9909-0105		●
26	04.195 PLUG; TRANS CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.103	5-34119-002-0	02	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.715 H MARK	8-97147-426-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.715 H MARK	8-97147-426-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.715 H MARK	8-97184-337-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.695 F MARK	8-97213-025-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.695 F MARK	8-97213-025-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.705 G MARK	8-97213-026-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.705 G MARK	8-97213-026-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.725 J MARK	8-97213-027-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.725 J MARK	8-97213-027-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) (A) W=10.735 K MARK	8-97213-028-0	01	1	9909-0105		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) W=10.735 K MARK	8-97213-028-0	01	1	0106-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.695 F MARK	8-97213-029-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.705 G MARK	8-97213-030-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.725 J MARK	8-97213-031-0	01	1	9909-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JX1 ENG(RJM) 04.210 (B) W=10.735 K MARK	8-97213-032-0	01	1	9909-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-747-0	02	1	9909-0105		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-747-0	02	1	0106-		●
38	04.226 GASKET; OIL PUMP,A/T	8-96014-973-0	01	1	9712-	●
38	04.226 GASKET; OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-748-0	01	1	9909-0105		●
38	04.226 GASKET; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-748-0	01	1	0106-		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-741-0	01	1	9909-0105		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-741-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JX1 ENG(RJM) M8X35	8-94479-749-0	07	1	9909-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) M8X35	8-94479-749-0	07	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JX1 ENG(RJM) M6X15.5	8-97019-532-0	13	1	9909-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) M6X15.5	8-97019-532-0	13	1	0106-		●
47	04.226 SHAFT; OIL PUMP,A/T 4JX1 ENG(RJM)	8-97019-531-0	01	1	9909-0105		●
47	04.226 SHAFT; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97019-531-0	01	1	0106-		●
160	04.265 GASKET; BRK DRUM,A/T 4JX1 ENG(RJM)	8-94313-576-0	01	1	9909-0105		●
160	04.265 GASKET; BRK DRUM,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94313-576-0	01	1	0106-		●
167	04.052 CONNECTOR; CASE,A/T	8-96015-477-0	01	1	9712-0105	●
167	04.052 CONNECTOR; CASE,A/T 6VD1 ENG(RLV)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-299-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	9909-0105		●
167	04.052 CONNECTOR; CASE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	0106-		●
216	04.265 GASKET; SOLENOID OUTER 4JX1 ENG(RJM) 04.103	5-34119-001-0	02	1	9909-0105		●
216	04.265 GASKET; SOLENOID OUTER 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.103	5-34119-001-0	02	1	0106-		●
241	04.317 ADAPTER; A/T 4JX1 ENG(RJM)	8-97132-838-0	01	1	9909-0105		●
241	04.317 ADAPTER; A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97132-838-0	01	1	0106-		●
304	04.205 SPRING; LEAF,A/T 4JX1 ENG(RJM)	8-97184-331-0	01	1	9909-0105		●
304	04.205 SPRING; LEAF,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97184-331-0	01	1	0106-		●
363	04.054 SPRING; PLATE,OVERDRIVE BRAKE 4JX1 ENG(RJM)	8-97232-090-0	01	1	9909-		●

164 162 9 2 16 176 3 15 177 17 285 167 12 121 27 27 68 68 276 57 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.103 CASE ASM; A/T	8-96041-374-0	01	1	9712-0105	●
2	04.103 CASE ASM; A/T 6VD1 ENG(RLV)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96041-374-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-537-0	01	1	0106-	●
2	04.103 CASE ASM; A/T 4JG2 ENG(RJC) 04.317	8-94450-758-0	01	1	0106-		●
2	04.103 CASE ASM; A/T 4JX1 ENG(RJM)	8-97232-111-0	01	1	9909-		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-96014-416-0	01	1	9712-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4JX1 ENG(RJM)	8-97069-465-0	01	1	9909-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97069-465-0	01	1	0106-		●
9	04.317 COVER ASM; RR,A/T	8-96042-194-0	01	1	9712-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP	8-96015-476-0	01	1	9712-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	9909-0105		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.265	8-94450-761-0	01	1	0106-		●
15	04.104 BREATHER; A/T CASE	8-96015-793-0	01	1	9712-	●
16	04.318 GASKET; EXT HSG	8-96014-417-0	01	1	9712-	●
17	04.319 BOLT; REAR COVER TO CASE	8-96015-271-0	07	1	9712-	●
17	04.319 BOLT; REAR COVER TO CASE 4JX1 ENG(RJM)	8-94479-936-0	07	1	9909-0105		●
17	04.319 BOLT; REAR COVER TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-936-0	07	1	0106-		●
27	04.217 GASKET; HSG TO CASE	8-96014-270-0	02	1	9712-	●
57	04.175 SHAFT; TURBINE,A/T	8-96018-034-0	01	1	9712-9810	●
57	04.175 SHAFT; TURBINE,A/T	8-96023-043-0	01	1	9811-0105	●
57	04.175 SHAFT; TURBINE,A/T 6VD1 ENG(RLV)	8-96023-043-0	01	1	0106-	●
57	04.175 SHAFT; TURBINE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96023-043-0	01	1	0106-	●
57	04.175 SHAFT; TURBINE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-528-0	01	1	0106-	●
68	04.175 RING; OIL SEAL,TURBINE SHAFT	8-96017-484-0	02	1	9712-	●
121	04.226 CONNECTOR; ELEC	8-96015-409-0	01	1	9712-0105	●
121	04.226 CONNECTOR; ELEC 6VD1 ENG(RLV)	8-96015-409-0	01	1	0106-	●
121	04.226 CONNECTOR; ELEC 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96015-409-0	01	1	0106-	●
121	04.226 CONNECTOR; ELEC 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-330-0	01	1	0106-	●
162	04.054 SENSOR; REVOLUTION,A/T CONT	8-96014-422-0	01	1	9712-	●
164	04.054 BOLT; REV SENSOR,A/T	8-96014-809-0	01	1	9712-	●
167	04.052 CONNECTOR; CASE,A/T	8-96015-477-0	01	1	9712-0105	●
167	04.052 CONNECTOR; CASE,A/T 6VD1 ENG(RLV)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96015-477-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-299-0	01	1	0106-	●
167	04.052 CONNECTOR; CASE,A/T 4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	9909-0105		●
167	04.052 CONNECTOR; CASE,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.104	8-97126-812-0	01	1	0106-		●
176	04.052 RESERVOIR; MAIN CASE	8-96014-865-0	01	1	9712-	●
177	04.052 SEAL; MAIN CASE	8-96017-547-0	01	1	9712-	●
276	04.103 GASKET; SHAFT 04.175 (A)	8-96013-953-0	01	1	9712-	●
276	04.103 GASKET; SHAFT 04.175 (B)	8-96041-327-0	01	1	9712-	●
285	04.226 BRACKET; HARNESS 6VE1 ENG(RJQ)	8-96018-455-0	01	1	9712-	●

48 148 155 154 183 185 186 185 182 184 190 188 189 187 191 192 284 1 42 38 11 8 93 4 20 49 49 92 11 42 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T	8-96042-233-0	01	1	9712-0105	●
1	04.103 HOUSING; CONV,A/T 6VD1 ENG(RLV)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-233-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-623-0	01	1	0106-	●
1	04.103 HOUSING; CONV,A/T 4JX1 ENG(RJM)	8-97179-520-0	01	1	9909-0105		●
1	04.103 HOUSING; CONV,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97179-520-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VD1 ENG(RLV)	8-24210-868-0	01	1	9712-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ)	8-24210-869-0	01	1	9712-0105	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-24210-869-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-24213-406-0	01	1	0106-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JG2 ENG(RJC)	8-97130-918-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JX1 ENG(RJM)	8-97188-447-0	01	1	9909-		●
8	04.217 BOLT; HSG TO CASE (A)	8-96013-210-0	05	1	9712-	●
8	04.217 BOLT; HSG TO CASE (B)	8-96016-795-0	07	1	9712-9802	●
8	04.217 BOLT; HSG TO CASE (B)	8-96018-559-0	07	1	9803-	●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) M10X35	8-90257-082-0	04	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	9909-0105		●
8	04.217 BOLT; HSG TO CASE 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) M12X68	8-97025-830-0	02	1	0106-		●
11	04.104 RING; SEALING,TRANS CASE	8-96017-189-0	02	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE	8-08662-173-0	01	1	9712-	●
20	04.105 PLUG; TAPER,A/T CASE 4JX1 ENG(RJM)	8-97232-067-0	01	1	9909-		●
38	04.226 GASKET; OIL PUMP,A/T	8-96014-973-0	01	1	9712-	●
38	04.226 GASKET; OIL PUMP,A/T 4JX1 ENG(RJM)	8-94479-748-0	01	1	9909-0105		●
38	04.226 GASKET; OIL PUMP,A/T 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-94479-748-0	01	1	0106-		●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) YELLOW	8-96013-761-0	01	1	9712-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) YELLOW	8-96017-289-0	01	1	9712-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) RED	8-96013-762-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) BLACK	8-96013-763-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) NATURAL	8-96013-764-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) GREEN	8-96013-765-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) BLUE	8-96013-766-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (A) RED	8-96017-290-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) BLACK	8-96017-291-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) WHITE	8-96017-292-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) GREEN	8-96017-293-0	01	1	9902-	●
42	04.226 WASHER; OIL PUMP HSG,A/T (B) BLUE	8-96017-294-0	01	1	9902-	●
48	04.175 RING; SNAP,OIL PUMP,A/T	8-96014-406-0	01	1	9712-	●
49	04.226 RING; OIL SEAL	8-96017-553-0	02	1	9712-	●
92	04.226 COVER ASM; A/T	8-96015-187-0	01	1	9712-	●
93	04.226 BOLT; COVER & BUSHING,A/T	8-96015-215-0	03	1	9712-	●
148	04.226 RETAINER; SPRING,CAM RING,OIL PU	8-96014-405-0	01	1	9712-	●
154	04.166 PISTON; ACCUMLATOR,OIL PUMP	8-96014-403-0	01	1	9712-	●
155	04.164 SPRING; SERVO,ACCUMLATOR PISTON,	8-96014-404-0	01	1	9712-	●
182	04.052 PIN; BOOST VALVE SLEEVE	8-08958-824-0	01	1	9712-	●
183	04.052 SLEEVE; BOOST VALVE	8-96014-996-0	01	1	9712-	●
184	04.205 VALVE; BOOST	8-96014-997-0	01	1	9712-	●
185	04.205 SEAT; SPR,REG VALVE	8-05258-219-0	02	1	9712-	●
186	04.205 SPRING; REG VALVE	8-96017-526-0	01	1	9712-	●
187	04.205 VALVE; PRESSURE REG	8-96016-072-0	01	1	9712-	●
188	04.205 VALVE; CONV CLU CONT (E)	8-96014-396-0	01	1	9712-0105	●
188	04.205 VALVE; CONV CLU CONT 6VD1 ENG(RLV) (E)	8-96014-396-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (E)	8-96014-396-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A)	8-96018-515-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B)	8-96018-518-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (C)	8-96018-520-0	01	1	0106-	●
188	04.205 VALVE; CONV CLU CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (D)	8-96018-522-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE (E)	8-96014-397-0	01	1	9712-0105	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VD1 ENG(RLV) (E)	8-96014-397-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (E)	8-96014-397-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A)	8-96018-516-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B)	8-96018-519-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (C)	8-96018-521-0	01	1	0106-	●
189	04.205 SPRING; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (D)	8-96018-523-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE	8-96013-218-0	01	1	9712-0105	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VD1 ENG(RLV)	8-96013-218-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96013-218-0	01	1	0106-	●
190	04.205 PLUG; CONV CLU CONT VALVE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-463-0	01	1	0106-	●
191	04.205 PIN; SPR,PLUG	8-96013-658-0	01	1	9712-	●
192	04.200 PUMP KIT; OIL	8-96042-234-0	01	1	9712-0105	●
192	04.200 PUMP KIT; OIL 6VD1 ENG(RLV)	8-96042-234-0	01	1	0106-	●
192	04.200 PUMP KIT; OIL 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96042-234-0	01	1	0106-	●
192	04.200 PUMP KIT; OIL 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-624-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 04.226	8-96017-926-0	01	1	9712-0105	●
284	04.224 PLATE; WEAR,OIL PUMP 6VD1 ENG(RLV) 04.226	8-96017-926-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) 04.226	8-96017-926-0	01	1	0106-	●
284	04.224 PLATE; WEAR,OIL PUMP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-492-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
