Sayfa 3-01 - Isuzu EPC

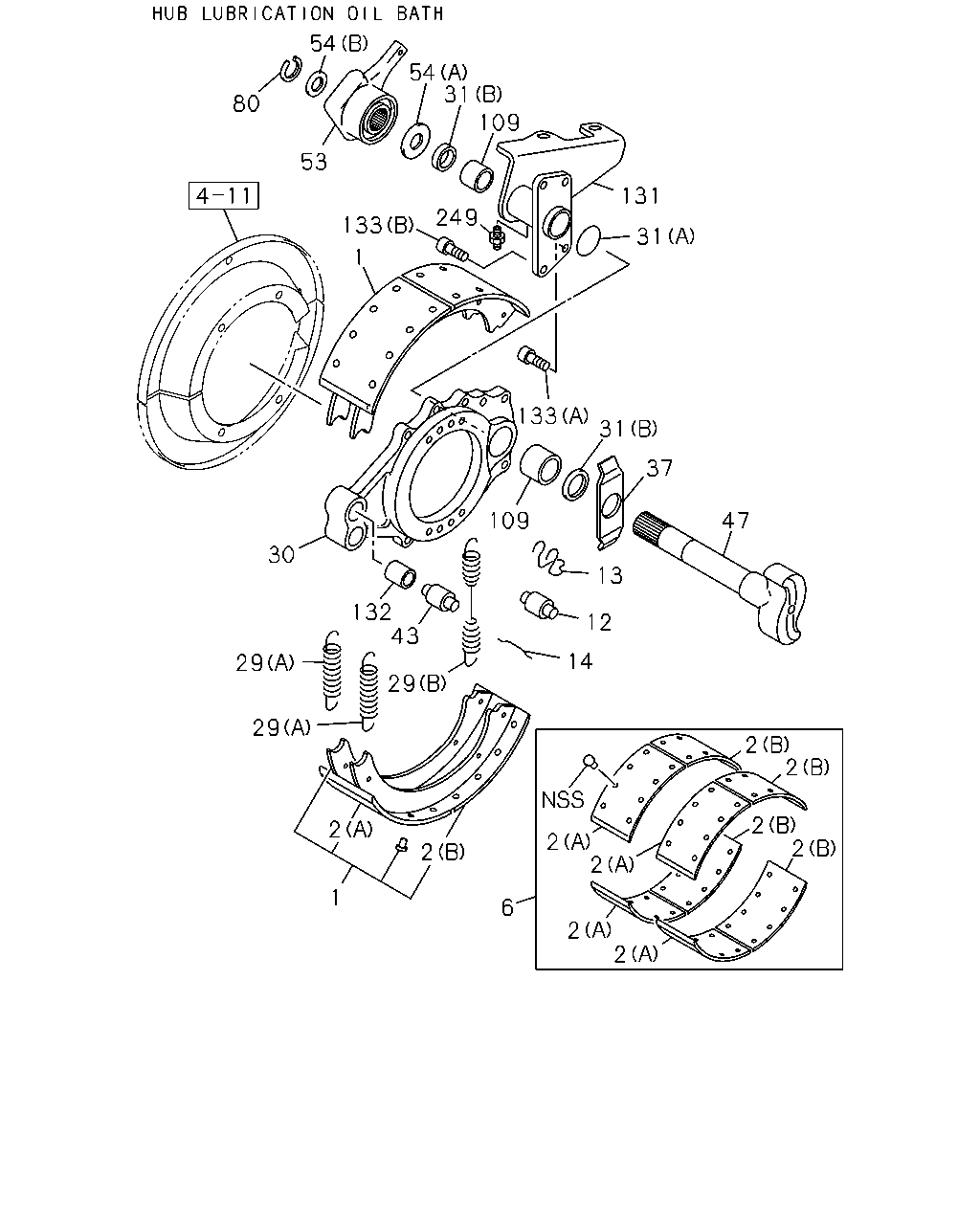

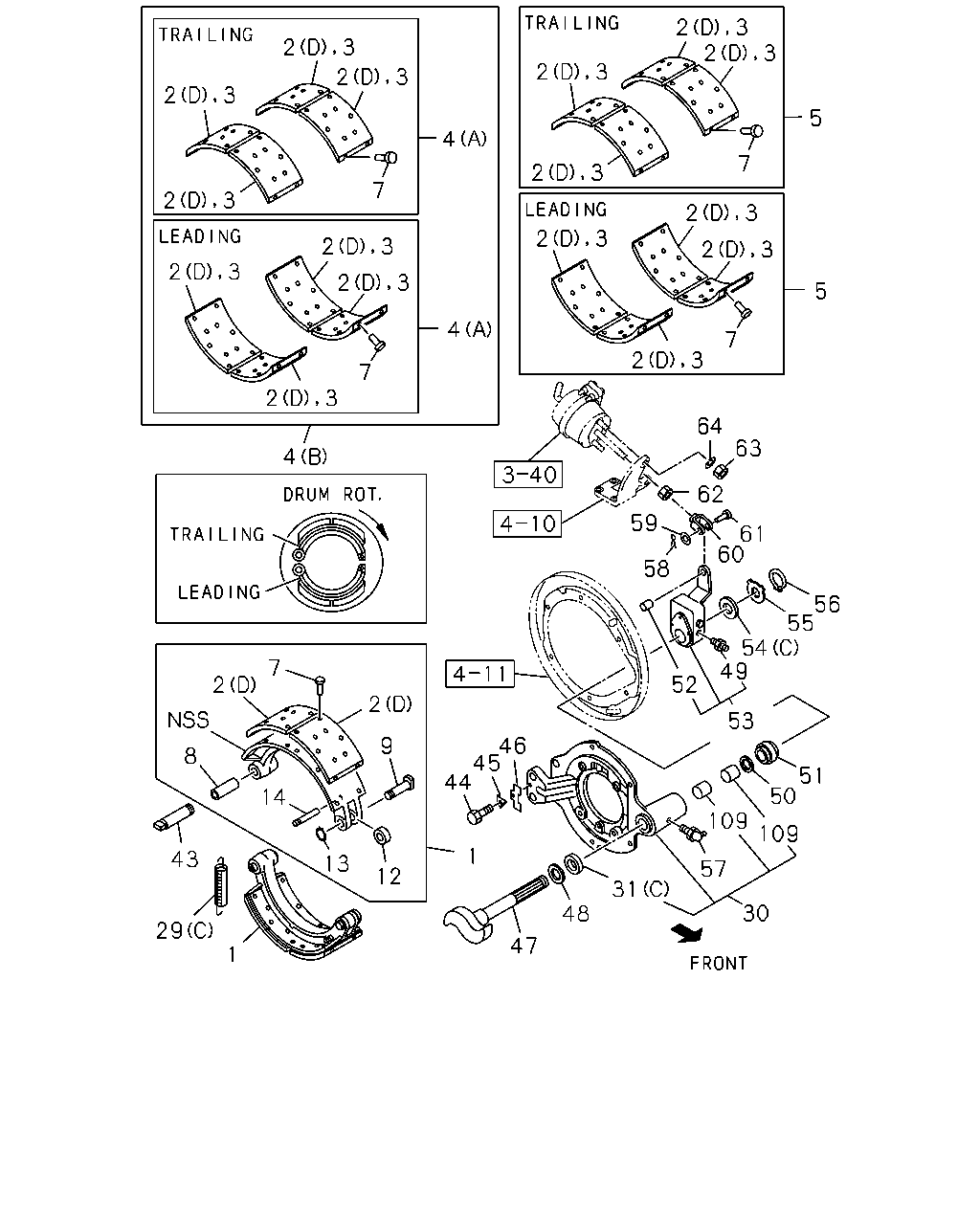

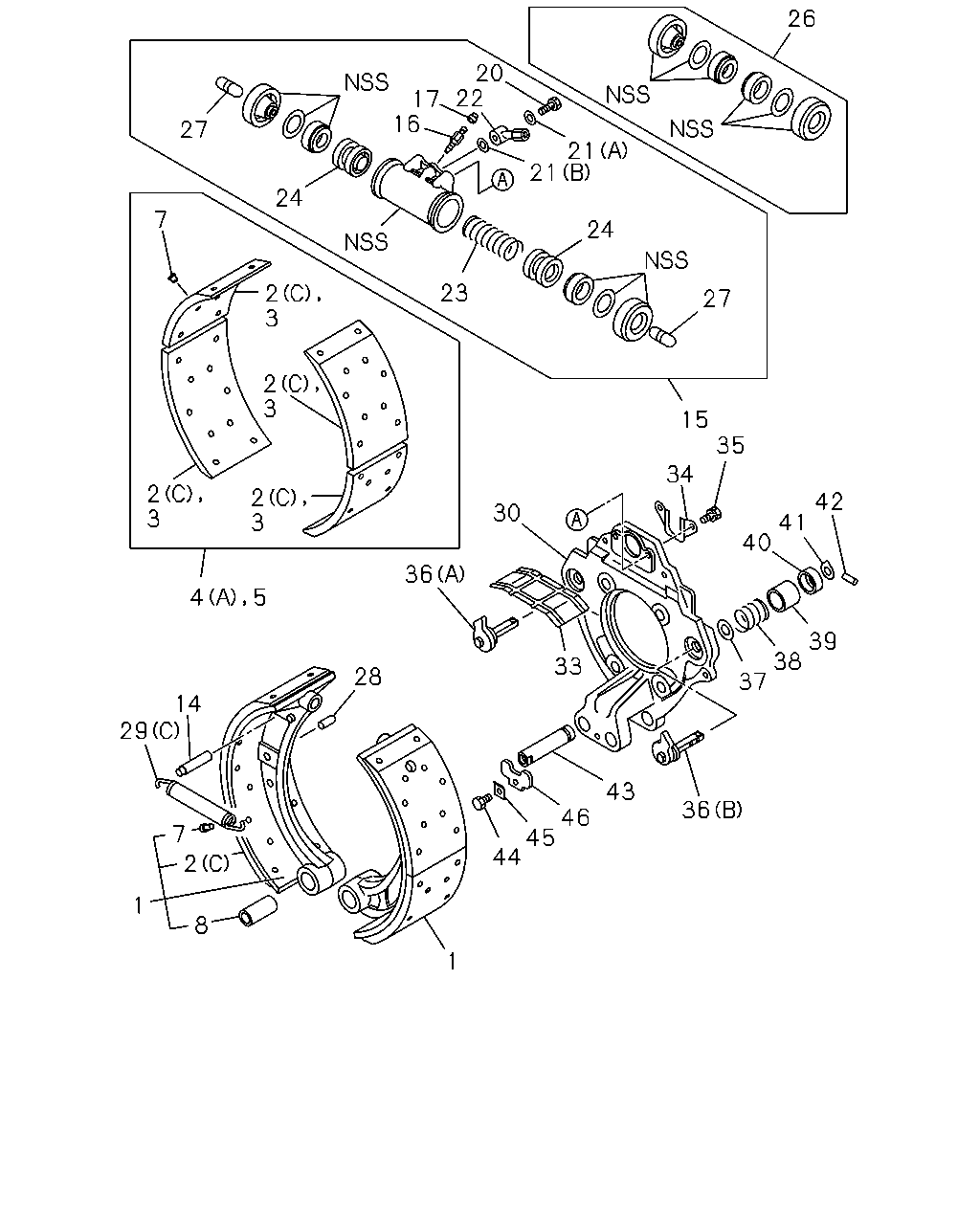

3-01 — FRONT WHEEL BRAKE (#3788) — 458 parça

54 54 31 109 80 53 131 249 133 31 1 133 31 37 109 47 30 13 132 43 12 14 29 29 29 2 2 2 2 2 2 2 2 1 6 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-709-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-710-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-711-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-712-0	01	1	0303-	●	●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	9601-0004	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47120-402-0	04	1	9601-0004		●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	0005-0211	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0212-0609	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0610-	●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9601-9803		●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-706-0	04	1	9804-0004		●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING	1-47125-793-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING	1-47125-795-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD (A)	1-47125-496-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47125-496-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD (B)	1-47125-497-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47125-497-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47115-867-0	08	1	9601-9803		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47125-811-0	08	1	9804-0004		●
6	LINING KIT; FRT BRK	1-87050-155-0	01	1	9601-0004	●
6	LINING KIT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-155-0	01	1	9601-0004		●
6	LINING KIT; FRT BRK	1-87050-155-0	01	1	0005-0211	●	●
6	LINING KIT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-87050-155-0	01	1	0212-0609	●	●
6	LINING KIT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-87050-155-0	01	1	0610-	●	●
12	ROLLER; CAM,BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47113-007-0	04	1	0303-	●	●
12	ROLLER; CAM,BRK SHOE	1-47119-117-0	02	1	9601-0004	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-117-0	02	1	9601-0004		●
12	ROLLER; CAM,BRK SHOE	1-47119-117-0	02	1	0005-0211	●	●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-117-0	02	1	0212-0609	●	●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-117-0	02	1	0610-	●	●
13	CLIP; ROLLER PIN,BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	9-47119-022-0	04	1	0303-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	9601-0004	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-118-0	02	1	9601-0004		●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0005-0211	●	●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0212-0609	●	●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0610-	●	●
14	PIN; SHOE RETURN SPR EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0303-	●	●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	9601-0004	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-116-0	02	1	9601-0004		●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	0005-0211	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0212-0609	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0610-	●	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=73.5	1-47119-017-1	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-185-2	02	1	0303-	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-119-0	02	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-269-1	02	1	9601-0004		●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-118-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-119-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-333-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-334-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9601-9901		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-0004		●
31	SEAL; OIL,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09625-228-0	02	1	0303-	●	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	9601-0004	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47149-056-0	02	1	9601-0004		●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0005-0211	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0212-0609	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0610-	●	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	04	1	9601-0004	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-057-0	04	1	9601-0004		●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	04	1	0005-0211	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	04	1	0212-0609	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	04	1	0610-	●	●
37	WASHER; ADJ CAM	1-47149-079-0	02	1	9601-0004	●
37	WASHER; ADJ CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-079-0	02	1	9601-0004		●
37	WASHER; ADJ CAM	1-47149-079-0	02	1	0005-0211	●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-079-0	02	1	0212-0609	●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-079-0	02	1	0610-	●	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9601-0004		●
43	PIN; ANCHOR EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0303-	●	●
43	PIN; ANCHOR	1-47131-046-0	04	1	9601-0004	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-046-0	04	1	9601-0004		●
43	PIN; ANCHOR	1-47131-046-0	04	1	0005-0211	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0212-0609	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0610-	●	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	9601-0004		●
47	CAMSHAFT; FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47141-051-0	01	1	0303-	●	●
47	CAMSHAFT; FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47141-052-0	01	1	0303-	●	●
47	CAMSHAFT; FRT BRK	1-47141-100-0	01	1	9601-0004	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-100-0	01	1	9601-0004		●
47	CAMSHAFT; FRT BRK	1-47141-100-0	01	1	0005-0211	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-100-0	01	1	0212-0609	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-100-0	01	1	0610-	●	●
47	CAMSHAFT; FRT BRK	1-47141-101-0	01	1	9601-0004	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-101-0	01	1	9601-0004		●
47	CAMSHAFT; FRT BRK	1-47141-101-0	01	1	0005-0211	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-101-0	01	1	0212-0609	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-101-0	01	1	0610-	●	●
53	ADJUSTER ASM; SLACK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48270-043-0	01	1	0303-	●	●
53	ADJUSTER ASM; SLACK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48270-044-0	01	1	0303-	●	●
53	ADJUSTER ASM; SLACK	1-48270-080-0	01	1	9601-0004	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-080-0	01	1	9601-0004		●
53	ADJUSTER ASM; SLACK	1-48270-080-0	01	1	0005-0211	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-080-0	01	1	0212-0609	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-080-0	01	1	0610-1209	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-111-0	01	1	1210-	●	●
53	ADJUSTER ASM; SLACK	1-48270-081-0	01	1	9601-0004	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-081-0	01	1	9601-0004		●
53	ADJUSTER ASM; SLACK	1-48270-081-0	01	1	0005-0211	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-081-0	01	1	0212-0609	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-081-0	01	1	0610-1209	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-112-0	01	1	1210-	●	●
54	SPACER; CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47143-004-0	02	1	0303-	●	●
54	SPACER; CM/SHF (A)	1-47149-058-0	02	1	9601-0004	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47149-058-0	02	1	9601-0004		●
54	SPACER; CM/SHF (A)	1-47149-058-0	02	1	0005-0211	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-058-0	02	1	0212-0609	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-058-0	02	1	0610-	●	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	9601-0004	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-059-0	02	1	9601-0004		●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0005-0211	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0212-0609	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0610-	●	●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	9601-0004	●
80	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-005-0	02	1	9601-0004		●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0005-0211	●	●
80	RING; SNAP,CM/SHF HUB LUBRICATION OIL BATH<C5K>	1-87050-005-0	02	1	0212-0609	●	●
80	RING; SNAP,CM/SHF HUB LUBRICATION OIL BATH<C5K>	1-87050-005-0	02	1	0610-	●	●
109	BUSHING; CM/SHF,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47146-003-1	04	1	0303-	●	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-014-0	04	1	9601-0004	●
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-014-0	04	1	9601-0004		●
109	BUSHING; CM/SHF,FRT BRK	1-47146-014-0	04	1	0005-0211	●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47146-014-0	04	1	0212-0609	●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47146-014-0	04	1	0610-	●	●
131	BRACKET; POWER CHAMBER	1-48258-160-0	01	1	9601-0004	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-160-0	01	1	9601-0004		●
131	BRACKET; POWER CHAMBER	1-48258-160-0	01	1	0005-0211	●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-160-0	01	1	0212-0609	●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-160-0	01	1	0610-	●	●
131	BRACKET; POWER CHAMBER	1-48258-161-0	01	1	9601-0004	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-161-0	01	1	9601-0004		●
131	BRACKET; POWER CHAMBER	1-48258-161-0	01	1	0005-0211	●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-161-0	01	1	0212-0609	●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-161-0	01	1	0610-	●	●
132	BUSHING; BRKT	1-47139-117-0	04	1	9601-0004	●
132	BUSHING; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-117-0	04	1	9601-0004		●
132	BUSHING; BRKT	1-47139-117-0	04	1	0005-0211	●	●
132	BUSHING; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-117-0	04	1	0212-0609	●	●
132	BUSHING; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-117-0	04	1	0610-	●	●
133	BOLT; BRKT (A)	1-47139-118-0	06	1	9601-0004	●
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47139-118-0	06	1	9601-0004		●
133	BOLT; BRKT (A)	1-47139-118-0	06	1	0005-0211	●	●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K> (A)	1-47139-118-0	06	1	0212-0609	●	●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K> (A)	1-47139-118-0	06	1	0610-	●	●
133	BOLT; BRKT (B)	1-47139-119-0	02	1	9601-0004	●
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47139-119-0	02	1	9601-0004		●
133	BOLT; BRKT (B)	1-47139-119-0	02	1	0005-0211	●	●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K> (B)	1-47139-119-0	02	1	0212-0609	●	●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K> (B)	1-47139-119-0	02	1	0610-	●	●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	9601-0004	●
249	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-253-0	02	1	9601-0004		●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0005-0211	●	●
249	NIPPLE; GREASE,CHAMBER BRKT HUB LUBRICATION OIL BATH<C5K>	1-48259-253-0	02	1	0212-0609	●	●
249	NIPPLE; GREASE,CHAMBER BRKT HUB LUBRICATION OIL BATH<C5K>	1-48259-253-0	02	1	0610-	●	●

26 21 21 24 27 23 24 27 16 17 20 22 7 2 3 2 3 2 3 2 3 4 5 14 29 7 2 1 8 44 45 46 43 36 28 36 30 33 37 38 39 42 41 40 35 15 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-709-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-710-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-711-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-712-0	01	1	0303-	●	●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	9601-0004	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47120-402-0	04	1	9601-0004		●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	0005-0211	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0212-0609	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0610-	●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9601-9803		●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-706-0	04	1	9804-0004		●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING	1-47125-793-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING	1-47125-795-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD (A)	1-47125-496-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47125-496-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD (B)	1-47125-497-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47125-497-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47115-867-0	08	1	9601-9803		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47125-811-0	08	1	9804-0004		●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47125-794-0	04	1	0303-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47125-796-0	04	1	0303-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	9601-9803		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-812-0	08	1	9804-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING	1-88310-497-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING	1-88310-499-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-88302-956-0	02	1	9601-9803		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-88310-495-0	02	1	9804-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	9804-0004		●
5	LINING SET; FRT BRK,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-88310-498-0	01	1	0303-	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-88310-500-0	01	1	0303-	●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-001-0	02	1	9601-9803		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-496-0	02	1	9804-0004		●
7	RIVET; LINING,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5	1-09732-034-0	80	1	0303-	●	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	9601-0004		●
8	BUSHING; BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-011-0	04	1	0303-	●	●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	9601-0004		●
14	PIN; SHOE RETURN SPR EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0303-	●	●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	9601-0004	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-116-0	02	1	9601-0004		●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	0005-0211	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0212-0609	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0610-	●	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=73.5	1-47119-017-1	04	1	9601-0004		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-690-0	01	1	9601-0004		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-689-0	01	1	9601-0004		●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	9601-0004		●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9601-0004		●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	9601-0004		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	9601-0004		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	9601-0004		●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	9601-0004		●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09940-435-0	02	1	9601-0004		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-47624-211-0	04	1	9601-0004		●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=33.3	1-87830-525-0	02	1	9601-0004		●
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9601-0004		●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-185-2	02	1	0303-	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-119-0	02	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-269-1	02	1	9601-0004		●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-118-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-119-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-333-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-334-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9601-9901		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-0004		●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	9601-0004		●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	9601-0004		●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9601-0004		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9601-0004		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9601-0004		●
37	WASHER; ADJ CAM	1-47149-079-0	02	1	9601-0004	●
37	WASHER; ADJ CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-079-0	02	1	9601-0004		●
37	WASHER; ADJ CAM	1-47149-079-0	02	1	0005-0211	●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-079-0	02	1	0212-0609	●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-079-0	02	1	0610-	●	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9601-0004		●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9601-0004		●
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9601-0004		●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9601-0004		●
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9601-0004		●
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9601-0004		●
43	PIN; ANCHOR EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0303-	●	●
43	PIN; ANCHOR	1-47131-046-0	04	1	9601-0004	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-046-0	04	1	9601-0004		●
43	PIN; ANCHOR	1-47131-046-0	04	1	0005-0211	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0212-0609	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0610-	●	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	9601-0004		●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20801-016-0	02	1	0303-0512	●	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0601-	●	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20801-016-0	02	1	9601-0004		●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0303-	●	●
45	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-011-0	02	1	9601-0004		●
46	PLATE; LOCK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-005-0	02	1	0303-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	9601-0004		●

2 3 3 2 3 2 7 4 2 3 2 3 2 3 2 7 4 3 2 3 4 7 2 8 14 2 9 13 12 43 29 1 47 31 30 57 44 1 45 109 109 51 50 53 52 46 49 56 55 60 58 54 61 63 64 62 59 3 2 7 5 5 3 2 2 3 2 3 2 3 3 2 2 3 2 3 48 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-709-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-710-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47120-711-0	01	1	0303-	●	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47120-712-0	01	1	0303-	●	●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	9601-0004	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47120-402-0	04	1	9601-0004		●
1	SHOE; BRK,FRT	1-47120-402-0	04	1	0005-0211	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0212-0609	●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-402-0	04	1	0610-	●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9601-9803		●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-706-0	04	1	9804-0004		●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING	1-47125-793-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING	1-47125-795-0	04	1	0303-	●	●
2	LINING; FRT BRK SHOE,STANDARD (A)	1-47125-496-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47125-496-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD (B)	1-47125-497-0	01	1	9601-0004	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47125-497-0	01	1	9601-0004		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47115-867-0	08	1	9601-9803		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47125-811-0	08	1	9804-0004		●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47125-794-0	04	1	0303-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47125-796-0	04	1	0303-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	9601-9803		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-812-0	08	1	9804-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING	1-88310-497-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING	1-88310-499-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-88302-956-0	02	1	9601-9803		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-88310-495-0	02	1	9804-0004		●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	0303-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	9804-0004		●
5	LINING SET; FRT BRK,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-88310-498-0	01	1	0303-	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-88310-500-0	01	1	0303-	●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-001-0	02	1	9601-9803		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-496-0	02	1	9804-0004		●
7	RIVET; LINING,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5	1-09732-034-0	80	1	0303-	●	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	9601-0004		●
8	BUSHING; BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-011-0	04	1	0303-	●	●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	9601-0004		●
9	PIN; SHOE HOLDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09744-060-0	04	1	0303-	●	●
12	ROLLER; CAM,BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47113-007-0	04	1	0303-	●	●
12	ROLLER; CAM,BRK SHOE	1-47119-117-0	02	1	9601-0004	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-117-0	02	1	9601-0004		●
12	ROLLER; CAM,BRK SHOE	1-47119-117-0	02	1	0005-0211	●	●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-117-0	02	1	0212-0609	●	●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-117-0	02	1	0610-	●	●
13	CLIP; ROLLER PIN,BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	9-47119-022-0	04	1	0303-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	9601-0004	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-118-0	02	1	9601-0004		●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0005-0211	●	●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0212-0609	●	●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0610-	●	●
14	PIN; SHOE RETURN SPR EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0303-	●	●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	9601-0004	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-116-0	02	1	9601-0004		●
14	PIN; SHOE RETURN SPR	1-47119-116-0	02	1	0005-0211	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0212-0609	●	●
14	PIN; SHOE RETURN SPR HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0610-	●	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=73.5	1-47119-017-1	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-185-2	02	1	0303-	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	9601-0004	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-119-0	02	1	9601-0004		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0005-0211	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0212-0609	●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0610-	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-269-1	02	1	9601-0004		●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-118-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-47137-119-3	01	1	0303-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-333-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-333-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-333-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	9601-0004	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-334-0	01	1	9601-0004		●
30	BRACKET; ANCHOR,FRT	1-47137-334-0	01	1	0005-0211	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0212-0609	●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K>	1-47137-334-0	01	1	0610-	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9601-9901		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-0004		●
31	SEAL; OIL,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09625-228-0	02	1	0303-	●	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	9601-0004	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47149-056-0	02	1	9601-0004		●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0005-0211	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0212-0609	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0610-	●	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	04	1	9601-0004	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-057-0	04	1	9601-0004		●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	04	1	0005-0211	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	04	1	0212-0609	●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	04	1	0610-	●	●
43	PIN; ANCHOR EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0303-	●	●
43	PIN; ANCHOR	1-47131-046-0	04	1	9601-0004	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-046-0	04	1	9601-0004		●
43	PIN; ANCHOR	1-47131-046-0	04	1	0005-0211	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0212-0609	●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-046-0	04	1	0610-	●	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	9601-0004		●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20801-016-0	02	1	0303-0512	●	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0601-	●	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20801-016-0	02	1	9601-0004		●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0303-	●	●
45	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-011-0	02	1	9601-0004		●
46	PLATE; LOCK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-005-0	02	1	0303-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	9601-0004		●
47	CAMSHAFT; FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47141-051-0	01	1	0303-	●	●
47	CAMSHAFT; FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47141-052-0	01	1	0303-	●	●
47	CAMSHAFT; FRT BRK	1-47141-100-0	01	1	9601-0004	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-100-0	01	1	9601-0004		●
47	CAMSHAFT; FRT BRK	1-47141-100-0	01	1	0005-0211	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-100-0	01	1	0212-0609	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-100-0	01	1	0610-	●	●
47	CAMSHAFT; FRT BRK	1-47141-101-0	01	1	9601-0004	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-101-0	01	1	9601-0004		●
47	CAMSHAFT; FRT BRK	1-47141-101-0	01	1	0005-0211	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-101-0	01	1	0212-0609	●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-101-0	01	1	0610-	●	●
48	RING; SPACER,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K>	1-47143-005-0	02	1	0303-	●	●
49	NIPPLE; GREASE,SLACK ADJ EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT	9-09031-010-0	01	1	0303-0512	●	●
49	NIPPLE; GREASE,SLACK ADJ EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
49	NIPPLE; GREASE,SLACK ADJ EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0303-0512	●	●
49	NIPPLE; GREASE,SLACK ADJ EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
50	RING; FELT,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K>	1-09620-009-0	02	1	0303-	●	●
51	COLLAR; RING,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K>	1-47143-016-0	02	1	0303-	●	●
52	BUSHING; SLACK ADJ EXC. HUB LUBRICATION OIL BATH<C5K>	1-09330-041-0	02	1	0303-	●	●
53	ADJUSTER ASM; SLACK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48270-043-0	01	1	0303-	●	●
53	ADJUSTER ASM; SLACK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48270-044-0	01	1	0303-	●	●
53	ADJUSTER ASM; SLACK	1-48270-080-0	01	1	9601-0004	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-080-0	01	1	9601-0004		●
53	ADJUSTER ASM; SLACK	1-48270-080-0	01	1	0005-0211	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-080-0	01	1	0212-0609	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-080-0	01	1	0610-1209	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-111-0	01	1	1210-	●	●
53	ADJUSTER ASM; SLACK	1-48270-081-0	01	1	9601-0004	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-081-0	01	1	9601-0004		●
53	ADJUSTER ASM; SLACK	1-48270-081-0	01	1	0005-0211	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-081-0	01	1	0212-0609	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-081-0	01	1	0610-1209	●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-112-0	01	1	1210-	●	●
54	SPACER; CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47143-004-0	02	1	0303-	●	●
54	SPACER; CM/SHF (A)	1-47149-058-0	02	1	9601-0004	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47149-058-0	02	1	9601-0004		●
54	SPACER; CM/SHF (A)	1-47149-058-0	02	1	0005-0211	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-058-0	02	1	0212-0609	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-058-0	02	1	0610-	●	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	9601-0004	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-059-0	02	1	9601-0004		●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0005-0211	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0212-0609	●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0610-	●	●
55	PLATE; STOPPER,CM/SHF EXC. HUB LUBRICATION OIL BATH<C5K>	1-47149-021-0	02	1	0303-	●	●
56	CLIP; ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K>	9-09180-038-0	02	1	0303-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-0512	●	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
58	PIN; SPLIT,JAW JOINT EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28	9-08114-028-0	02	1	0303-0606	●	●
58	PIN; SPLIT,JAW JOINT EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
59	WASHER; PL,JAW JOINT EXC. HUB LUBRICATION OIL BATH<C5K> ID=17 OD=32	9-09160-616-0	02	1	0303-	●	●
60	JOINT; JAW,POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09768-060-1	02	1	0303-	●	●
61	PIN; JAW JOINT,POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09744-088-0	02	1	0303-	●	●
62	NUT; LK,JAW JOINT EXC. HUB LUBRICATION OIL BATH<C5K> M16	9-99111-416-0	02	1	0303-0512	●	●
62	NUT; LK,JAW JOINT EXC. HUB LUBRICATION OIL BATH<C5K> M16	0-91111-516-0	02	1	0601-	●	●
63	NUT; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K> M16	9-99110-416-0	04	1	0303-0512	●	●
63	NUT; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K> M16	0-91110-516-0	04	1	0601-	●	●
64	WASHER; LK,POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2	9-09150-516-0	04	1	0303-0603	●	●
64	WASHER; LK,POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2	0-91510-516-0	04	1	0604-	●	●
109	BUSHING; CM/SHF,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47146-003-1	04	1	0303-	●	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-014-0	04	1	9601-0004	●
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-014-0	04	1	9601-0004		●
109	BUSHING; CM/SHF,FRT BRK	1-47146-014-0	04	1	0005-0211	●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47146-014-0	04	1	0212-0609	●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47146-014-0	04	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
