0-28 — VENTILATION SYSTEM (#37877) — 14 parça

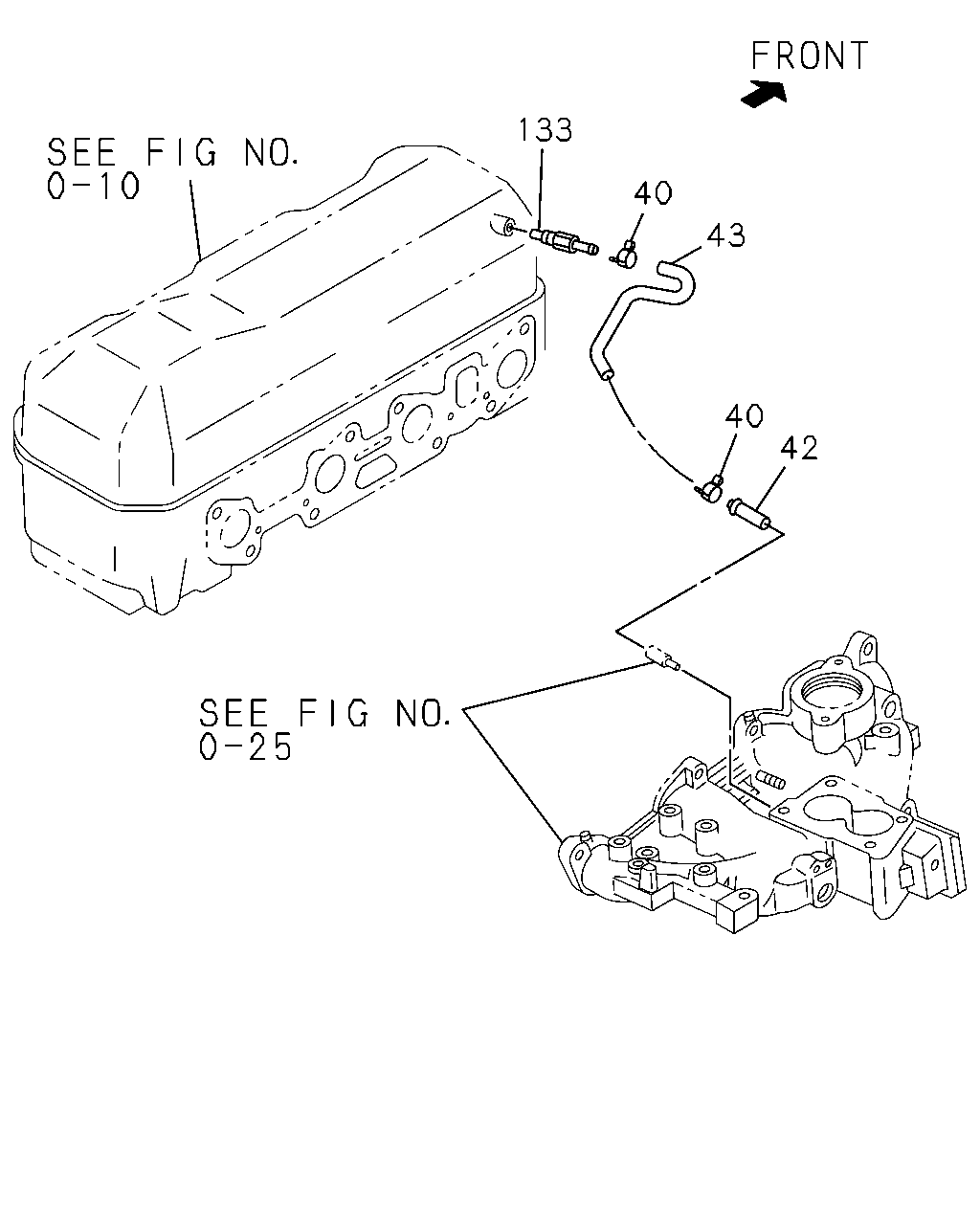

çizim 17215

133 40 43 40 42

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	40	CLIP; PCV HOSE ID=21	8-94242-034-0	02	1	9307-	●
	42	PIPE; PCV,INL MANIF	8-94153-176-0	01	1	9307-	●
	43	HOSE; PCV	8-97069-260-0	01	1	9307-	●
	43	HOSE; PCV TURBOCHARGER(K51)	8-94425-058-0	01	1	9407-		●
	133	VALVE; PCV L=58.5	8-94331-209-0	01	1	9307-	●

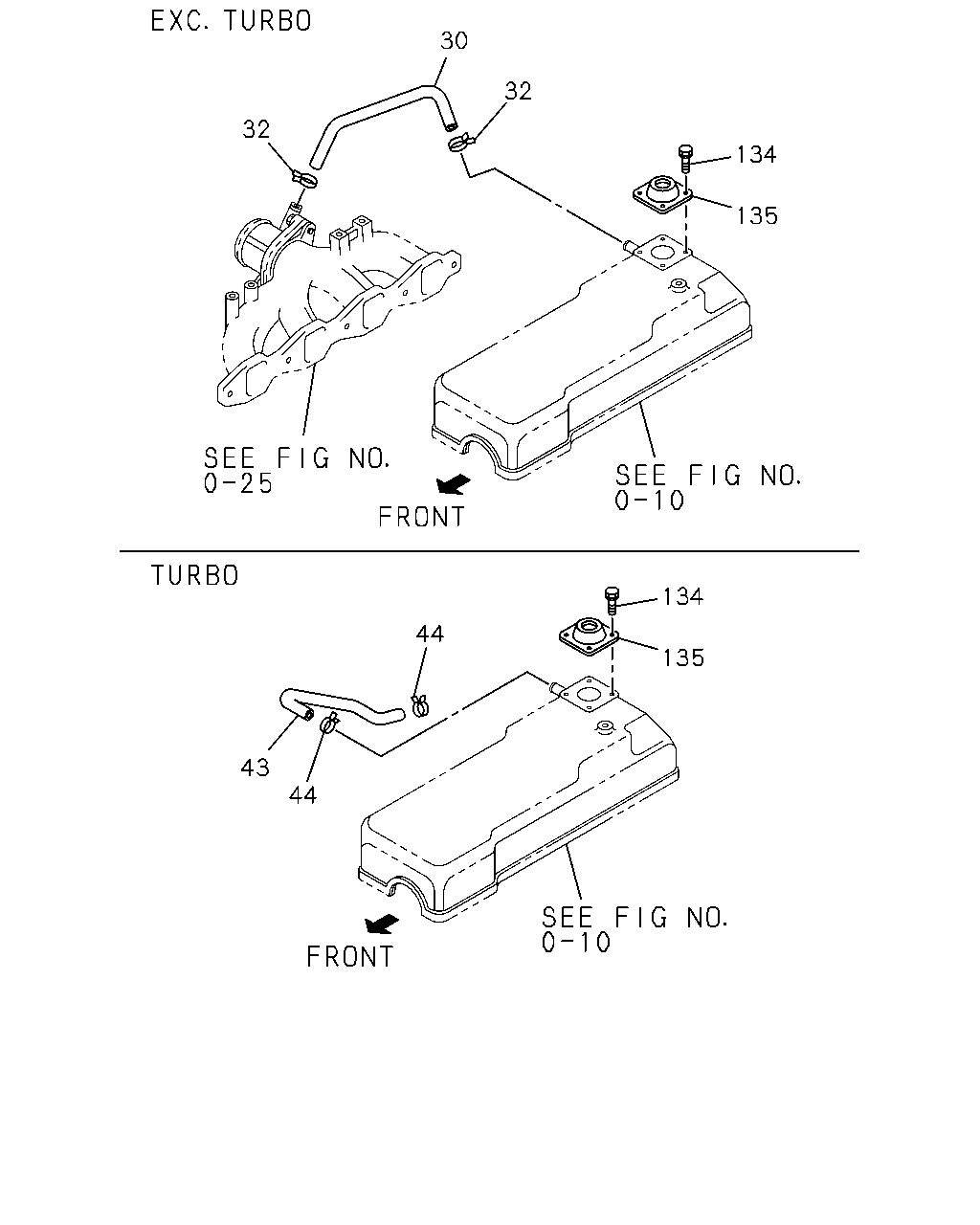

çizim 70736

30 32 32 134 135 134 44 135 43 44

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	30	HOSE; VENTILATOR,CYL HD COVER	8-94425-059-0	01	1	9307-9406		●
	30	HOSE; VENTILATOR,CYL HD COVER EXC. TURBOCHARGER(K51)	8-94425-059-0	01	1	9407-		●
	32	CLIP; VENT HOSE ID=15	8-94140-431-0	02	1	9307-9406		●
	32	CLIP; VENT HOSE EXC. TURBOCHARGER(K51) ID=15	8-94140-431-0	02	1	9407-		●
	43	HOSE; PCV	8-97069-260-0	01	1	9307-	●
	43	HOSE; PCV TURBOCHARGER(K51)	8-94425-058-0	01	1	9407-		●
	44	CLIP; HOSE,PCV TURBOCHARGER(K51) ID=14	8-94238-572-0	02	1	9407-		●
	134	SCREW; VENTILATOR M5X10 W/LK WASHER	9-03910-510-0	04	1	9307-		●
	135	VENTILATOR ASM	8-94247-403-2	01	1	9307-		●
