0-27 — EXHAUST MANIFOLD (#37876) — 57 parça

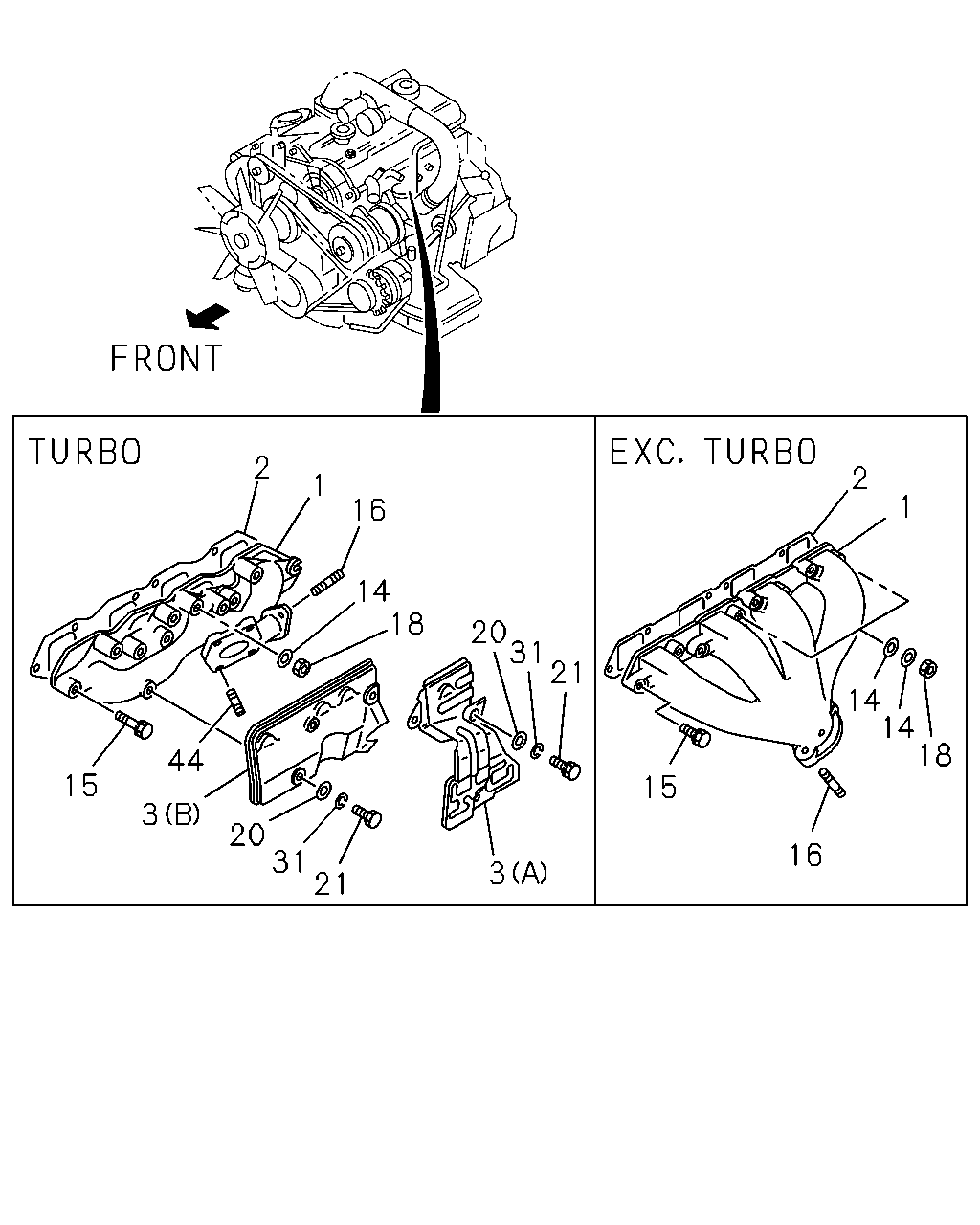

2 2 1 1 16 14 18 20 31 21 14 14 18 44 15 15 3 20 31 21 16 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2) W/EGR	8-94136-788-2	01	1	9307-9406	●
1	MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2) W/EGR	8-94136-788-2	01	1	9407-	●
1	MANIFOLD; EXHAUST CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9407-	●
1	MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9307-9406	●
1	MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> WO/EGR	8-94159-205-1	01	1	9407-	●
1	MANIFOLD; EXHAUST	8-94101-009-0	01	1	9307-9406		●
1	MANIFOLD; EXHAUST EXC. TURBOCHARGER(K51)	8-94101-009-0	01	1	9407-		●
1	MANIFOLD; EXHAUST TURBOCHARGER(K51)	8-94445-508-0	01	1	9407-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) NOT SEPARATED	8-94324-054-0	01	1	9307-9406	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) KIT	8-97117-182-0	01	1	9407-9501	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) CENTER	8-97117-183-0	01	1	9502-9502	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) NOT SEPARATED 950213-	8-94324-054-0	01	1	9502-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) FRT & RR	8-97117-184-1	02	1	9502-9502	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97026-410-2	01	1	9307-		●
3	PROTECTOR; HEAT,EXH MANIF	8-94411-715-0	01	1	9307-	●
3	PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-94250-286-2	01	1	9407-		●
3	PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (A)	8-97085-817-1	01	1	9407-		●
14	WASHER; PL,EXH MANIF ID=8.4	9-09160-508-0	02	1	9307-		●
14	WASHER; PL,EXH MANIF ID=8.4 OD=18	9-09164-608-0	02	1	9307-		●
15	BOLT; EXH MANIF M8X50 W/WASHER	8-94120-008-0	06	1	9307-		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04411-025-0	02	1	9307-	●
16	STUD; EXH PIPE TO MANIF M10X36 L=48	8-94126-210-0	02	1	9307-9406		●
16	STUD; EXH PIPE TO MANIF TURBOCHARGER(K51) M8X22 L=33	8-94257-319-0	02	1	9407-		●
16	STUD; EXH PIPE TO MANIF M10X36 L=48	8-94126-210-0	02	1	9407-		●
18	NUT; EXH MANIF M8	9-09110-408-0	07	1	9307-	●
18	NUT; EXH MANIF M8 LOCK NUT	9-09131-508-0	02	1	9307-		●
20	WASHER; PL,HEAT PROTECTOR TURBOCHARGER(K51) ID=8.4	9-09160-508-0	02	1	9407-		●
21	BOLT; HEAT PROTECTOR TURBOCHARGER(K51) M8X16	0-20800-816-0	02	1	9407-		●
21	BOLT; HEAT PROTECTOR TURBOCHARGER(K51) M8X12 FLANGE	0-28080-812-0	03	1	9407-		●
31	WASHER; LK,HEAT PROTECTOR TURBOCHARGER(K51) ID=8.2	9-09150-508-0	02	1	9407-		●
44	STUD; TURBOCHARGER TURBOCHARGER(K51) M8X22 L=33	8-94257-319-0	04	1	9407-		●

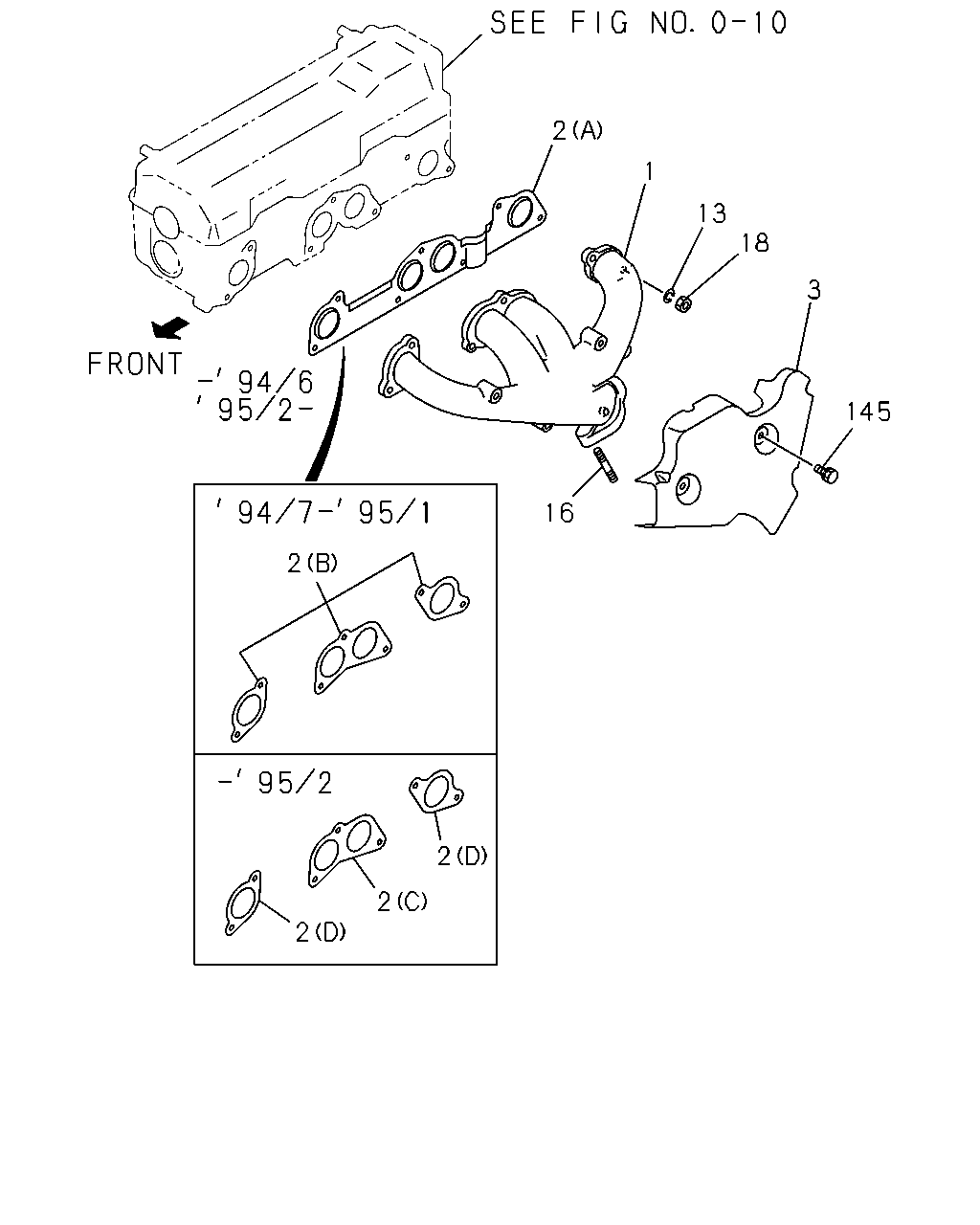

2 1 13 18 3 145 16 2 20 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2) W/EGR	8-94136-788-2	01	1	9307-9406	●
1	MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2) W/EGR	8-94136-788-2	01	1	9407-	●
1	MANIFOLD; EXHAUST CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9407-	●
1	MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9307-9406	●
1	MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> WO/EGR	8-94159-205-1	01	1	9407-	●
1	MANIFOLD; EXHAUST	8-94101-009-0	01	1	9307-9406		●
1	MANIFOLD; EXHAUST EXC. TURBOCHARGER(K51)	8-94101-009-0	01	1	9407-		●
1	MANIFOLD; EXHAUST TURBOCHARGER(K51)	8-94445-508-0	01	1	9407-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) NOT SEPARATED	8-94324-054-0	01	1	9307-9406	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) KIT	8-97117-182-0	01	1	9407-9501	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) CENTER	8-97117-183-0	01	1	9502-9502	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) NOT SEPARATED 950213-	8-94324-054-0	01	1	9502-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) FRT & RR	8-97117-184-1	02	1	9502-9502	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97026-410-2	01	1	9307-		●
3	PROTECTOR; HEAT,EXH MANIF	8-94411-715-0	01	1	9307-	●
3	PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-94250-286-2	01	1	9407-		●
3	PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (A)	8-97085-817-1	01	1	9407-		●
13	WASHER; LK,EXH MANIF ID=8.2	9-09150-508-0	07	1	9307-	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04411-025-0	02	1	9307-	●
16	STUD; EXH PIPE TO MANIF M10X36 L=48	8-94126-210-0	02	1	9307-9406		●
16	STUD; EXH PIPE TO MANIF TURBOCHARGER(K51) M8X22 L=33	8-94257-319-0	02	1	9407-		●
16	STUD; EXH PIPE TO MANIF M10X36 L=48	8-94126-210-0	02	1	9407-		●
18	NUT; EXH MANIF M8	9-09110-408-0	07	1	9307-	●
18	NUT; EXH MANIF M8 LOCK NUT	9-09131-508-0	02	1	9307-		●
20	WASHER; PL,HEAT PROTECTOR TURBOCHARGER(K51) ID=8.4	9-09160-508-0	02	1	9407-		●
145	BOLT; COVER TO MANIF M8X12 W/LK WASHER	0-50040-812-0	03	1	9307-	●
