Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#37875) — 52 parça

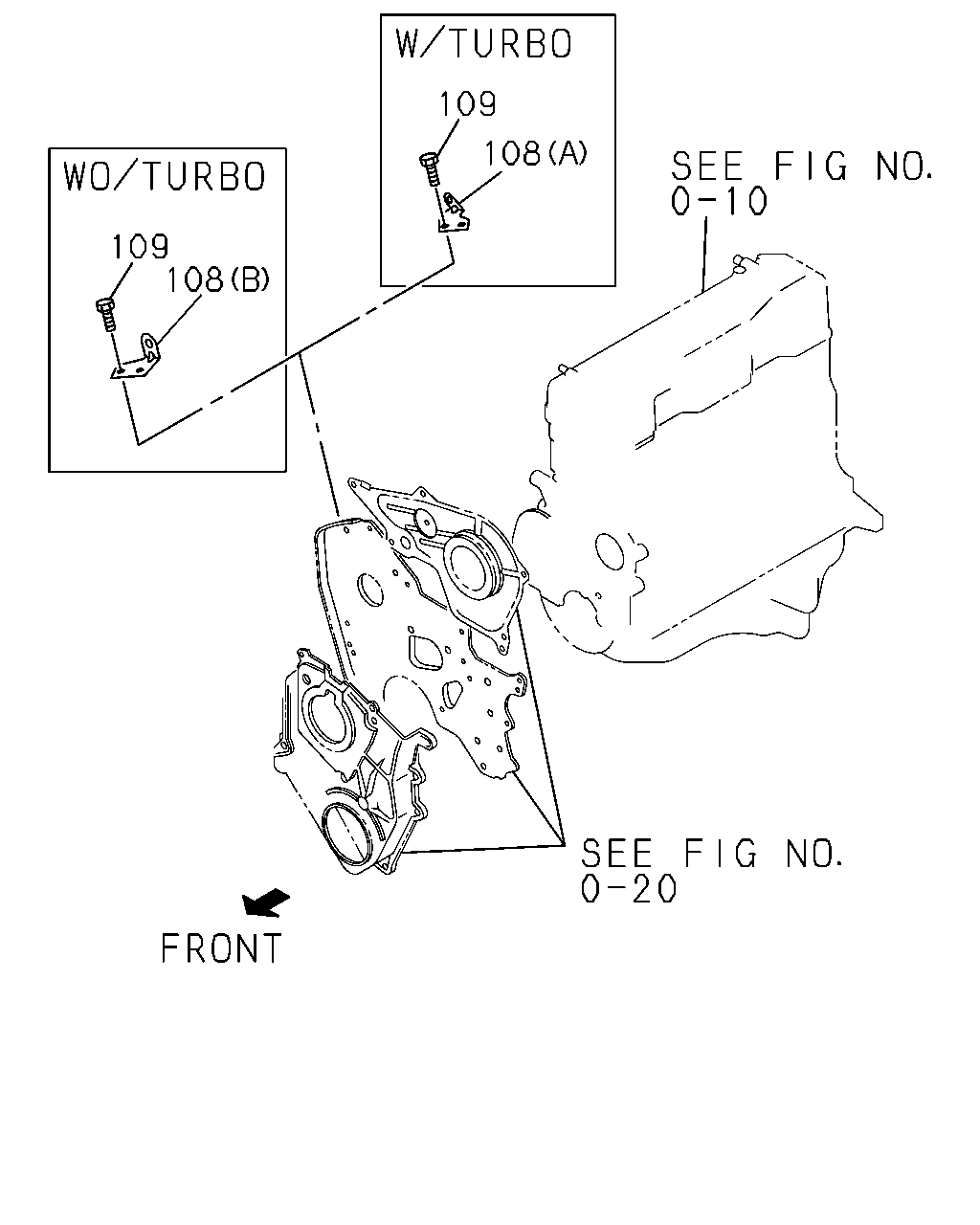

109 108 109 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
108	BRACKET; ACCEL CABLE (B)	8-94430-350-0	01	1	9307-9406	●
108	BRACKET; ACCEL CABLE EXC. TURBOCHARGER(K51) (B)	8-94430-350-0	01	1	9407-	●
108	BRACKET; ACCEL CABLE TURBOCHARGER(K51) (A)	8-94463-740-0	01	1	9407-	●
109	BOLT; ACCEL CABLE BRKT M6X12 W/LK WASHER	0-50040-612-0	02	1	9307-	●

299 1 13 7 20 22 23 52 53 1 13 7 20 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4>	8-94360-973-2	01	1	9407-		●
1	MANIFOLD; INL SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94360-972-0	01	1	9307-		●
1	MANIFOLD; INL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-121-0	01	1	9307-9406		●
1	MANIFOLD; INL EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ>	8-97094-121-0	01	1	9407-		●
1	MANIFOLD; INL	8-94221-141-1	01	1	9307-9406	●
1	MANIFOLD; INL EXC. TURBOCHARGER(K51)	8-94221-141-1	01	1	9407-	●
1	MANIFOLD; INL TURBOCHARGER(K51)	8-94445-702-0	01	1	9407-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9307-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94334-336-0	01	1	9307-	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	04	1	9307-		●
13	BOLT; INL MANIF M10X30 W/LK&PL WASHER	0-50141-030-0	03	1	9307-	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	04	1	9307-		●
20	NUT; INL MANIF M10	9-09110-410-0	02	1	9307-	●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	02	1	9307-	●
23	WASHER; PL,INL MANIF ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●
52	PIPE; INL	8-94419-262-2	01	1	9307-9406	●
52	PIPE; INL EXC. TURBOCHARGER(K51)	8-94419-262-2	01	1	9407-	●
53	BOLT; INL PIPE M10X25 W/LK WASHER	0-50051-025-0	02	1	9307-9406	●
53	BOLT; INL PIPE EXC. TURBOCHARGER(K51) M10X25 W/LK WASHER	0-50051-025-0	02	1	9407-	●
299	STUD; EGR VLV TURBOCHARGER(K51) M8X45 L=57	9-04110-845-0	02	1	9407-	●

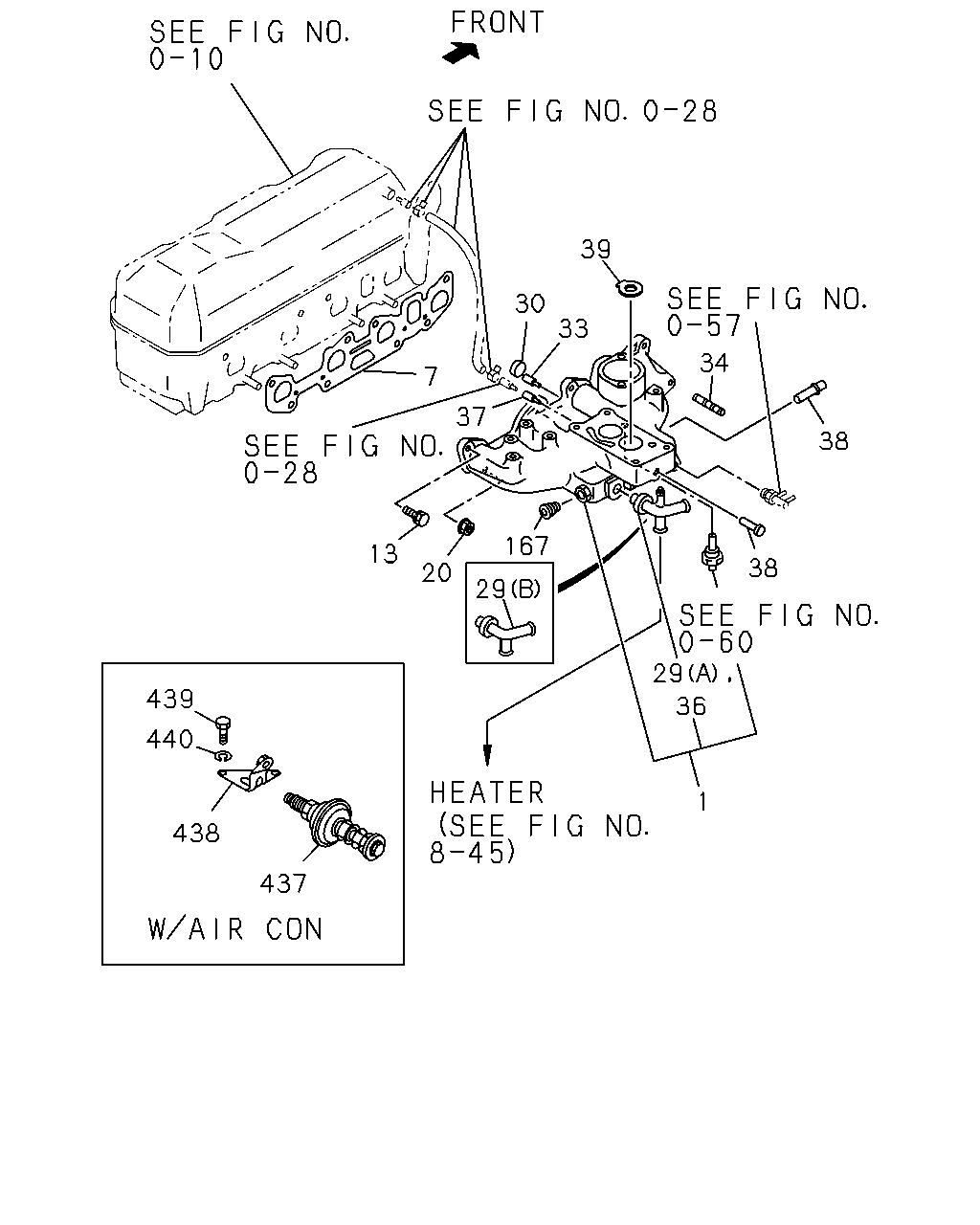

39 34 30 33 7 37 38 167 13 38 20 29 29 36 439 440 1 438 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4>	8-94360-973-2	01	1	9407-		●
1	MANIFOLD; INL SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94360-972-0	01	1	9307-		●
1	MANIFOLD; INL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-121-0	01	1	9307-9406		●
1	MANIFOLD; INL EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ>	8-97094-121-0	01	1	9407-		●
1	MANIFOLD; INL	8-94221-141-1	01	1	9307-9406	●
1	MANIFOLD; INL EXC. TURBOCHARGER(K51)	8-94221-141-1	01	1	9407-	●
1	MANIFOLD; INL TURBOCHARGER(K51)	8-94445-702-0	01	1	9407-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9307-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94334-336-0	01	1	9307-	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	04	1	9307-		●
13	BOLT; INL MANIF M10X30 W/LK&PL WASHER	0-50141-030-0	03	1	9307-	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	04	1	9307-		●
20	NUT; INL MANIF M10	9-09110-410-0	02	1	9307-	●
29	NIPPLE; HTR SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> (A) 3WAY	8-94412-137-1	01	1	9307-		●
29	NIPPLE; HTR EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 2WAY	8-94420-251-0	01	1	9307-9406		●
29	NIPPLE; HTR EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> (B) 2WAY	8-94420-251-0	01	1	9407-		●
30	CUP; SEALING,INL MANIF OD=20	9-11219-192-0	01	1	9307-		●
33	PIPE; IDLE COMPENSATOR,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9307-		●
34	PIPE; VAC OD=10 L=50	8-94330-262-0	01	1	9307-		●
36	NIPPLE; INL MANIF CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> 3WAY	8-94412-137-1	01	1	9407-		●
37	PIPE; PURGE LINE,INL MANIF OD=5 L=34	8-94200-851-2	01	1	9307-		●
38	PIPE; VAC,MCV,INL MANIF CATALYSIS CONTROL<6MZ>	8-94203-870-1	01	1	9407-		●
39	TUBE; DISTR,INL MANIF CATALYSIS CONTROL<6MZ>	8-94320-692-0	01	1	9407-		●
167	PLUG; INL MANIF EXC. SAUDI ARABIA EQUIPMENT(EU2) PT3/8	5-09605-005-0	01	1	9307-		●
437	DIAPHRAGM; FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94232-272-0	01	1	9307-		●
438	BRACKET; DIAPH,INL MANIF AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94232-271-0	01	1	9307-		●
439	BOLT; BRKT TO INL MANIF AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X16	0-20800-816-0	02	1	9307-		●
440	WASHER; LK,BRKT,FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8.2	9-09150-608-0	02	1	9307-		●
