Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶

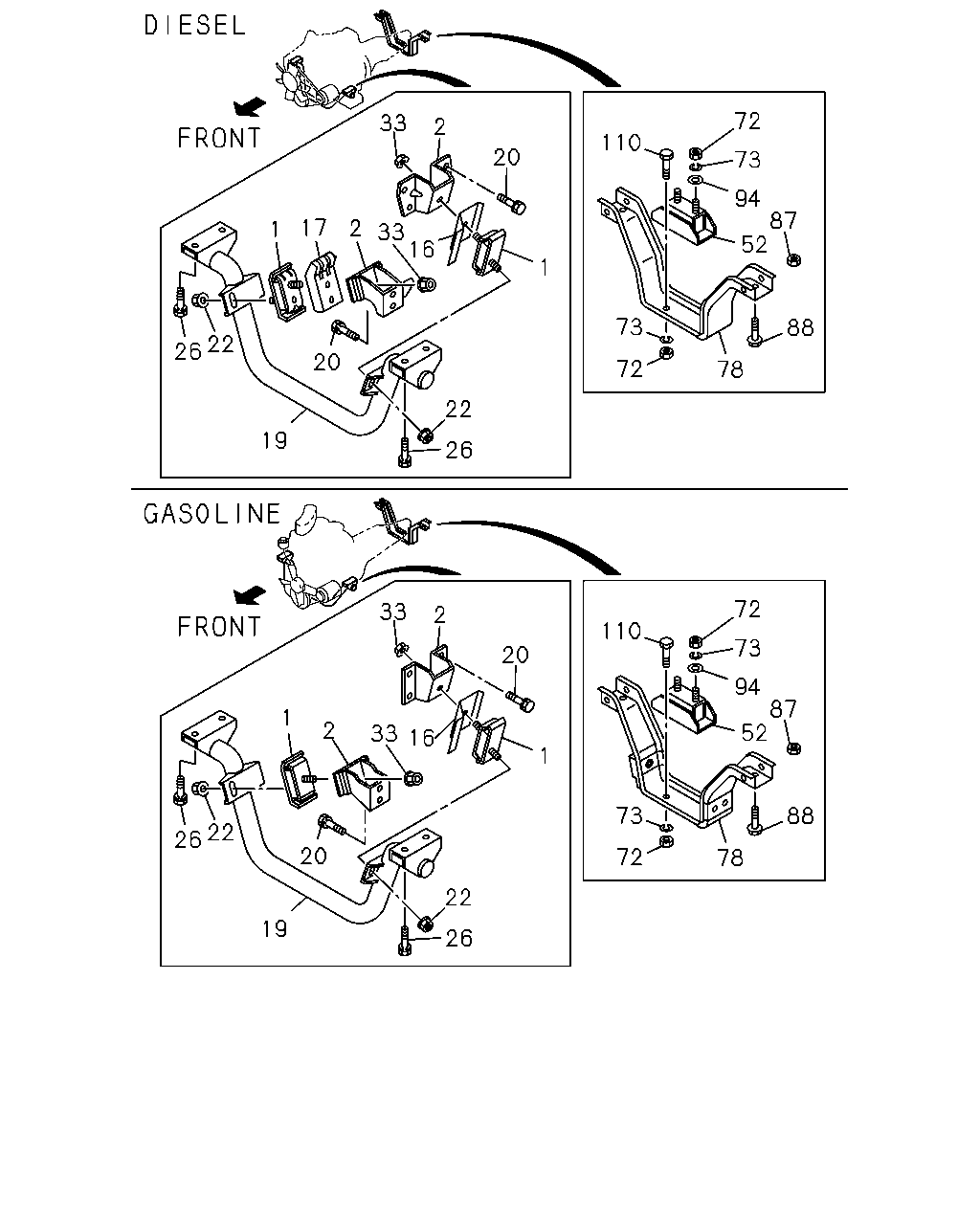

0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#37874) — 28 parça
Tümü
A - 4ZC1 ENG
B - 4FG1 ENG
72
33
2
110
20
73
2
33
16
94
87
52
17
1
1
73
88
22
26
20
72
78
22
19
26
72
33
2
110
73
20
94
87
52
1
2
33
16
1
73
88
22
26
20
72
78
22
19
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
8-94177-241-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94177-240-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94332-275-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94332-274-1
01
1
9307-
●
2
FOOT; ENG
8-94433-418-3
01
1
9307-
●
2
FOOT; ENG
8-94430-349-1
01
1
9307-
●
2
FOOT; ENG
8-94339-909-0
01
1
9307-
●
2
FOOT; ENG
8-94339-908-0
01
1
9307-
●
16
PROTECTOR; HEAT,ENG MTG,FRT
8-94241-561-0
01
1
9307-
●
16
PROTECTOR; HEAT,ENG MTG,FRT
8-94226-678-1
01
1
9307-
●
17
COVER; CUSHION RUBBER,FRT
8-94226-677-0
01
1
9307-
●
19
MEMBER; ENG MTG CROSS
8-94458-026-0
01
1
9307-
●
19
MEMBER; ENG MTG CROSS
8-94454-812-1
01
1
9307-
●
20
BOLT; ENG FOOT
M12X25 W/LK WASHER
0-50041-225-0
04
1
9307-
●
20
BOLT; ENG FOOT
M10X22 W/LK WASHER
0-50041-022-0
01
1
9307-
●
●
20
BOLT; ENG FOOT
M14X25 W/LK&PL WASHER
0-50141-425-0
01
1
9307-
●
●
20
BOLT; ENG FOOT
M12X25 W/LK WASHER
0-50041-225-0
05
1
9307-
●
22
NUT; CUSHION RUBBER TO BRKT
M10 FLANGE
8-94126-973-0
02
1
9307-
●
●
26
BOLT; CUSHION RUBBER TO MTG BRKT
M12X30 W/LK&PL WASHER
0-50141-230-0
04
1
9307-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M10 FLANGE
8-94126-973-0
02
1
9307-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-94463-310-0
01
1
9307-
●
●
72
NUT; SUPPORT RUBBER TO TRANS
M10
9-09110-410-0
02
1
9307-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2
9-09150-810-0
02
1
9307-
●
●
78
BRACKET; ENG MTG,RR
8-94226-681-6
01
1
9307-
●
●
87
NUT; ENG MTG RR
M6
9-09110-406-0
01
1
9307-
●
●
88
BOLT; MTG BRKT TO BODY
M10X25 FLANGE
0-28081-025-0
04
1
9307-
●
●
94
WASHER; PL,BRKT
ID=10.5
9-09164-510-0
02
1
9307-
●
●
110
BOLT; SUPPORT RUBBER TO BRKT
M10X22 W/LK&PL WASHER
0-50141-022-0
02
1
9307-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
