0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#37872) — 145 parça

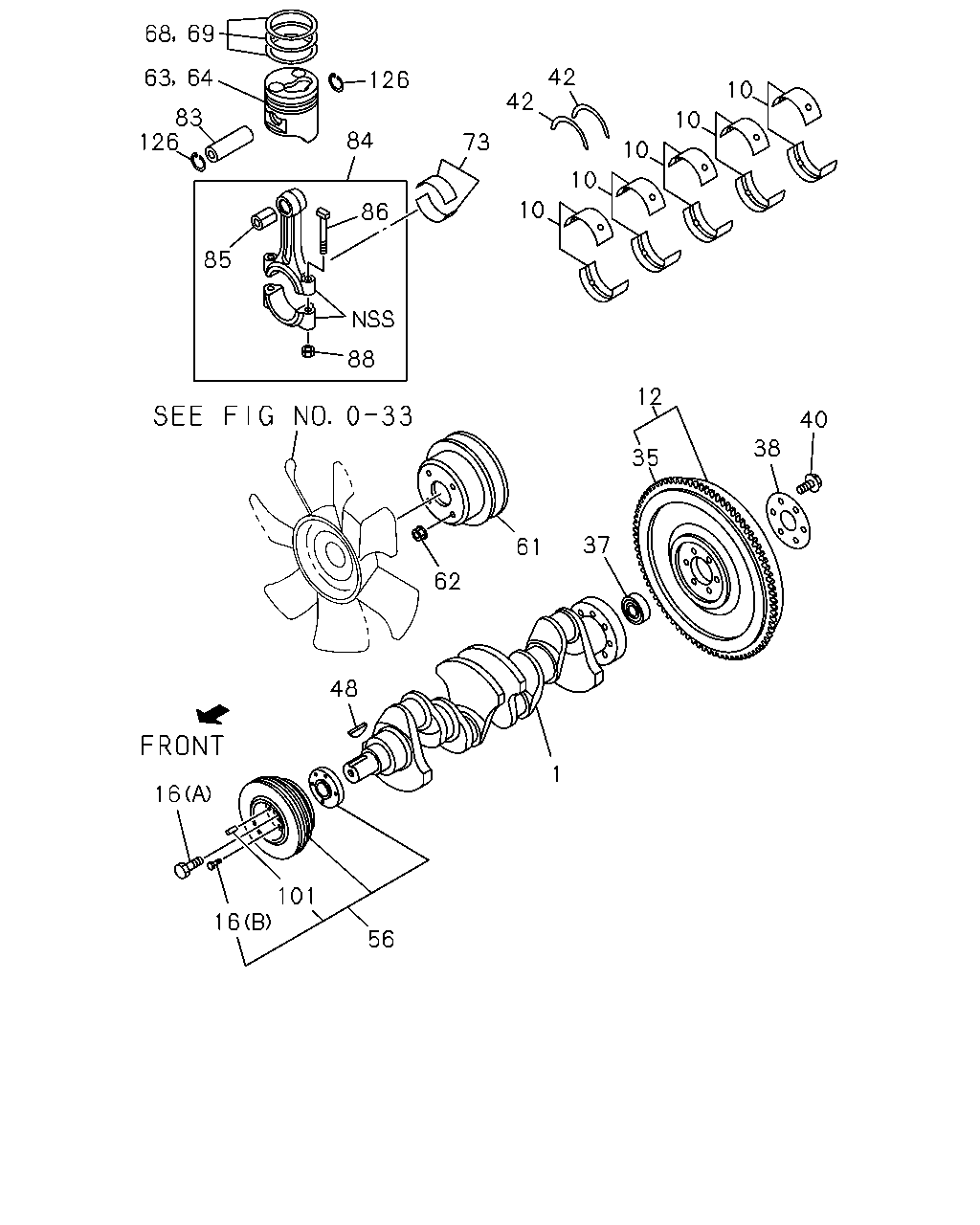

çizim 65758
68 69 42 42 63 64 126 10 83 126 10 84 73 10 10 10 86 85 88 12 40 38 35 37 61 62 48 1 16 101 16 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94251-729-1 01 1 9307- ●
1 CRANKSHAFT 8-94449-066-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97063-243-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-244-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-245-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.1 		8-97063-246-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.2,4,5 		8-97063-247-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.3 		8-97063-248-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.1 		8-97063-249-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.2,4,5 		8-97063-250-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.3 		8-97063-251-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.1 		8-97063-252-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.2,4,5 		8-97063-253-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.3 		8-97063-254-0 01 1 9307- ●
12 FLYWHEEL 8-94425-192-0 01 1 9307- ●
12 FLYWHEEL 8-94327-361-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
M6X16 W/LK WASHER 		0-50040-616-0 08 1 9307- ●
16 BOLT; PULLEY TO CENTER
(A) M16X36 		8-94449-170-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
POWER STEERING<N40> (B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
16 BOLT; PULLEY TO CENTER
EXC. POWER STEERING<N40> (B) M8X55 W/LK WASHER 		5-09000-084-1 04 1 9307- ●
35 GEAR; RING 9-12333-032-1 01 1 9307- ●
35 GEAR; RING
W/YELLOW MARK 		8-94327-362-0 01 1 9307- ●
37 BEARING; PILOT,TOP GEAR SHAFT 9-00090-679-0 01 1 9307- ● ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9307-9403 ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9404- ● ●
38 WASHER; FLYWHEEL
T=0.8 		8-94235-325-1 01 1 9307-9403 ●
40 BOLT; FLYWHEEL
M10X36 		8-94479-034-0 08 1 9307- ● ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9407- ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9307-9406 ●
42 WASHER; THRUST,CR/SHF 8-94250-265-0 02 1 9307- ●
48 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9307- ● ●
56 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> 3-GROOVE 		8-94315-463-1 01 1 9307- ●
56 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> 2-GROOVE 		8-94122-980-4 01 1 9307- ●
61 PULLEY; FAN DRIVE 8-94222-082-1 01 1 9307- ●
62 NUT; FAN PULLEY
TURBOCHARGER(K51) M6 FLANGE 		5-09440-004-0 04 1 9407- ●
63 PISTON
CHINA EQUIPMENT(YT2) 		8-94428-465-3 04 1 9307- ●
63 PISTON
EXC. CHINA EQUIPMENT(YT2) 		8-94175-087-2 04 1 9307- ●
63 PISTON 8-94454-813-0 04 1 9307-9403 ●
63 PISTON 8-97073-851-0 04 1 9404- ●
64 PISTON; O/S=0.50
CHINA EQUIPMENT(YT2) 		8-94446-920-1 04 1 9307- ●
64 PISTON; O/S=0.50
EXC. CHINA EQUIPMENT(YT2) 		8-94414-055-1 04 1 9307- ●
64 PISTON; O/S=0.50 8-94329-493-0 04 1 9307-9403 ●
64 PISTON; O/S=0.50 8-97115-172-0 04 1 9404- ●
68 RING SET; PISTON,STANDARD 8-94119-545-0 04 1 9307-9406 ●
68 RING SET; PISTON,STANDARD
EXC. CATALYSIS CONTROL<6MZ> 		8-94119-545-0 04 1 9407- ●
68 RING SET; PISTON,STANDARD
CATALYSIS CONTROL<6MZ> 		8-94235-878-0 04 1 9407- ●
68 RING SET; PISTON,STANDARD 8-94469-634-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94143-049-0 04 1 9307-9406 ●
69 RING SET; PISTON,O/S=0.50
EXC. CATALYSIS CONTROL<6MZ> 		8-94143-049-0 04 1 9407- ●
69 RING SET; PISTON,O/S=0.50
CATALYSIS CONTROL<6MZ> 		8-94133-032-0 04 1 9407- ●
69 RING SET; PISTON,O/S=0.50 8-94329-626-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLACK 		8-94251-266-1 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BROWN 		8-94414-305-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLUE 		8-94414-306-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94329-497-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-94329-498-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
PINK 		8-94329-499-0 04 1 9307- ●
83 PIN; PISTON 5-12211-011-0 04 1 9307- ●
83 PIN; PISTON 5-12211-017-0 04 1 9307- ●
84 ROD ASM; CONN 8-94215-643-3 04 1 9307- ●
84 ROD ASM; CONN 8-94449-073-0 04 1 9307- ●
85 BUSHING; CONNROD 8-94247-838-0 04 1 9307- ●
86 BOLT; CONNROD
M10X60 		9-12235-068-2 08 1 9307- ●
86 BOLT; CONNROD 8-94216-206-4 08 1 9307- ●
88 NUT; CONNROD 9-09840-238-0 08 1 9307- ●
88 NUT; CONNROD 8-94224-236-2 08 1 9307- ●
101 PIN; CR/SHF
POWER STEERING<N40> OD=4 L=16 		9-08160-416-0 01 1 9307- ●
101 PIN; CR/SHF
EXC. POWER STEERING<N40> OD=4 L=12 		9-08160-412-0 01 1 9307- ●
126 RING; SNAP,PISTON PIN 5-09587-001-0 08 1 9307- ●

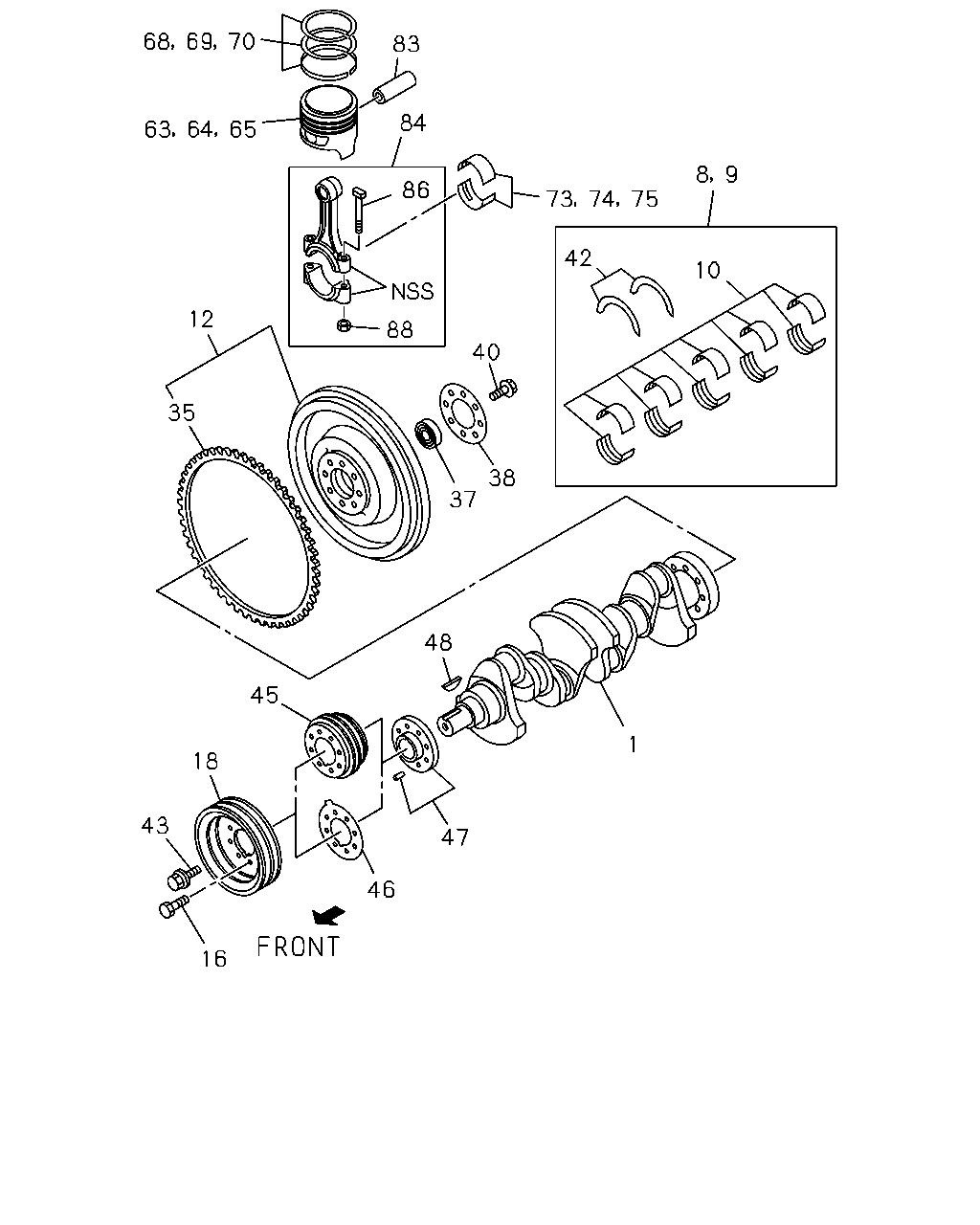

çizim 67557
68 83 84 63 64 65 8 9 86 74 42 10 12 88 40 35 38 37 48 45 1 18 43 47 46 16 73 75 69 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94251-729-1 01 1 9307- ●
1 CRANKSHAFT 8-94449-066-0 01 1 9307- ●
8 METAL KIT; CRANKSHAFT,U/S=0.25
UNSI=0.25 		8-94133-028-1 01 1 9307- ●
9 METAL KIT; CRANKSHAFT,U/S=0.50
UNSI=0.50 		8-94133-029-1 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97063-243-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-244-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-245-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.1 		8-97063-246-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.2,4,5 		8-97063-247-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.3 		8-97063-248-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.1 		8-97063-249-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.2,4,5 		8-97063-250-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.3 		8-97063-251-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.1 		8-97063-252-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.2,4,5 		8-97063-253-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.3 		8-97063-254-0 01 1 9307- ●
12 FLYWHEEL 8-94425-192-0 01 1 9307- ●
12 FLYWHEEL 8-94327-361-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
M6X16 W/LK WASHER 		0-50040-616-0 08 1 9307- ●
16 BOLT; PULLEY TO CENTER
(A) M16X36 		8-94449-170-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
POWER STEERING<N40> (B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
16 BOLT; PULLEY TO CENTER
EXC. POWER STEERING<N40> (B) M8X55 W/LK WASHER 		5-09000-084-1 04 1 9307- ●
18 PULLEY; CR/SHF 8-94178-773-0 01 1 9307- ●
35 GEAR; RING 9-12333-032-1 01 1 9307- ●
35 GEAR; RING
W/YELLOW MARK 		8-94327-362-0 01 1 9307- ●
37 BEARING; PILOT,TOP GEAR SHAFT 9-00090-679-0 01 1 9307- ● ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9307-9403 ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9404- ● ●
38 WASHER; FLYWHEEL
T=0.8 		8-94235-325-1 01 1 9307-9403 ●
40 BOLT; FLYWHEEL
M10X36 		8-94479-034-0 08 1 9307- ● ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9407- ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9307-9406 ●
42 WASHER; THRUST,CR/SHF 8-94250-265-0 02 1 9307- ●
43 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 9307- ●
45 PULLEY ASM; CR/SHF,P/S & A/C
POWER STEERING<N40> 2-GROOVE 		8-94411-793-1 01 1 9307- ●
45 PULLEY ASM; CR/SHF,P/S & A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. POWER STEERING<N40> 2-GROOVE 		8-94411-793-1 01 1 9307- ●
46 PLATE; PULLEY,CR/SHF
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),POWER STEERING<N40> 		8-94159-197-1 01 1 9307- ●
47 BOSS; CR/SHF PULLEY 8-97073-079-0 01 1 9307- ●
48 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9307- ● ●
63 PISTON
CHINA EQUIPMENT(YT2) 		8-94428-465-3 04 1 9307- ●
63 PISTON
EXC. CHINA EQUIPMENT(YT2) 		8-94175-087-2 04 1 9307- ●
63 PISTON 8-94454-813-0 04 1 9307-9403 ●
63 PISTON 8-97073-851-0 04 1 9404- ●
64 PISTON; O/S=0.50
CHINA EQUIPMENT(YT2) 		8-94446-920-1 04 1 9307- ●
64 PISTON; O/S=0.50
EXC. CHINA EQUIPMENT(YT2) 		8-94414-055-1 04 1 9307- ●
64 PISTON; O/S=0.50 8-94329-493-0 04 1 9307-9403 ●
64 PISTON; O/S=0.50 8-97115-172-0 04 1 9404- ●
65 PISTON; O/S=1.00
CHINA EQUIPMENT(YT2) 		8-94446-921-1 04 1 9307- ●
65 PISTON; O/S=1.00
EXC. CHINA EQUIPMENT(YT2) 		8-94414-056-1 04 1 9307- ●
68 RING SET; PISTON,STANDARD 8-94119-545-0 04 1 9307-9406 ●
68 RING SET; PISTON,STANDARD
EXC. CATALYSIS CONTROL<6MZ> 		8-94119-545-0 04 1 9407- ●
68 RING SET; PISTON,STANDARD
CATALYSIS CONTROL<6MZ> 		8-94235-878-0 04 1 9407- ●
68 RING SET; PISTON,STANDARD 8-94469-634-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94143-049-0 04 1 9307-9406 ●
69 RING SET; PISTON,O/S=0.50
EXC. CATALYSIS CONTROL<6MZ> 		8-94143-049-0 04 1 9407- ●
69 RING SET; PISTON,O/S=0.50
CATALYSIS CONTROL<6MZ> 		8-94133-032-0 04 1 9407- ●
69 RING SET; PISTON,O/S=0.50 8-94329-626-0 04 1 9307- ●
70 RING SET; PISTON,O/S=1.00 8-94143-050-0 04 1 9307-9406 ●
70 RING SET; PISTON,O/S=1.00
EXC. CATALYSIS CONTROL<6MZ> 		8-94143-050-0 04 1 9407- ●
70 RING SET; PISTON,O/S=1.00
CATALYSIS CONTROL<6MZ> 		8-94133-033-0 04 1 9407- ●
73 METAL SET; CONN ROD,STANDARD
BLACK 		8-94251-266-1 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BROWN 		8-94414-305-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLUE 		8-94414-306-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94329-497-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-94329-498-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
PINK 		8-94329-499-0 04 1 9307- ●
74 METAL SET; CONN ROD,U/S=0.25 8-94133-026-0 04 1 9307- ●
75 METAL SET; CONN ROD,U/S=0.50 8-94133-027-0 04 1 9307- ●
83 PIN; PISTON 5-12211-011-0 04 1 9307- ●
83 PIN; PISTON 5-12211-017-0 04 1 9307- ●
84 ROD ASM; CONN 8-94215-643-3 04 1 9307- ●
84 ROD ASM; CONN 8-94449-073-0 04 1 9307- ●
86 BOLT; CONNROD
M10X60 		9-12235-068-2 08 1 9307- ●
86 BOLT; CONNROD 8-94216-206-4 08 1 9307- ●
88 NUT; CONNROD 9-09840-238-0 08 1 9307- ●
88 NUT; CONNROD 8-94224-236-2 08 1 9307- ●
