0-14 — CAMSHAFT AND VALVE (#37871) — 143 parça

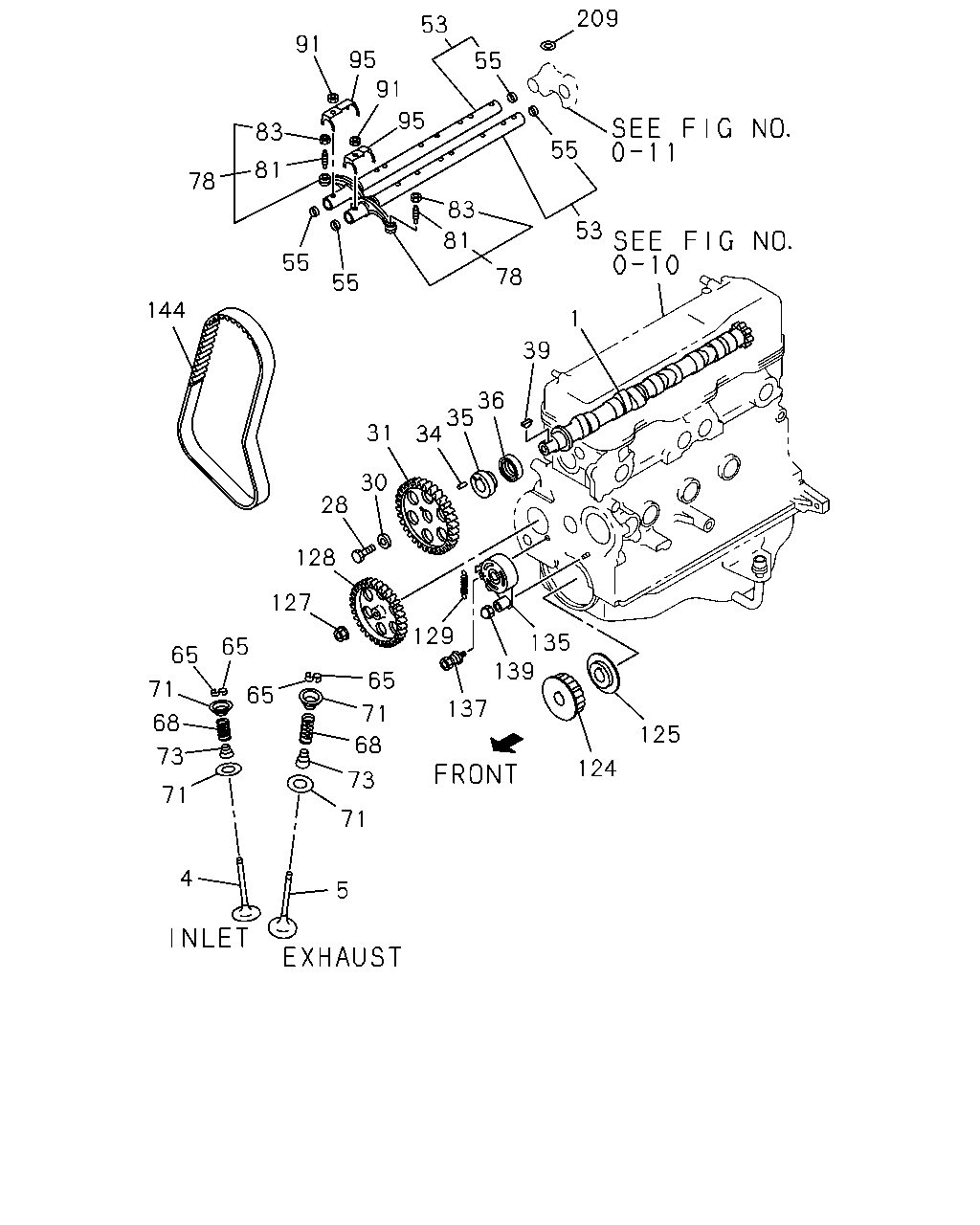

209 53 91 95 91 95 55 83 55 81 78 83 81 53 55 78 55 144 1 39 36 35 34 31 30 28 128 127 135 139 129 65 65 71 68 73 65 71 68 65 137 125 124 73 71 71 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94136-784-1	01	1	9307-	●
1	CAMSHAFT	8-94449-046-0	01	1	9307-		●
4	VALVE; INL	8-94251-275-0	04	1	9307-	●
4	VALVE; INL	8-94449-047-0	04	1	9307-		●
5	VALVE; EXH	8-94441-074-0	04	1	9307-9406	●
5	VALVE; EXH EXC. CATALYSIS CONTROL<6MZ>	8-94441-074-0	04	1	9407-9410	●
5	VALVE; EXH CATALYSIS CONTROL<6MZ>	8-94251-276-0	04	1	9407-9410	●
5	VALVE; EXH	8-97119-751-0	04	1	9411-	●
5	VALVE; EXH	8-94449-048-0	04	1	9307-		●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9307-	●
28	BOLT; CAM PULLEY M12X32	9-92061-232-0	01	1	9307-		●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9307-	●
30	WASHER; PULLEY ID=12.5	5-12519-001-0	01	1	9307-		●
31	SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9307-	●
31	SPROCKET; CM/SHF Z=42	8-94220-897-4	01	1	9307-		●
34	PIN; CM/SHF	9-08160-512-0	01	1	9307-	●
35	BOSS; CM/SHF	8-94251-272-1	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=47	5-09625-053-2	01	1	9307-		●
39	KEY; WOODRUFF,BOSS	9-08055-516-0	01	1	9307-	●
53	SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9307-	●
53	SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9307-	●
53	SHAFT; ROCKER ARM	8-94139-343-0	01	1	9307-		●
55	PLUG; ROCKER SHAFT END INLET	8-94116-940-0	02	1	9307-	●
55	PLUG; ROCKER SHAFT END EXHAUST	8-94116-941-0	02	1	9307-	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9307-		●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9307-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9307-		●
68	SPRING; VLV	8-94259-483-0	08	1	9307-	●
68	SPRING; VLV	8-94449-173-1	08	1	9307-		●
71	SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9307-	●
71	SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9307-	●	●
71	SEAT; SPR UPPER OD=32	5-12563-022-1	08	1	9307-		●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97033-673-0	08	1	9307-	●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9307-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9307-	●
78	ARM; ROCKER	8-94449-049-0	08	1	9307-		●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9307-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	08	1	9307-		●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9307-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	08	1	9307-		●
91	NUT; ROCKER SHAFT M8	9-09110-508-0	10	1	9307-	●
95	SPRING; ROCKER SHAFT L=57.0	8-94200-814-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=38.0	8-94200-815-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=47.0	8-94139-384-0	03	1	9307-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94231-165-1	01	1	9307-	●
124	PULLEY; TIMING,CR/SHF Z=21	8-94224-637-2	01	1	9307-		●
125	PLATE; GUIDE,TIMING BELT	8-94215-184-0	01	1	9307-	●
125	PLATE; GUIDE,TIMING BELT	8-94221-742-1	01	1	9307-		●
127	NUT; PULLEY M12	8-94221-051-0	01	1	9307-	●	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94231-166-2	01	1	9307-	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94239-176-2	01	1	9307-		●
129	SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9307-	●
129	SPRING; TENSIONER L=89.5	8-94223-818-2	01	1	9307-		●
135	PULLEY; TENSIONER	8-94215-197-1	01	1	9307-	●
135	PULLEY; TENSIONER	8-94220-900-2	01	1	9307-		●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9307-	●
137	BOLT; TENSIONER (B) M8X20	0-20800-820-0	02	1	9307-		●
137	BOLT; TENSIONER (A) M12X41.5	8-94217-207-1	01	1	9307-		●
139	NUT; TENSIONER M8	9-09110-508-0	01	1	9307-	●
144	BELT; TIMING	8-97066-863-0	01	1	9307-	●
144	BELT; TIMING	8-97086-153-0	01	1	9307-		●
209	WASHER; LK,ROCKER ARM BRKT ID=8.4	9-09160-508-0	02	1	9307-	●

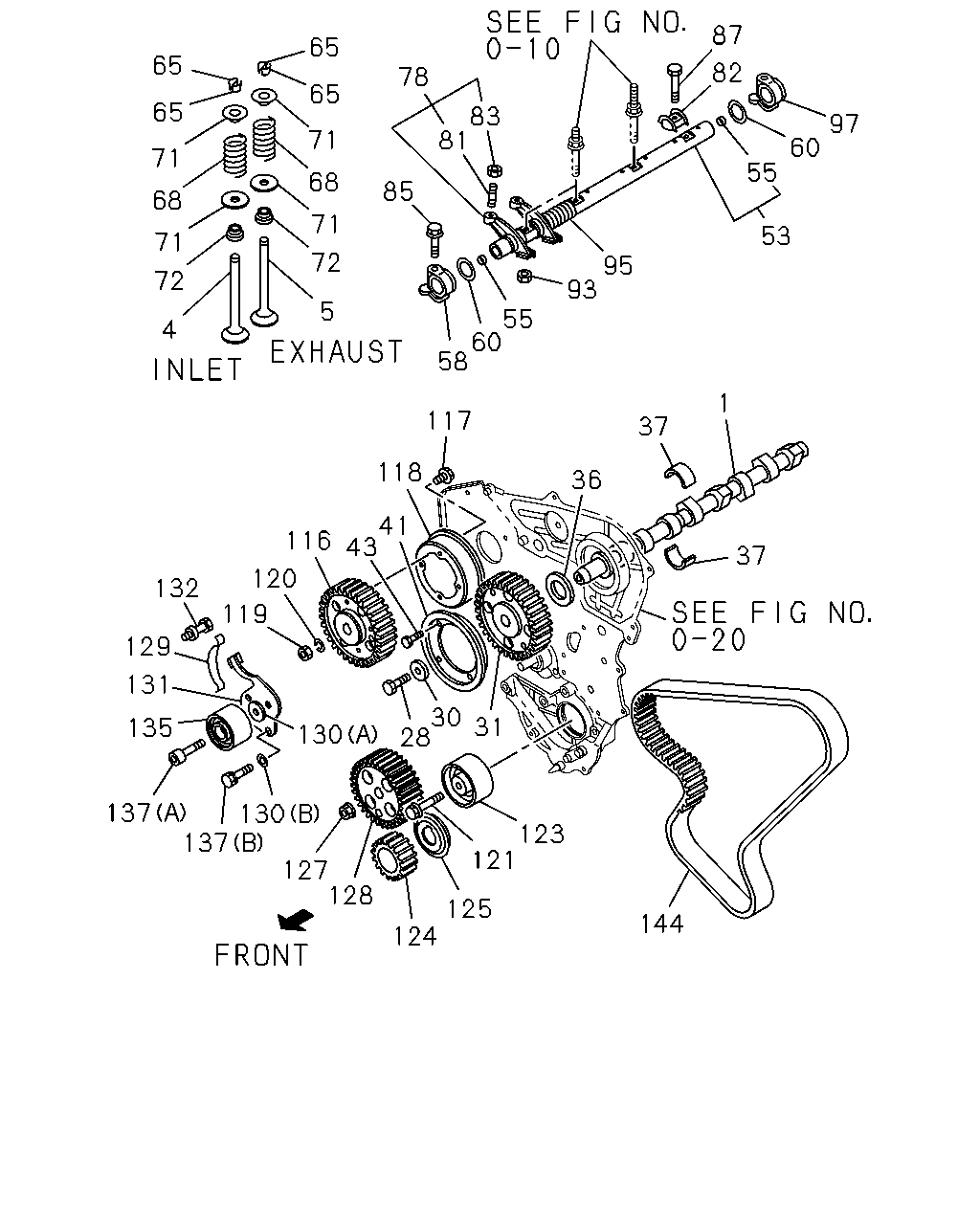

87 82 65 65 78 65 65 83 81 97 60 55 71 71 68 85 68 71 72 53 71 72 95 93 5 55 60 58 4 1 117 37 118 41 116 43 120 119 36 37 132 129 131 30 31 28 135 130 137 130 137 123 121 127 128 125 124 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94136-784-1	01	1	9307-	●
1	CAMSHAFT	8-94449-046-0	01	1	9307-		●
4	VALVE; INL	8-94251-275-0	04	1	9307-	●
4	VALVE; INL	8-94449-047-0	04	1	9307-		●
5	VALVE; EXH	8-94441-074-0	04	1	9307-9406	●
5	VALVE; EXH EXC. CATALYSIS CONTROL<6MZ>	8-94441-074-0	04	1	9407-9410	●
5	VALVE; EXH CATALYSIS CONTROL<6MZ>	8-94251-276-0	04	1	9407-9410	●
5	VALVE; EXH	8-97119-751-0	04	1	9411-	●
5	VALVE; EXH	8-94449-048-0	04	1	9307-		●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9307-	●
28	BOLT; CAM PULLEY M12X32	9-92061-232-0	01	1	9307-		●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9307-	●
30	WASHER; PULLEY ID=12.5	5-12519-001-0	01	1	9307-		●
31	SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9307-	●
31	SPROCKET; CM/SHF Z=42	8-94220-897-4	01	1	9307-		●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=47	5-09625-053-2	01	1	9307-		●
37	METAL; CM/SHF	5-11611-010-0	05	1	9307-		●
41	FLANGE; CAM PULLEY	8-94221-333-3	01	1	9307-		●
43	BOLT; PULLEY M6X12 W/LK WASHER	0-50040-612-0	04	1	9307-		●
53	SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9307-	●
53	SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9307-	●
53	SHAFT; ROCKER ARM	8-94139-343-0	01	1	9307-		●
55	PLUG; ROCKER SHAFT END INLET	8-94116-940-0	02	1	9307-	●
55	PLUG; ROCKER SHAFT END EXHAUST	8-94116-941-0	02	1	9307-	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	5-12628-009-2	01	1	9307-		●
60	SPRING; BRKT	8-94220-054-0	02	1	9307-		●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9307-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9307-		●
68	SPRING; VLV	8-94259-483-0	08	1	9307-	●
68	SPRING; VLV	8-94449-173-1	08	1	9307-		●
71	SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9307-	●
71	SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9307-	●	●
71	SEAT; SPR UPPER OD=32	5-12563-022-1	08	1	9307-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94208-522-0	08	1	9307-		●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9307-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9307-	●
78	ARM; ROCKER	8-94449-049-0	08	1	9307-		●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9307-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	08	1	9307-		●
82	CAP; ROCKER SHAFT	5-12618-006-2	04	1	9307-		●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9307-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	08	1	9307-		●
85	BOLT; BRKT M8X60	8-94224-284-0	02	1	9307-		●
87	BOLT; ROCKER SHAFT M8X55	8-94224-283-0	01	1	9307-		●
93	NUT; BRKT M8 FLANGE	9-09844-190-0	01	1	9307-		●
95	SPRING; ROCKER SHAFT L=57.0	8-94200-814-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=38.0	8-94200-815-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=47.0	8-94139-384-0	03	1	9307-		●
97	BRACKET; ROCKER SHAFT,RR	5-12628-010-2	01	1	9307-		●
116	PULLEY; TIMING,INJ PUMP Z=42	8-94124-591-1	01	1	9307-9406		●
116	PULLEY; TIMING,INJ PUMP EXC. TURBOCHARGER(K51) Z=42	8-94124-591-1	01	1	9407-		●
116	PULLEY; TIMING,INJ PUMP TURBOCHARGER(K51) Z=42	8-94119-581-1	01	1	9407-		●
117	BOLT; FLANGE M6X12 W/LK WASHER	0-50040-612-0	04	1	9307-		●
118	FLANGE; INJ PUMP PULLEY	8-94221-332-3	01	1	9307-		●
119	NUT; PULLEY M14	8-94226-565-0	01	1	9307-		●
120	WASHER; LK,PULLEY,INJ PUMP	8-94226-554-0	01	1	9307-		●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-0	01	1	9307-		●
123	PULLEY; IDLE,TIMING	8-94123-972-0	01	1	9307-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94231-165-1	01	1	9307-	●
124	PULLEY; TIMING,CR/SHF Z=21	8-94224-637-2	01	1	9307-		●
125	PLATE; GUIDE,TIMING BELT	8-94215-184-0	01	1	9307-	●
125	PLATE; GUIDE,TIMING BELT	8-94221-742-1	01	1	9307-		●
127	NUT; PULLEY M12	8-94221-051-0	01	1	9307-	●	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94231-166-2	01	1	9307-	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94239-176-2	01	1	9307-		●
129	SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9307-	●
129	SPRING; TENSIONER L=89.5	8-94223-818-2	01	1	9307-		●
130	WASHER; PL,TENSIONER (A) ID=12.5 T=5.8	8-94217-363-0	01	1	9307-		●
130	WASHER; PL,TENSIONER (B) ID=8.4 OD=18	9-09164-608-0	02	1	9307-		●
131	PLATE; TENSION PULLEY	8-94223-812-3	01	1	9307-		●
132	STOPPER; TENSIONER	8-94217-011-1	02	1	9307-		●
135	PULLEY; TENSIONER	8-94215-197-1	01	1	9307-	●
135	PULLEY; TENSIONER	8-94220-900-2	01	1	9307-		●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9307-	●
137	BOLT; TENSIONER (B) M8X20	0-20800-820-0	02	1	9307-		●
137	BOLT; TENSIONER (A) M12X41.5	8-94217-207-1	01	1	9307-		●
144	BELT; TIMING	8-97066-863-0	01	1	9307-	●
144	BELT; TIMING	8-97086-153-0	01	1	9307-		●
