◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#37866) — 84 parça

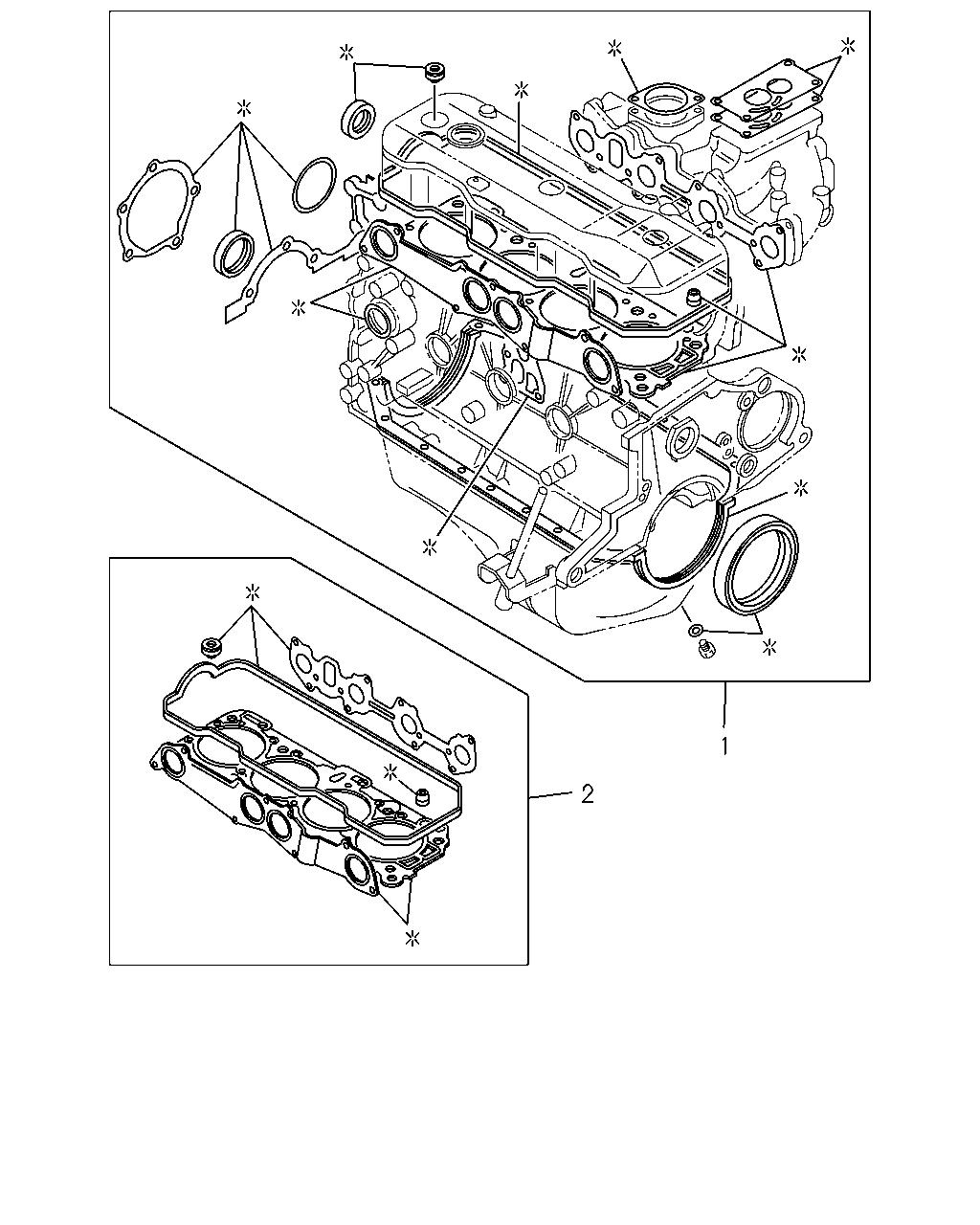

çizim 16062
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 5-87811-384-0 01 1 9307-9407 ●
1 GASKET SET; ENG OVERHAUL 5-87811-920-0 01 1 9408-9501 ●
1 GASKET SET; ENG OVERHAUL 5-87812-264-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.50 NO NOTCH 		5-87811-578-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.50 NO NOTCH 		5-87811-801-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87811-801-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-215-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-473-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.55 1-NOTCH 		5-87811-579-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.55 1-NOTCH 		5-87811-802-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87811-802-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-216-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-474-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.60 2-NOTCH 		5-87811-580-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 2-NOTCH 		5-87811-803-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87811-803-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-217-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-475-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87811-795-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-218-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-476-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87811-796-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-219-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-477-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87811-797-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-220-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-478-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL 5-87811-385-0 01 1 9307-9407 ●
2 GASKET SET; ENG HD OVERHAUL 5-87811-931-0 01 1 9408-9501 ●
2 GASKET SET; ENG HD OVERHAUL 5-87812-284-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87811-581-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87811-798-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87812-224-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87812-526-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87811-582-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87811-799-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87812-225-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87812-527-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87811-583-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87811-800-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87812-226-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87812-528-0 01 1 9502- ●

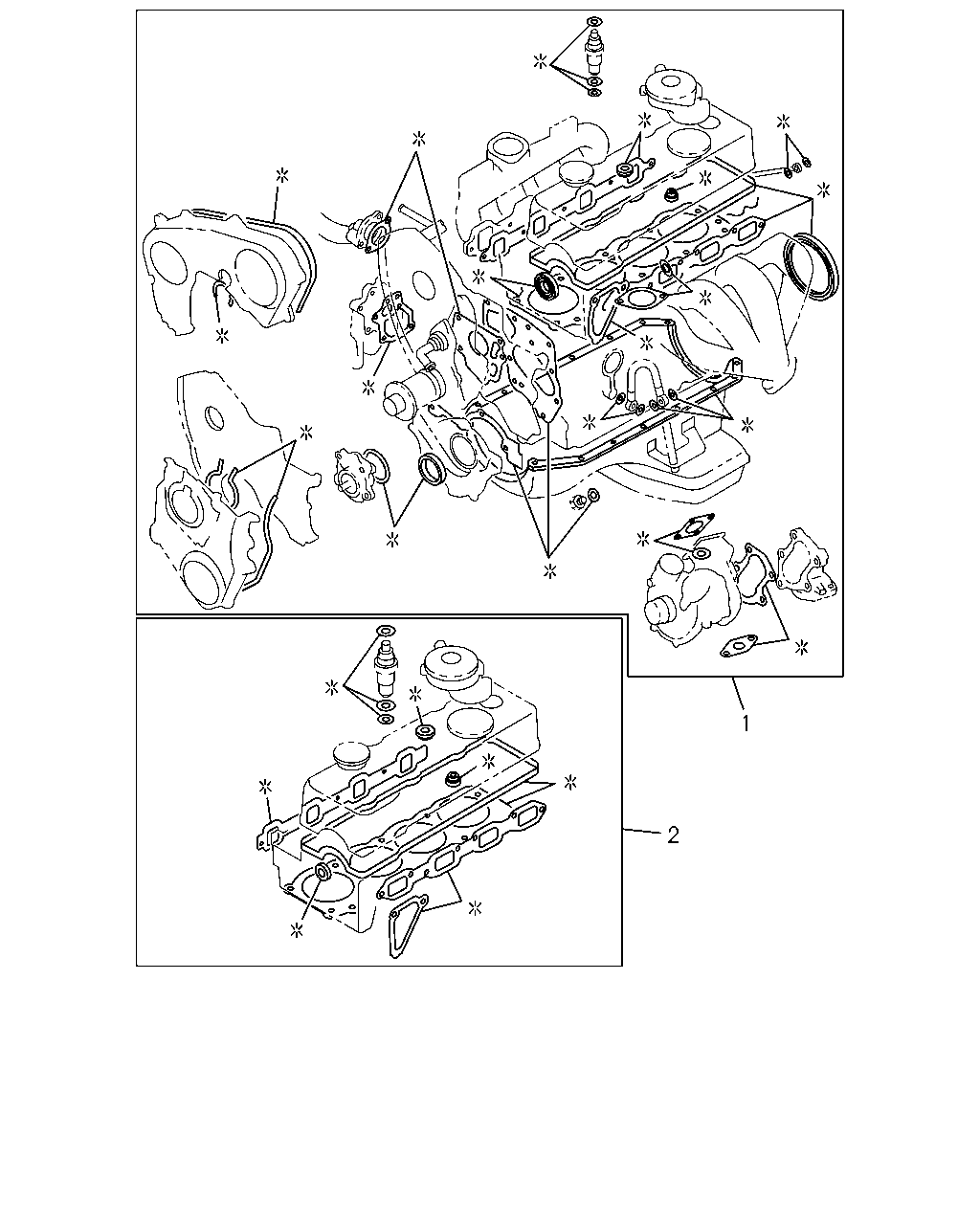

çizim 16848
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 5-87811-384-0 01 1 9307-9407 ●
1 GASKET SET; ENG OVERHAUL 5-87811-920-0 01 1 9408-9501 ●
1 GASKET SET; ENG OVERHAUL 5-87812-264-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.50 NO NOTCH 		5-87811-578-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.50 NO NOTCH 		5-87811-801-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87811-801-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-215-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-473-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.55 1-NOTCH 		5-87811-579-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.55 1-NOTCH 		5-87811-802-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87811-802-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-216-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-474-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
T=1.60 2-NOTCH 		5-87811-580-0 01 1 9307-9405 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 2-NOTCH 		5-87811-803-0 01 1 9406-9406 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87811-803-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-217-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-475-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87811-795-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-218-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.50 NO NOTCH 		5-87812-476-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87811-796-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-219-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.55 1-NOTCH 		5-87812-477-0 01 1 9502- ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87811-797-0 01 1 9407-9411 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-220-0 01 1 9412-9501 ●
1 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.60 2-NOTCH 		5-87812-478-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL 5-87811-385-0 01 1 9307-9407 ●
2 GASKET SET; ENG HD OVERHAUL 5-87811-931-0 01 1 9408-9501 ●
2 GASKET SET; ENG HD OVERHAUL 5-87812-284-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87811-581-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87811-798-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87812-224-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.50 NO NOTCH 		5-87812-526-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87811-582-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87811-799-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87812-225-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.55 1-NOTCH 		5-87812-527-0 01 1 9502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87811-583-0 01 1 9307-9307 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87811-800-0 01 1 9308-9411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87812-226-0 01 1 9412-9501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 2-NOTCH 		5-87812-528-0 01 1 9502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
