◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#37865) — 14 parça

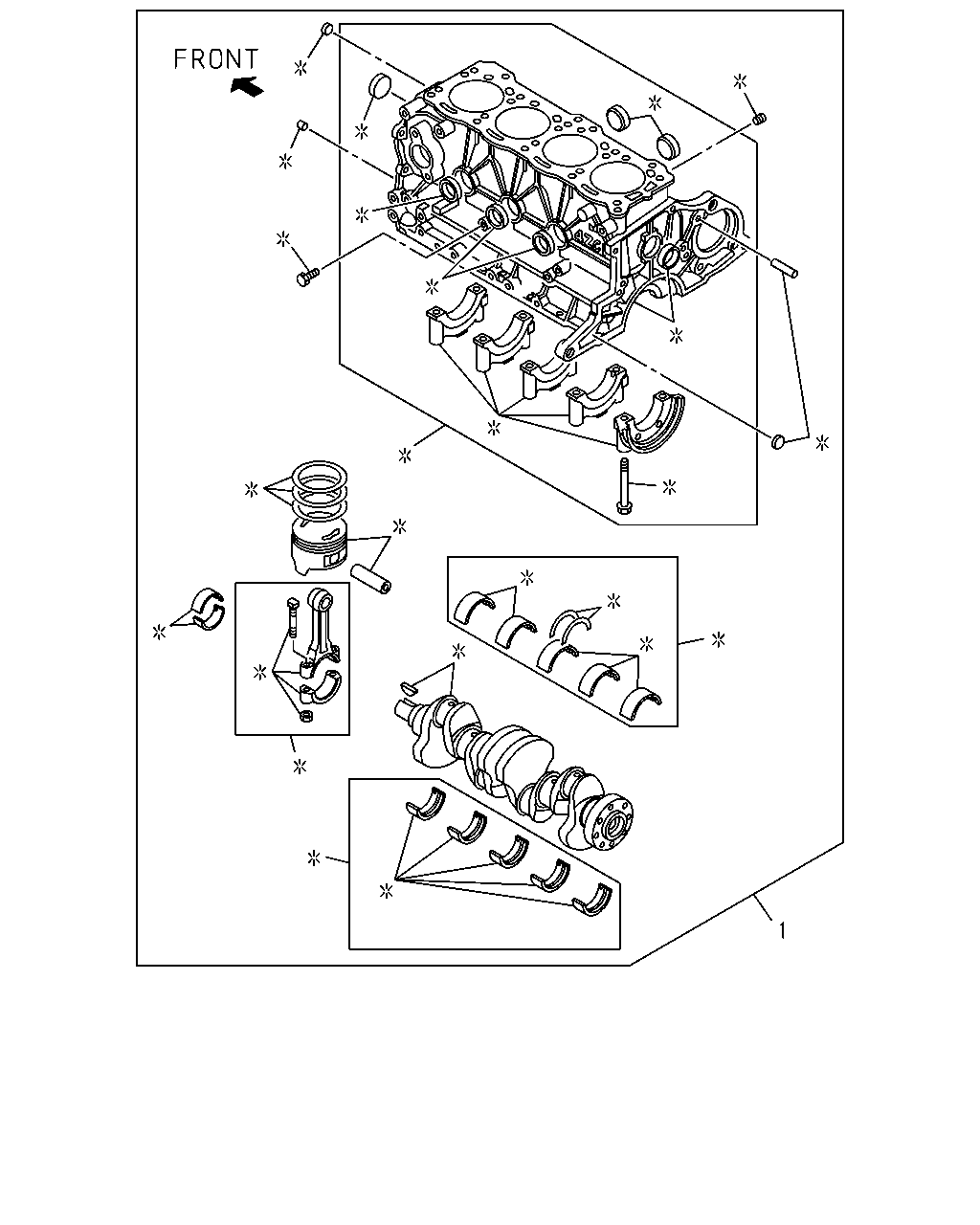

çizim 17171
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ENGINE ASM; PARTIAL
CHINA EQUIPMENT(YT2) 		5-87310-096-1 01 1 9307- ●
1 ENGINE ASM; PARTIAL
EXC. CHINA EQUIPMENT(YT2) 		8-94380-050-1 01 1 9307-9406 ●
1 ENGINE ASM; PARTIAL
EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) 		8-94380-050-1 01 1 9407- ●
1 ENGINE ASM; PARTIAL
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-94380-050-1 01 1 9407- ●
1 ENGINE ASM; PARTIAL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		5-87310-332-0 01 1 9407- ●
1 ENGINE ASM; PARTIAL 5-87310-070-1 01 1 9307-9403 ●
1 ENGINE ASM; PARTIAL 5-87310-312-1 01 1 9404- ●

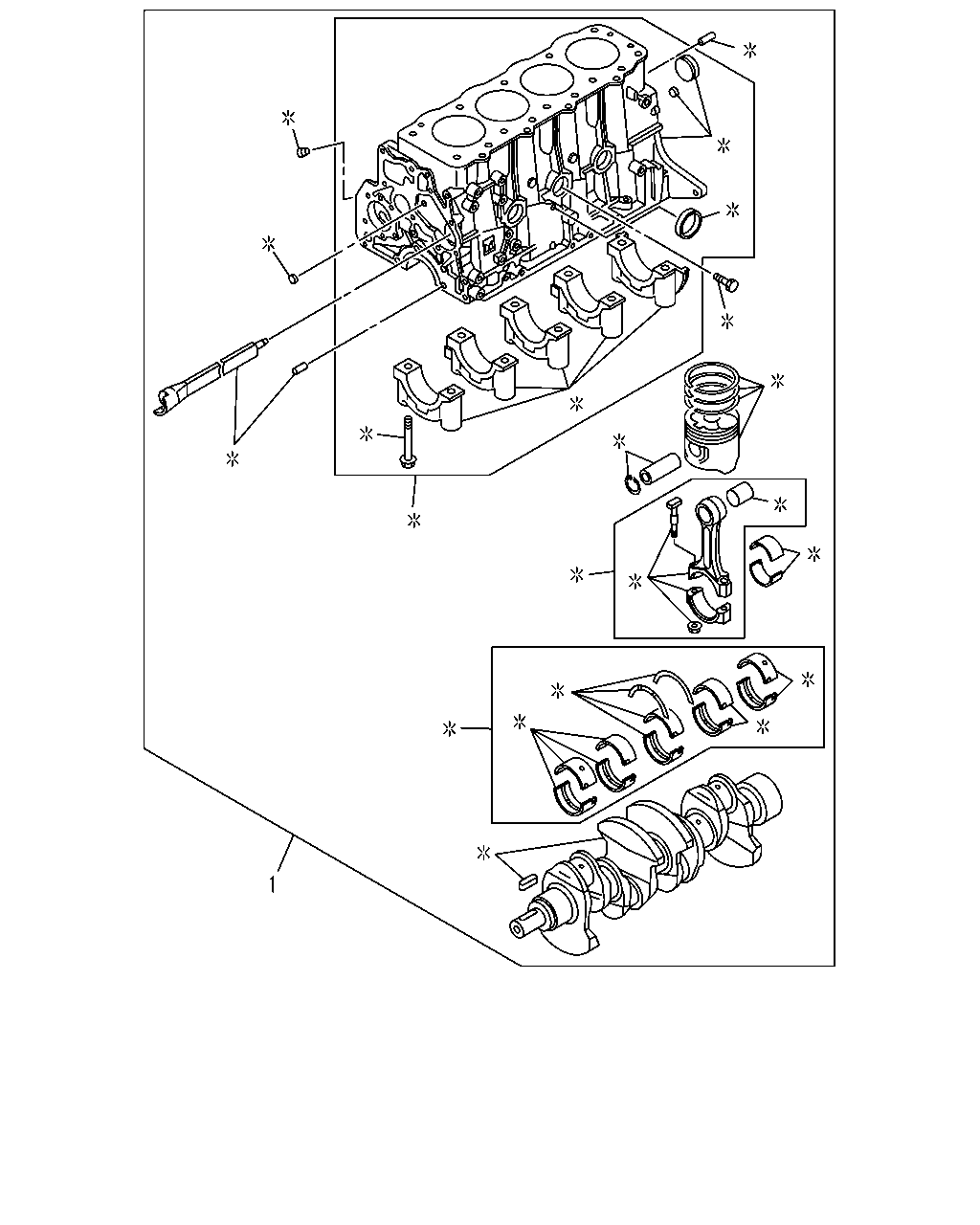

çizim 68046
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ENGINE ASM; PARTIAL
CHINA EQUIPMENT(YT2) 		5-87310-096-1 01 1 9307- ●
1 ENGINE ASM; PARTIAL
EXC. CHINA EQUIPMENT(YT2) 		8-94380-050-1 01 1 9307-9406 ●
1 ENGINE ASM; PARTIAL
EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) 		8-94380-050-1 01 1 9407- ●
1 ENGINE ASM; PARTIAL
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-94380-050-1 01 1 9407- ●
1 ENGINE ASM; PARTIAL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		5-87310-332-0 01 1 9407- ●
1 ENGINE ASM; PARTIAL 5-87310-070-1 01 1 9307-9403 ●
1 ENGINE ASM; PARTIAL 5-87310-312-1 01 1 9404- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
