9-01 — TOOLS (#37864) — 27 parça

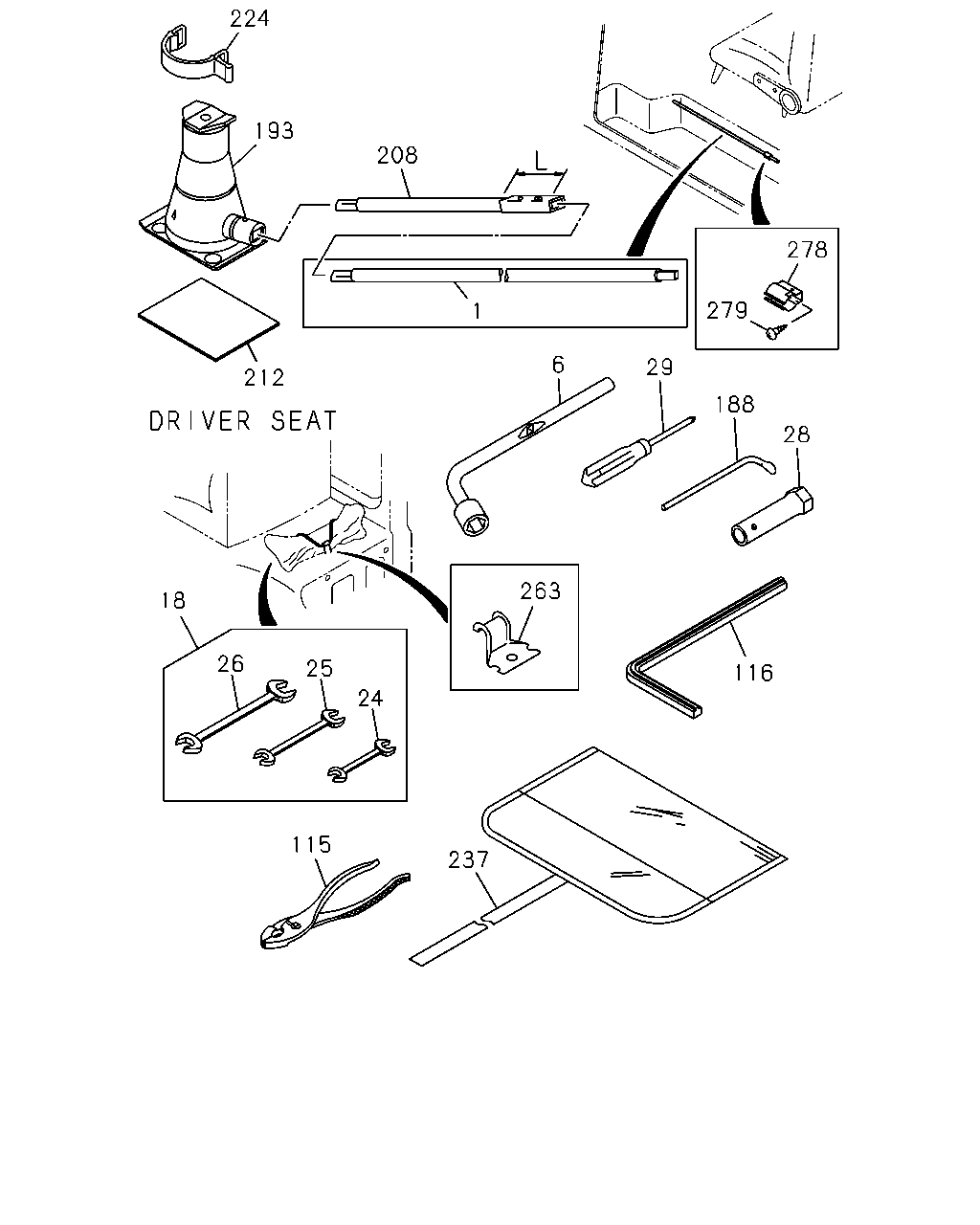

çizim 68585
224 193 208 212 1 278 279 6 29 188 28 116 263 24 25 26 18 115 237
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 8-94367-917-0 01 1 9307- ● ●
6 WRENCH; WHEEL 8-94367-941-0 01 1 9307- ● ●
18 WRENCH KIT
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		9-85161-902-0 01 1 9307- ● ●
24 WRENCH; 8X10
EXC. SOUTH AFRICA EQUIPMENT(SW2) 8X10 		9-99592-108-0 01 1 9307- ● ●
25 WRENCH; 12X14
EXC. SOUTH AFRICA EQUIPMENT(SW2) 12X14 		9-09592-112-0 01 1 9307- ● ●
26 WRENCH; 22X17
EXC. SOUTH AFRICA EQUIPMENT(SW2) 22X17 		9-85162-101-0 01 1 9307- ● ●
28 WRENCH; SPARK PLUG
4ZC1 ENG(LR9) 		8-94366-368-0 01 1 9307- ●
28 WRENCH; SPARK PLUG
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94366-368-0 01 1 9307- ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9307- ●
29 DRIVER; SCREW
EXC. SOUTH AFRICA EQUIPMENT(SW2) <+>,<-> L=160 		8-94242-798-1 01 1 9307- ●
115 PLIER 5-85171-002-0 01 1 9307- ●
115 PLIER
EXC. SOUTH AFRICA EQUIPMENT(SW2) 		5-85171-002-0 01 1 9307- ●
116 SPANNER; BAR,SUNROOF
SUNROOF<CF5> 		8-94286-455-0 01 1 9307- ●
188 EXTRACTOR; WHEEL CAP
EXC. FRT&RR 6.00-14-6 5JX14(54G) 		9-85292-102-1 01 1 9307- ● ●
193 JACK ASM 8-94140-525-0 01 1 9307-9307 ● ●
193 JACK ASM 8-94141-665-2 01 1 9308-9502 ● ●
193 JACK ASM 8-97128-454-0 01 1 9503- ● ●
208 HANDLE; JACK
L=50 		8-94367-922-0 01 1 9307- ● ●
212 PAD; JACK
EXC. MAT STEP WELL<BF3> 		8-94293-955-1 01 1 9307- ● ●
224 BAND; RUBBER,JACK
GRADE BASIC(RBA) L=100 		5-73997-026-1 01 1 9307- ●
224 BAND; RUBBER,JACK
L=100 		5-73997-026-1 01 1 9307- ●
224 BAND; RUBBER,JACK
L=90 		8-94284-400-0 01 1 9307- ● ●
237 BAG; TOOL 8-97019-769-0 01 1 9307-9309 ● ●
237 BAG; TOOL 8-97103-736-0 01 1 9310- ● ●
263 BRACKET; TOOL
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94292-704-2 02 1 9307- ● ●
278 CLIP; JACK & TIRE HANDLE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94368-494-0 02 1 9307- ● ●
279 SCREW; CLIP TO BODY
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		1-09981-167-0 02 1 9307- ● ●
