8-85 — REAR WIPER AND WASHER (#37862) — 23 parça

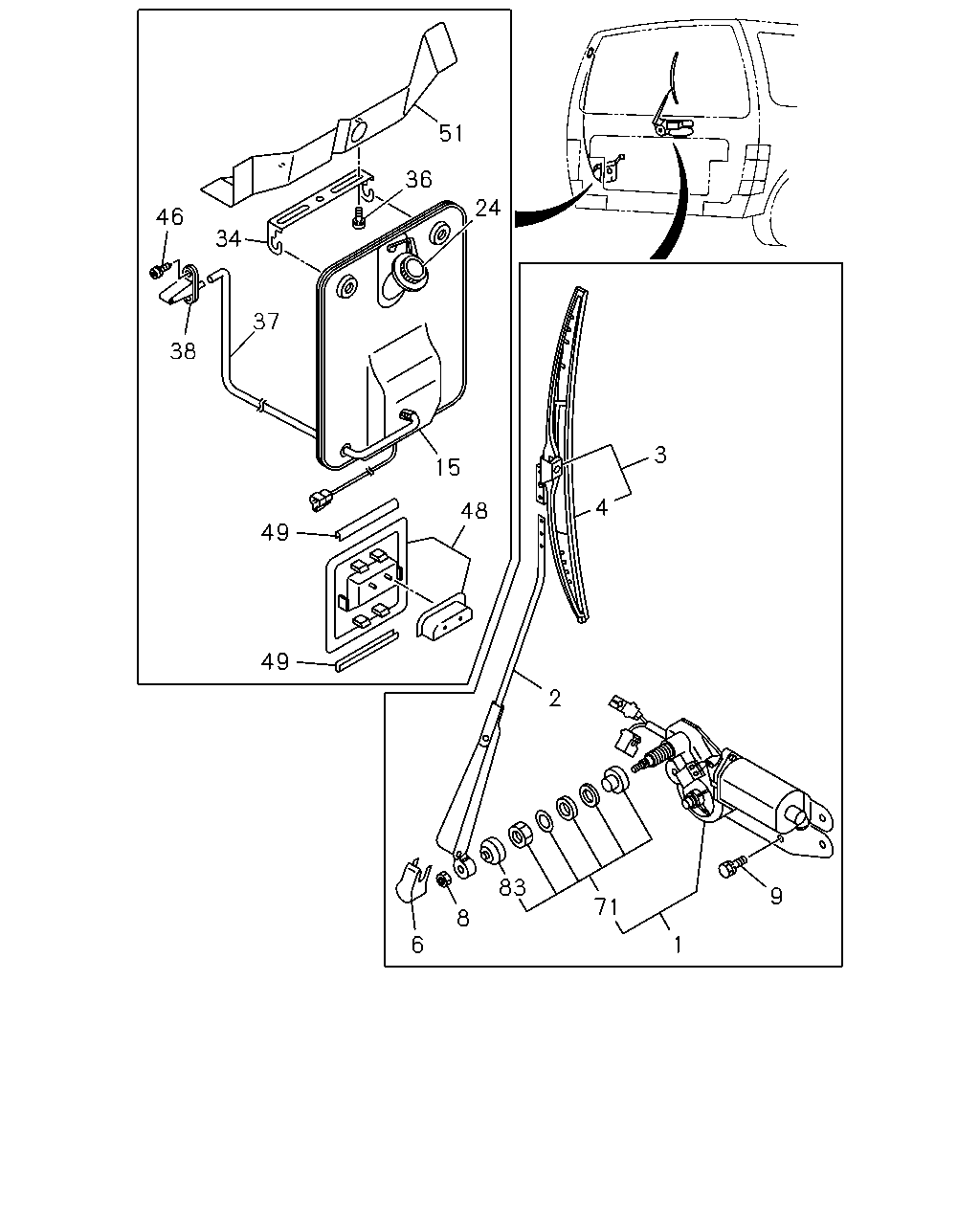

çizim 68556
51 36 24 34 46 38 37 15 48 49 49 3 4 2 9 1 71 83 8 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
RR WIPER<C25> 		8-94292-143-2 01 1 9307- ● ●
2 ARM ASM; REAR WIPER
RR WIPER<C25> 		8-94292-145-0 01 1 9307- ● ●
3 BLADE ASM; REAR WIPER
RR WIPER<C25> 		8-94269-074-0 01 1 9307- ● ●
4 RUBBER; BLADE,RR WIPER
RR WIPER<C25> 		8-94352-109-0 01 1 9307- ● ●
6 CLIP; COVER
RR WIPER<C25> 		8-94292-953-0 01 1 9307- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> M6 		9-09111-406-0 01 1 9307- ● ●
9 BOLT; BRKT,WIPER MOTOR
RR WIPER<C25> M6X12 W/LK WASHER 		0-50040-612-0 03 1 9307- ● ●
15 MOTOR ASM; RR,WASHER TANK
RR WIPER<C25> 		8-94293-860-0 01 1 9307- ● ●
24 CAP; WASHER TANK,RR
RR WIPER<C25> 		8-94345-195-0 01 1 9307- ● ●
34 CLAMP; RR WASHER TANK
RR WIPER<C25> 		9-83565-306-0 01 1 9307- ● ●
36 SCREW; BRKT
RR WIPER<C25> M5X12 W/PL WASHER PAN-HD 		9-03900-512-0 02 1 9307- ● ●
37 HOSE; WASHER TANK,RR
RR WIPER<C25> SERVICED BY L=10000 		9-09914-906-0 01 1 9307- ● ●
38 NOZZLE ASM; RR WASHER
RR WIPER<C25> 		8-94292-895-0 01 1 9307- ● ●
46 SCREW; NOZZLE,RR WASHER
RR WIPER<C25> 		8-94279-383-0 02 1 9307- ● ●
48 LID; RR WASHER TANK
INTERIOR COLOR MED SAND(129) RR WIPER<C25> BEIGE 		8-94345-611-1 01 1 9307- ● ●
48 LID; RR WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) RR WIPER<C25> GRAY 		8-94345-610-1 01 1 9307- ● ●
49 FINISHER
RR WIPER<C25> 		8-94293-477-1 02 1 9307- ● ●
51 BRACKET; RR WASHER
RR WIPER<C25> 		8-94293-314-1 01 1 9307- ●
51 BRACKET; RR WASHER
RR WIPER<C25> EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94293-314-1 01 1 9307- ●
51 BRACKET; RR WASHER
RR WIPER<C25> SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) 		8-94293-314-1 01 1 9307- ●
51 BRACKET; RR WASHER
RR WIPER<C25> SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR BUS(V4Z) 		8-94285-563-0 01 1 9307- ●
71 PARTS ASM; FIXING KITS,RR WIPER PIVOT
RR WIPER<C25> 		5-83318-050-0 01 1 9307- ● ●
83 COVER; LOCK NUT
RR WIPER<C25> 		5-83353-002-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
