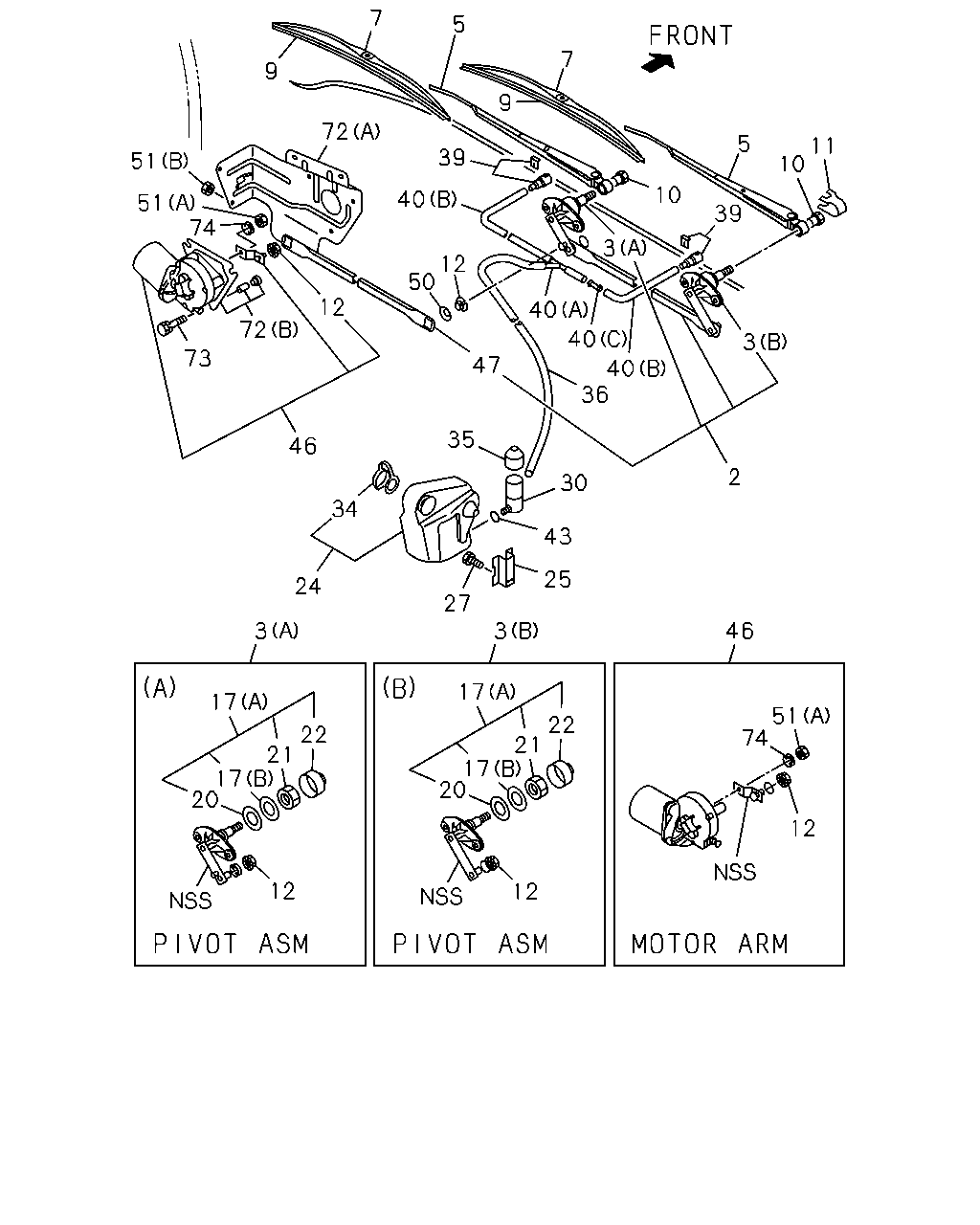

8-80 — WINDSHIELD WIPER AND WASHER (#37861) — 48 parça

9 7 5 7 9 5 10 11 39 10 39 40 72 51 51 74 73 72 12 50 12 47 46 35 30 43 25 3 27 24 34 3 17 22 21 17 20 12 12 20 17 17 21 22 46 51 74 12 2 3 40 36 40 40 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER	8-94291-591-0	01	1	9307-	●
2	LINK; FRT WIPER EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-94291-591-0	01	1	9307-		●
2	LINK; FRT WIPER SOUTH AFRICA EQUIPMENT(SW2)	8-94345-551-0	01	1	9307-		●
3	PIVOT ASM; FRT WIPER (A)	8-94292-864-0	01	1	9307-	●
3	PIVOT ASM; FRT WIPER EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94292-864-0	01	1	9307-		●
3	PIVOT ASM; FRT WIPER (B)	8-94292-865-0	01	1	9307-	●	●
3	PIVOT ASM; FRT WIPER SOUTH AFRICA EQUIPMENT(SW2) (A)	8-94350-956-0	01	1	9307-		●
5	ARM; WIPER BLACK WIPER<C18>	8-94278-086-0	01	1	9307-	●	●
5	ARM; WIPER BLACK WIPER<C18>	8-94278-084-0	01	1	9307-	●	●
5	ARM; WIPER EXC. BLACK WIPER<C18>	8-94278-087-0	01	1	9307-	●	●
5	ARM; WIPER EXC. BLACK WIPER<C18>	8-94278-085-0	01	1	9307-	●	●
7	BLADE; WIPER BLACK WIPER<C18>	8-94269-070-0	02	1	9307-	●	●
7	BLADE; WIPER EXC. BLACK WIPER<C18>	8-94269-071-0	02	1	9307-	●	●
9	RUBBER; FRT WIPER BLADE	8-94144-210-1	02	1	9307-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10	9-09110-508-0	02	1	9307-9406	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M8	9-09110-408-0	02	1	9407-	●	●
11	COVER; WIPER ARM BLACK WIPER<C18> BLACK	8-94282-851-0	02	1	9307-	●	●
11	COVER; WIPER ARM EXC. BLACK WIPER<C18> GRAY	8-94282-852-0	02	1	9307-	●	●
12	RETAINER; BALL JOINT,FRT WIPER LINK	5-83353-009-0	04	1	9307-	●	●
17	OTHER PARTS; WIPER LINK (A)	5-83318-055-0	01	1	9307-	●	●
17	OTHER PARTS; WIPER LINK (B)	8-94282-397-0	02	1	9307-	●	●
20	GASKET; WIPER LINK PIVOT	8-94282-396-0	02	1	9307-	●	●
21	NUT; WIPER LINK PIVOT	8-94282-398-0	02	1	9307-	●	●
22	CAP; PIVOT FRT WIPER LINK	5-83313-017-0	02	1	9307-	●	●
22	CAP; PIVOT FRT WIPER LINK	5-83313-017-0	02	1	9307-	●
24	TANK ASM; WASHER	8-94345-193-0	01	1	9307-	●	●
25	BRACKET; WASHER TANK	8-94277-894-2	01	1	9307-	●	●
27	BOLT; WASHER TANK M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-	●	●
30	MOTOR ASM; FRT WASHER TANK	8-94352-076-0	01	1	9307-	●	●
34	CAP; WASHER TANK	8-94275-038-1	01	1	9307-	●	●
35	COVER; MOTOR,WASHER	8-94275-039-0	01	1	9307-	●	●
36	HOSE; WASHER SERVICED BY L=10000	9-09914-906-0	02	1	9307-	●	●
39	NOZZLE; WINDSHIELD WASHER	8-94292-472-1	02	1	9307-	●	●
40	JOINT; WASHER HOSE (A) 3WAY	5-83363-003-0	02	1	9307-	●	●
40	JOINT; WASHER HOSE (B)	8-94352-116-0	03	1	9307-	●	●
40	JOINT; WASHER HOSE (C)	8-94352-117-0	03	1	9307-	●	●
43	RUBBER; GASKET,TANK	8-94352-050-0	01	1	9307-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER	8-94275-830-1	01	1	9307-	●	●
47	ARM; CRANK,WIPER MOTOR	8-94292-866-0	01	1	9307-	●	●
50	RETAINER; BALL JOINT,CRANK ARM,FRT WIP	5-83353-009-0	04	1	9307-	●	●
51	NUT; WIPER MOTOR LINK (B) M6 FLANGE	5-09440-004-0	04	1	9307-	●	●
51	NUT; WIPER MOTOR LINK (A) M8	9-09111-508-0	01	1	9307-9406	●	●
51	NUT; WIPER MOTOR LINK (A) M8	9-09111-408-0	01	1	9407-	●	●
72	BRACKET; WIPER MOTOR (A)	8-94278-487-1	01	1	9307-	●	●
72	BRACKET; WIPER MOTOR (B)	8-94292-867-0	01	1	9307-	●	●
73	BOLT M8X16 W/LK&PL WASHER	0-50140-816-0	04	1	9307-	●	●
73	BOLT M6X20	8-94279-112-0	03	1	9307-	●	●
74	WASHER; ARM TO MOTOR ID=8.2	9-09150-508-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
