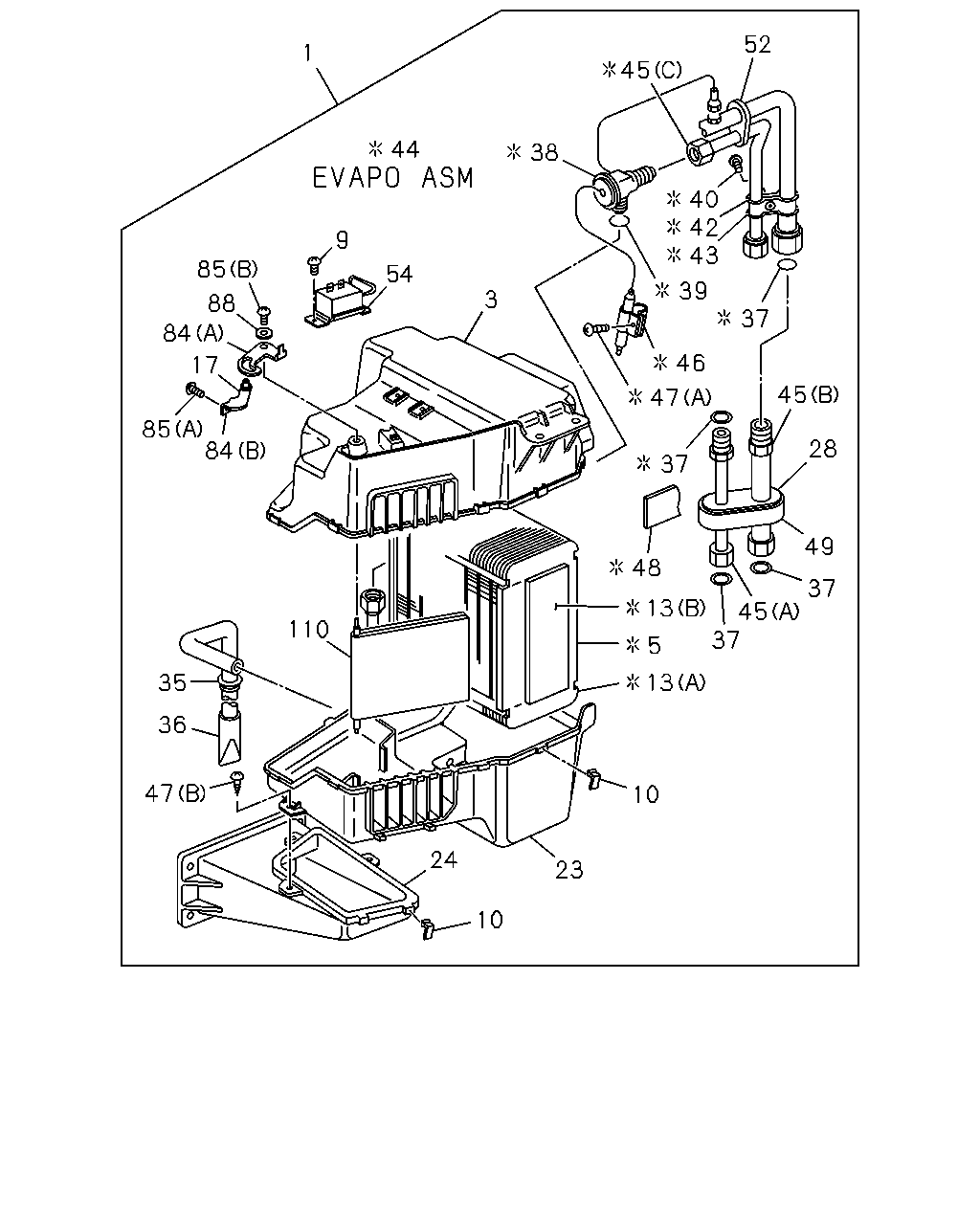

8-74 — EVAPORATOR (#37859) — 38 parça

1 38 45 52 40 42 43 44 9 54 3 39 37 46 47 45 28 37 49 37 45 37 48 13 5 13 10 23 10 24 47 36 35 110 84 85 17 84 88 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97088-157-0	01	1	9307-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94408-501-0	01	1	9307-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-630-0	01	1	9307-	●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94129-988-0	01	1	9307-	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83574-148-0	10	1	9307-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	8-94175-008-0	02	1	9307-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94408-504-0	02	1	9307-	●	●
17	ROLLER; LEVER,EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94206-402-0	01	1	9307-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94408-502-0	01	1	9307-	●	●
24	DUCT; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94247-167-0	01	1	9307-	●	●
28	COVER; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	5-83576-012-1	01	1	9307-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-09333-026-1	01	1	9307-	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-490-1	01	1	9307-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=13.9	8-94113-330-0	02	1	9307-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=4.5	8-94248-212-0	01	1	9307-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6	8-94481-700-0	03	1	9307-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-631-0	01	1	9307-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94481-717-0	01	1	9307-	●	●
40	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94411-781-0	01	1	9307-	●	●
42	CLIP; VLV PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97095-642-0	01	1	9307-	●	●
43	CLIP; VLV PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97095-644-0	01	1	9307-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-629-0	01	1	9307-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97080-696-0	01	1	9307-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97080-697-0	01	1	9307-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) "R-134A"	8-97095-632-0	01	1	9307-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83574-124-0	01	1	9307-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M5X14	8-94244-002-0	01	1	9307-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M5X16	8-94248-820-0	03	1	9307-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83579-024-0	03	1	9307-	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-925-1	01	1	9307-	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94175-012-0	01	1	9307-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-187-0	01	1	9307-	●	●
84	LEVER; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	8-94408-506-0	01	1	9307-	●	●
84	LEVER; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94408-507-0	01	1	9307-	●	●
85	SCREW; LEVER TO CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	5-83571-160-0	01	1	9307-	●	●
85	SCREW; LEVER TO CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M5X16	8-94248-820-0	01	1	9307-	●	●
88	WASHER; PL,EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=20	8-94233-175-0	01	1	9307-	●	●
110	DOOR; MODE,EVAP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94408-505-1	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
