8-71 — COMPRESSOR; AIR CONDITIONING (#37857) — 60 parça

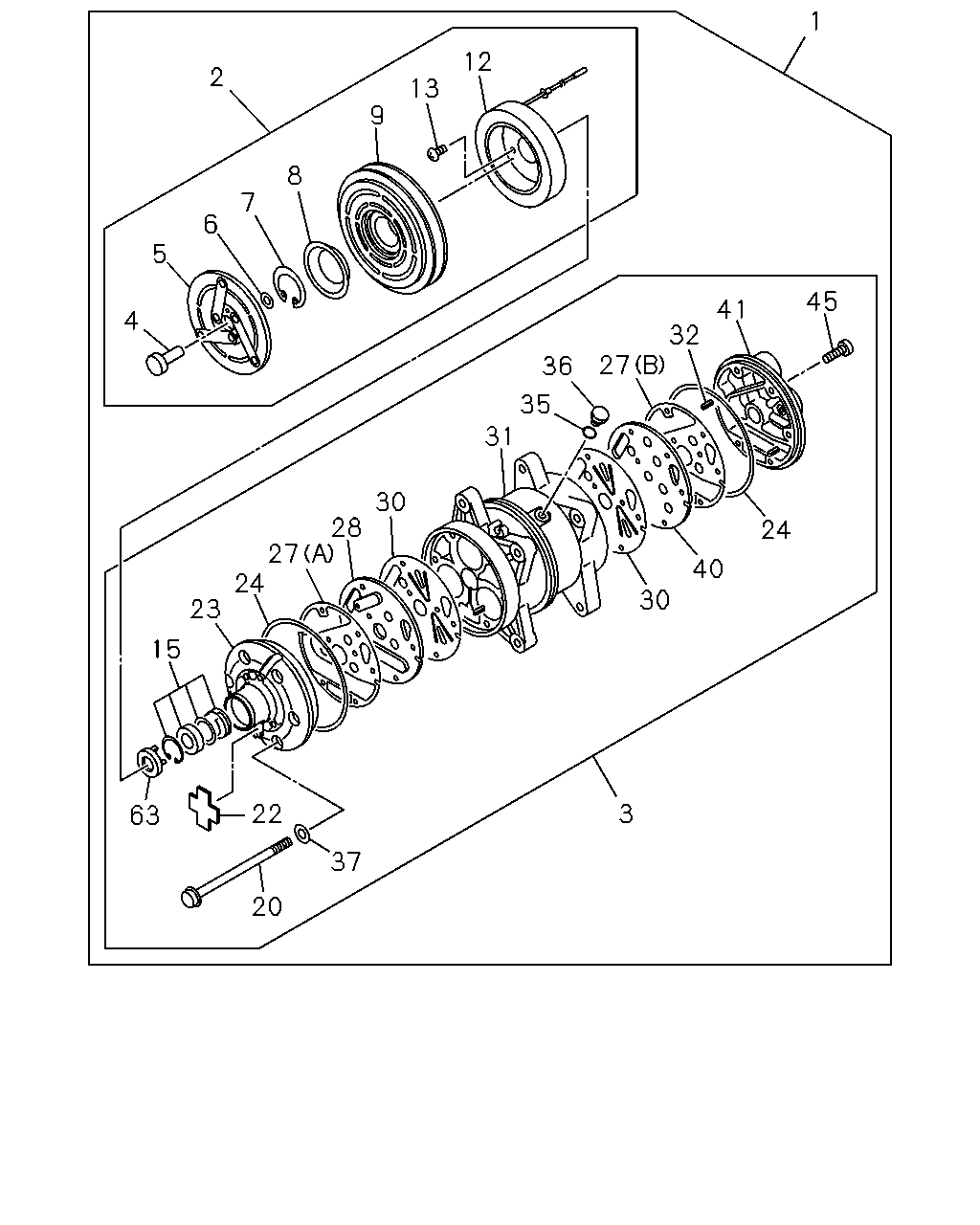

çizim 67143
2 12 13 9 8 6 5 4 1 45 41 32 27 36 35 31 30 28 27 24 23 15 63 22 20 37 3 30 40 24 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97072-661-2 01 1 9307-9406 ● ●
1 COMPRESSOR ASM; A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> "R-134A" 		8-97072-661-2 01 1 9407- ● ●
1 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97048-464-1 01 1 9307- ● ●
2 CLUTCH; MAGNET,A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97045-873-0 01 1 9307-9311 ● ●
2 CLUTCH; MAGNET,A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-212-0 01 1 9312-9406 ● ●
2 CLUTCH; MAGNET,A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-97114-212-0 01 1 9407- ● ●
2 CLUTCH; MAGNET,A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97081-398-0 01 1 9307-9311 ● ●
2 CLUTCH; MAGNET,A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-210-0 01 1 9312- ● ●
3 COMPRESSOR ASM; A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97089-659-0 01 1 9307-9311 ● ●
3 COMPRESSOR ASM; A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-231-0 01 1 9312-9406 ● ●
3 COMPRESSOR ASM; A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-97114-231-0 01 1 9407- ● ●
3 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97081-383-0 01 1 9307-9311 ● ●
3 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-226-0 01 1 9312- ● ●
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94164-439-0 01 1 9307- ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97034-788-0 01 1 9307-9406 ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-97034-788-0 01 1 9407- ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97034-789-0 01 1 9307- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) T=0.1 		8-94120-721-0 AR 1 9307- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) T=0.3 		8-94120-722-0 AR 1 9307- ● ●
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) T=0.5 		8-94120-723-0 AR 1 9307- ● ●
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94120-724-0 01 1 9307- ● ●
8 COVER; PULLEY
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94120-725-0 01 1 9307-9406 ● ●
8 COVER; PULLEY
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-94120-725-0 01 1 9407- ● ●
9 PULLEY; MAGNET CLU
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97034-790-0 01 1 9307-9406 ● ●
9 PULLEY; MAGNET CLU
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-97034-790-0 01 1 9407- ● ●
9 PULLEY; MAGNET CLU
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97034-791-0 01 1 9307- ● ●
12 COIL; FIELD,MAGNET CLU
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97045-883-0 01 1 9307-9406 ● ●
12 COIL; FIELD,MAGNET CLU
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> 		8-97045-883-0 01 1 9407- ● ●
12 COIL; FIELD,MAGNET CLU
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97081-400-0 01 1 9307- ● ●
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94120-727-0 03 1 9307- ● ●
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97081-397-0 01 1 9307-9311 ● ●
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97114-217-0 01 1 9312- ● ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97081-394-0 06 1 9307- ● ●
22 FELT; CYL HD,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94441-396-0 01 1 9307-9311 ● ●
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97034-782-0 01 1 9307-9311 ● ●
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97114-215-0 01 1 9312- ● ●
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97081-396-0 02 1 9307- ● ●
27 GASKET; CYL HD
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A" 		8-97085-777-0 01 1 9307-9311 ● ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A" 		8-97085-777-0 01 1 9312- ● ●
27 GASKET; CYL HD
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A" 		8-97085-779-0 01 1 9307-9311 ● ●
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A" 		8-97085-779-0 01 1 9312- ● ●
27 GASKET; CYL HD
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94466-685-0 01 1 9307-9311 ● ●
27 GASKET; CYL HD
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-97034-783-0 01 1 9307-9311 ● ●
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94466-687-0 01 1 9307-9311 ● ●
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-219-0 01 1 9312- ● ●
30 VALVE; SUCTION
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97081-404-0 02 1 9307-9311 ● ●
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97081-404-0 02 1 9312- ● ●
30 VALVE; SUCTION
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94466-689-0 02 1 9307-9311 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97089-697-0 01 1 9307-9406 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU),GENERATOR 55A<6LF> "R-134A" 		8-97089-697-0 01 1 9407- ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97081-389-0 01 1 9307- ● ●
32 PIN; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94154-711-0 04 1 9307- ● ●
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97081-395-0 01 1 9307- ● ●
36 PLUG; CYL
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94164-473-0 01 1 9307- ● ●
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94466-678-0 06 1 9307- ● ●
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94466-691-0 01 1 9307-9311 ● ●
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97114-220-0 01 1 9312- ● ●
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97034-784-0 01 1 9307- ● ●
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9307- ● ●
63 COVER; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94441-395-0 01 1 9307-9311 ● ●
