8-65 — CONTROL LEVER; HEATER AND AIR CON (#37855) — 19 parça

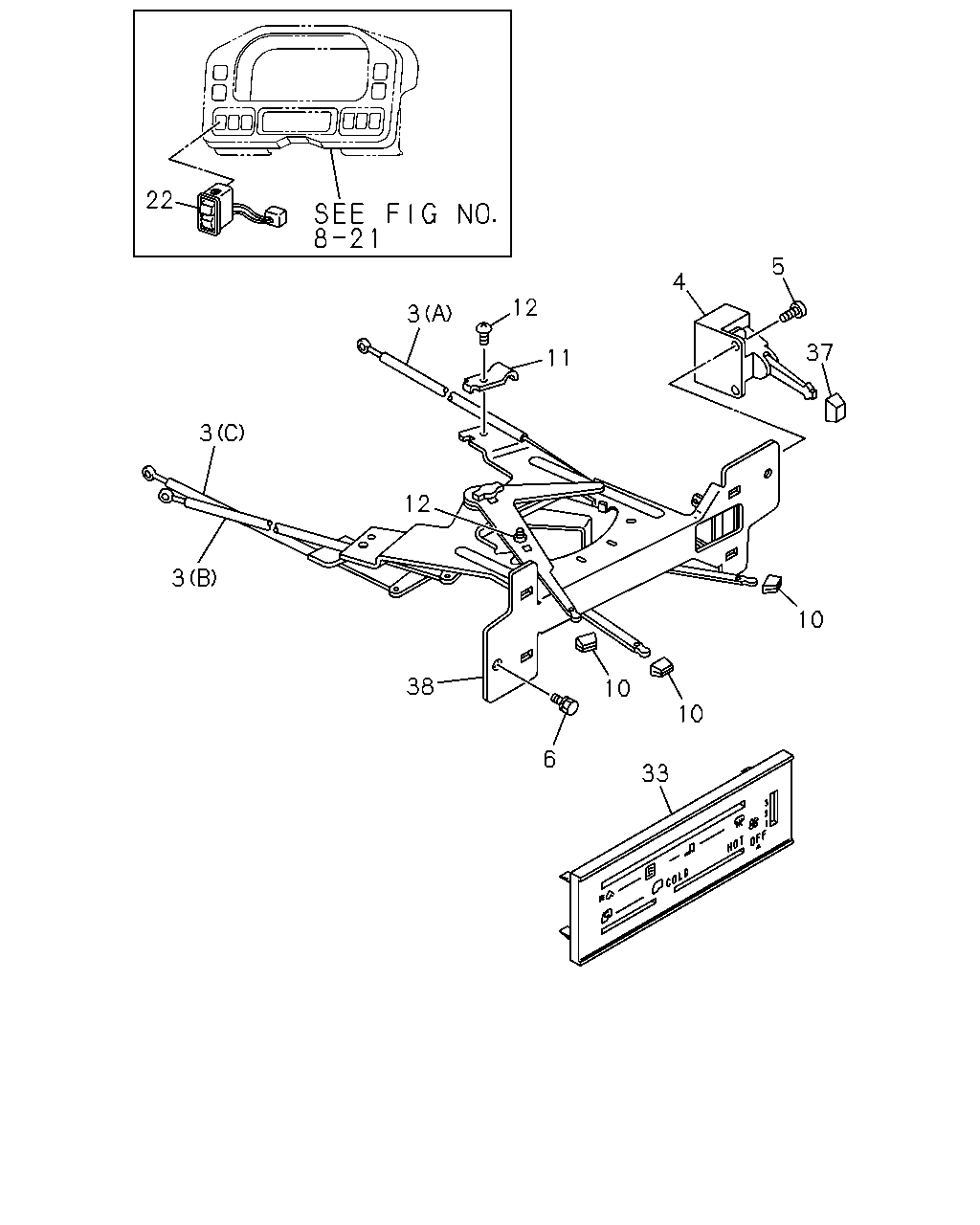

çizim 66294
22 12 3 11 4 5 37 10 10 33 10 6 38 12 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER SUB ASM; HTR CONT 8-94440-291-0 01 1 9307- ● ●
3 CABLE; HTR CONT LVR
(A) 		8-94440-292-0 01 1 9307- ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94440-293-0 01 1 9307- ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) 		8-94445-526-0 01 1 9307- ● ●
3 CABLE; HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) 		8-94440-294-0 01 1 9307- ● ●
4 SWITCH; FAN,HTR CONT LVR 8-94157-020-0 01 1 9307- ● ●
5 SCREW; FAN SW 5-83571-154-0 02 1 9307- ● ●
6 SCREW; CONT LVR TO INST PNL
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 02 1 9307- ● ●
10 KNOB; CONT LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83564-085-2 03 1 9307- ● ●
10 KNOB; CONT LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83564-085-2 02 1 9307- ● ●
11 CLIP; CABLE,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-153-0 03 1 9307- ● ●
11 CLIP; CABLE,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-153-0 02 1 9307- ● ●
12 SCREW; CABLE CLIP,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8 		1-83569-046-0 03 1 9307- ● ●
12 SCREW; CABLE CLIP,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8 		1-83569-046-0 02 1 9307- ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94404-166-0 01 1 9307- ● ●
22 SWITCH; A/C,MAIN
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94404-166-0 01 1 9307- ●
22 SWITCH; A/C,MAIN
REAR HEATER<C35> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94404-166-0 01 1 9307- ●
33 PANEL; HTR CONT 8-94278-545-4 01 1 9307- ● ●
37 KNOB; SW,HTR CONT LVR 8-94233-133-0 01 1 9307- ● ●
