8-61 — HEATER UNIT; REAR (#37854) — 49 parça

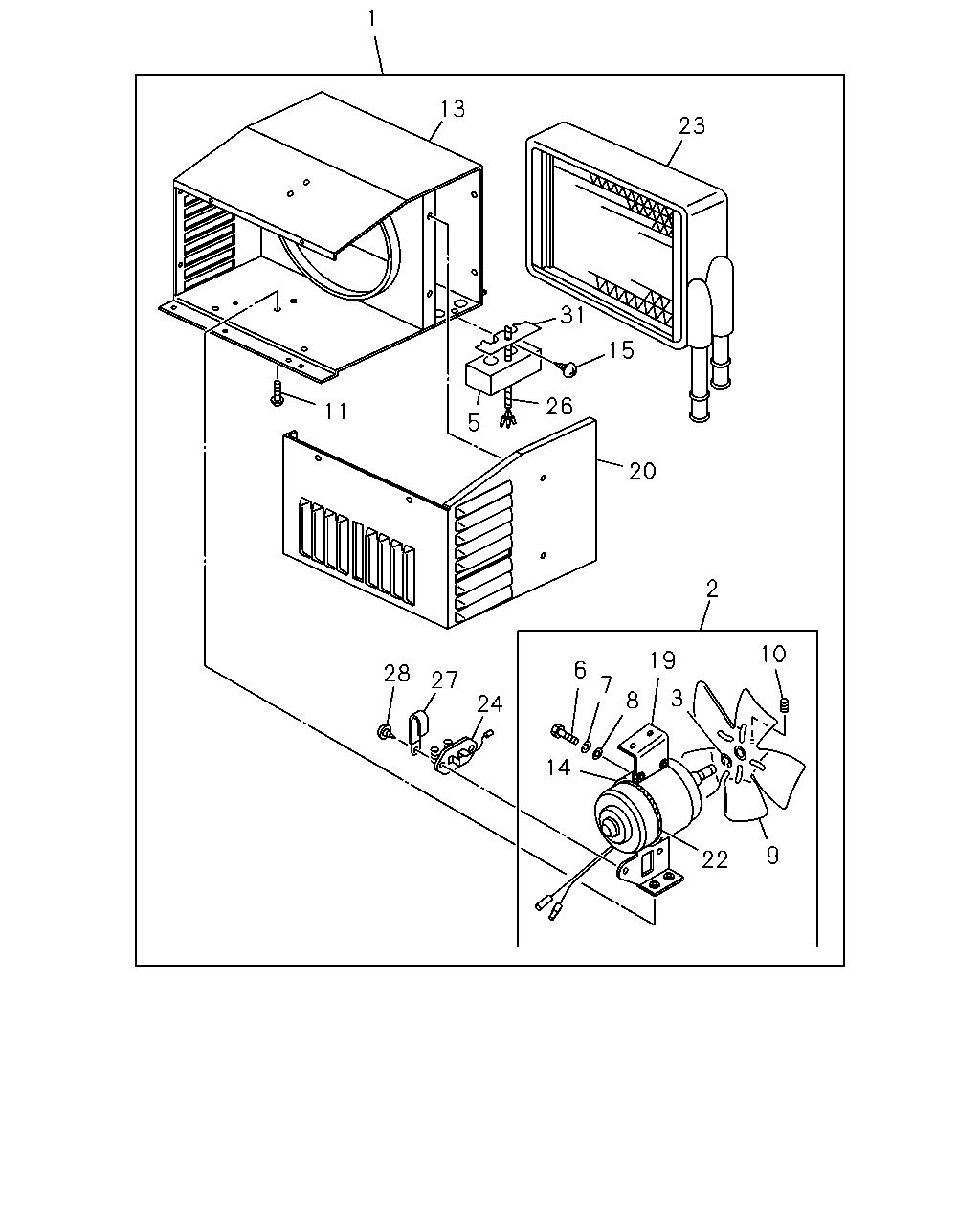

çizim 66277
1 13 23 31 15 26 5 11 20 2 10 19 3 8 7 6 14 22 9 24 27 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT; RR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-97088-863-0 01 1 9307-9309 ●
1 HEATER UNIT; RR
REAR HEATER<C35> 		8-97088-863-0 01 1 9307-9309 ●
1 HEATER UNIT; RR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-97088-865-0 01 1 9307-9309 ●
1 HEATER UNIT; RR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-97088-865-0 01 1 9310- ● ●
1 HEATER UNIT; RR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-97088-865-0 01 1 9310- ●
2 MOTOR ASM; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94439-054-0 01 1 9307- ● ●
2 MOTOR ASM; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94439-054-0 01 1 9307- ●
3 RING; SNAP,FAN TO MOTOR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		5-83569-088-0 01 1 9307- ● ●
3 RING; SNAP,FAN TO MOTOR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		5-83569-088-0 01 1 9307- ●
5 LINING; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94253-909-0 01 1 9307- ● ●
5 LINING; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94253-909-0 01 1 9307- ●
6 BOLT; BRKT
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		1-15729-008-0 04 1 9307- ● ●
6 BOLT; BRKT
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		1-15729-008-0 04 1 9307- ●
7 WASHER; LK,BRKT
REAR HEATER<C35> 4 DOOR WAGON(V4W) ID=5 		1-83539-044-0 04 1 9307- ● ●
7 WASHER; LK,BRKT
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=5 		1-83539-044-0 04 1 9307- ●
8 WASHER; PL,BRKT
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		1-83539-045-0 04 1 9307- ● ●
8 WASHER; PL,BRKT
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		1-83539-045-0 04 1 9307- ●
9 FAN; MOTOR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94244-009-0 01 1 9307- ● ●
9 FAN; MOTOR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94244-009-0 01 1 9307- ●
10 SCREW; FAN TO MOTOR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94439-055-0 01 1 9307- ● ●
10 SCREW; FAN TO MOTOR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94439-055-0 01 1 9307- ●
11 SCREW; HTR CASE
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94244-012-0 04 1 9307- ● ●
11 SCREW; HTR CASE
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94244-012-0 04 1 9307- ●
13 CASE; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94462-663-0 01 1 9307- ● ●
13 CASE; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94462-663-0 01 1 9307- ●
14 BRACKET; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94439-056-0 01 1 9307- ● ●
14 BRACKET; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94439-056-0 01 1 9307- ●
15 SCREW; CASE
REAR HEATER<C35> 4 DOOR WAGON(V4W) M4X10 BLACK 		5-09109-001-0 09 1 9307- ● ●
15 SCREW; CASE
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M4X10 BLACK 		5-09109-001-0 09 1 9307- ●
15 SCREW; CASE
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94244-015-0 01 1 9307- ● ●
15 SCREW; CASE
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94244-015-0 01 1 9307- ●
19 BRACKET; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94415-004-0 01 1 9307- ● ●
19 BRACKET; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94415-004-0 01 1 9307- ●
20 CASE; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94454-794-0 01 1 9307- ● ●
20 CASE; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94454-794-0 01 1 9307- ●
22 ISOLATOR; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		1-83579-053-0 01 1 9307- ● ●
22 ISOLATOR; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		1-83579-053-0 01 1 9307- ●
23 CORE ASM; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94121-169-1 01 1 9307- ● ●
23 CORE ASM; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94121-169-1 01 1 9307- ●
24 RESISTOR; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94415-006-0 01 1 9307- ● ●
24 RESISTOR; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94415-006-0 01 1 9307- ●
26 HARNESS; WIRE,HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-97095-666-0 01 1 9307- ● ●
26 HARNESS; WIRE,HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-97095-666-0 01 1 9307- ●
27 CLIP; MOTOR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94158-260-0 01 1 9307- ● ●
27 CLIP; MOTOR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94158-260-0 01 1 9307- ●
28 SCREW; MOTOR TO RESISTOR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94244-014-0 02 1 9307- ● ●
28 SCREW; MOTOR TO RESISTOR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94244-014-0 02 1 9307- ●
31 COVER; HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W) 		8-94439-058-0 01 1 9307- ● ●
31 COVER; HTR
4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) 		8-94439-058-0 01 1 9307- ●
