0-66 — GENERATOR (#37853) — 92 parça

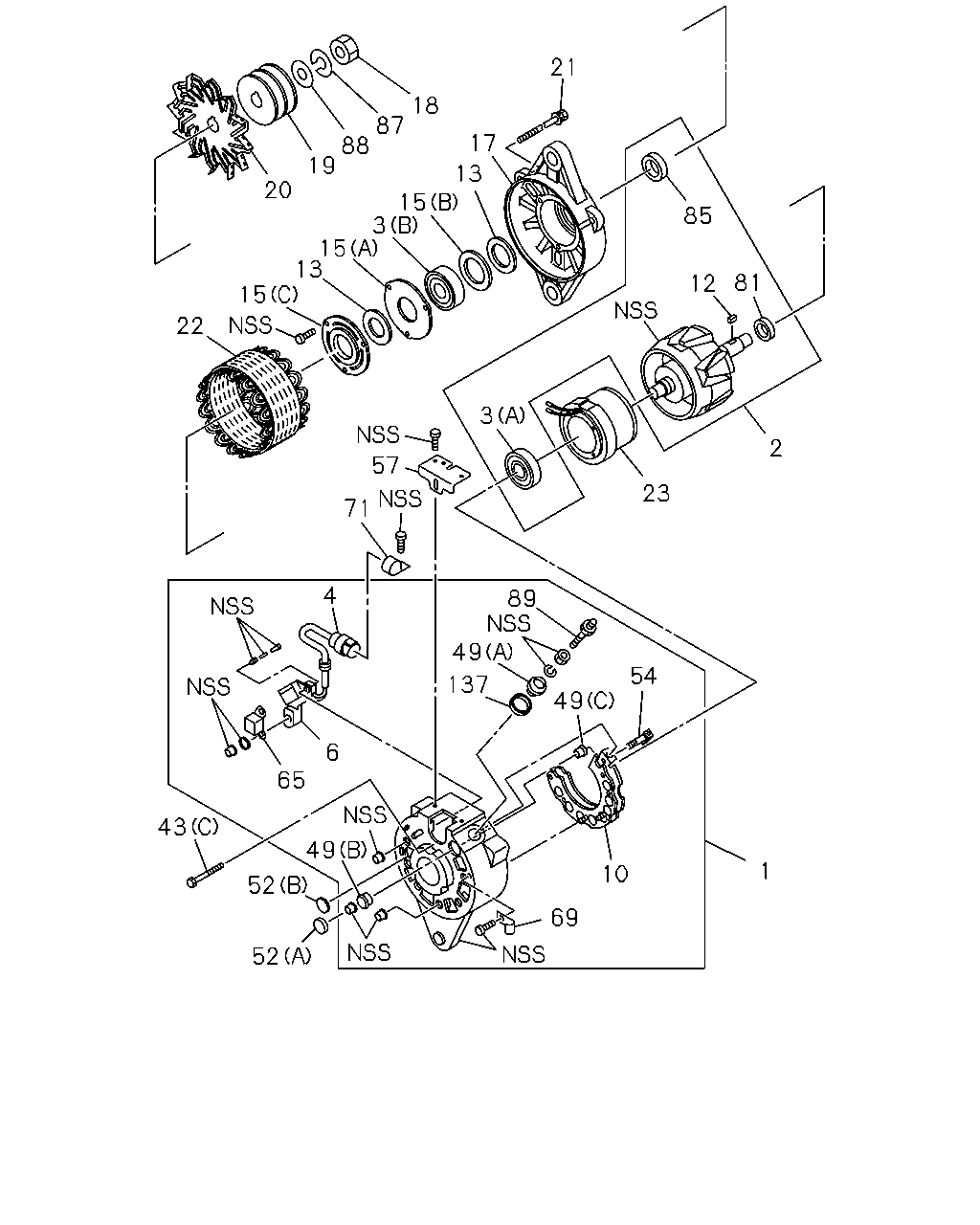

21 18 87 88 19 17 13 15 3 20 85 15 13 15 81 12 22 3 2 57 23 71 4 89 49 54 137 49 6 65 43 49 1 10 52 69 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-135-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-105-0	01	1	-9809
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-105-0	01	1	1309-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-125-0	01	1	9810-1308
2	ROTOR; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81221-102-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-416-5	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-645-0	01	1	-9702
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-739-0	01	1	9703-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-770-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-517-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81260-017-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81219-107-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81219-126-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-416-5	9-82215-867-0	01	1	1309-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-416-5	9-82215-867-0	01	1	-9809
13	GASKET; ROTOR,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-416-5	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) NIKKO ASM PART: A = 1-81200-416-5	1-81229-643-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81213-076-0	01	1	-9702
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81213-092-0	01	1	9703-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81213-101-0	01	1	-
18	NUT; PULLEY,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-474-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-055-0	01	1	1309-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-055-0	01	1	-9809
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-122-0	01	1	9901-1308
19	PULLEY; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-130-0	01	1	-
20	FAN; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81223-016-0	01	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-382-0	03	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-106-1	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81211-129-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-416-5	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81212-016-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-416-5	1-81229-477-0	03	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-774-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: A = 1-81200-416-5	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: A = 1-81200-416-5	1-81229-650-0	01	1	-
52	CAP; RUBBER,TERMINAL (A) NIKKO ASM PART: A = 1-81200-416-5	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81214-296-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: A = 1-81200-416-5	1-84132-008-0	01	1	-
69	CLIP; WIRE,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-642-0	01	1	-
87	WASHER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81229-646-0	01	1	-
137	GASKET; RECTIFIER,GENERATOR NIKKO ASM PART: A = 1-81200-416-5	1-81229-651-0	01	1	-

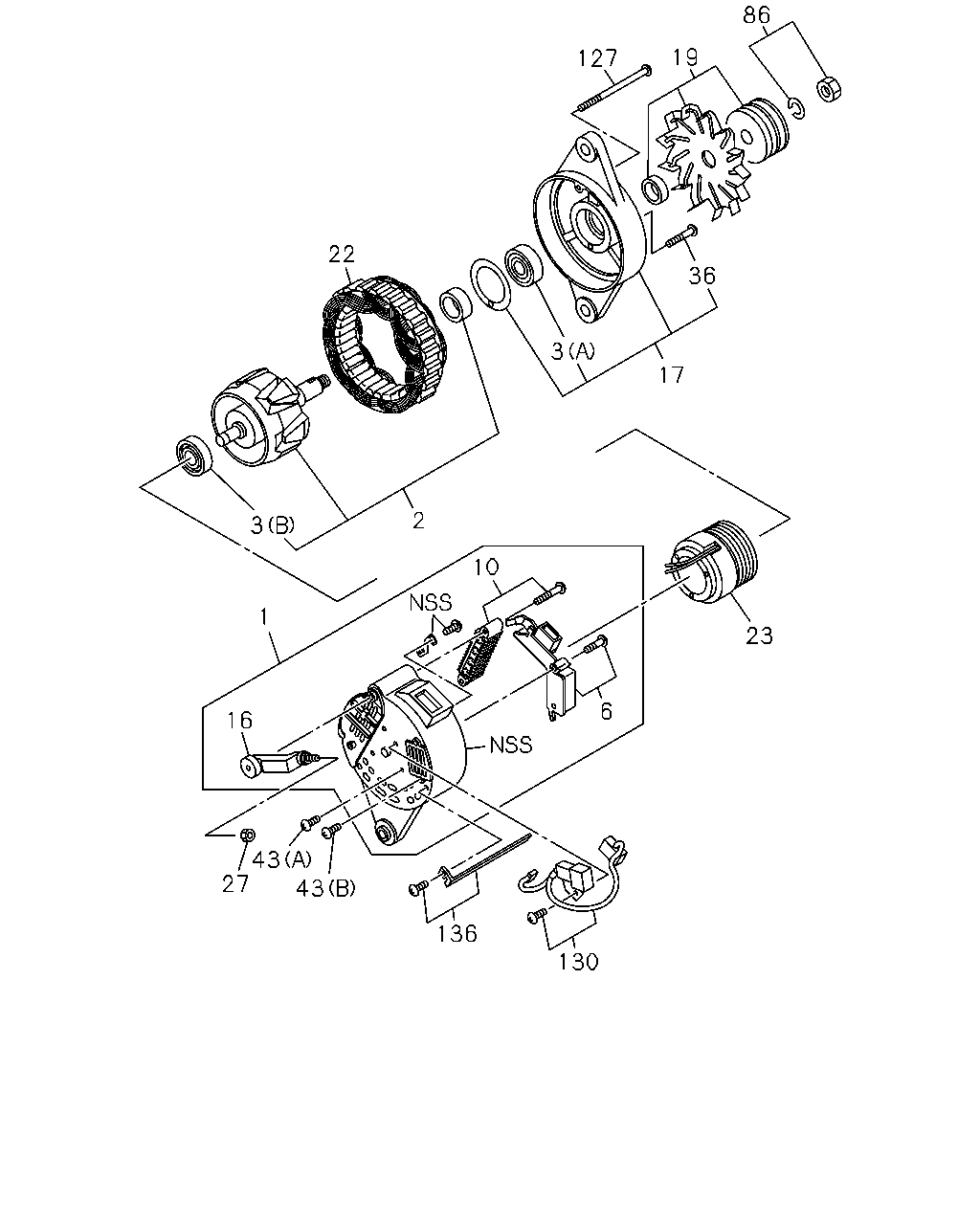

86 19 127 22 36 3 17 2 3 10 1 23 6 16 43 27 43 136 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-135-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-105-0	01	1	-9809
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-105-0	01	1	1309-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-125-0	01	1	9810-1308
2	ROTOR; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81221-102-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-416-5	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-645-0	01	1	-9702
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-416-5	1-81229-739-0	01	1	9703-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-770-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81260-017-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81219-107-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81219-126-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-804-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81213-076-0	01	1	-9702
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-416-5	1-81213-092-0	01	1	9703-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81213-101-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-055-0	01	1	1309-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-055-0	01	1	-9809
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81222-122-0	01	1	9901-1308
19	PULLEY; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-130-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-416-5	1-81211-106-1	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81211-129-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-416-5	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81212-016-0	01	1	-
27	NUT; RECTIFIER,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-772-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-768-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-416-5	1-81229-477-0	03	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-774-0	01	1	-
86	NUT SET; PULLEY,GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-767-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: C = 1-81200-577-0	1-81229-808-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: B = 1-81200-521-0	1-81229-810-0	01	1	-
136	CLAMP; GENERATOR MITSUBISHI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-775-0	01	1	-
