0-60 — ENGINE ELECTRICAL CONTROL PARTS (#37850) — 305 parça

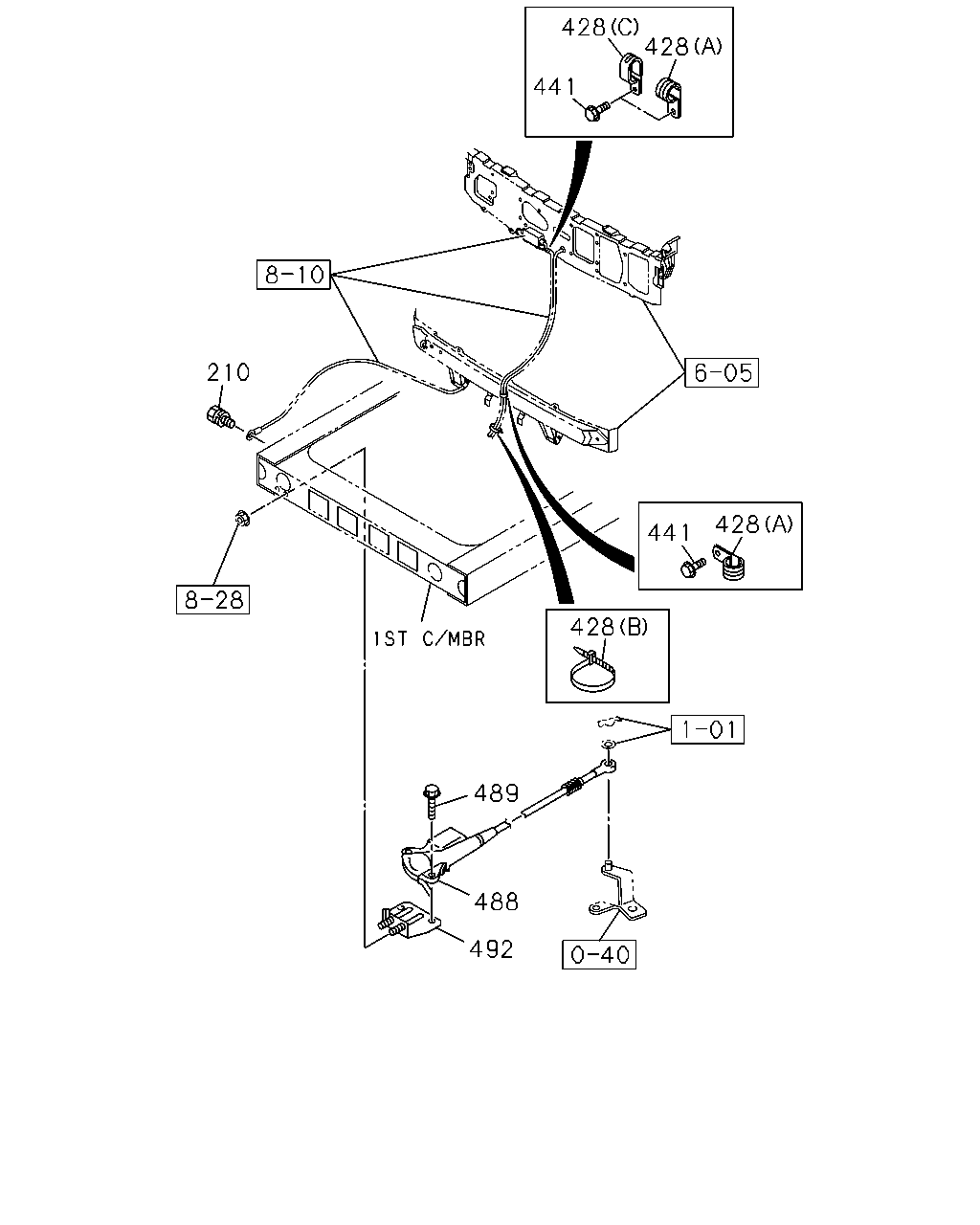

çizim 151549
428 428 441 210 428 441 428 489 488 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0004 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9510-0004 ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0104 ● ● ● ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (A) ID=35 L=50 		1-09701-214-0 01 1 0105- ● ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 01 1 0105- ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28 		1-09701-266-0 01 1 0105- ● ● ● ● ● ●
428 CLIP; HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 01 1 0105- ●
428 CLIP; HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50 		1-09701-214-0 02 1 0105- ● ● ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 04 1 9710-0004 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 05 1 0005- ● ●
428 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=300 		1-09707-001-1 05 1 0005- ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ●
488 STOPPER; ENG 1-82840-128-1 01 1 9510-9709 ● ● ● ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 9710-9912 ● ● ● ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 0001-0004 ● ● ● ●
488 STOPPER; ENG 1-82840-128-2 01 1 0001-0004 ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 0005-0403 ● ● ● ● ●
488 STOPPER; ENG 1-82840-128-2 01 1 0005-0403 ●
488 STOPPER; ENG 1-82840-128-3 01 1 0404- ● ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-3 01 1 0404- ● ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> 		1-82840-153-2 01 1 9710- ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9510-0004 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0403 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0404-0512 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ● ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 9510-0004 ● ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0005-0403 ● ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0404- ● ● ● ● ●

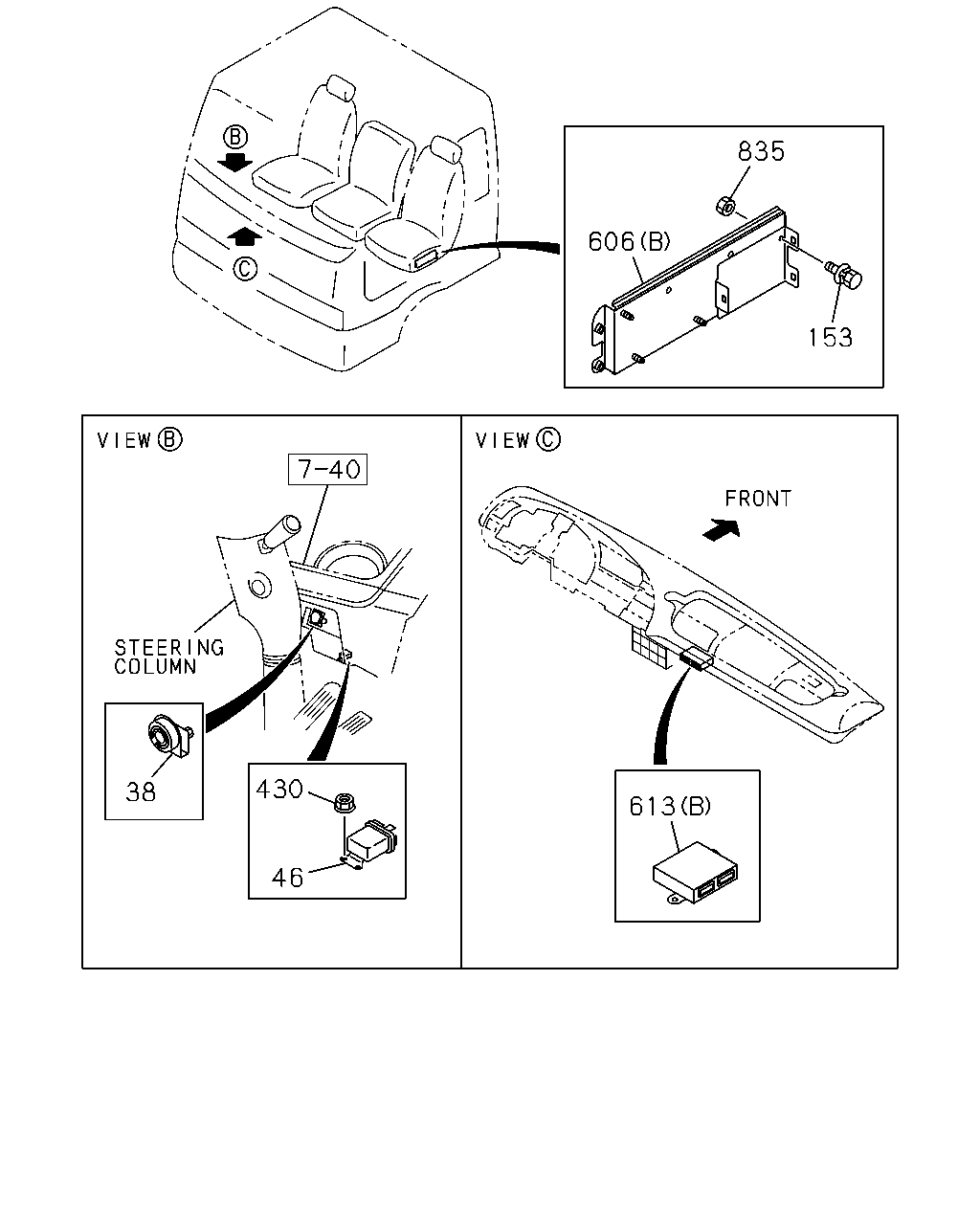

çizim 151550
835 606 153 430 38 613 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9510-0004 ● ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005- ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9510-0004 ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005- ● ● ● ● ●
153 BOLT; BRKT FIX
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0009-0210 ● ● ● ● ● ●
153 BOLT; BRKT FIX
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0211-0703 ●
153 BOLT; BRKT FIX
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 02 1 9510-9601 ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9602-0004 ● ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ● ●
606 BRACKET; CONT UNIT
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-75558-567-0 01 1 0009-0210 ● ● ● ● ● ●
606 BRACKET; CONT UNIT
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-75558-567-0 01 1 0211- ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> (A) 		1-75558-534-9 01 1 9710- ●
613 CONTROL UNIT; ENG
(A) 		1-80110-179-0 01 1 9710- ●
613 CONTROL UNIT; ENG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-97600-899-0 01 1 0005- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> (A) 		8-94392-232-2 01 1 0005- ●
835 NUT; ECU
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE 		0-91150-106-0 02 1 0009-0210 ● ● ● ● ● ●
835 NUT; ECU
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ●
835 NUT; ECU
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE 		0-91180-106-0 02 1 0603- ●

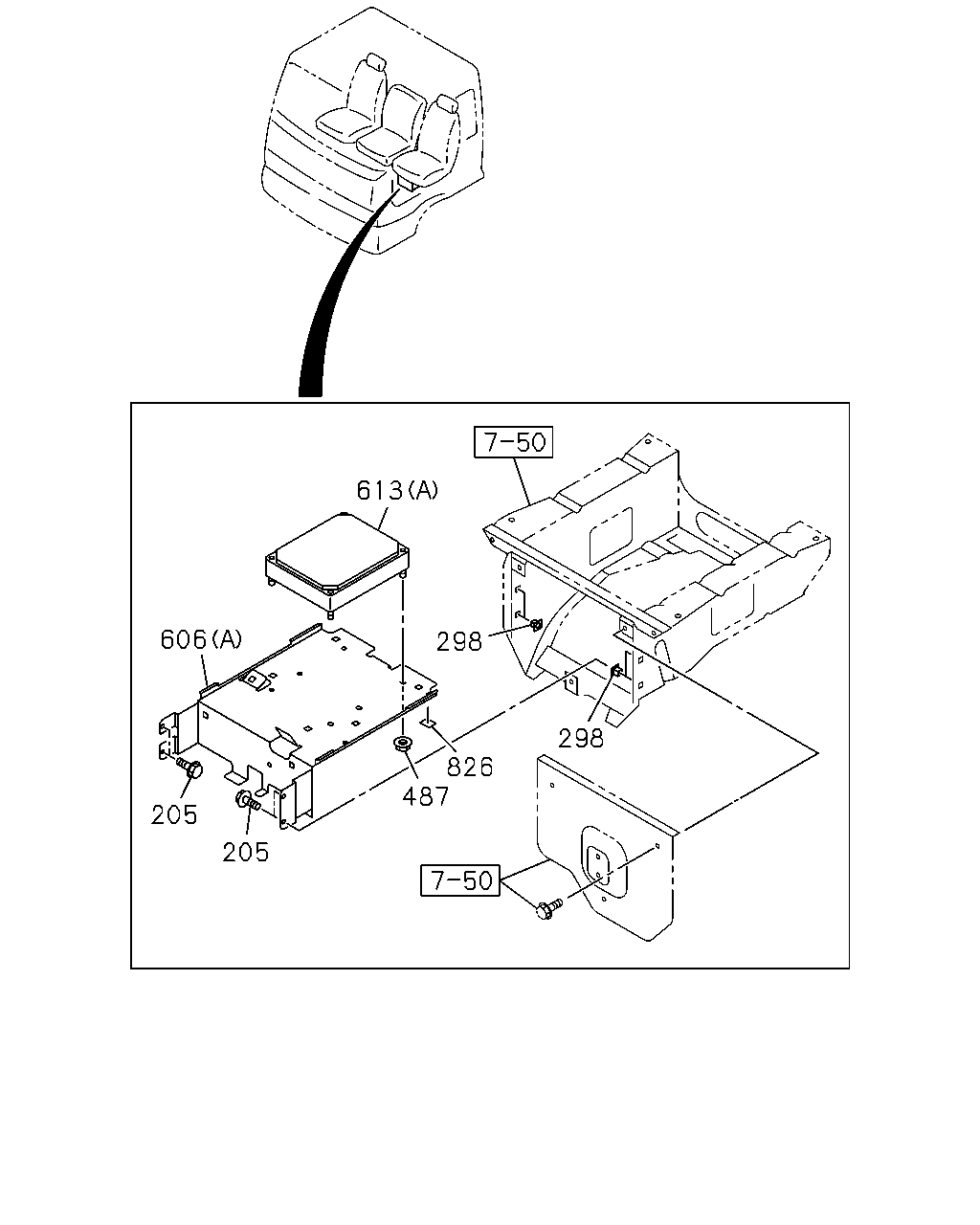

çizim 151551
613 606 298 298 826 487 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9710-9802 ●
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9710- ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9710- ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9710-0602 ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
606 BRACKET; CONT UNIT
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-75558-567-0 01 1 0009-0210 ● ● ● ● ● ●
606 BRACKET; CONT UNIT
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-75558-567-0 01 1 0211- ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> (A) 		1-75558-534-9 01 1 9710- ●
613 CONTROL UNIT; ENG
(A) 		1-80110-179-0 01 1 9710- ●
613 CONTROL UNIT; ENG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-97600-899-0 01 1 0005- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> (A) 		8-94392-232-2 01 1 0005- ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 9710-0309 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		1-74998-128-1 03 1 0310-0908 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-98142-344-0 03 1 0909- ●

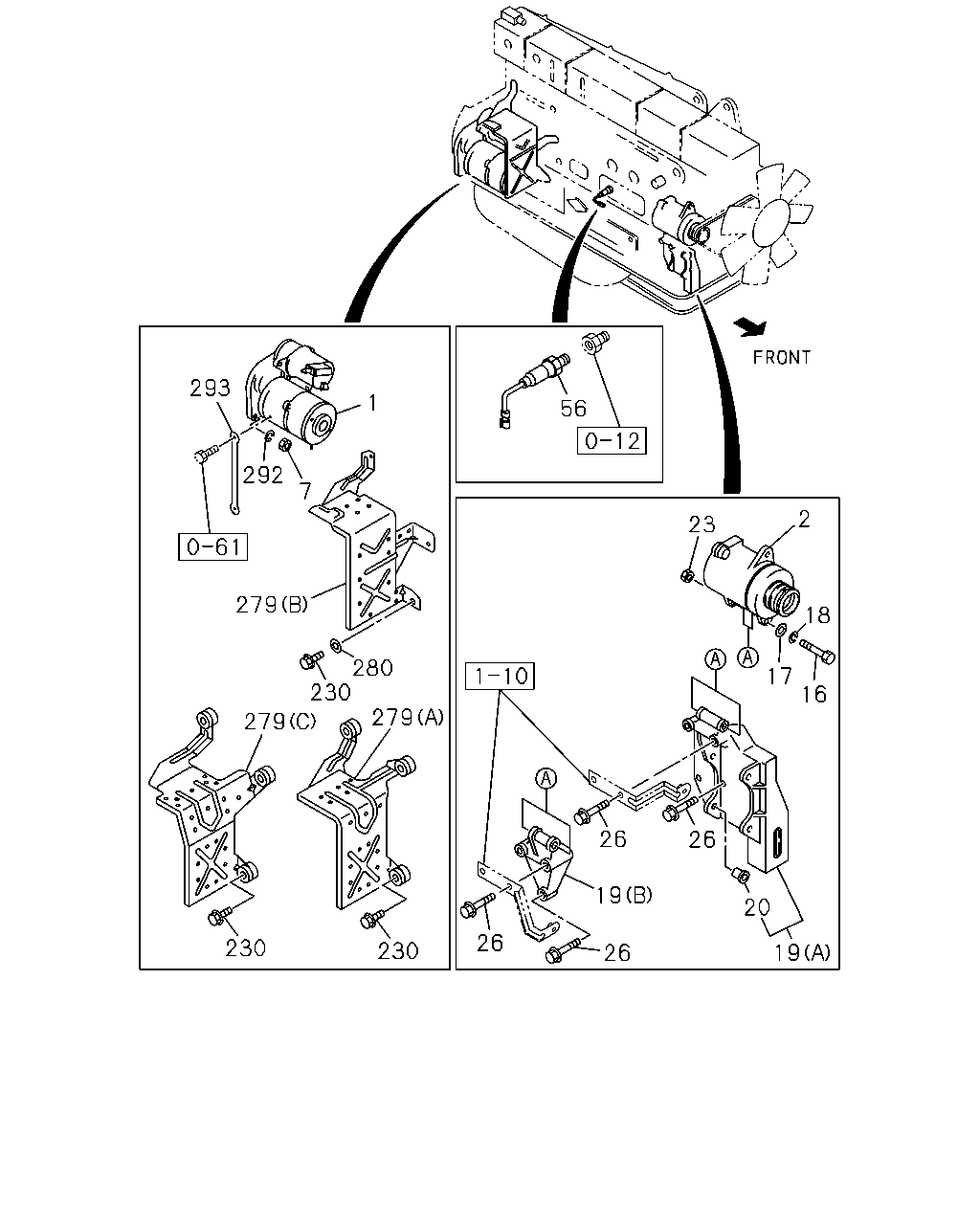

çizim 151552
293 1 56 292 7 2 23 279 18 280 230 17 16 279 279 26 26 19 20 26 230 230 19 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9510-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9510-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9710-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9710-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9510-9708 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-0004 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-323-0 01 1 0005-0009 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-323-1 01 1 0010- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 4.5KW NIKKO 		1-81100-323-1 01 1 0010- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		1-81100-414-2 01 1 0011-0609 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0610-0909 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9510-0004 ● ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0005- ● ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ● ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9510-0004 ● ● ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0512 ● ● ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9510-0004 ● ● ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005- ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9510-0004 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0605 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9510-0004 ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9803-0004 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 0005-0010 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 0011-0210 ● ●
19 BRACKET; GEN
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) 		8-94395-470-2 01 1 0011-0210 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0211- ● ● ●
19 BRACKET; GEN
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) 		8-94395-470-5 01 1 0211- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9803-9907 ● ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9803-9907 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9908-0004 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9908-0004 ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 0005-0009 ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 0005-0009 ● ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 0010-0112 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 0010-0112 ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0201-0205 ● ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0201-0205 ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0206-0210 ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0206-0210 ● ● ●
19 BRACKET; GEN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0206-0210 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0211- ● ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0211- ● ●
19 BRACKET; GEN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0211- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9510-9707 ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9510-9707 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9708-9802 ● ● ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9708-9802 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9510-9802 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9510-9802 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9803-0004 ● ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0005-0010 ● ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0011-0210 ● ●
20 COLLAR; BRKT,GEN
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		8-94201-057-1 02 1 0011-0210 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0211-1302 ● ● ●
20 COLLAR; BRKT,GEN
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		8-94201-057-1 02 1 0211-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9510-0004 ● ● ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0512 ● ● ● ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ● ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9803-0004 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0005-0007 ●
26 BOLT; GEN BRKT
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE 		0-28181-040-0 02 1 0005-0007 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0008-0010 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0011-0210 ● ●
26 BOLT; GEN BRKT
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0011-0210 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0211-0512 ● ● ●
26 BOLT; GEN BRKT
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0211-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ● ● ●
26 BOLT; GEN BRKT
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9510-0004 ● ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0512 ● ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9510-9802 ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9510-9802 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9510-9802 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9803-9805 ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9803-9805 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9806-9907 ● ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9806-9907 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9908-0004 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9908-0004 ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0005-0007 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0007 ● ● ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0007 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0008-0009 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0008-0009 ● ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0010-0205 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0010-0205 ● ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0206-0210 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0206-0210 ● ● ●
26 BOLT; GEN BRKT
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0206-0210 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ● ●
26 BOLT; GEN BRKT
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ●
26 BOLT; GEN BRKT
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9510-0004 ● ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0005- ● ● ● ● ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M8X28 FLANGE 		0-28080-828-0 01 1 9510-9802 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9510-9802 ● ● ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M10X30 FLANGE 		0-28181-030-0 01 1 9510-9802 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9510-9802 ● ● ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M8X28 FLANGE 		0-28080-828-0 01 1 9803-9910 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9803-9910 ● ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 FLANGE 		0-28080-828-0 01 1 9803-9910 ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M8X28 FLANGE 		0-28080-828-0 01 1 9911-0004 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9911-0004 ● ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 0005-0205 ● ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0005-0205 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 0206-0208 ● ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 FLANGE 		0-28080-828-0 01 1 0206-0208 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0206-0208 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 FLANGE 		0-28080-828-0 01 1 0209-0607 ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 0209-0607 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0209-0607 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 FLANGE 		0-28080-828-0 01 1 0608- ● ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0608- ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M10X30 FLANGE 		0-28181-030-0 01 1 9803-9910 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9803-9910 ● ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M10X30 FLANGE 		0-28181-030-0 01 1 9803-9910 ●
230 BOLT; HEAT PROTECTOR
ENGINE OIL TEMPERATURE GAUGE<UG3> M10X30 FLANGE 		0-28181-030-0 01 1 9911-0004 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9911-0004 ● ● ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0205 ● ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0205 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 0206-0208 ● ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M10X30 FLANGE 		0-28181-030-0 01 1 0206-0208 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0206-0208 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M10X30 FLANGE 		0-28181-030-0 01 1 0209-0512 ● ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 0209-0512 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0209-0512 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M10X30 FLANGE 		0-28151-030-0 01 1 0601-1007 ● ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28151-030-0 01 1 0601-1007 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28151-030-0 01 1 0601-1007 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT ECE<SLK> M10X30 FLANGE 		0-28151-030-0 01 1 1008- ● ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28151-030-0 01 1 1008- ●
230 BOLT; HEAT PROTECTOR
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. HEATER & DEFROSTER(C41) M8X14 		0-20800-814-0 03 1 9803-9805 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> M8X14 		0-20800-814-0 03 1 9806-0004 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> M8X14 		0-20800-814-0 03 1 0005- ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X14 		0-20800-814-0 03 1 0005- ●
279 PROTECTOR; STARTER
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94394-501-0 01 1 9510-0004 ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9510-0004 ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 0005- ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 9510-9802 ● ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 9803-0004 ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94394-952-1 01 1 9803-0004 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		8-94394-952-1 01 1 9803-0004 ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 0005-0205 ● ●
279 PROTECTOR; STARTER
EURO2 SPECIFICATION<THN> (A) 		8-94394-952-1 01 1 0005-0205 ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 0206-0208 ●
279 PROTECTOR; STARTER
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) 		8-94394-952-1 01 1 0206-0208 ●
279 PROTECTOR; STARTER
EURO2 SPECIFICATION<THN> (A) 		8-94394-952-1 01 1 0206-0208 ●
279 PROTECTOR; STARTER
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) 		8-94394-952-1 01 1 0209- ● ●
279 PROTECTOR; STARTER
EURO2 SPECIFICATION<THN> (A) 		8-94394-952-1 01 1 0209- ●
279 PROTECTOR; STARTER
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. HEATER & DEFROSTER(C41) (C) 		8-94394-435-2 01 1 9803-9805 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> (C) 		8-94394-435-2 01 1 9806-0004 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> (C) 		8-94394-435-2 01 1 0005- ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		8-94394-435-2 01 1 0005- ●
280 WASHER; PL,HEAT PROTECTOR
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. HEATER & DEFROSTER(C41) ID=8.4 OD=18 		9-09160-608-0 03 1 9803-9805 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		9-09160-608-0 03 1 9806-0004 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=18 		9-09160-608-0 03 1 0005-0605 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18 		9-09160-608-0 03 1 0005-0605 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9510-0004 ● ● ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ● ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ●
293 CABLE; STARTER EARTH
ENGINE OIL TEMPERATURE GAUGE<UG3> L=360 		1-82650-230-1 01 1 9510-0004 ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9510-0004 ● ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 0005-0006 ● ● ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 0007-0009 ● ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 0010- ● ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=360 		1-82650-230-1 01 1 0010- ●
293 CABLE; STARTER EARTH
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=290 		1-82650-279-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=290 		1-82650-279-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=290 		1-82650-279-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=290 		1-82650-279-0 01 1 9908-0004 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 01 1 9908-0004 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 01 1 0005-0012 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 01 1 0101- ●
293 CABLE; STARTER EARTH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> L=290 		1-82650-279-0 01 1 0101- ●
293 CABLE; STARTER EARTH
L=300 		1-82650-223-0 01 1 0007- ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> L=320 		1-82650-324-0 01 1 0011-0012 ●

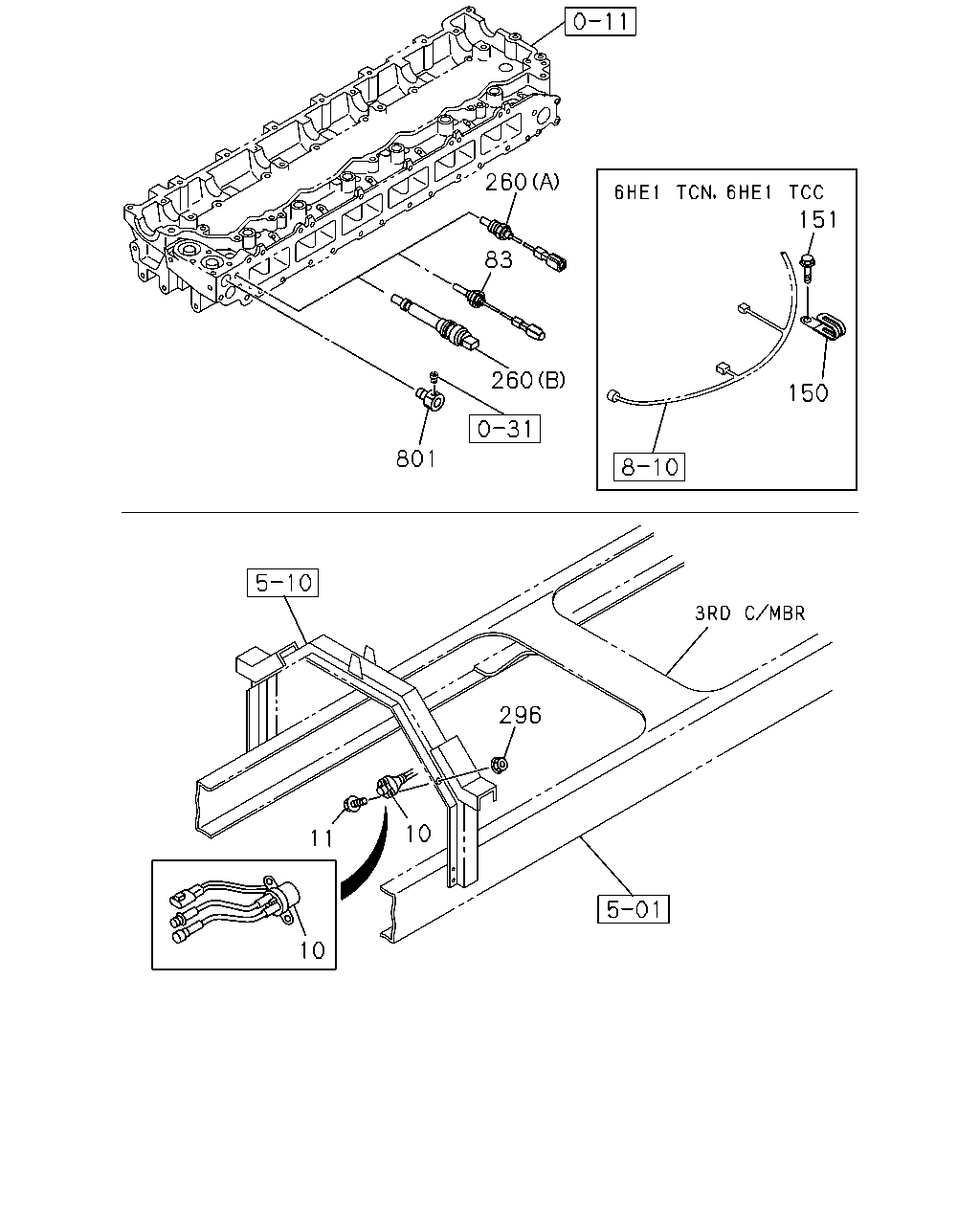

çizim 151554
260 151 83 260 150 801 296 10 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9510-9608 ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9609-0004 ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 0005-0303 ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-1 01 1 0304- ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 9904-9907 ● ● ● ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 9908-0004 ● ● ● ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9510- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ●
83 THERMOMETER UNIT
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-83161-031-1 01 1 9510-9911 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9510-9911 ● ● ●
83 THERMOMETER UNIT
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-83161-031-1 01 1 9911-0004 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9911-0004 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9911-0004 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005- ● ● ●
150 CLIP; HARNESS,SOLENOID VLV
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=18 L=44 		8-94225-185-0 02 1 9710-0004 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 9710-0004 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 0005-0801 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-97367-985-1 02 1 0802- ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X12 FLANGE 		0-28080-812-0 02 1 9710-0004 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 9710-0004 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
260 SENSOR; WATER TEMP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-80210-004-0 01 1 9710-0004 ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 9710-0004 ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 0005- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-005-0 01 1 9911-0004 ●
260 SENSOR; WATER TEMP
(B) 		1-80210-005-1 01 1 0005- ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9510-9606 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
801 ADAPTER; THERMO SWITCH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		8-94395-851-1 01 1 0011-1008 ●
801 ADAPTER; THERMO SWITCH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		8-98177-501-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
