2-85A — POWER TAKE OFF CONTROL (#3785) — 30 parça

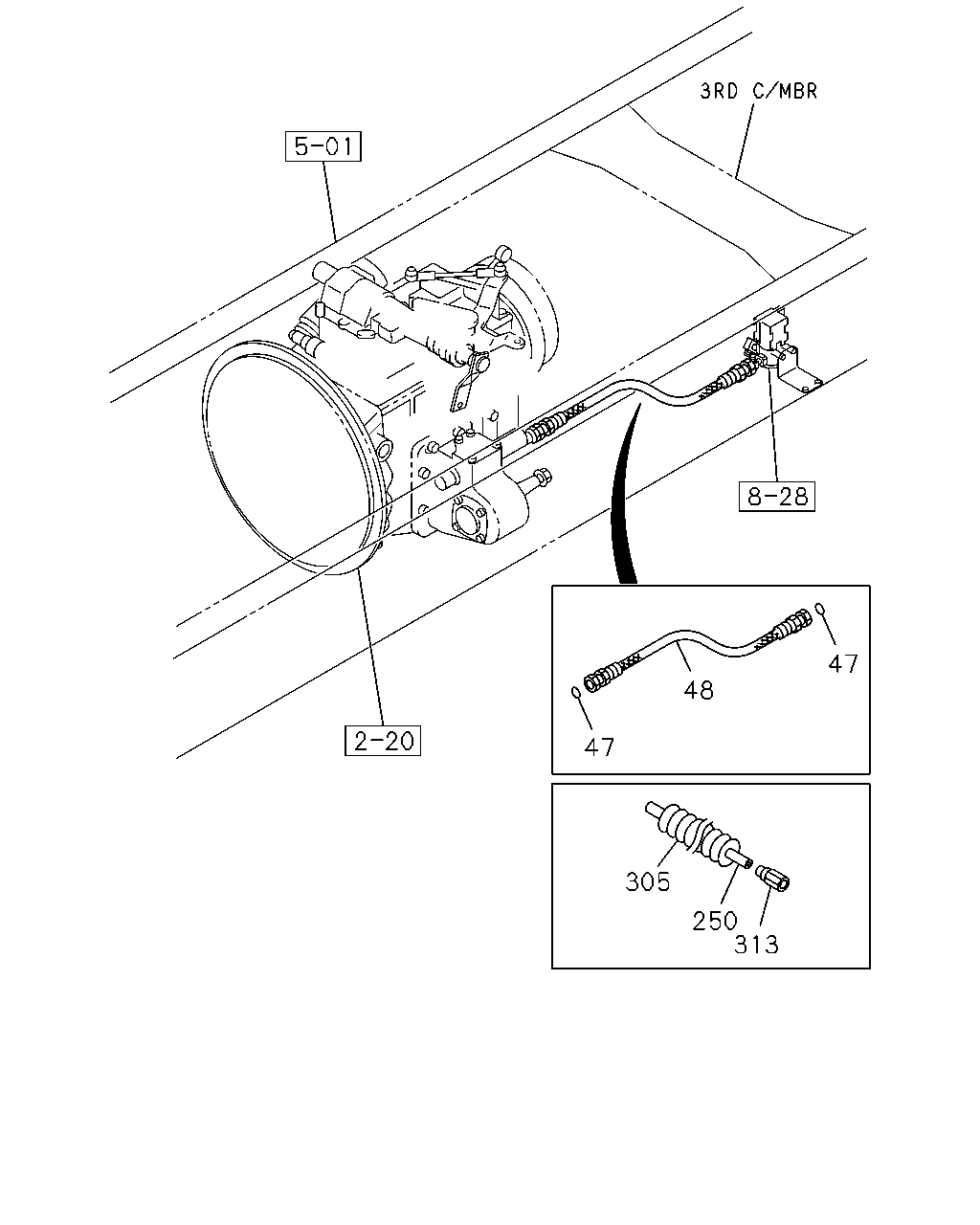

çizim 37540
47 48 47 305 250 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
47 GASKET; FLEX HOSE
PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9601-9903 ● ● ● ● ● ●
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9904-0204 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=650 		0-07150-650-0 01 1 9605-0112 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=550 		0-07150-550-0 01 1 0201-0204 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=580 		1-09363-613-1 01 1 0205- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=500 		0-07150-500-0 01 1 9601-9604 ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=500 		0-07150-500-0 01 1 9605-9706 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=430 		0-07150-430-0 01 1 9707-9803 ● ● ● ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9804-0212 ● ● ● ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301- ● ● ● ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9710-9803 ● ● ●
250 TUBE; NYLON
SHORT CHASSIS(FV***C) PTO CONTROL<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9804-9805 ●
250 TUBE; NYLON
MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9804-9805 ●
250 TUBE; NYLON
MIDDLE CHASSIS(FV***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9804-9805 ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9806-0004 ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0608- ● ●
305 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9710-9803 ● ● ●
305 TUBE; CORRUGATE
PTO CONTROL<SV6> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-0004 ● ●
305 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005- ● ●
313 ADAPTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-9806 ● ● ● ● ●
313 ADAPTER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9807-0004 ● ● ● ● ●
313 ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ● ● ●
313 ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ● ● ●
çizim 39054
3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 9601- ● ● ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9601- ● ● ● ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9601-9803 ● ● ● ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9804-0004 ● ● ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0005-0607 ● ● ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0608- ● ● ● ● ●
