0-52 — OIL AND VACUUM PIPING; ENGINE (#37848) — 635 parça

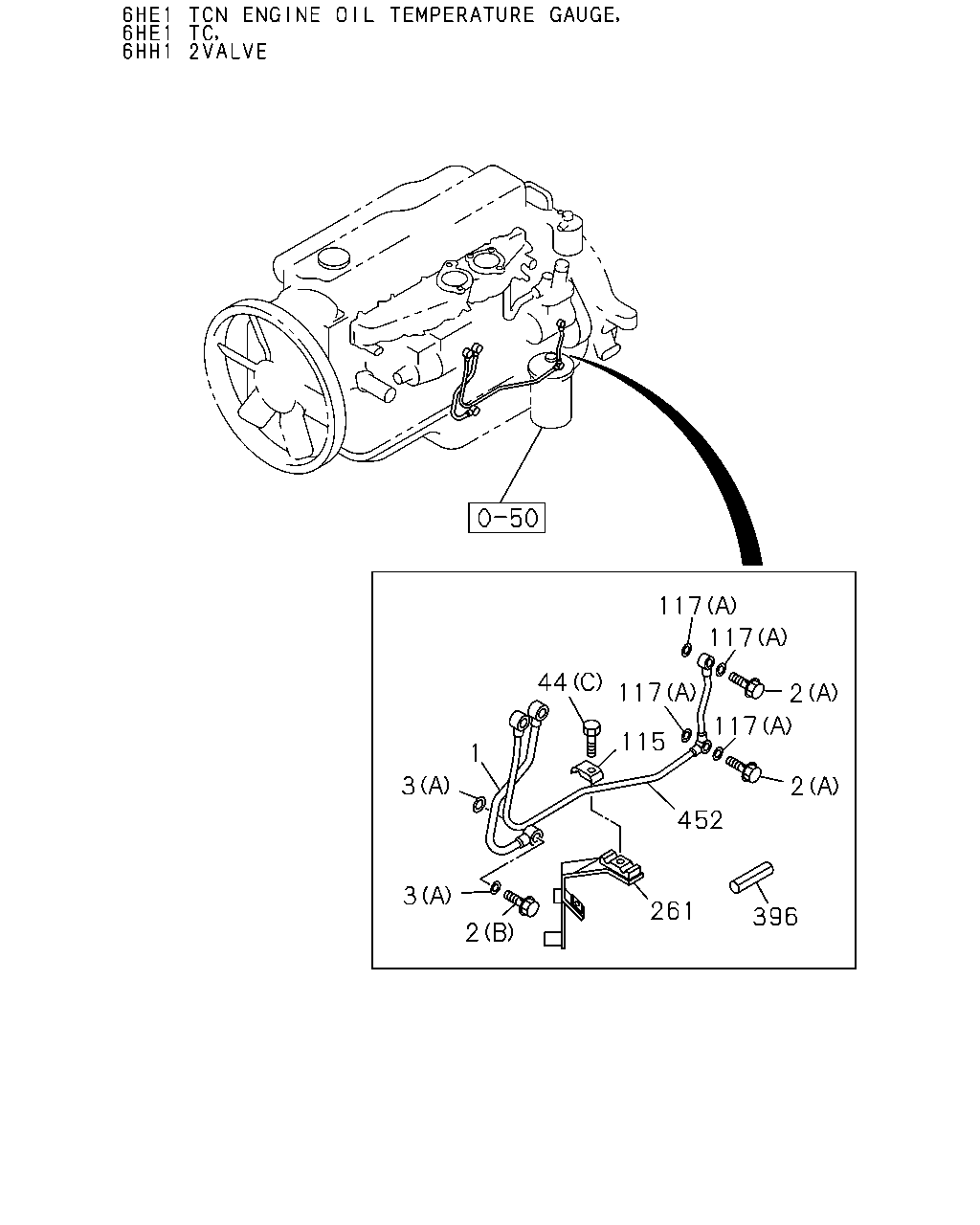

çizim 151542
117 117 44 117 2 117 115 1 3 2 452 3 261 396 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9510-9910 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0005- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0005-0009 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0010-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ● ● ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9910 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9710-0004 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ● ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0205 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE OIL TEMPERATURE GAUGE<UG3>. (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 04 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9911 ● ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 02 1 9912-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2 		1-09630-084-0 02 1 9912-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ● ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ● ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9812 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
115 CLIP; PIPE,INJ PUMP
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09701-091-0 01 1 9510-9910 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9910 ● ● ●
115 CLIP; PIPE,INJ PUMP
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9911-0004 ● ●
115 CLIP; PIPE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005- ● ● ●
115 CLIP; PIPE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-09701-091-0 01 1 0005- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0005-0009 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0010-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
261 BRACKET; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-410-3 01 1 9510-9910 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9510-9910 ● ● ●
261 BRACKET; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-410-3 01 1 9911-0004 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9911-0004 ● ●
261 BRACKET; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-410-3 01 1 9911-0004 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 0005- ● ● ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002-0004 ●
396 SLEEVE; RUBBER,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002-0004 ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0005-0009 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0010-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●

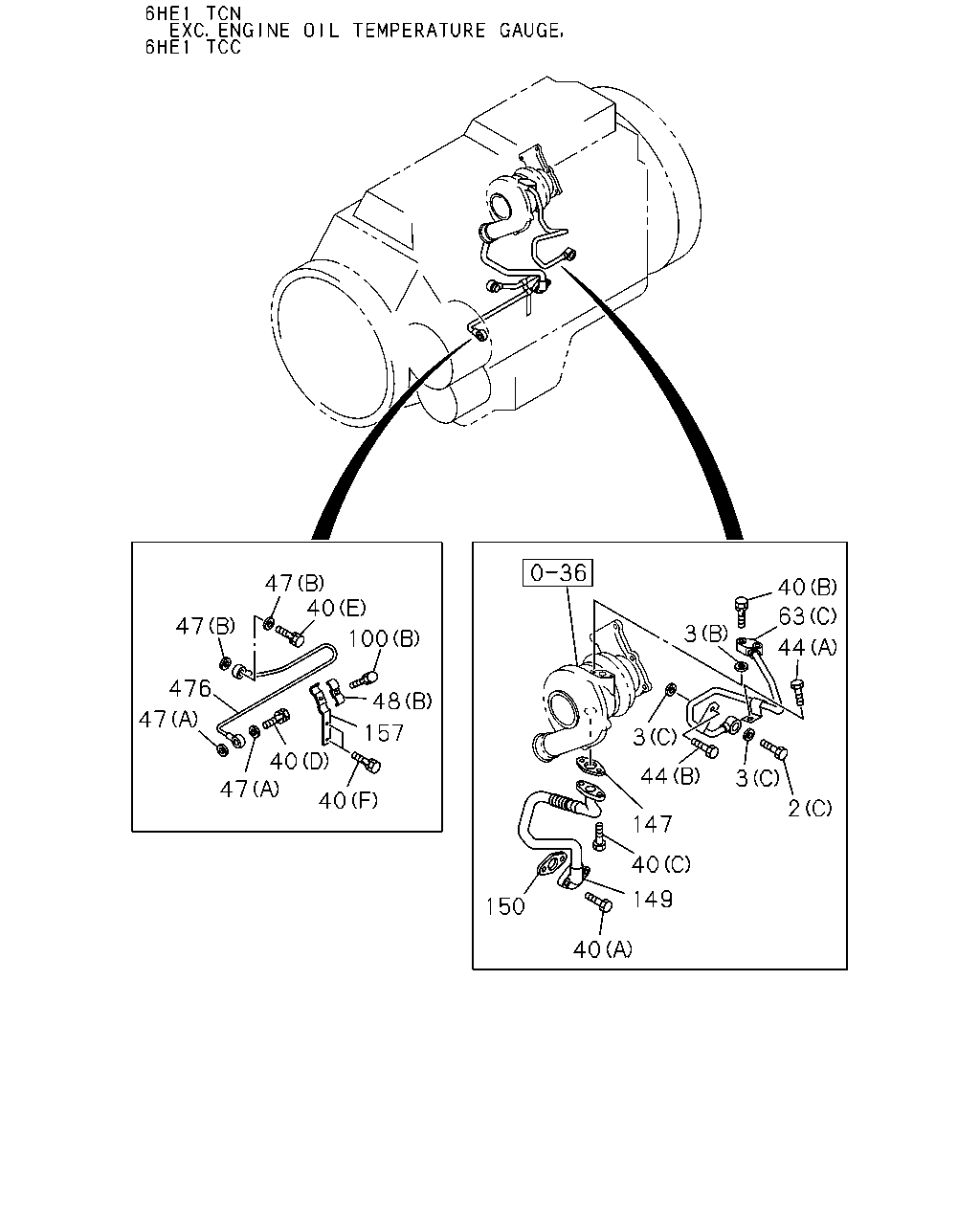

çizim 151543
47 40 40 63 47 3 100 44 476 48 47 40 157 3 44 3 47 40 2 147 40 149 150 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ● ● ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●

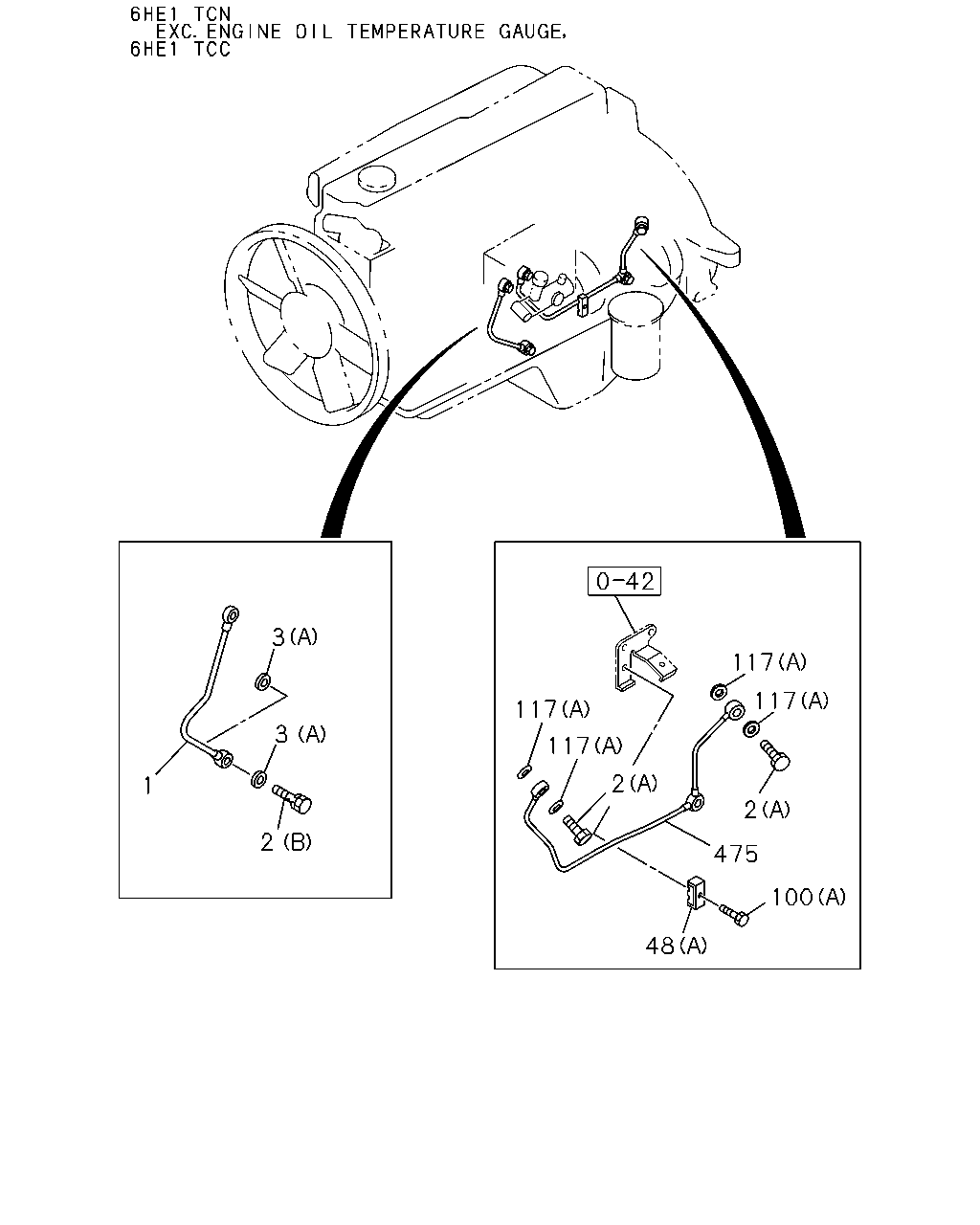

2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9910 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9710-0004 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ● ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0205 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ● ● ●
2 BOLT; EYE,OIL PIPE

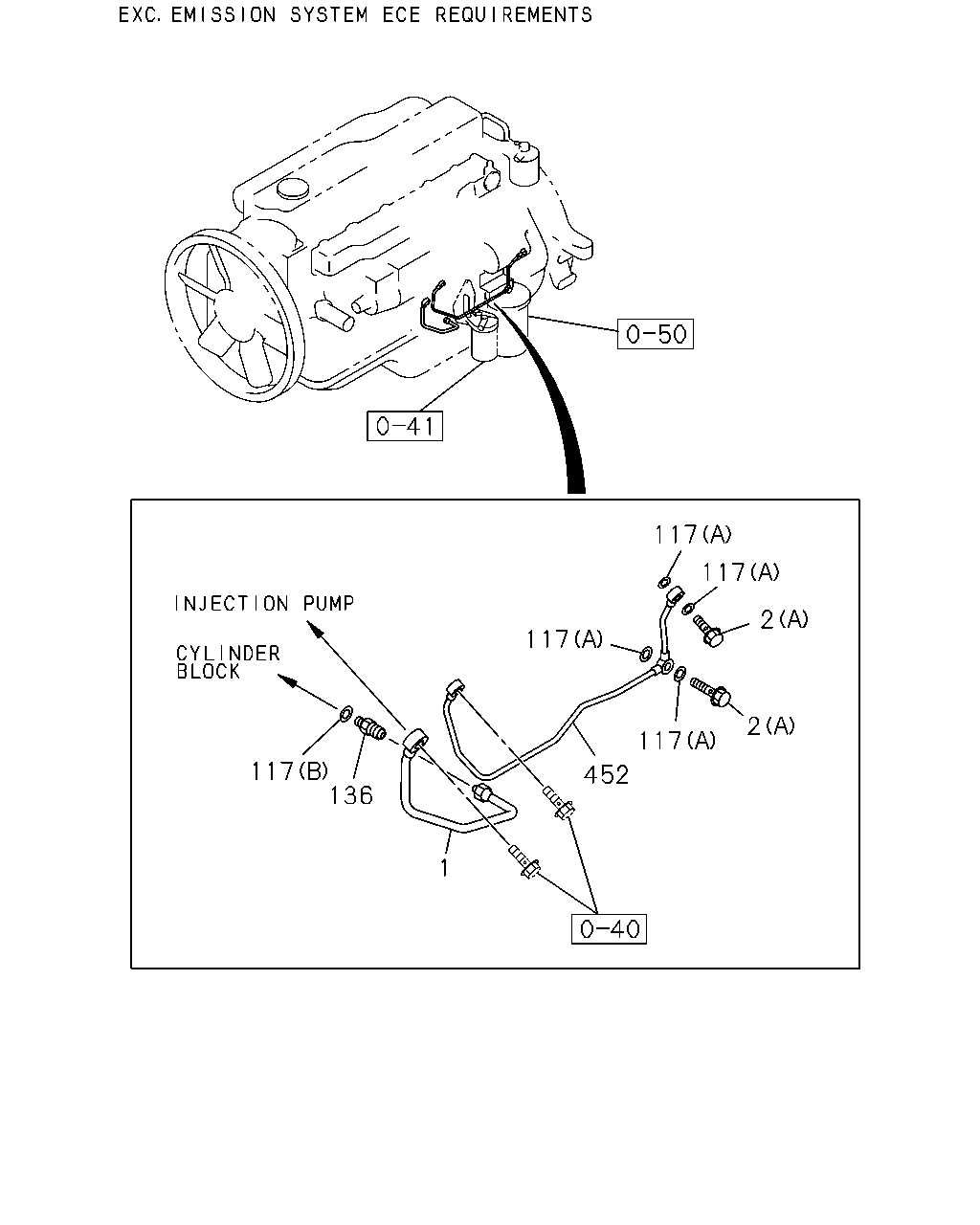

EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE OIL TEMPERATURE GAUGE<UG3>. (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 04 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9911 ● ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 02 1 9912-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2 		1-09630-084-0 02 1 9912-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (F) M10X16 FLANGE 		0-28181-016-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M10X21 FLANGE 		1-09675-077-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X27 FLANGE 		1-09675-086-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9510-0004 ● ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0005-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9510-0004 ● ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0005- ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ● ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ● ● ●
44 BOLT; CLIP,OIL PIPE

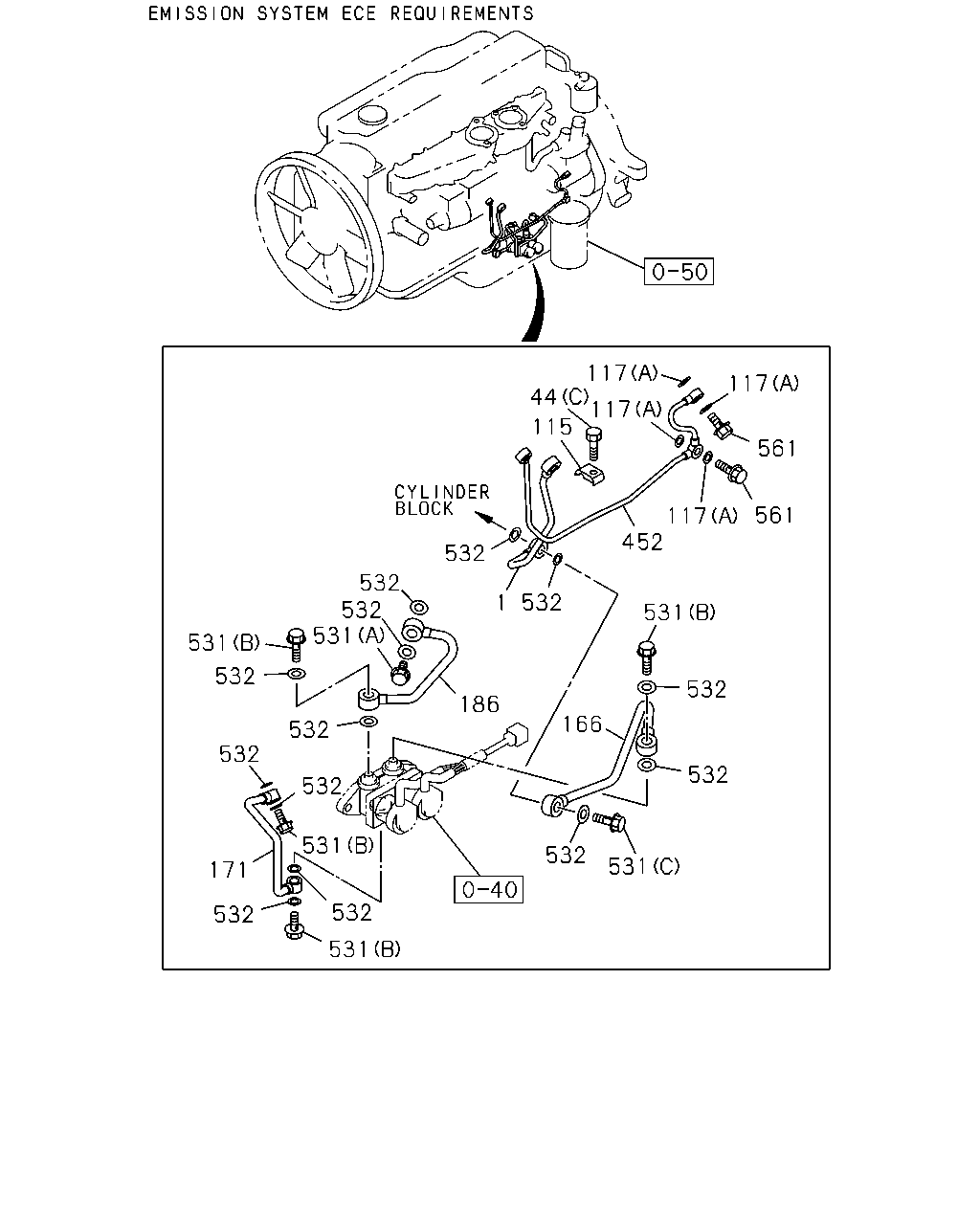

EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9812 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9710-0004 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9710-0004 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0005- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-1312 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-1 01 1 0005- ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 0005- ●

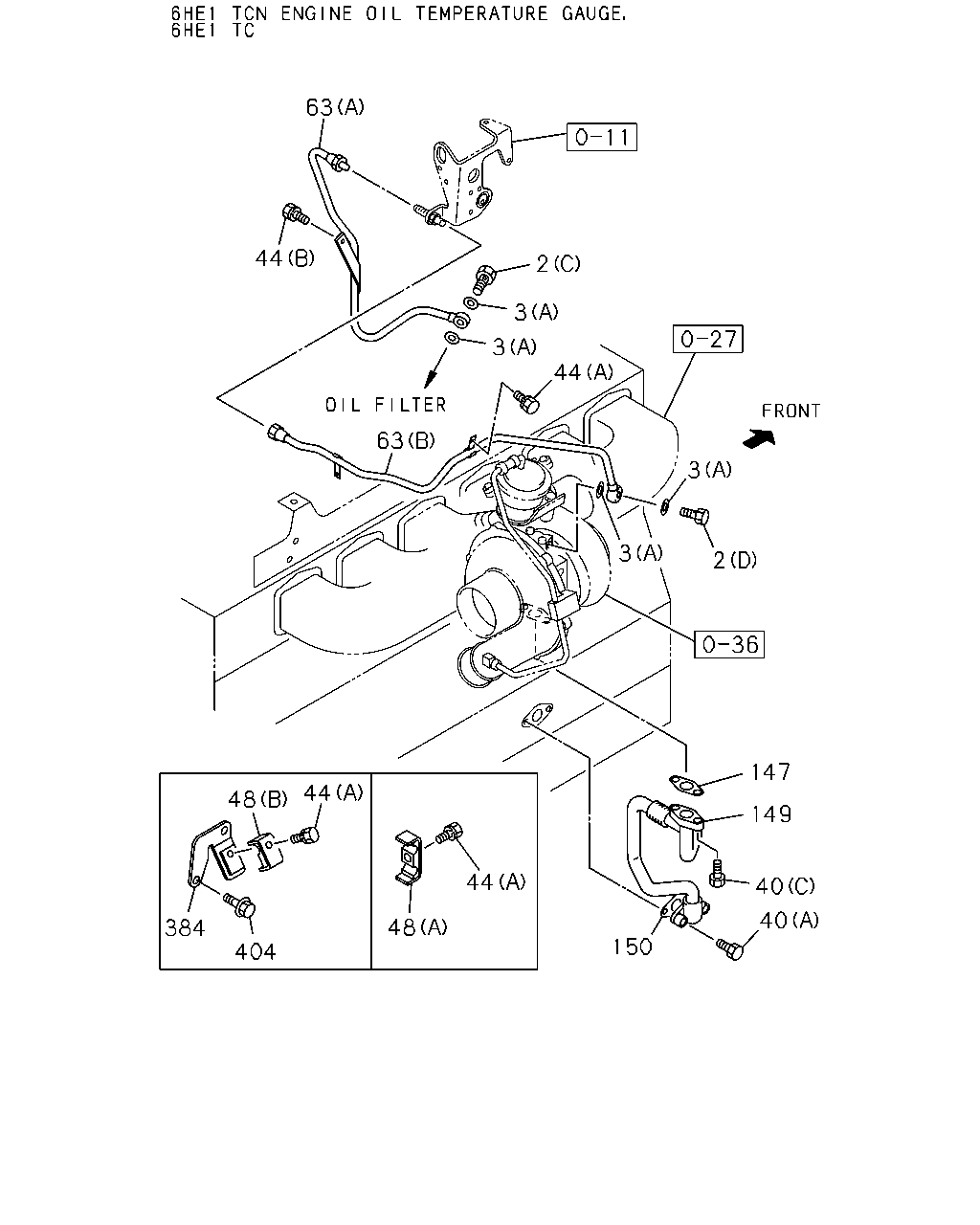

63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94301-581-0 01 1 9510-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9510-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97600-198-0 01 1 9901-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 9901-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 0005- ●
63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		8-94395-102-0 01 1 9510-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9510-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 0005- ●
63 PIPE; OIL,TURBOCHARGER FEED
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 		8-94390-652-0 01 1 9710-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94390-652-0 01 1 9710-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 		8-94392-976-0 01 1 9809-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 9809-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 0005- ●
100 BOLT; CLIP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M6X16 FLANGE 		0-28080-616-0 01 1 9710-0004 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9710-0004 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 0005-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X22 FLANGE 		0-28080-622-0 01 1 9710-0004 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9710-0004 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9510-0004 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 0005- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-380-0 01 1 9510-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9510-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 0005- ●
149 PIPE; OIL RETURN,TURBOCHARGER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-653-0 01 1 9710-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9710-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94392-977-0 01 1 9809-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9809-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 0005- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9510-0004 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0005- ● ●
157 BRACKET; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-168-0 01 1 9710-0004 ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 9710-0004 ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 0005- ●
476 PIPE; OIL,C/BL TO AIR CMPR
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-940-1 01 1 9710-0004 ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 9710-0004 ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 0005- ●
çizim 151545
63 44 2 3 3 44 63 3 3 2 147 44 48 149 44 40 40 48 384 150 404
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ● ● ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9910 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9710-0004 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ● ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0205 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE OIL TEMPERATURE GAUGE<UG3>. (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 04 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9911 ● ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 02 1 9912-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2 		1-09630-084-0 02 1 9912-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (F) M10X16 FLANGE 		0-28181-016-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M10X21 FLANGE 		1-09675-077-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X27 FLANGE 		1-09675-086-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9710-9802 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0004 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9510-0004 ● ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0005-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9510-0004 ● ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0005- ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ● ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ● ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9812 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-1 01 1 0005- ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 0005- ●
63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94301-581-0 01 1 9510-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9510-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97600-198-0 01 1 9901-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 9901-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 0005- ●
63 PIPE; OIL,TURBOCHARGER FEED
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		8-94395-102-0 01 1 9510-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9510-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 0005- ●
63 PIPE; OIL,TURBOCHARGER FEED
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 		8-94390-652-0 01 1 9710-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94390-652-0 01 1 9710-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 		8-94392-976-0 01 1 9809-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 9809-0004 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 0005- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9510-0004 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 0005- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-380-0 01 1 9510-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9510-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 0005- ●
149 PIPE; OIL RETURN,TURBOCHARGER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-653-0 01 1 9710-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9710-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94392-977-0 01 1 9809-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9809-0004 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 0005- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9510-0004 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0005- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-199-0 01 1 9901-0004 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 8-97600-199-0 01 1 9901-0004 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 8-97600-199-0 01 1 0005- ●
404 BOLT; BRKT
ENGINE OIL TEMPERATURE GAUGE<UG3> M8X12 FLANGE 		0-28080-812-0 02 1 9901-0004 ●
404 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9901-0004 ●
404 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ●
404 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
çizim 151546
117 117 2 117 2 117 117 136 452 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9510-9910 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0005- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0005-0009 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0010-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ● ● ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9910 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9710-0004 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ● ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0205 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0005-0009 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0010-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 9911-0004 ●
136 UNION 8-94392-422-0 01 1 0005-0009 ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 0010-0010 ●
136 UNION
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-422-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0005-0009 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0010-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●
çizim 151547
3 117 117 117 3 117 2 1 2 475 100 48 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9510-9910 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0005- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0005-0009 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0010-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9709 ● ● ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9510-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 0005- ●
2 BOLT; EYE,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9710-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9910 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9710-0004 ● ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ● ● ●
2 BOLT; EYE,OIL PIPE
EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0010 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0205 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		1-09675-077-0 02 1 0206-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE OIL TEMPERATURE GAUGE<UG3>. (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 9510-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 04 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 04 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9911 ● ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-084-0 02 1 9912-0004 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2 		1-09630-084-0 02 1 9912-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(A) ID=9 & 11 L=28 		1-09701-265-1 01 1 0005- ●
48 CLIP; OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 0005- ●
48 CLIP; OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9710-0004 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 0005- ●
100 BOLT; CLIP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M6X16 FLANGE 		0-28080-616-0 01 1 9710-0004 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9710-0004 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 0005-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X22 FLANGE 		0-28080-622-0 01 1 9710-0004 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9710-0004 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0005-0009 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0010-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-488-0 01 1 9710-9906 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-94390-488-0 01 1 9710-9906 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-567-0 01 1 9907-0004 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-97600-567-0 01 1 9907-0004 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-97600-567-1 01 1 0005- ●
çizim 151548
117 44 117 117 115 561 561 117 452 532 532 532 531 532 1 531 531 532 532 186 166 532 532 532 532 531 532 531 171 532 532 531
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9510-9910 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0005- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0005-0009 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0010-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-666-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9911 ● ● ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9912-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ● ● ●
44 BOLT; CLIP,OIL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE 		0-28080-622-0 01 1 0005- ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9510-9812 ●
44 BOLT; CLIP,OIL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-9812 ●
44 BOLT; CLIP,OIL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9901-0004 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9510-9812 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9901-0004 ● ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
115 CLIP; PIPE,INJ PUMP
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09701-091-0 01 1 9510-9910 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9910 ● ● ●
115 CLIP; PIPE,INJ PUMP
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9911-0004 ● ●
115 CLIP; PIPE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005- ● ● ●
115 CLIP; PIPE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-09701-091-0 01 1 0005- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005- ● ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0005-0009 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0010-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
166 PIPE; OIL,C/BL TO SOLENOID VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-046-0 01 1 0005- ●
171 PIPE; OIL,SOLENOID VLV TO TIMER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-045-0 01 1 0005- ●
186 PIPE; OIL,SOLENOID VLV FEED
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94392-044-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-9910 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0005- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0005-0009 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0010-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-632-0 01 1 0005- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M12X33 FLANGE 		1-09675-083-0 01 1 0005- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 FLANGE 		1-09675-160-0 04 1 0005-0805 ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 04 1 0806- ●
531 BOLT; EYE,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M12X48 FLANGE 		8-94392-722-0 01 1 0005- ●
532 GASKET; JOINT,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2 		1-09630-084-0 11 1 0005-1312 ●
532 GASKET; JOINT,TIMING CONT VLV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2 		8-98251-344-0 11 1 1401- ●
561 BOLT; EYE,FILTER & AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE 		1-09675-077-0 02 1 0005-0805 ●
561 BOLT; EYE,FILTER & AIR CMPR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
