Sayfa 0-36 - Isuzu EPC

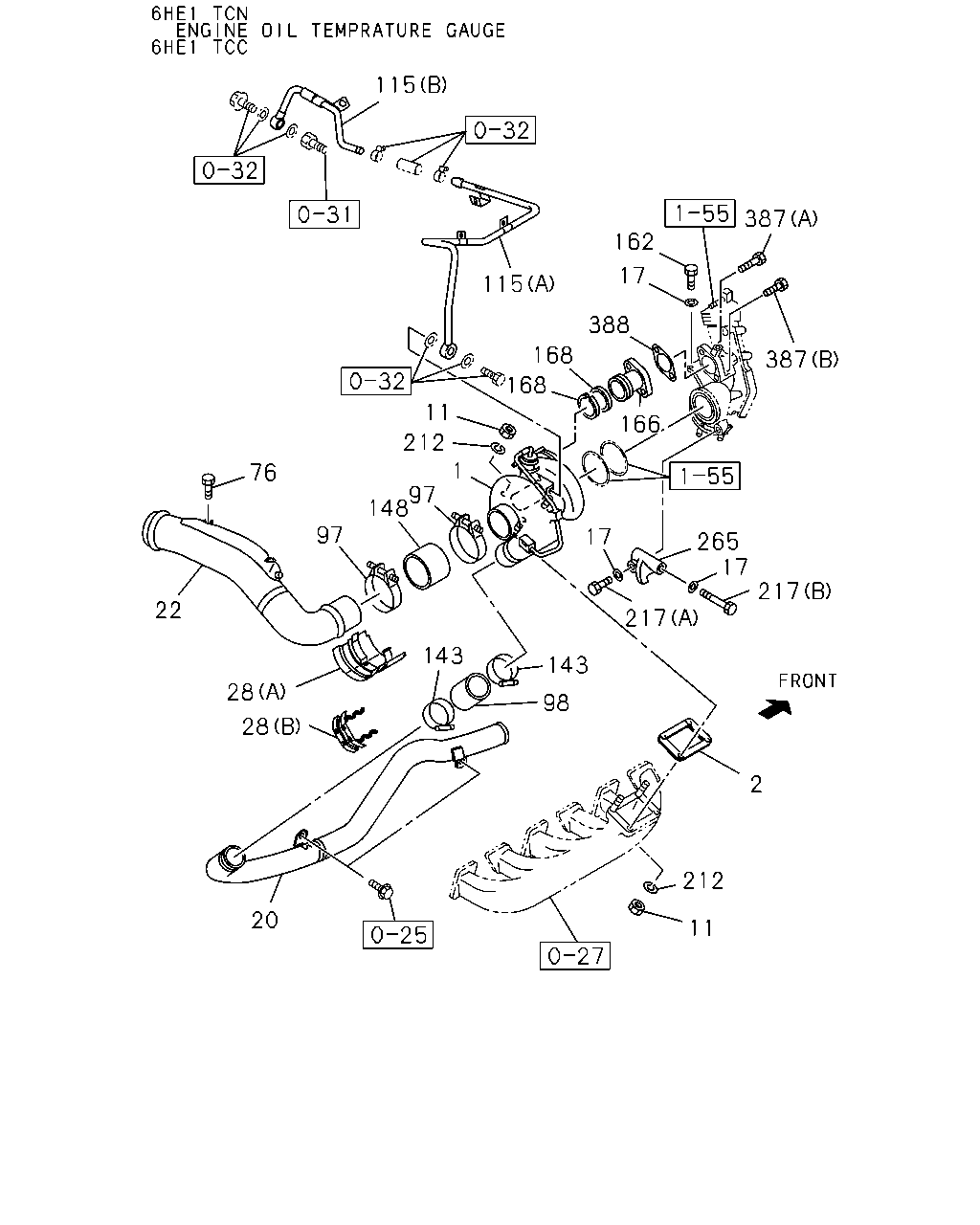

0-36 — TURBOCHARGER SYSTEM (#37839) — 232 parça

115 387 162 17 115 388 168 387 168 11 166 212 1 76 97 148 97 17 265 17 217 22 217 143 143 28 98 28 2 212 20 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-283-1	01	1	9510-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-651-0	01	1	9711-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	9711-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9704-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-3	01	1	0005-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9710-9710		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9510-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9510-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0004		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-		●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	9510-0004	●	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0005-		●	●
17	WASHER; PL,ADAPTER ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.2	9-09851-933-0	04	1	9510-0004	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9510-0004			●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	0005-	●
17	WASHER; PL,ADAPTER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T=1.9	5-09500-012-0	06	1	9710-0004	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9710-0004		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0005-		●
20	PIPE; INL,TURBOCHARGER OUT ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-399-1	01	1	9510-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	9510-0004			●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	0005-	●
20	PIPE; INL,TURBOCHARGER OUT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-649-0	01	1	9710-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-0	01	1	9710-0004		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0005-		●
22	DUCT; INL,ACL TO TURBOCHARGER ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-401-1	01	1	9510-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9510-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-407-0	01	1	9710-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9710-0004		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-14181-220-0	01	1	9510-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9510-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	8-94393-182-0	01	1	9510-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9510-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C)	1-14181-264-0	01	1	9710-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9710-0004		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0005-		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9510-0004	●	●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512		●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●	●
97	CLIP; HOSE,TURBOCHARGER,INL ENGINE OIL TEMPERATURE GAUGE<UG3> ID=86	9-09915-592-0	02	1	9510-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9510-0004			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=77-95	1-09707-114-0	02	1	9710-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9710-0004		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ENGINE OIL TEMPERATURE GAUGE<UG3> ID=62 L=70	1-09360-797-1	01	1	9510-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9510-0004			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09360-782-0	01	1	9710-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9710-0004		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-		●
115	PIPE; WATER,TURBOCHARGER OUT ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	8-94394-691-0	01	1	9510-0004	●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-94394-691-0	01	1	9510-0004			●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-94394-691-1	01	1	0005-	●
115	PIPE; WATER,TURBOCHARGER OUT ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	8-94395-454-4	01	1	9510-0004	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94395-454-4	01	1	9510-0004			●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94395-454-4	01	1	0005-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ENGINE OIL TEMPERATURE GAUGE<UG3> ID=58-79	8-94126-771-0	02	1	9510-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9510-0004			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0811			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=50-69	8-94316-991-0	02	1	9710-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9710-0004		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09360-600-0	01	1	9510-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9510-0004			●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	5-09360-846-0	01	1	9710-0004	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9710-0004		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-		●
162	BOLT; ADAPTER ENGINE OIL TEMPERATURE GAUGE<UG3> M12X30	8-94394-324-0	02	1	9510-0004	●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9510-0004			●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	0005-	●
162	BOLT; ADAPTER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X57	5-09000-275-0	05	1	9710-0004	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9710-0004		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0005-		●
166	PIPE; EXH ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-151-0	01	1	9510-0004	●
166	PIPE; EXH	8-94393-151-0	01	1	9510-0004			●
166	PIPE; EXH	8-94393-151-0	01	1	0005-	●
168	RING; SEAL,EXH PIPE ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14149-083-1	02	1	9510-0004	●
168	RING; SEAL,EXH PIPE	1-14149-083-1	02	1	9510-0004			●
168	RING; SEAL,EXH PIPE	1-14149-083-1	02	1	0005-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9510-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-		●	●
217	BOLT; BRKT ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M12X30	8-94394-324-0	01	1	9510-0004	●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9510-0004			●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	0005-	●
217	BOLT; BRKT ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M12X85	8-94394-514-0	01	1	9510-0004	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9510-0004			●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	0005-	●
265	BRACKET; EXH PIPE ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-373-0	01	1	9510-0004	●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9510-0004			●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	0005-	●
387	BOLT; EXH PIPE ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10X40	8-94393-700-0	01	1	9510-0004	●
387	BOLT; EXH PIPE (B) M10X40	8-94393-700-0	01	1	9510-0004			●
387	BOLT; EXH PIPE (B) M10X40	8-94393-700-0	01	1	0005-	●
387	BOLT; EXH PIPE ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10X70	8-94394-698-0	01	1	9510-0004	●
387	BOLT; EXH PIPE (A) M10X70	8-94394-698-0	01	1	9510-0004			●
387	BOLT; EXH PIPE (A) M10X70	8-94394-698-0	01	1	0005-	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9510-0004	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9510-0004			●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	0005-	●

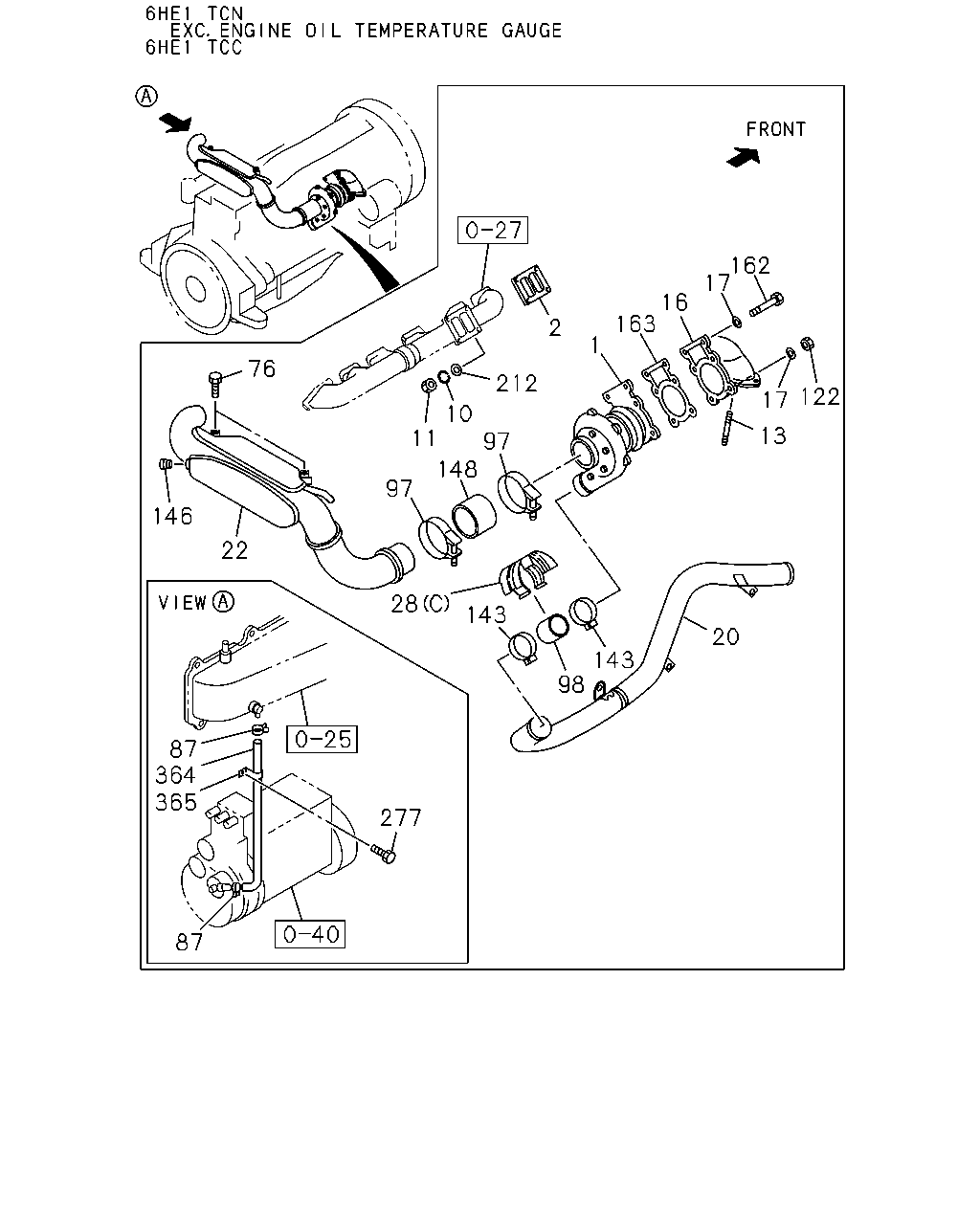

162 17 16 163 2 1 76 212 17 122 10 13 11 97 148 97 146 22 28 143 20 143 98 87 364 365 277 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-283-1	01	1	9510-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-651-0	01	1	9711-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	9711-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9704-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-3	01	1	0005-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	9710-9710		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9510-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9510-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0004		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-		●
10	WASHER; LK,TURBOCHARGER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T=2.2	1-09556-015-0	02	1	9710-0004	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	9710-0004		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0005-		●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	9510-0004	●	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0005-		●	●
13	STUD; EXH PIPE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X103 L=123	8-94394-656-0	01	1	9710-0004	●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	9710-0004		●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	0005-		●
16	ADAPTER; EXH PIPE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-161-1	01	1	9710-0004	●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9710-0004		●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0005-		●
17	WASHER; PL,ADAPTER ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.2	9-09851-933-0	04	1	9510-0004	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9510-0004			●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	0005-	●
17	WASHER; PL,ADAPTER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T=1.9	5-09500-012-0	06	1	9710-0004	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9710-0004		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0005-		●
20	PIPE; INL,TURBOCHARGER OUT ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-399-1	01	1	9510-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	9510-0004			●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	0005-	●
20	PIPE; INL,TURBOCHARGER OUT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-649-0	01	1	9710-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-0	01	1	9710-0004		●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0005-		●
22	DUCT; INL,ACL TO TURBOCHARGER ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-401-1	01	1	9510-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9510-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94390-407-0	01	1	9710-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9710-0004		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-14181-220-0	01	1	9510-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9510-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	8-94393-182-0	01	1	9510-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9510-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C)	1-14181-264-0	01	1	9710-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9710-0004		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	0005-		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9510-0004	●	●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512		●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●	●
87	CLIP; RUBBER HOSE FIX EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=11	8-94238-570-0	02	1	9710-0004	●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	9710-0004		●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	0005-		●
97	CLIP; HOSE,TURBOCHARGER,INL ENGINE OIL TEMPERATURE GAUGE<UG3> ID=86	9-09915-592-0	02	1	9510-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9510-0004			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=77-95	1-09707-114-0	02	1	9710-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9710-0004		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ENGINE OIL TEMPERATURE GAUGE<UG3> ID=62 L=70	1-09360-797-1	01	1	9510-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9510-0004			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09360-782-0	01	1	9710-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9710-0004		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-		●
122	NUT; ADAPTER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8	1-09400-118-1	01	1	9710-0004	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	9710-0004		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0005-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ENGINE OIL TEMPERATURE GAUGE<UG3> ID=58-79	8-94126-771-0	02	1	9510-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9510-0004			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0811			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=50-69	8-94316-991-0	02	1	9710-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9710-0004		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
146	PLUG; INL PIPE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> PT1	1-09605-021-0	01	1	9710-9710	●
146	PLUG; INL PIPE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> PT1	1-09605-021-0	01	1	9711-0004	●
146	PLUG; INL PIPE PT1	1-09605-021-0	01	1	9711-0004		●
146	PLUG; INL PIPE PT1	1-09605-021-1	01	1	0005-		●
148	HOSE; TURBOCHARGER,INL ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09360-600-0	01	1	9510-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9510-0004			●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	5-09360-846-0	01	1	9710-0004	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9710-0004		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-		●
162	BOLT; ADAPTER ENGINE OIL TEMPERATURE GAUGE<UG3> M12X30	8-94394-324-0	02	1	9510-0004	●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9510-0004			●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	0005-	●
162	BOLT; ADAPTER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X57	5-09000-275-0	05	1	9710-0004	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9710-0004		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0005-		●
163	GASKET; ADAPTER TO EXH PIPE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14145-162-0	01	1	9710-0004	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	9710-0004		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0005-		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9510-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-		●	●
277	BOLT; CLIP EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M6X10 FLANGE	0-28080-610-0	01	1	9710-0004	●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	9710-0004		●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	0005-0512		●
277	BOLT; CLIP M6X10 FLANGE	0-28050-610-0	01	1	0601-		●
364	HOSE; BOOST EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9710-0004	●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9710-0004		●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	0005-		●
365	CLIP; RUBBER HOSE,BOOST EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> D=11 H=40 L=20	8-94246-610-0	01	1	9710-0004	●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	9710-0004		●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
