Isuzu WW
▶
TRUCKS
▶
FSR
▶
10701 - FSR(LHD) EXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

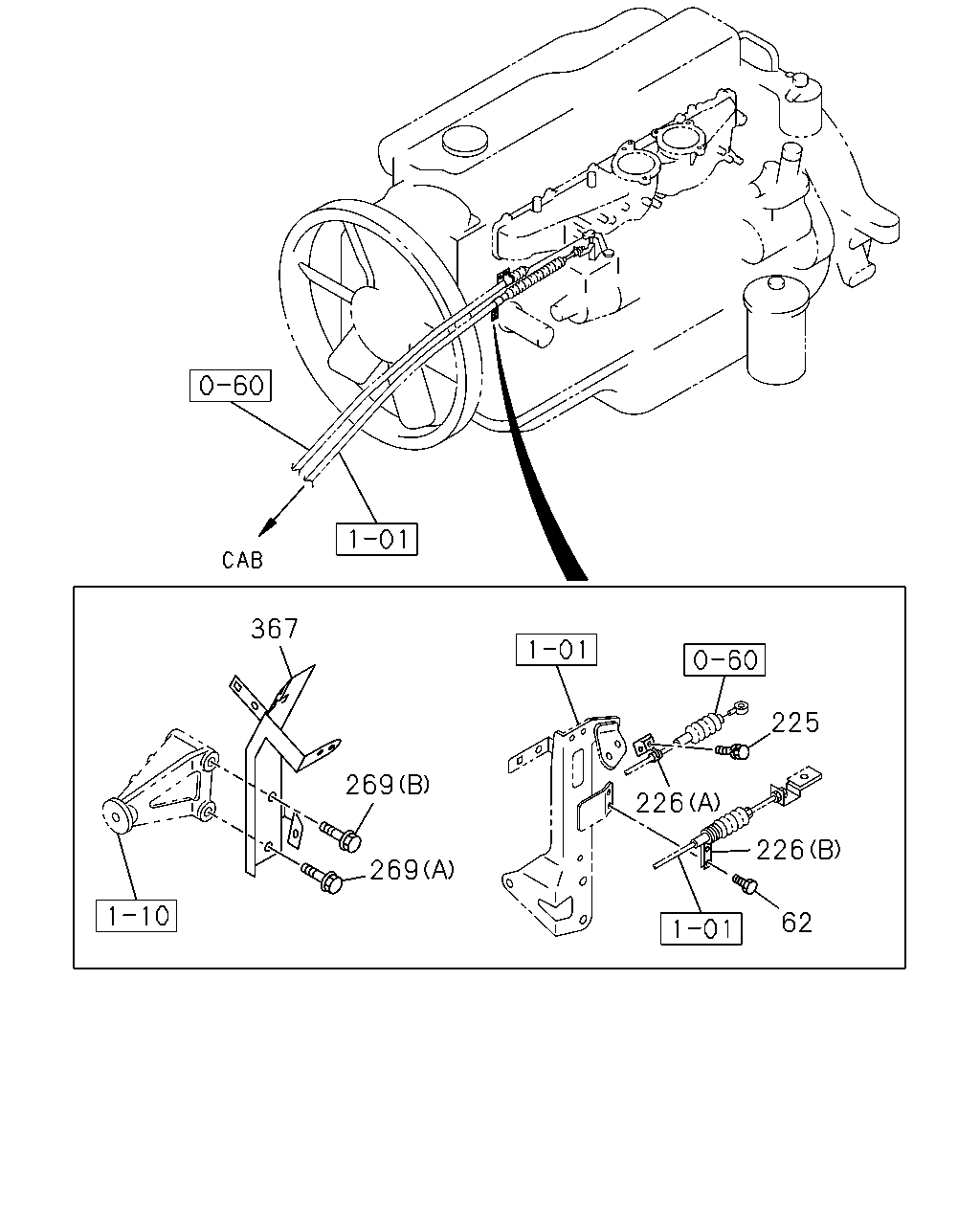

0-35 — ENGINE CONTROL VALVE AND LEVER
(#37838) — 33 parça
Tümü
A - 6HE1 TC ENG
B - 6HE1 TCN ENG
C - 6HH1 STD ENG
D - 6HH1 N ENG
E - 6HE1 TCC ENG
F - 6HH1 STD 4VALVE ENG
367
225
269
226
226
269
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
62
BOLT; CABLE END
M6X20 FLANGE
0-28080-620-0
02
1
9510-9606
●
●
●
●
●
62
BOLT; CABLE END
M6X25 FLANGE
0-28680-625-0
02
1
9607-9702
●
●
●
●
●
62
BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE
0-28680-620-0
02
1
9703-0004
●
●
●
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0005-0512
●
●
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28650-620-0
02
1
0601-
●
●
●
●
62
BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE
0-28680-820-0
02
1
9710-0004
●
62
BOLT; CABLE END
M8X20 FLANGE
0-28680-820-0
02
1
0005-0512
●
62
BOLT; CABLE END
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
●
●
●
●
●
225
BOLT; CLIP FIX
M8X25 FLANGE
0-28680-825-0
02
1
9607-9612
●
●
●
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
9701-0004
●
●
●
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0403
●
●
●
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0404-0512
●
●
●
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
●
●
226
CLIP; CABLE END
(A) L=30
1-09700-326-0
01
1
9510-9709
●
●
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) L=30
1-09700-326-0
01
1
9710-0004
●
●
●
●
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) L=30
1-09700-326-0
01
1
0005-0302
●
●
●
●
●
226
CLIP; CABLE END
(A) L=30
1-09700-326-0
01
1
0303-
●
●
●
●
226
CLIP; CABLE END
(B)
1-09700-787-1
01
1
9510-9709
●
●
●
●
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (B)
1-09700-787-1
01
1
9710-0004
●
●
●
●
●
226
CLIP; CABLE END
(B)
1-09700-787-1
01
1
0005-0302
●
●
●
●
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (B)
1-09700-787-1
01
1
0303-
●
●
●
226
CLIP; CABLE END
(B)
1-09700-787-1
01
1
0303-
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B)
1-23219-032-0
01
1
9710-0004
●
226
CLIP; CABLE END
(B)
1-23219-032-0
01
1
0005-
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> (A)
8-94397-228-0
01
1
9710-9802
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> (A)
8-94397-228-0
01
1
9805-0302
●
226
CLIP; CABLE END
(A)
8-94397-228-0
01
1
0303-
●
269
BOLT; BRKT FIX
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE
0-28181-060-0
01
1
0011-0512
●
269
BOLT; BRKT FIX
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE
0-28151-060-0
01
1
0601-
●
269
BOLT; BRKT FIX
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE
0-28181-090-0
01
1
0011-0512
●
269
BOLT; BRKT FIX
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE
0-28151-090-0
01
1
0601-
●
367
BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>
8-94391-047-3
01
1
0011-
●
