Sayfa 0-27 - Isuzu EPC

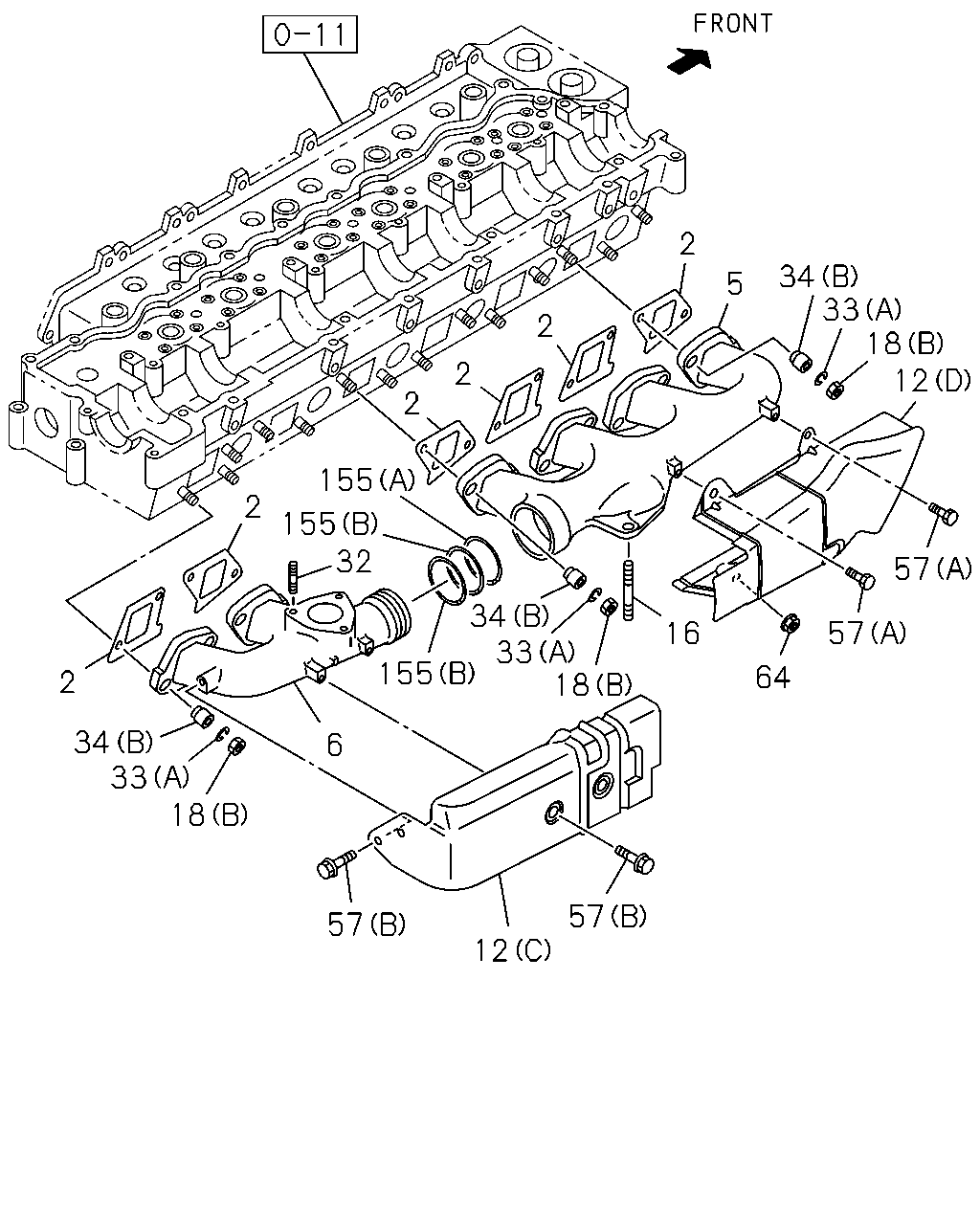

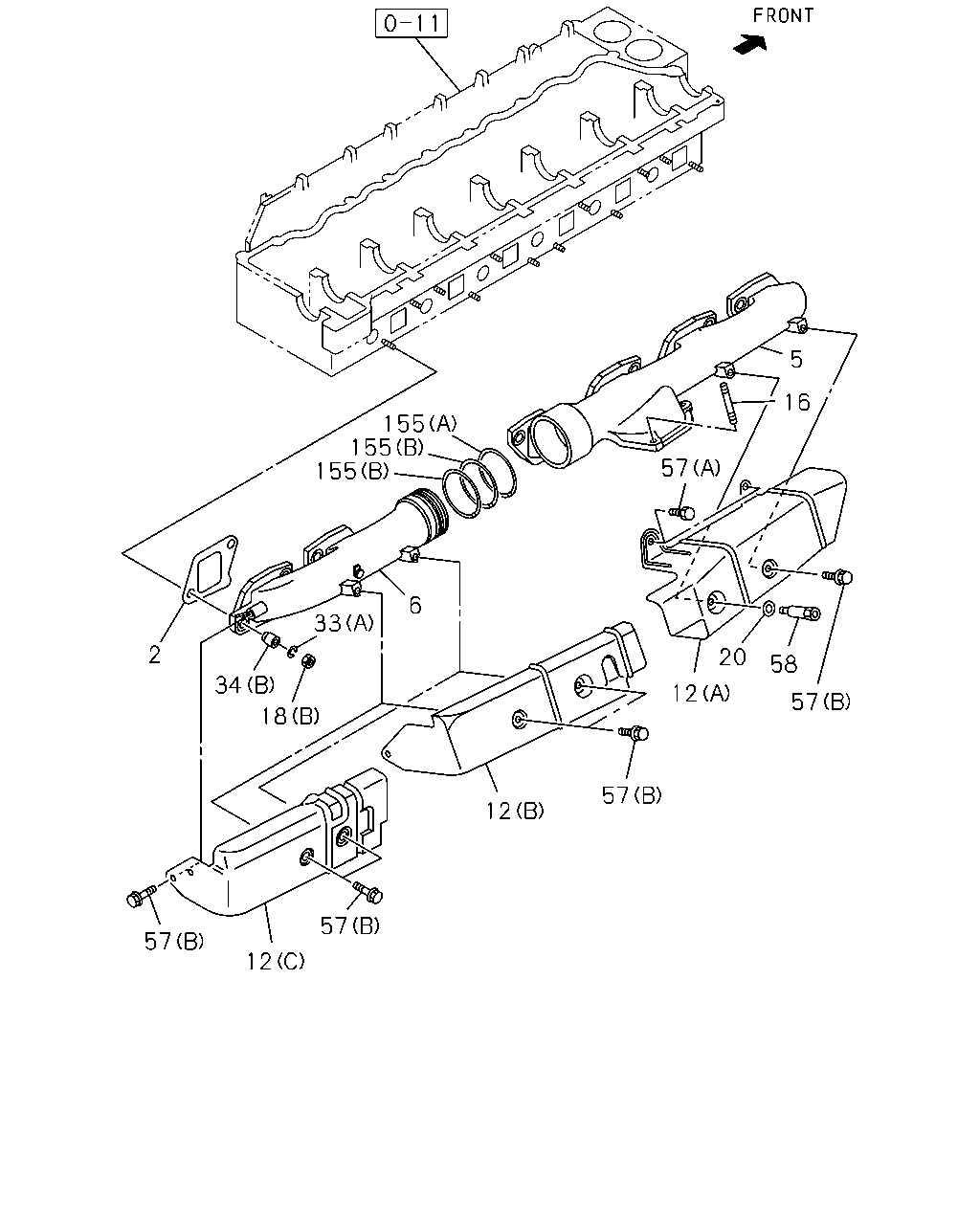

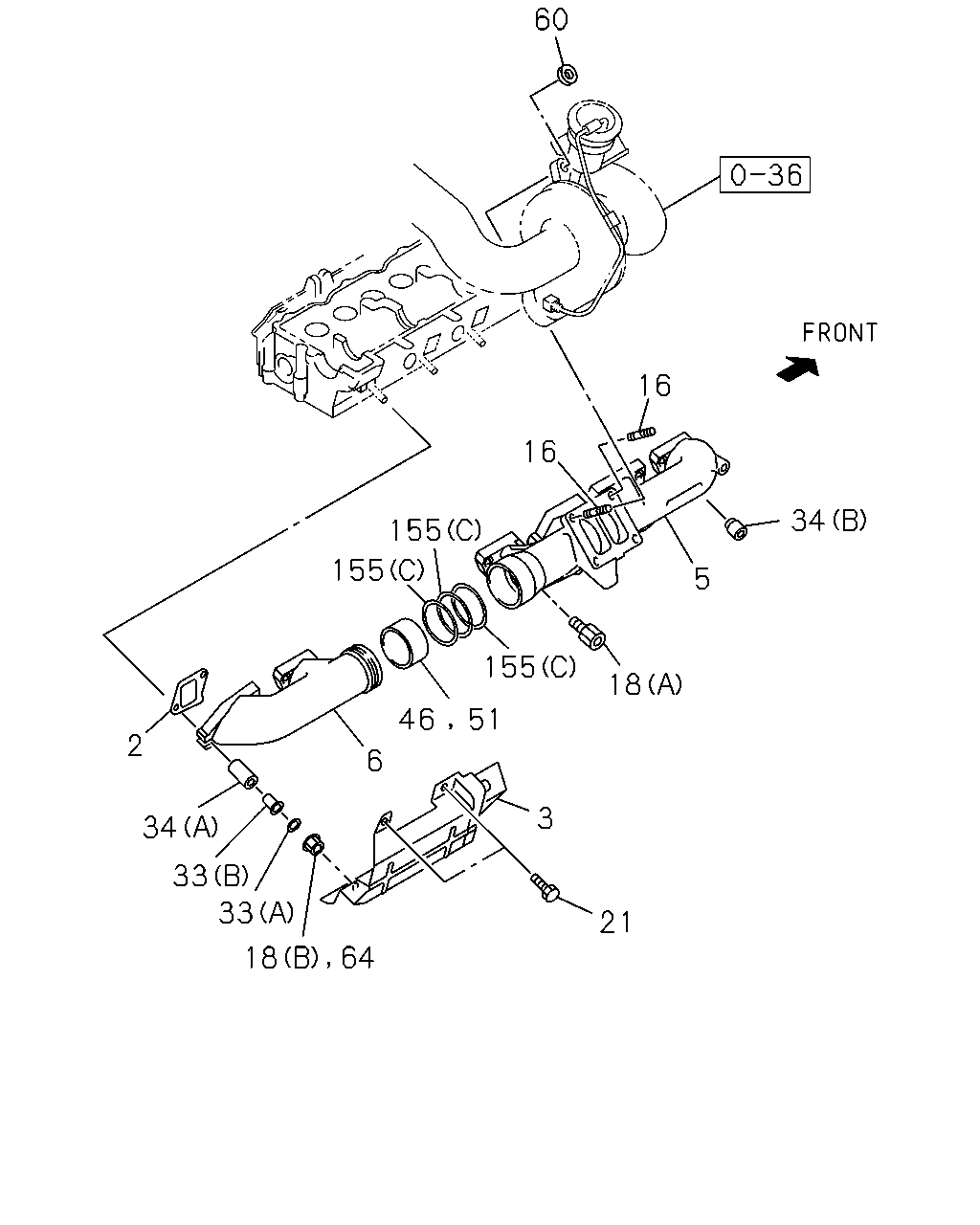

0-27 — EXHAUST MANIFOLD (#37832) — 302 parça

60 16 16 34 155 155 5 155 18 46 51 2 6 3 34 33 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-3	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9709			●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004			●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0005-			●	●	●	●
3	PROTECTOR; HEAT,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-385-1	01	1	9710-9901	●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9710-9901					●
3	PROTECTOR; HEAT,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-582-0	01	1	9902-0004	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-0	01	1	9902-0004					●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-					●
5	MANIFOLD; EXH,FRT ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-366-2	01	1	9510-0004	●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	9510-0004		●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	0005-	●
5	MANIFOLD; EXH,FRT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94395-422-2	01	1	9710-0004	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9710-0004					●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104					●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-					●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004			●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-			●	●		●
6	MANIFOLD; EXH,RR ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-744-0	01	1	9510-0004	●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	9510-0004		●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	0005-	●
6	MANIFOLD; EXH,RR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-636-1	01	1	9710-0004	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9710-0004					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104					●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004			●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0009			●	●		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0010-			●	●
6	MANIFOLD; EXH,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0010-						●
6	MANIFOLD; EXH,RR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-						●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9510-0004	●	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-		●			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004			●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-			●	●		●
18	NUT; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0005-0010			●	●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0011-0602		●	●	●		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●	●		●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0005-0602					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10 L=51	8-94394-991-1	02	1	9710-0004	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-0004					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	0005-1202					●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●
21	BOLT; HEAT PROTECTOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X16 FLANGE	0-28080-816-0	02	1	9710-0004	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9710-0004					●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0512					●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
33	WASHER; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) T=5.5	1-14149-042-0	11	1	9510-0004	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	9510-0004		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	0005-0301		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9510-0004	●	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●	●	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	01	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	01	1	0210-	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=43	8-94396-406-0	11	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	0005-0301		●
34	COLLAR; DIST,EXH MANIF (A) L=47	1-14149-263-0	11	1	0302-	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9510-9612			●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	12	1	9701-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9701-0004			●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	0005-0209			●	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	12	1	0210-			●	●	●	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0502-	●
46	PIPE; SEAL,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> OD=49.5 L=43	1-14149-131-1	01	1	9710-0004	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9710-0004					●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0005-0104					●
51	PIPE; SEAL ENGINE OIL TEMPERATURE GAUGE<UG3> OD=49.5 L=43	1-14149-131-1	01	1	9510-0004	●
51	PIPE; SEAL OD=49.5 L=43	1-14149-131-1	01	1	9510-0004		●
51	PIPE; SEAL OD=49.5 L=43	1-14149-131-1	01	1	0005-0501		●
60	WASHER; PL,EXH PIPE ENGINE OIL TEMPERATURE GAUGE<UG3> ID=10	1-09503-033-1	02	1	9510-0004	●
60	WASHER; PL,EXH PIPE ID=10	1-09503-033-1	02	1	9510-0004		●
60	WASHER; PL,EXH PIPE ID=10	1-09503-033-1	02	1	0005-	●
64	NUT; HEAT PROTECTOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M10 FLANGE	0-91150-210-0	02	1	9710-0004	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9710-0004					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0010					●
64	NUT; HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10 FLANGE	0-91150-210-0	02	1	0005-0010						●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0011-0602					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0011-0602						●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-210-0	02	1	0603-						●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9510-0004	●	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501		●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	01	1	0502-		●	●	●	●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-		●	●	●	●	●

5 16 155 155 155 57 6 33 2 20 58 34 12 57 18 57 12 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-3	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9709			●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004			●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0005-			●	●	●	●
5	MANIFOLD; EXH,FRT ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-366-2	01	1	9510-0004	●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	9510-0004		●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	0005-	●
5	MANIFOLD; EXH,FRT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94395-422-2	01	1	9710-0004	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9710-0004					●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104					●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-					●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004			●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-			●	●		●
6	MANIFOLD; EXH,RR ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-744-0	01	1	9510-0004	●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	9510-0004		●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	0005-	●
6	MANIFOLD; EXH,RR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-636-1	01	1	9710-0004	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9710-0004					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104					●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004			●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0009			●	●		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0010-			●	●
6	MANIFOLD; EXH,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0010-						●
6	MANIFOLD; EXH,RR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9510-0004			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<THN> (A)	8-94395-204-0	01	1	0005-						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9510-9609			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-0004			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	0005-			●	●		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94391-190-1	01	1	0005-0010						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-94391-190-1	01	1	0011-0407						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97604-919-0	01	1	0408-0608						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97611-120-0	01	1	0609-						●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9510-0004	●	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-		●			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004			●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-			●	●		●
18	NUT; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0005-0010			●	●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0011-0602		●	●	●		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●	●		●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0005-0602					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10 L=51	8-94394-991-1	02	1	9710-0004	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-0004					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	0005-1202					●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9510-9803			●	●
33	WASHER; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) T=5.5	1-14149-042-0	11	1	9510-0004	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	9510-0004		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	0005-0301		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9510-0004	●	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●	●	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	01	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	01	1	0210-	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=43	8-94396-406-0	11	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	0005-0301		●
34	COLLAR; DIST,EXH MANIF (A) L=47	1-14149-263-0	11	1	0302-	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9510-9612			●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	12	1	9701-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9701-0004			●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	0005-0209			●	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	12	1	0210-			●	●	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9510-0004			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0512			●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9510-0004			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0408			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0408						●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X14 FLANGE	8-94312-699-1	03	1	0005-0010						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-94312-699-1	03	1	0011-0408						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-97378-075-0	03	1	0409-						●
58	STUD; HEAT PROTECTOR	8-94396-828-2	01	1	9510-9803			●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9510-0004	●	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501		●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	01	1	0502-		●	●	●	●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-		●	●	●	●	●

2 34 33 18 12 5 2 2 2 155 2 155 32 34 33 18 57 57 16 155 64 2 34 33 18 6 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9510-0004		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-3	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9709			●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9710-0004			●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0005-			●	●	●	●
5	MANIFOLD; EXH,FRT ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-366-2	01	1	9510-0004	●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	9510-0004		●
5	MANIFOLD; EXH,FRT	8-94394-366-2	01	1	0005-	●
5	MANIFOLD; EXH,FRT EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94395-422-2	01	1	9710-0004	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9710-0004					●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104					●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-					●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004			●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-			●	●		●
6	MANIFOLD; EXH,RR ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-744-0	01	1	9510-0004	●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	9510-0004		●
6	MANIFOLD; EXH,RR	8-94393-744-0	01	1	0005-	●
6	MANIFOLD; EXH,RR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-636-1	01	1	9710-0004	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9710-0004					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104					●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004			●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0009			●	●		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0010-			●	●
6	MANIFOLD; EXH,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0010-						●
6	MANIFOLD; EXH,RR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9510-0004			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<THN> (A)	8-94395-204-0	01	1	0005-						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9510-9609			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-0004			●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	0005-			●	●		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D)	8-94391-190-1	01	1	0005-0010						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-94391-190-1	01	1	0011-0407						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97604-919-0	01	1	0408-0608						●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97611-120-0	01	1	0609-						●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9510-0004	●	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-		●			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004			●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-			●	●		●
18	NUT; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0005-0010			●	●	●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	0011-0602		●	●	●		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●	●		●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9803-0004					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0005-0602					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-9802					●
18	NUT; EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10 L=51	8-94394-991-1	02	1	9710-0004	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-0004					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	0005-1202					●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●
32	STUD; EXH PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X22 L=33	8-94141-773-1	03	1	0011-0408						●
32	STUD; EXH PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X22 L=33	8-97378-061-0	03	1	0409-						●
33	WASHER; EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) T=5.5	1-14149-042-0	11	1	9510-0004	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	9510-0004		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	11	1	0005-0301		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9510-0004	●	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●	●	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	01	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	01	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	01	1	0210-	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=43	8-94396-406-0	11	1	9510-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	9510-0004		●
34	COLLAR; DIST,EXH MANIF (A) L=43	8-94396-406-0	11	1	0005-0301		●
34	COLLAR; DIST,EXH MANIF (A) L=47	1-14149-263-0	11	1	0302-	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9510-9612			●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=28	8-94395-679-0	12	1	9701-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	9701-0004			●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	12	1	0005-0209			●	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-97250-073-1	12	1	0210-			●	●	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9510-0004			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0512			●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9510-0004			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0408			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0408						●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-			●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X14 FLANGE	8-94312-699-1	03	1	0005-0010						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-94312-699-1	03	1	0011-0408						●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (B) M8X14 FLANGE	8-97378-075-0	03	1	0409-						●
64	NUT; HEAT PROTECTOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M10 FLANGE	0-91150-210-0	02	1	9710-0004	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9710-0004					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0010					●
64	NUT; HEAT PROTECTOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10 FLANGE	0-91150-210-0	02	1	0005-0010						●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0011-0602					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0011-0602						●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-210-0	02	1	0603-						●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9510-0004	●	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501		●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	01	1	0502-		●	●	●	●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004			●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501			●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
